Mazda
>>
2007
>>
CX-9 V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Power Window Main Switch
Power Window Main Switch

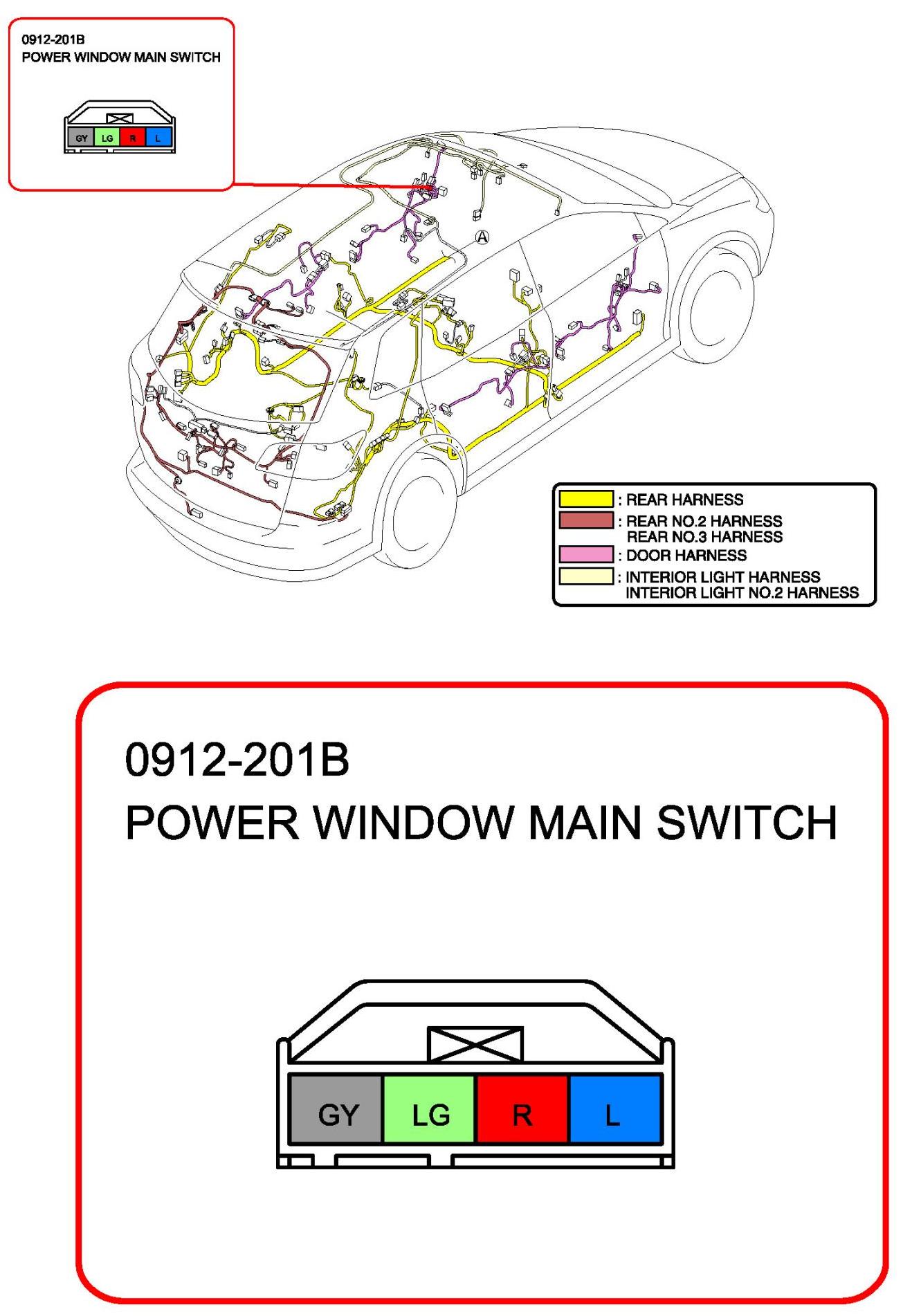

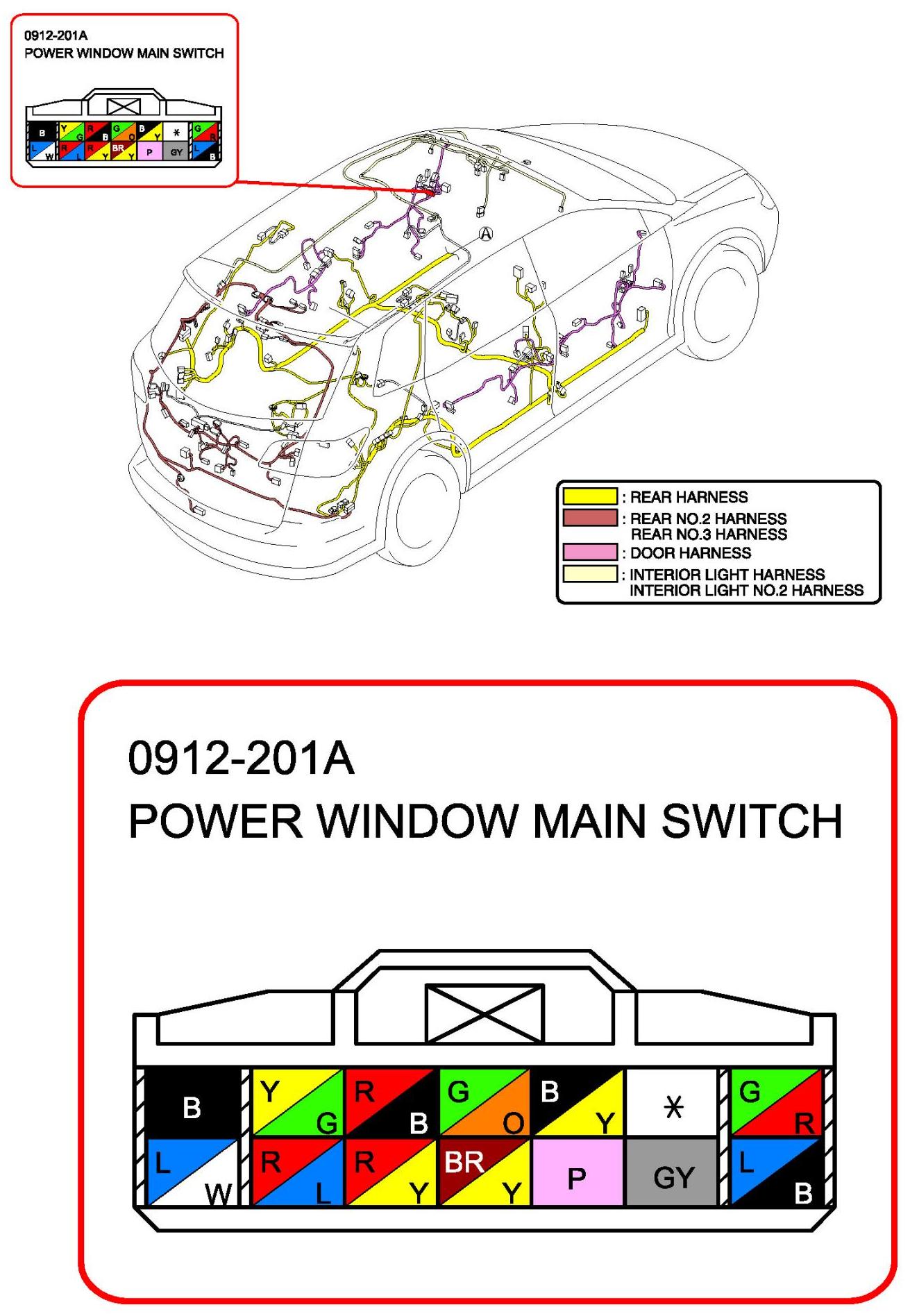

Power Window Main Switch:
Power Window Main Switch:

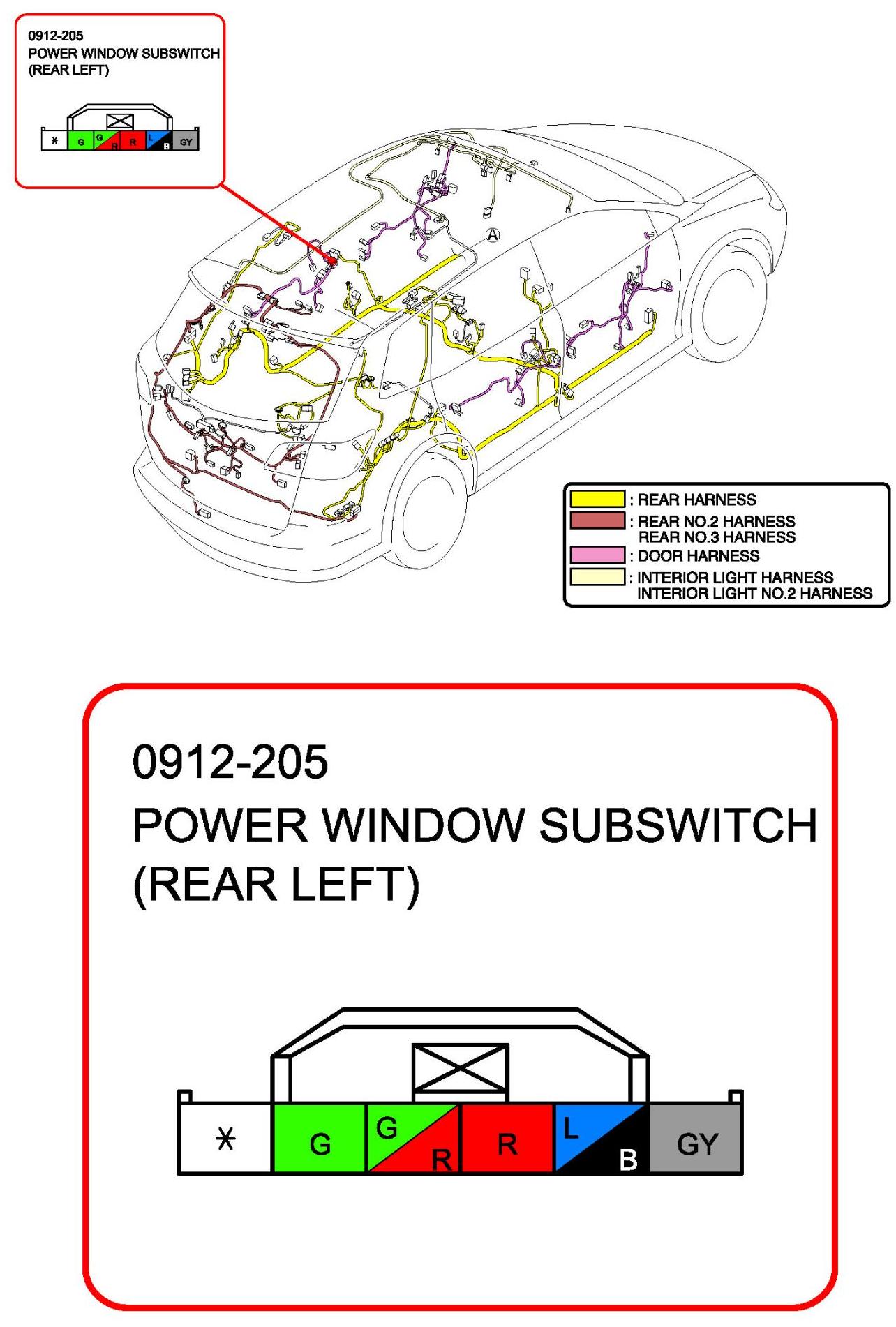

Power Window Subswitch (Rear Left):

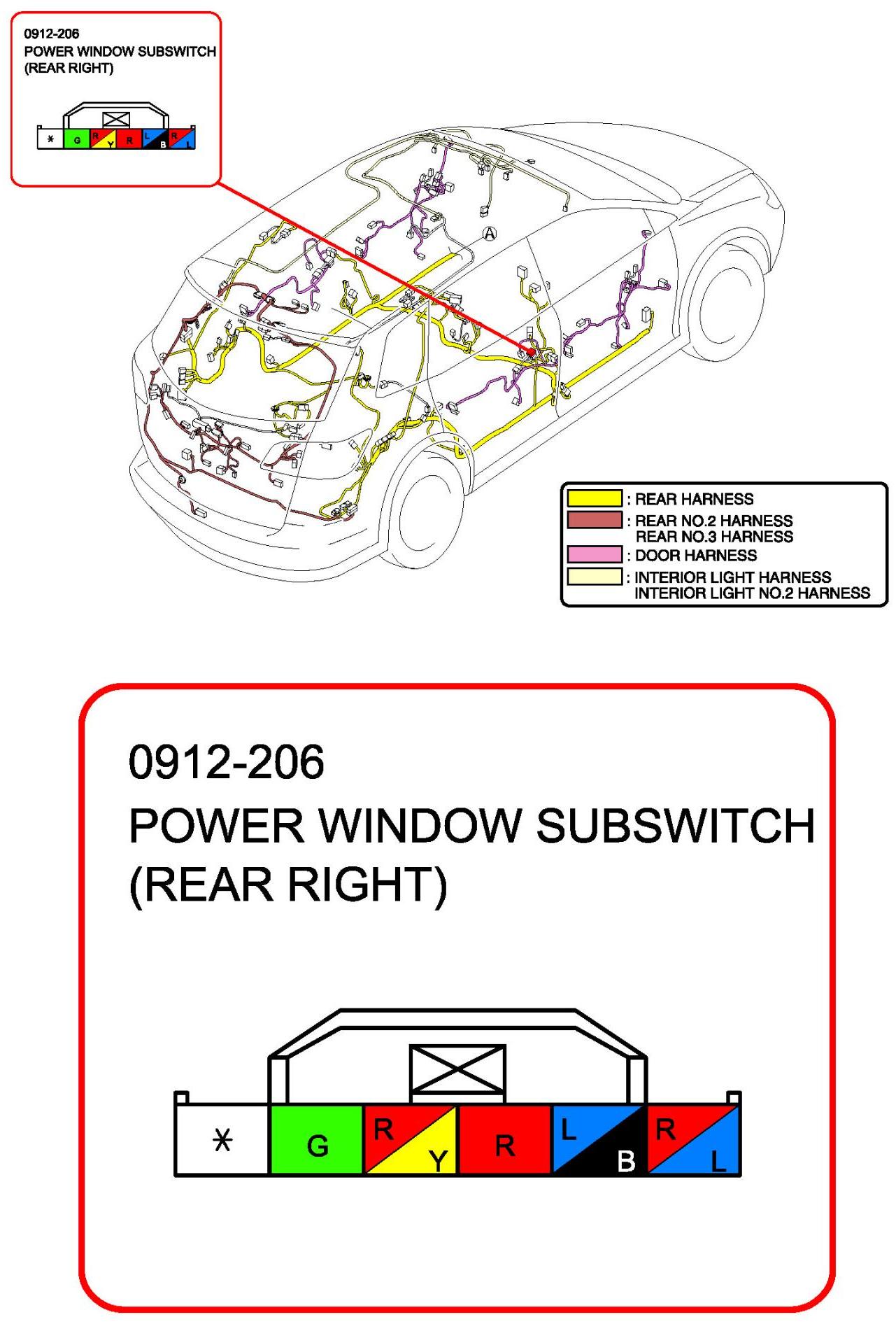

Power Window Subswitch (Rear Right):
