Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Components >> Front Climate Control Unit

Front Climate Control Unit

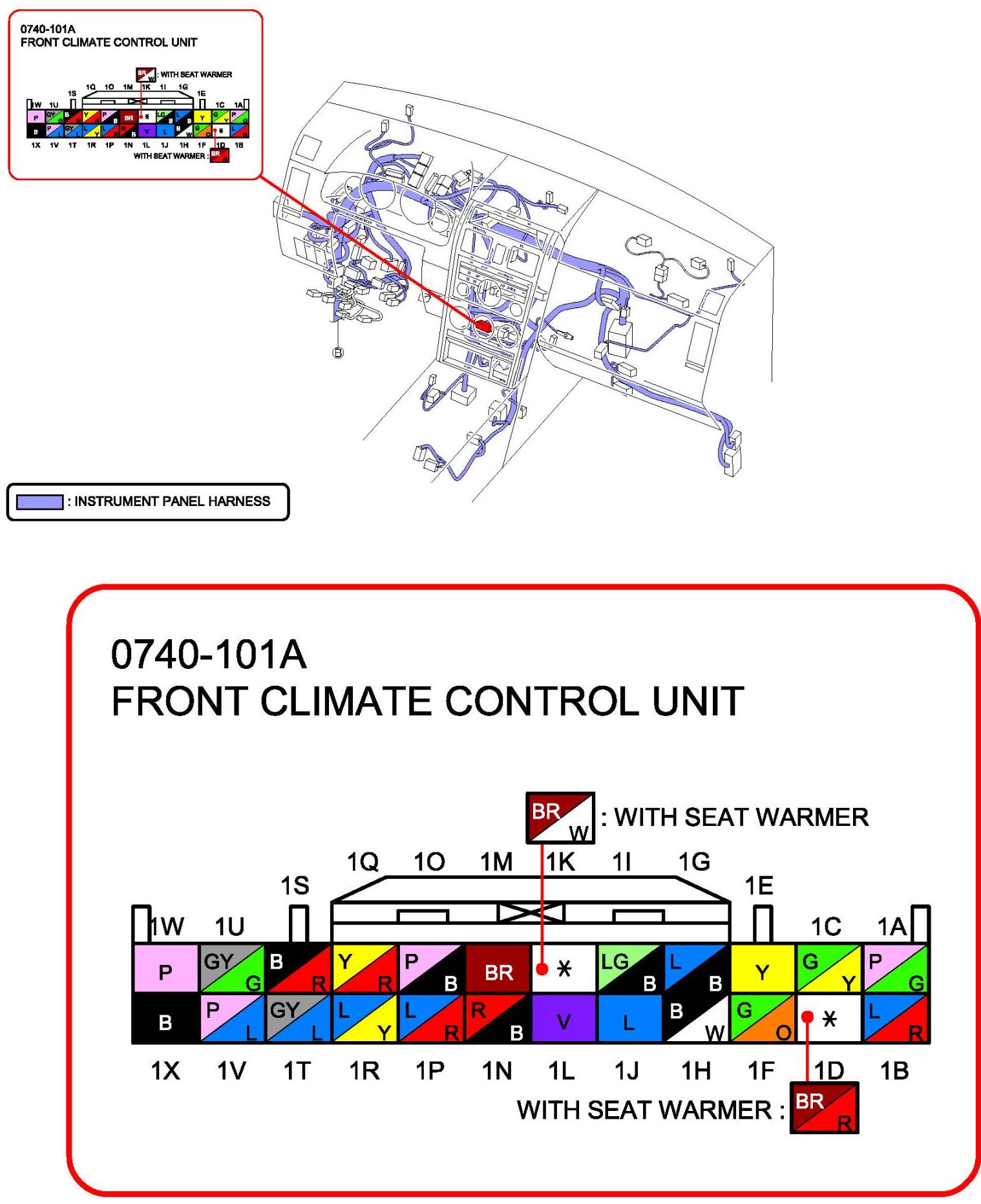

Front Climate Control Uint:

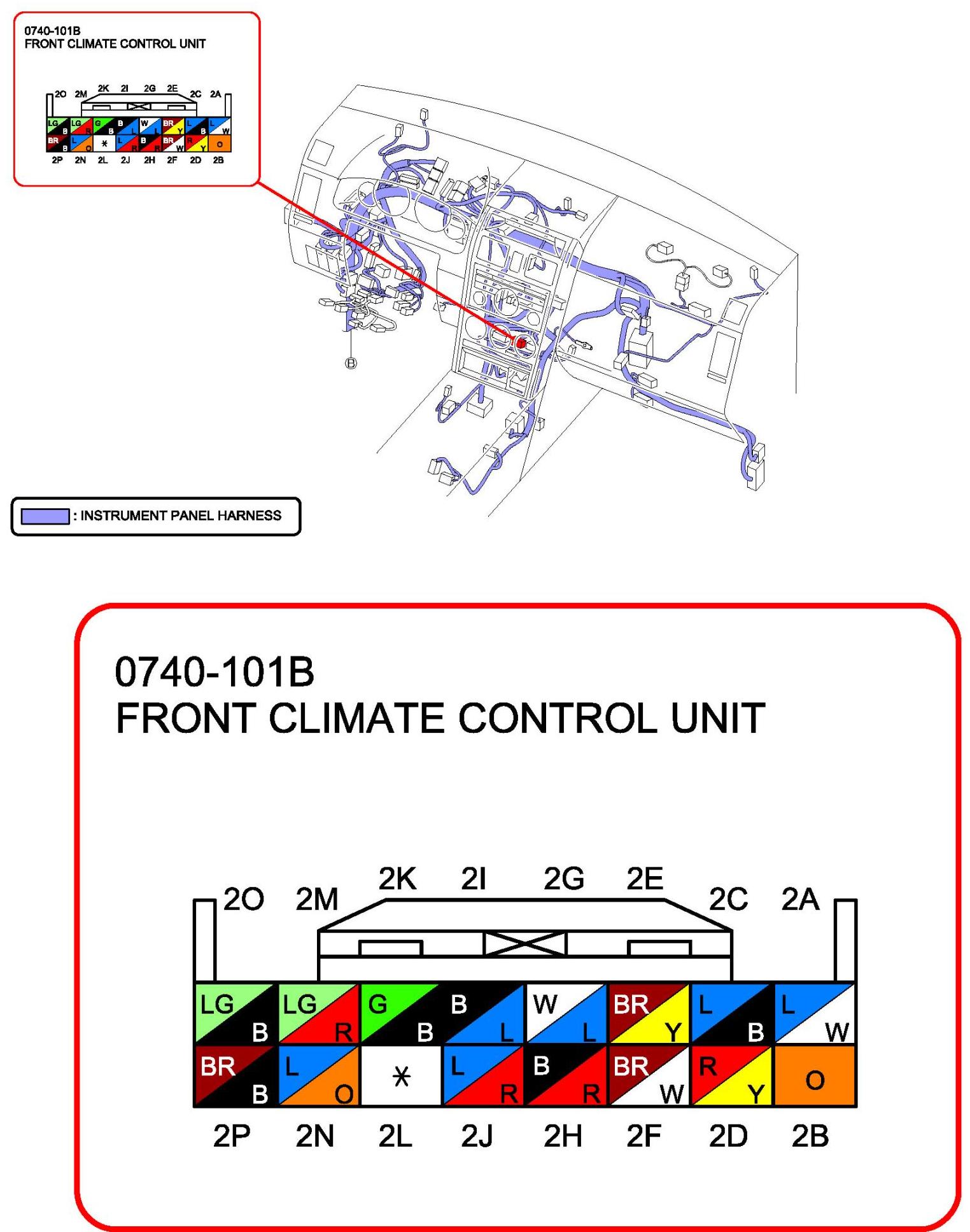

Front Climate Control Uint:

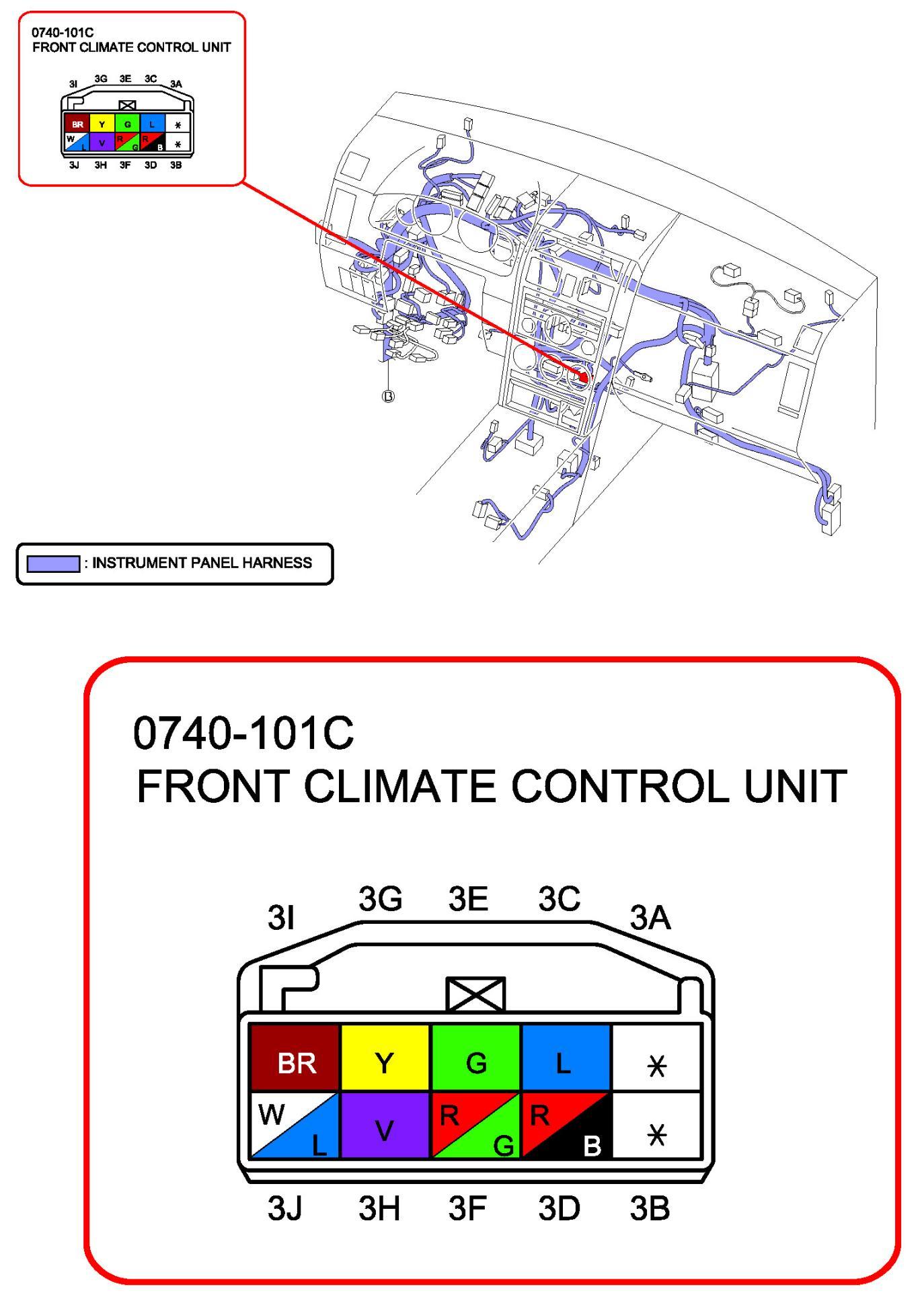

Front Climate Control Uint:
