Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Components >> Crash Zone Sensor

Crash Zone Sensor

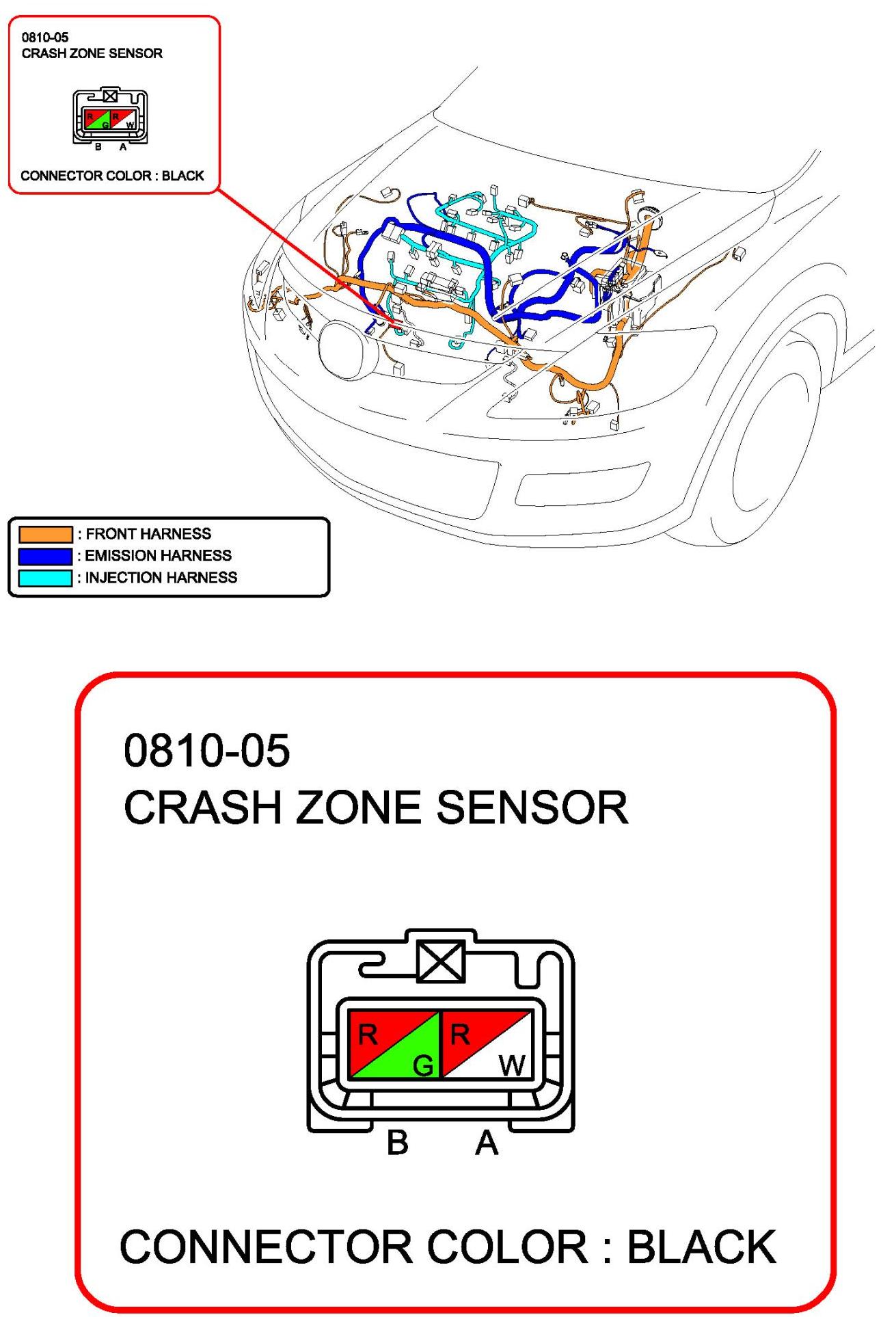

Crash Zone Sensor:

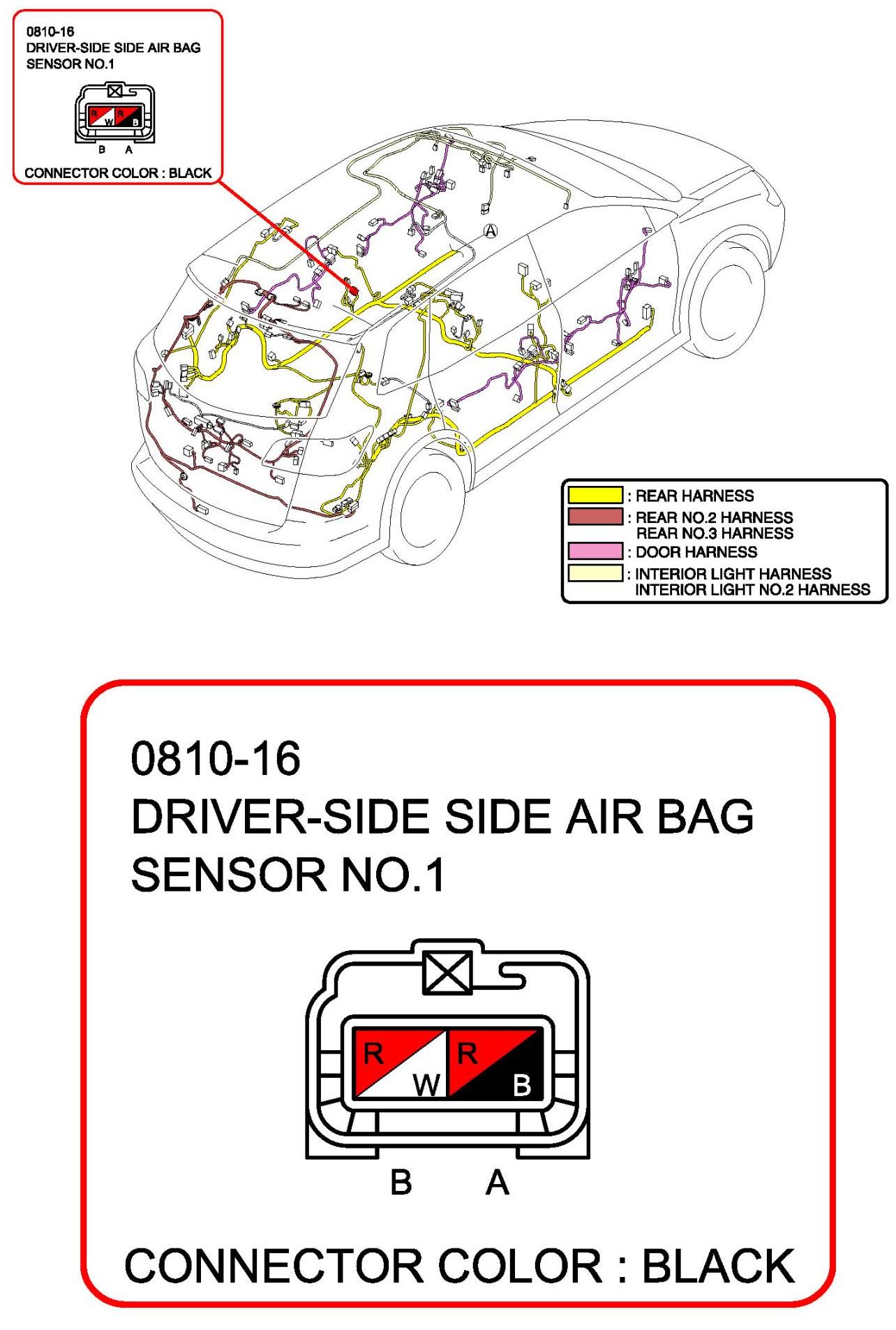

Driver-Side Side Air Bag Sensor No.1:

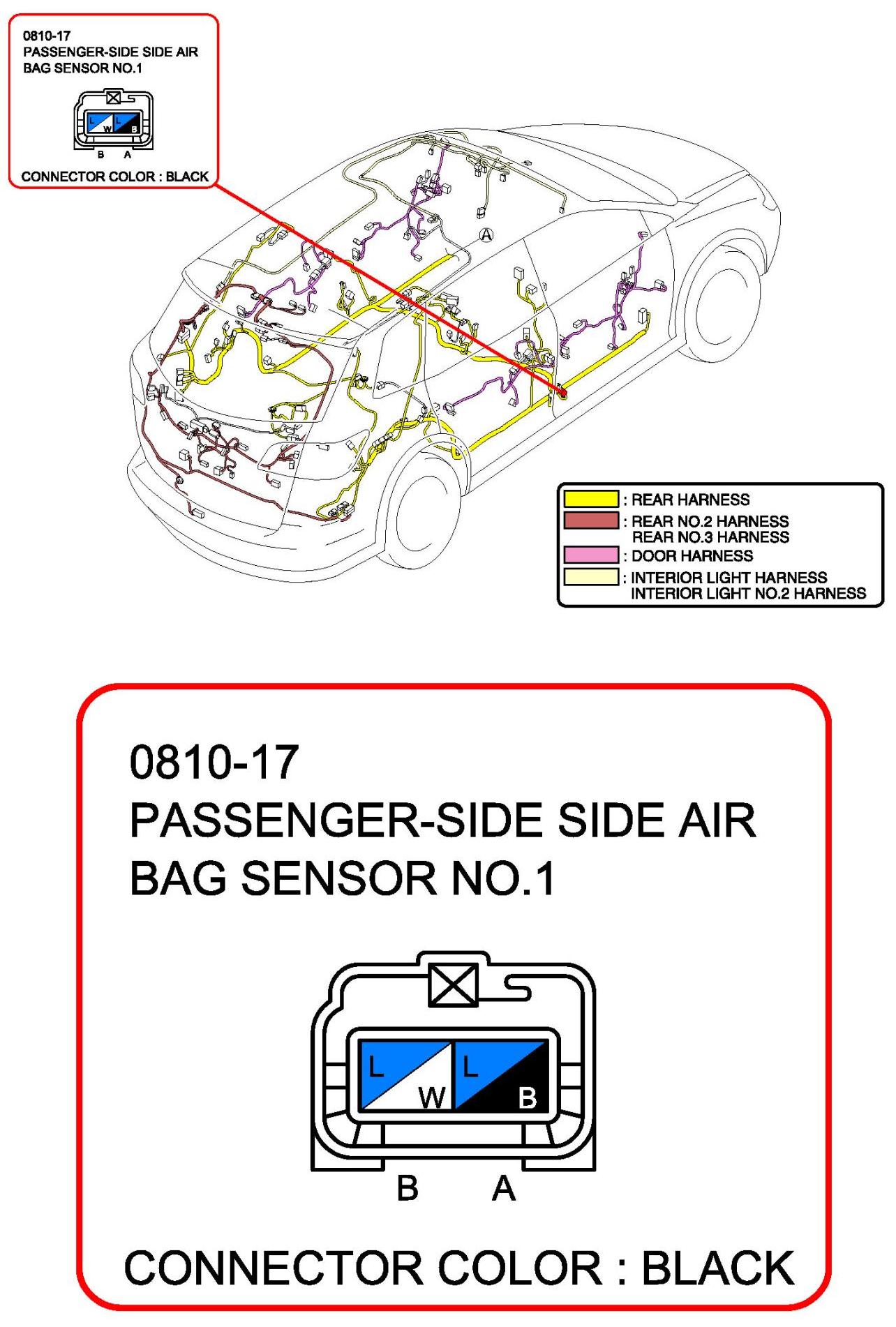

Passenger-Side Side Air Bag Sensor N0.1:

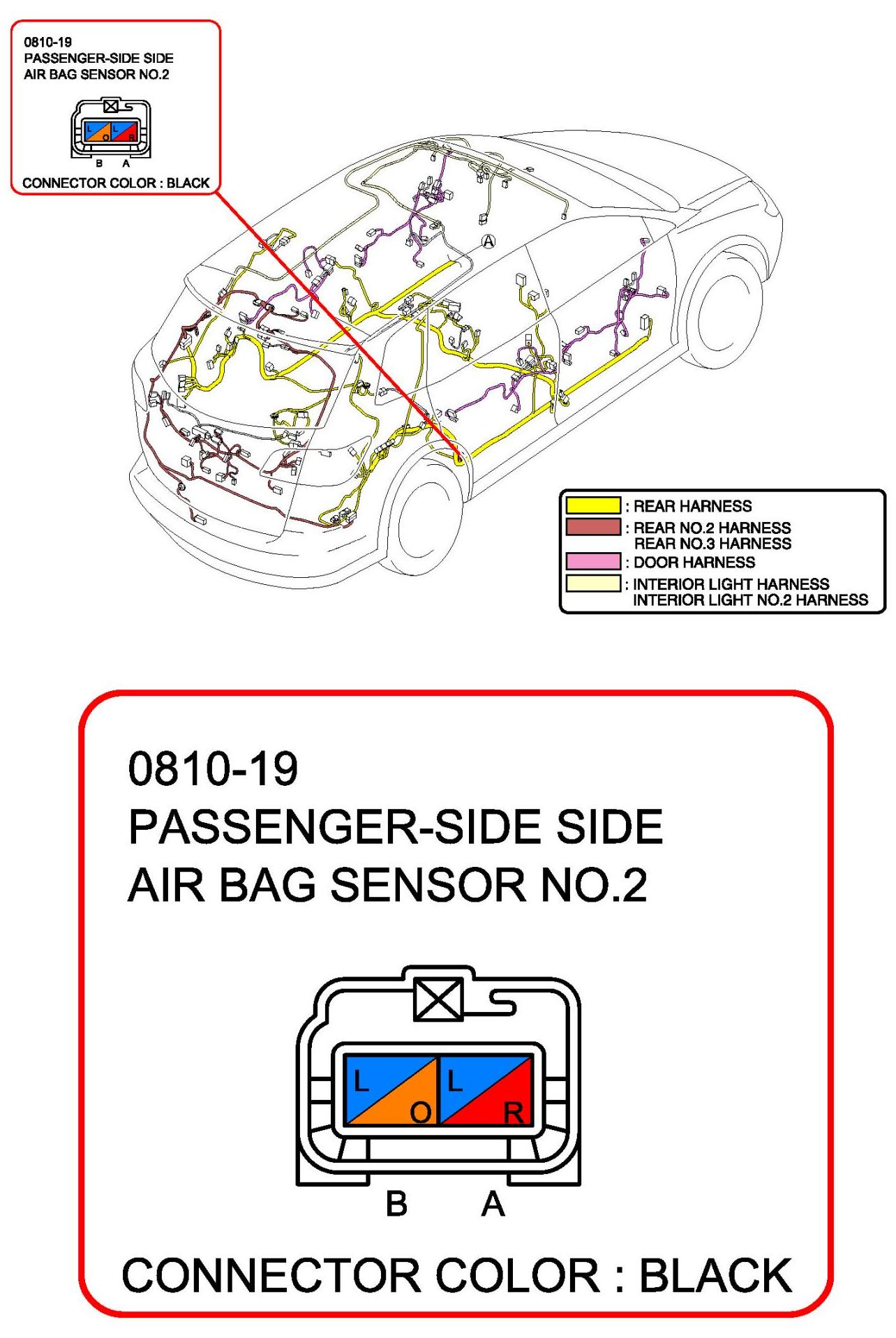

Passenger-Side Side Air Bag Sensor No.2:

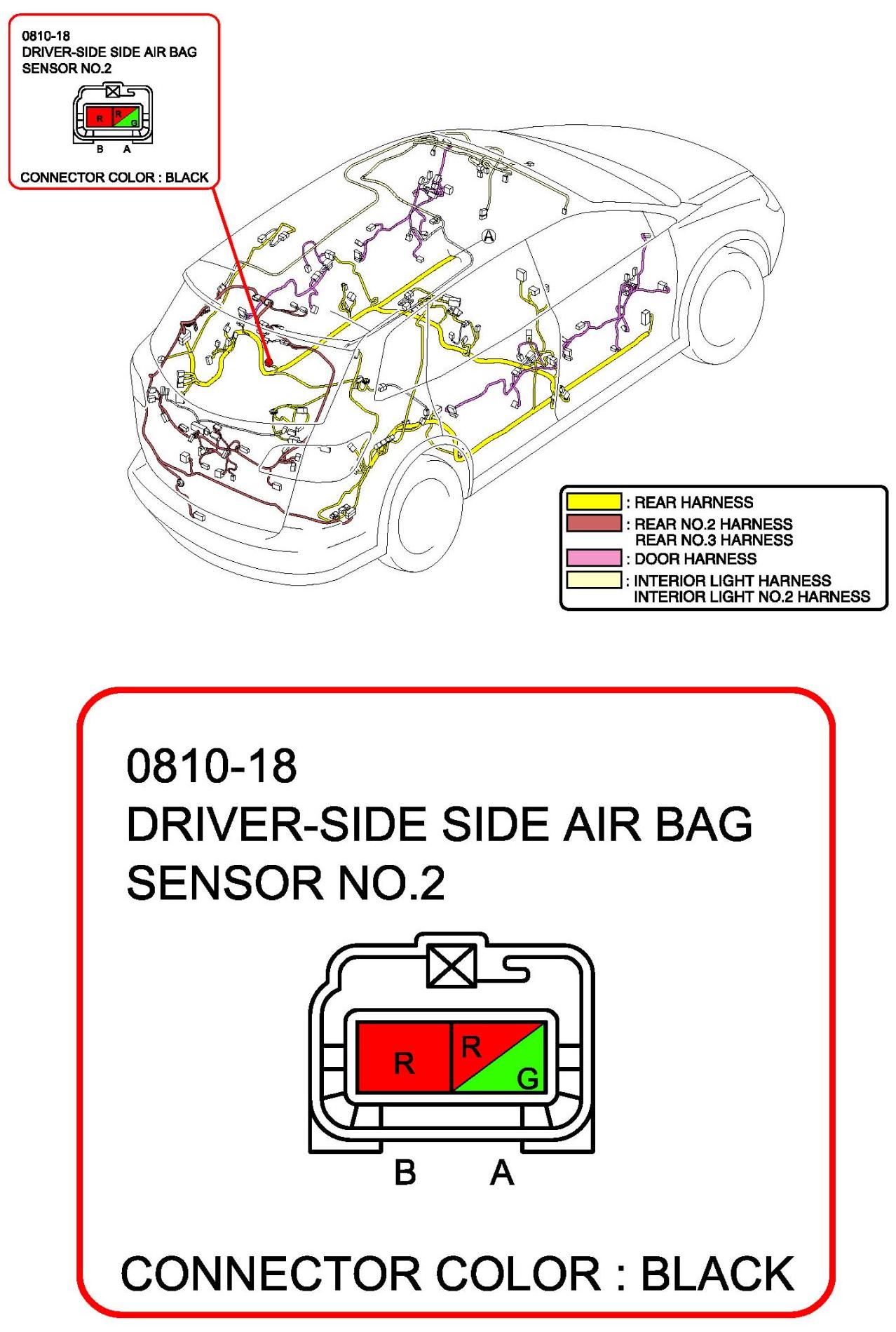

Driver-Side Side Air Bag Sensor No.2:
