Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Components >> Audio Unit

Audio Unit

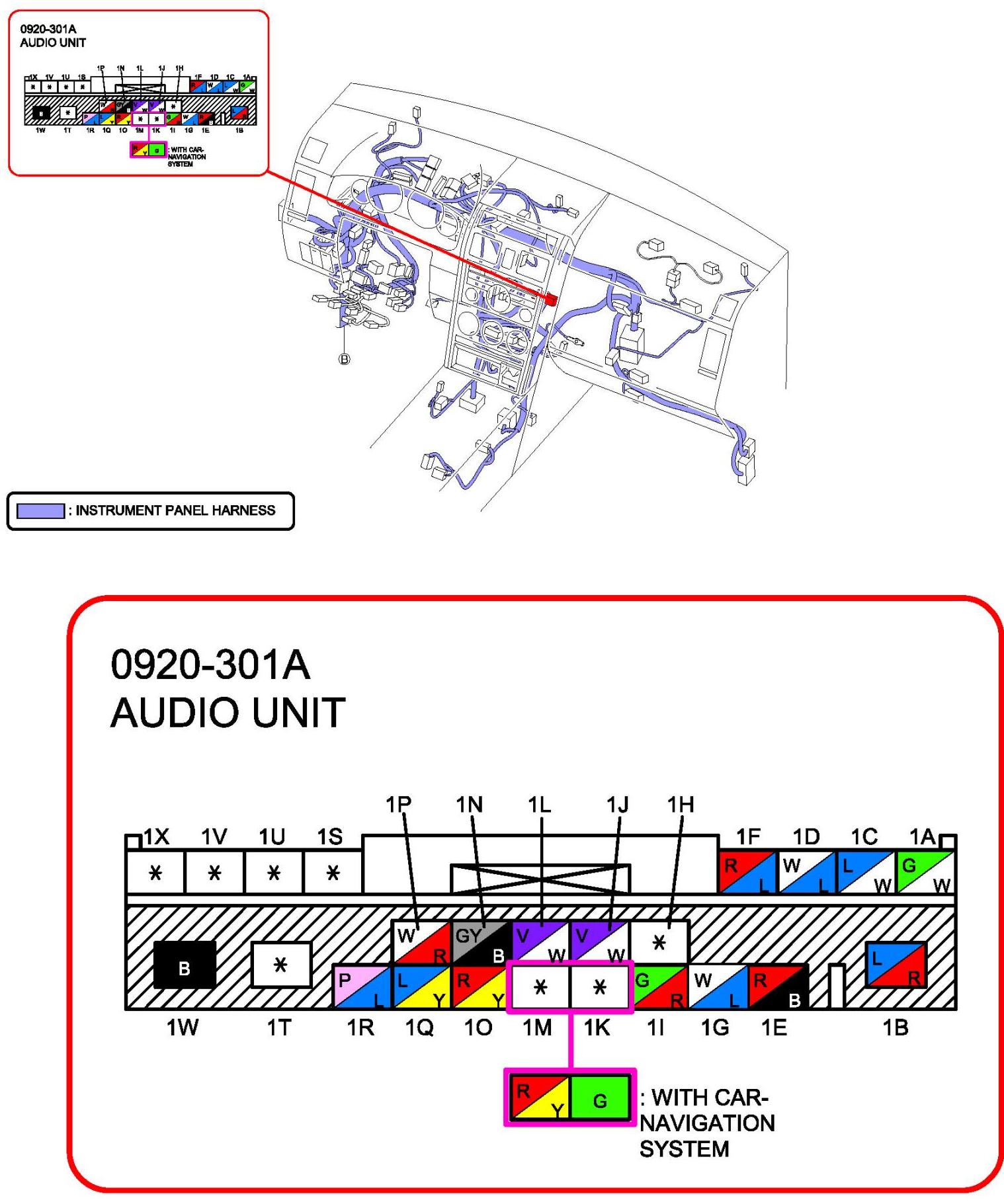

Audio Unit:

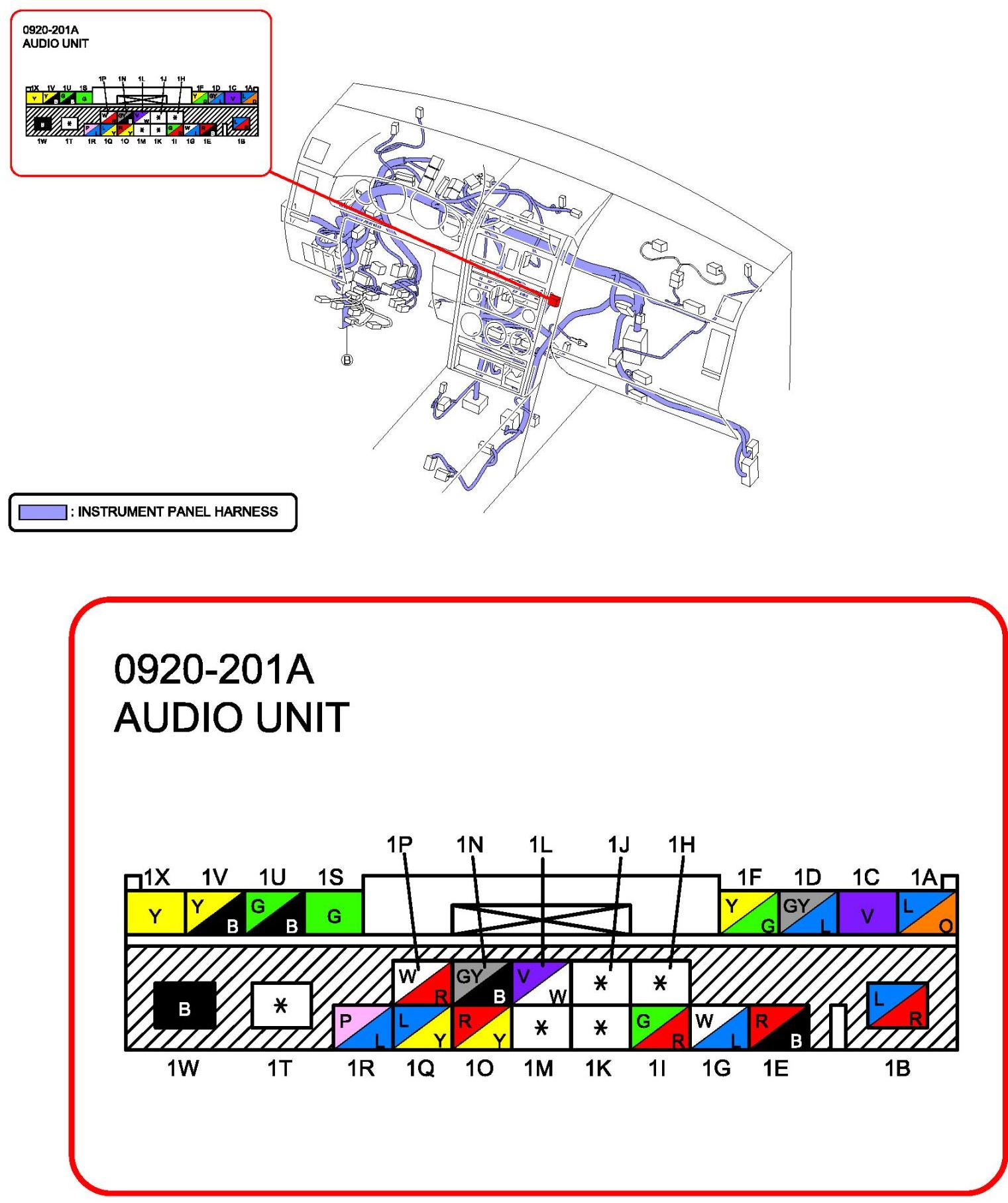

Audio Unit:

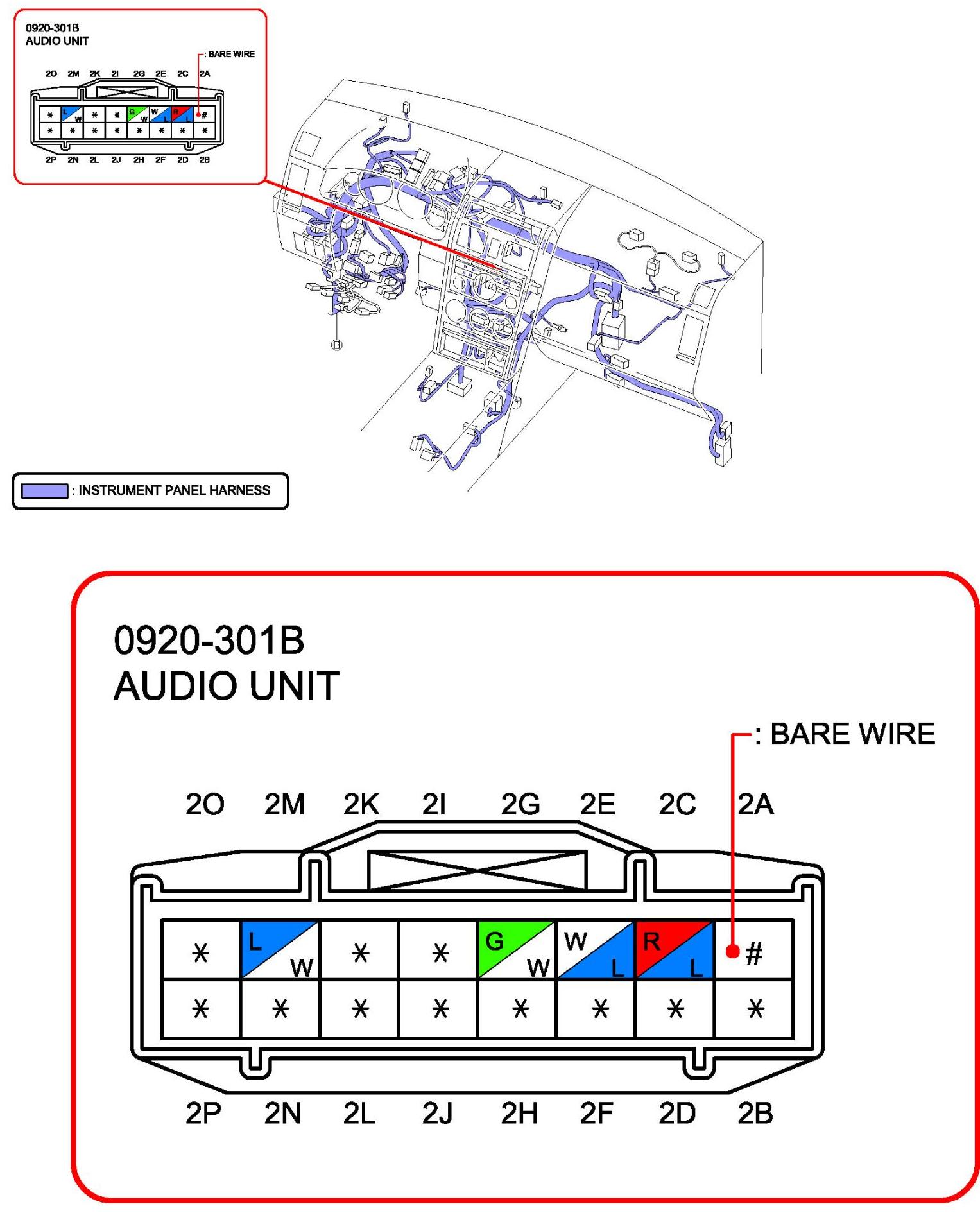

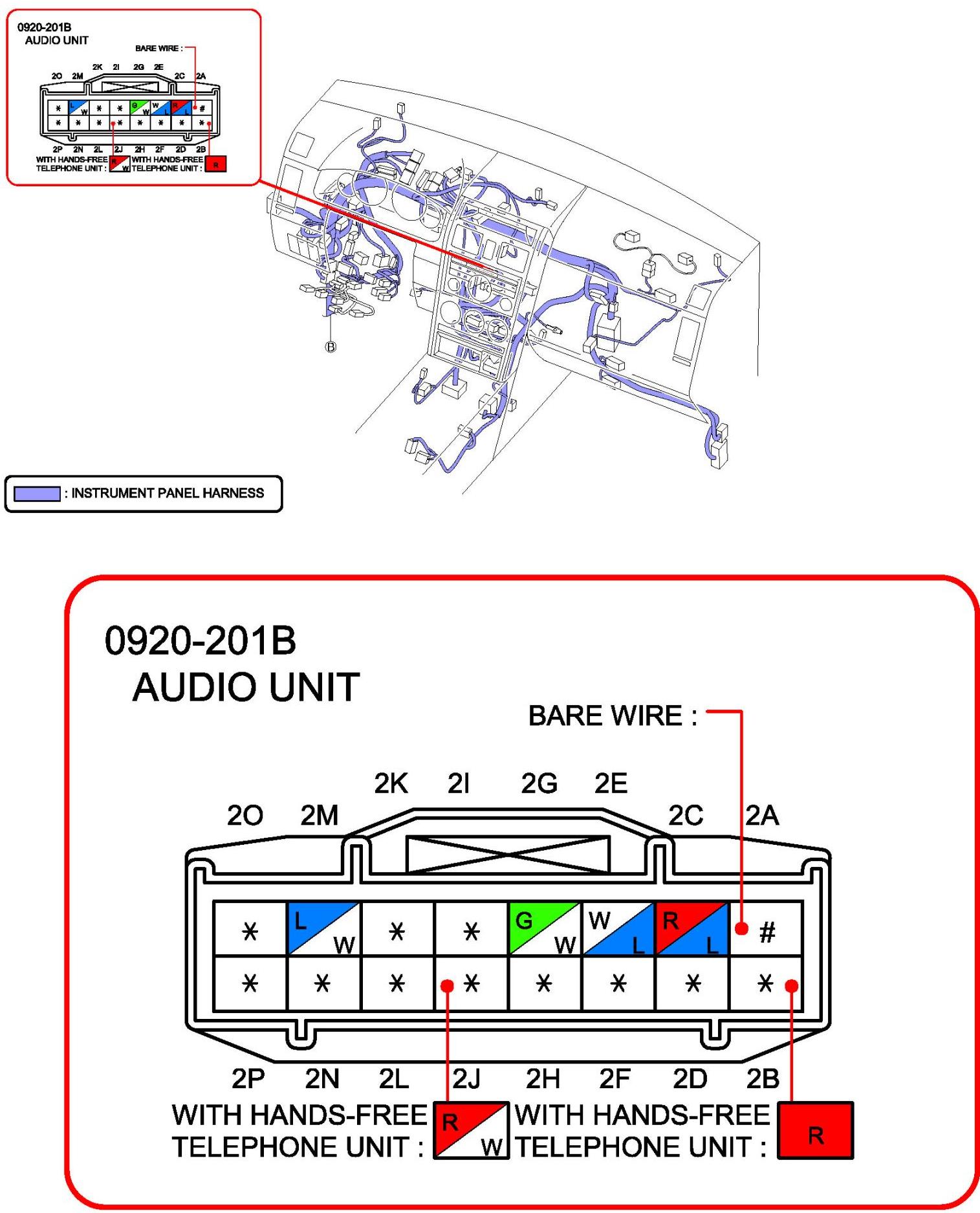

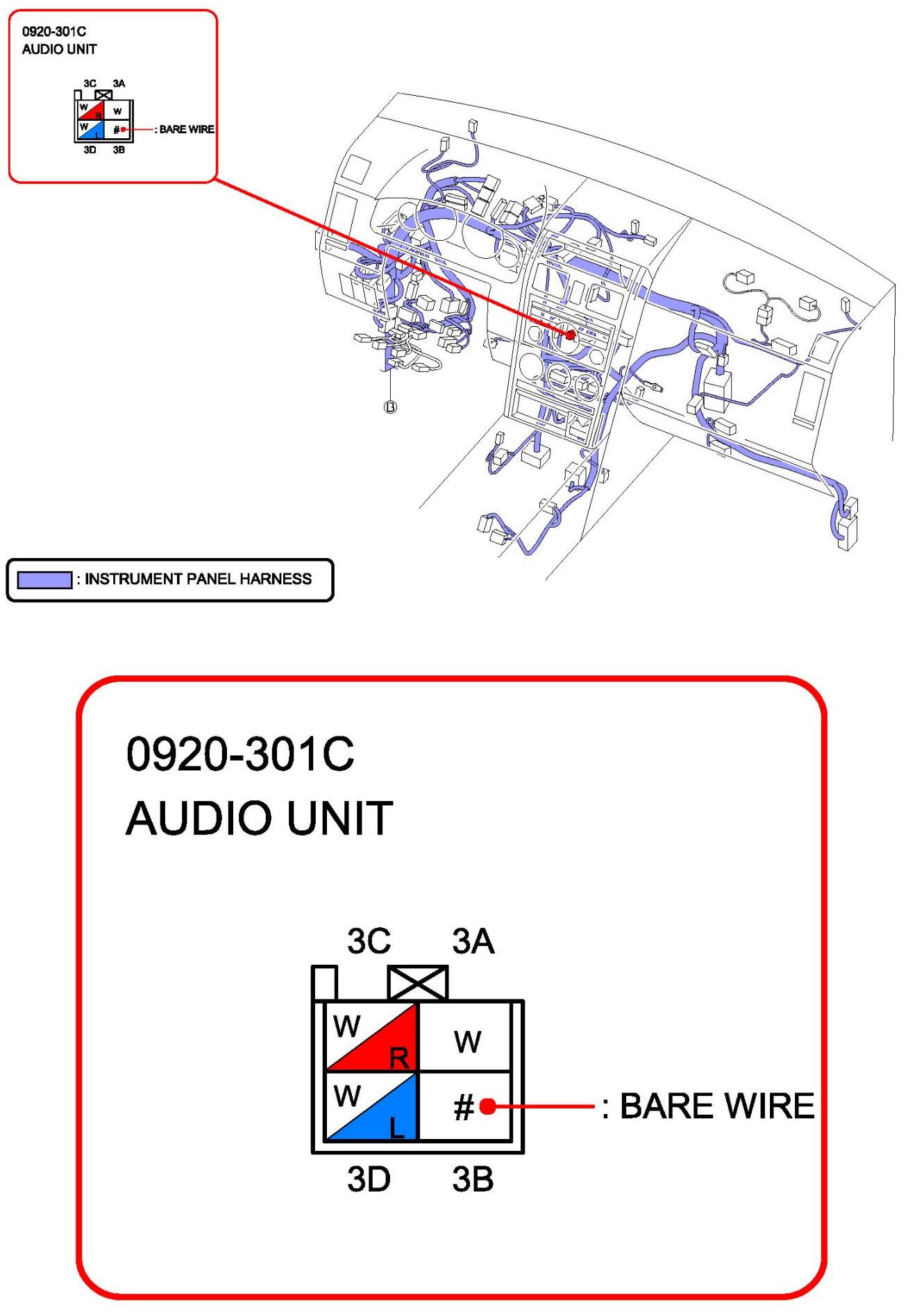

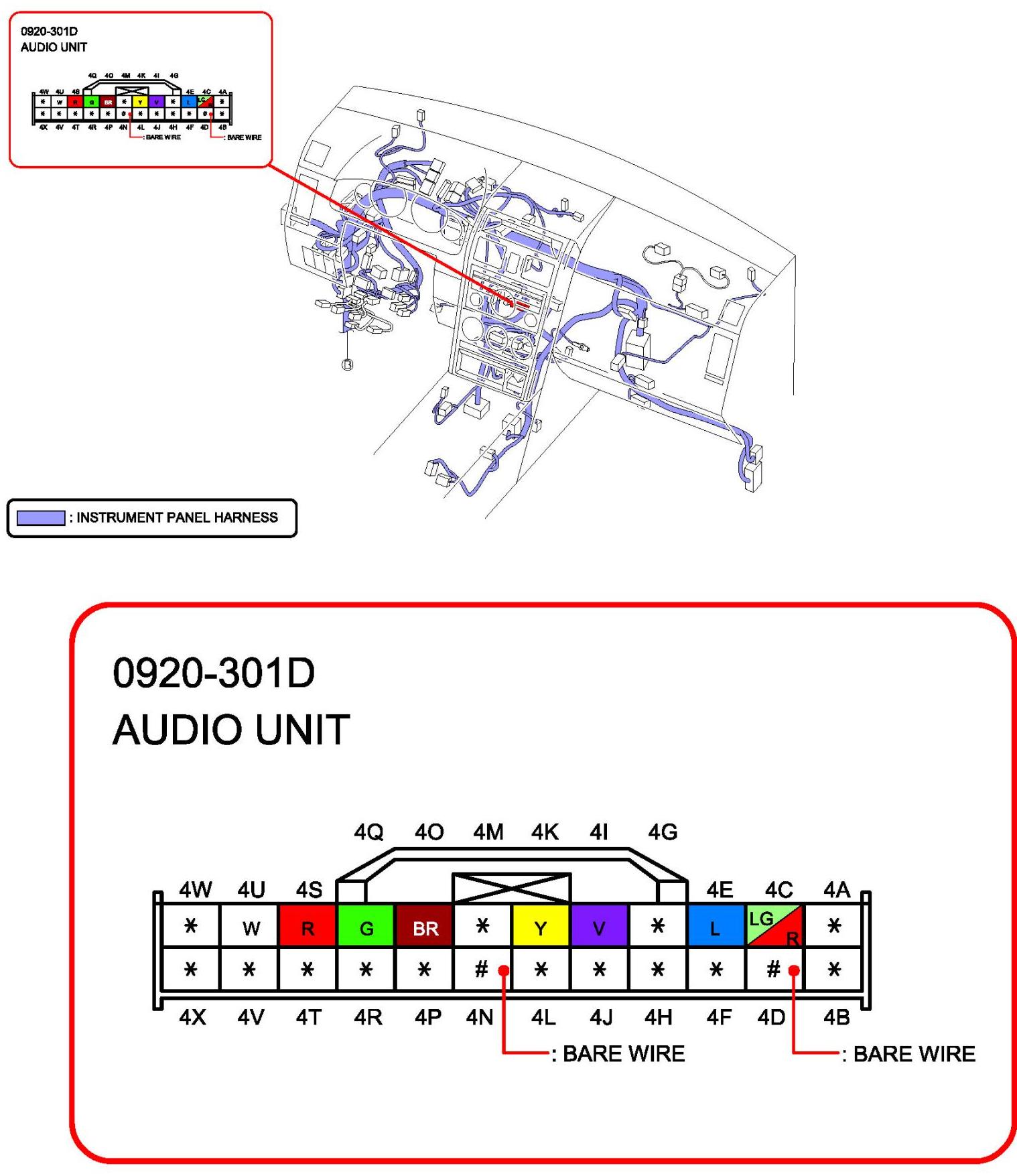

Audio Uint:



Audio Uint:



Audio Uint:



Audio Uint:
