Splash Guard: Service and Repair

FRONT UNDER COVER REMOVAL/INSTALLATION

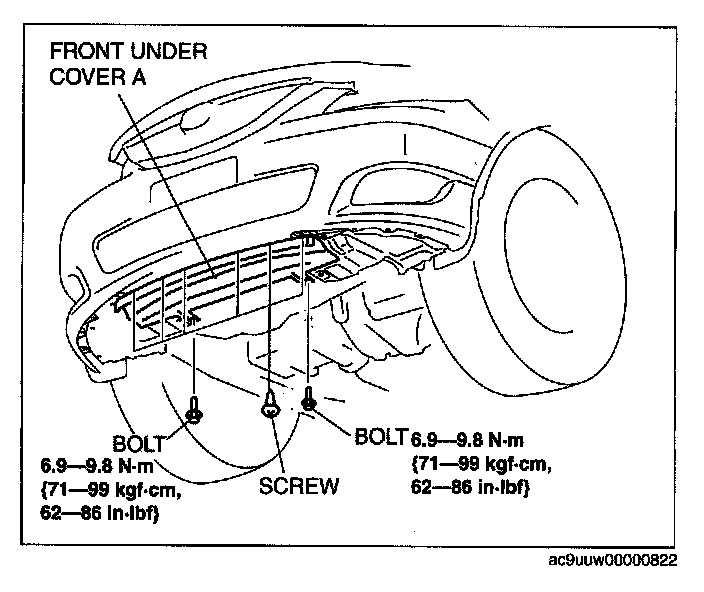

Front Under Cover A






1. Remove the bolts.
2. Remove the screws.
3. Remove the front under cover A.
4. Install in the reverse order of removal.

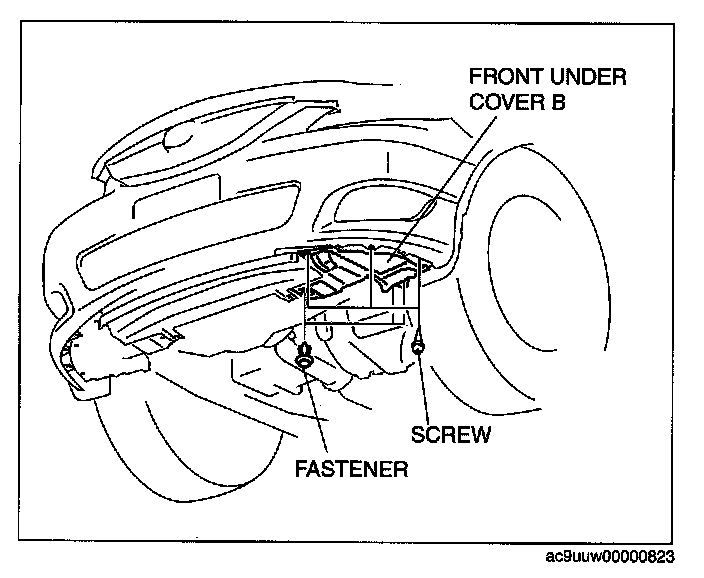

Front Under Cover B






1. Remove the screws.
2. Remove the fasteners.
3. Remove the front under cover B.
4. Install in the reverse order of removal.
