Power Window Subswitch Removal/Installation

POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION

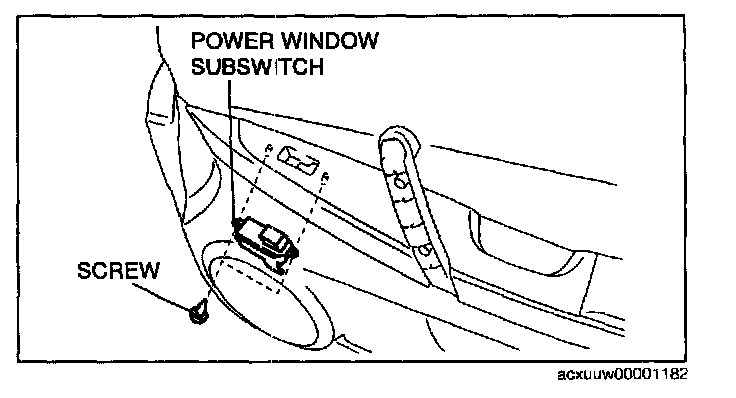

Passenger's Side

1. Disconnect the negative battery cable.
2. Remove the inner garnish.
3. Remove the front door trim.
4. Disconnect the power window subswitch connector.






5. Remove the screws, then the power window subswitch.
6. Install in the reverse order of removal.

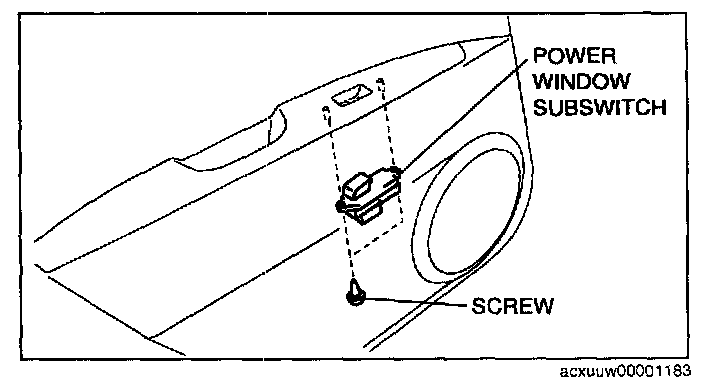

Rear Side

1. Disconnect the negative battery cable.
2. Remove the sail garnish.
3. Remove the rear door trim.
4. Disconnect the power window subswitch connector.






5. Remove the screws, then the power window subswitch.
6. Install in the reverse order of removal.
