Control Module: Locations

AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL, AW6AX-EL]

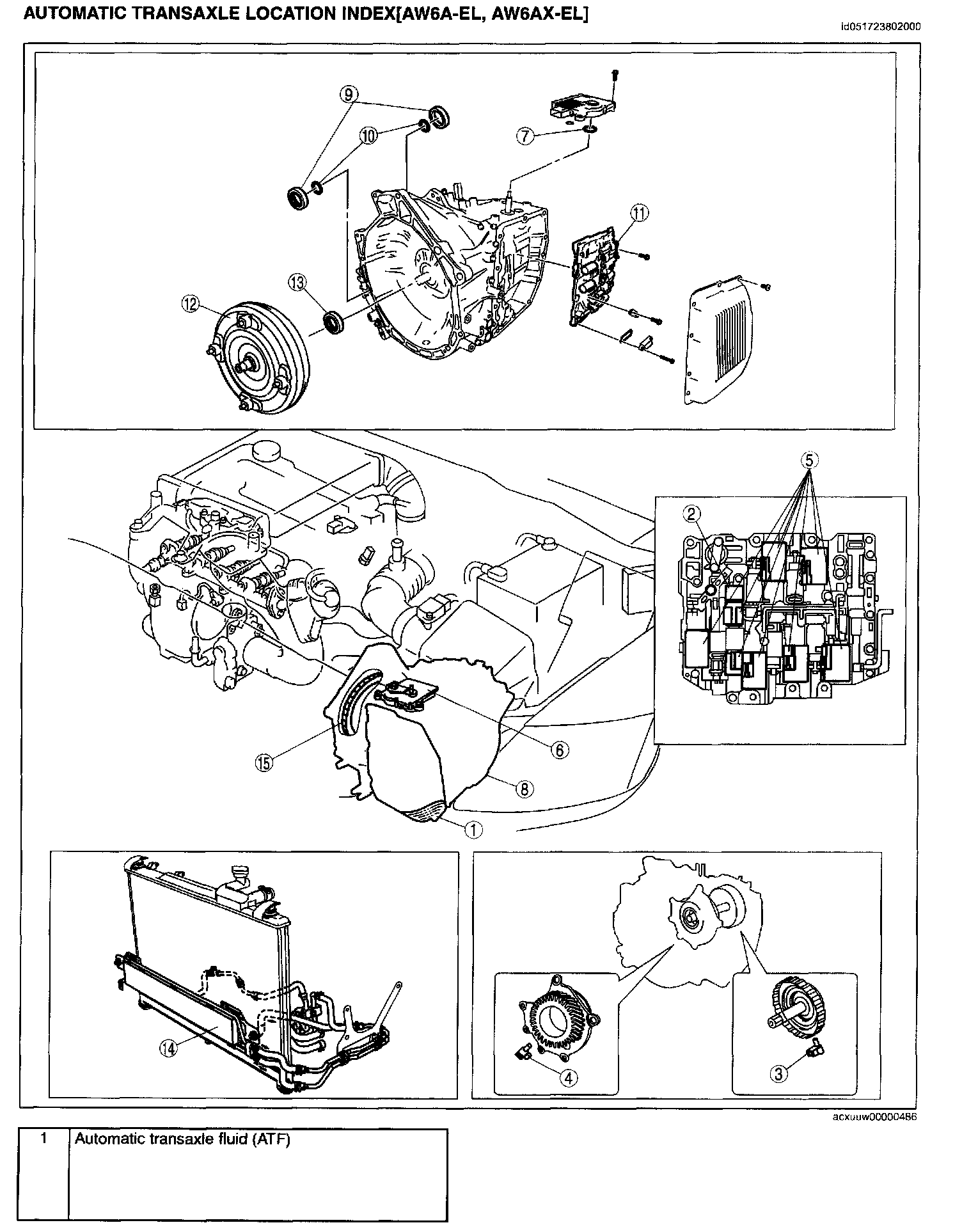

Automatic Transaxle Location Index [AW6A-EL, AW6AX-EL] (Part 1):

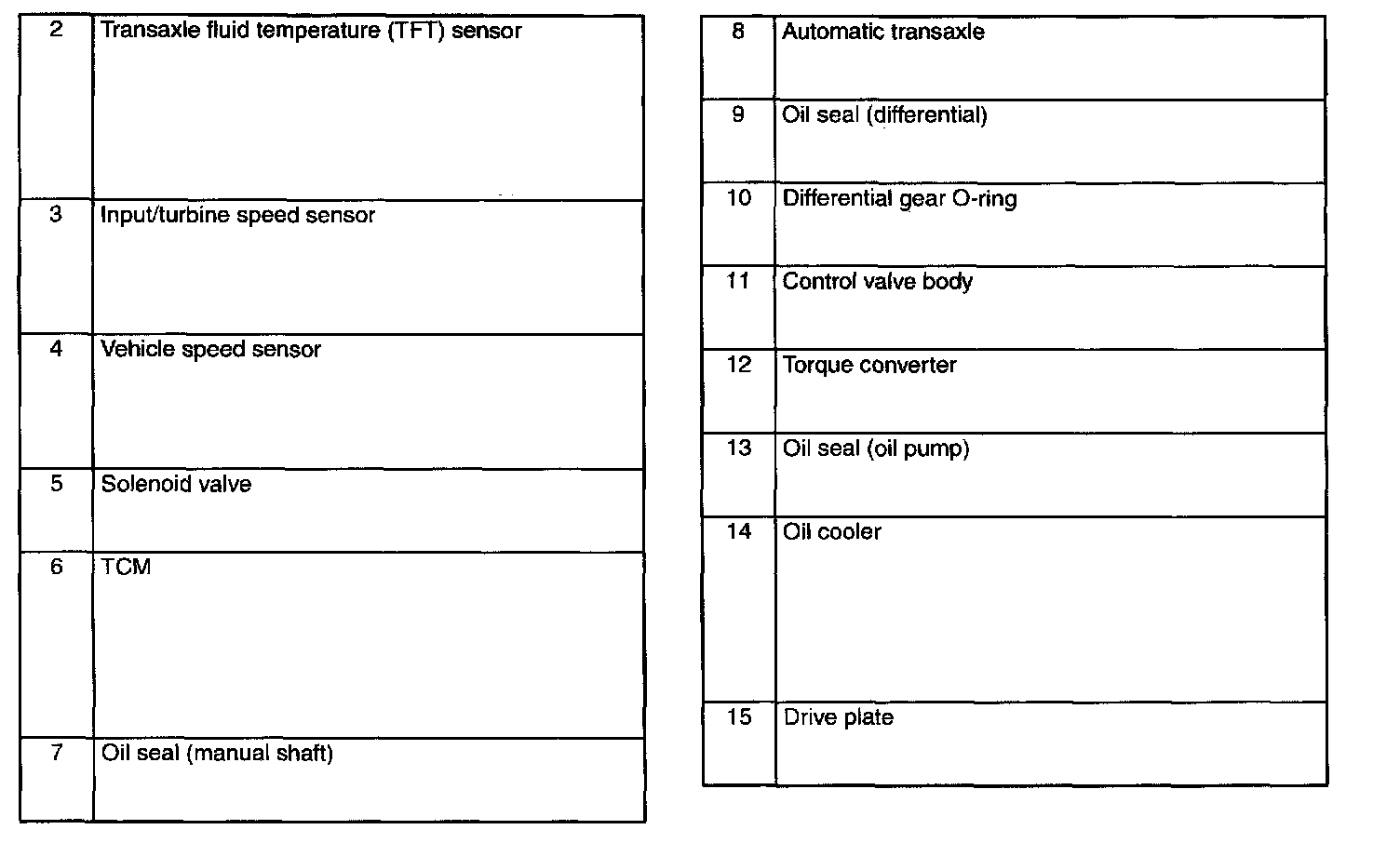

Automatic Transaxle Location Index [AW6A-EL, AW6AX-EL] (Part 2):
