Home >> Mazda >> 2007 >> B3000 V6-3.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Fuse Box

Fuse Box

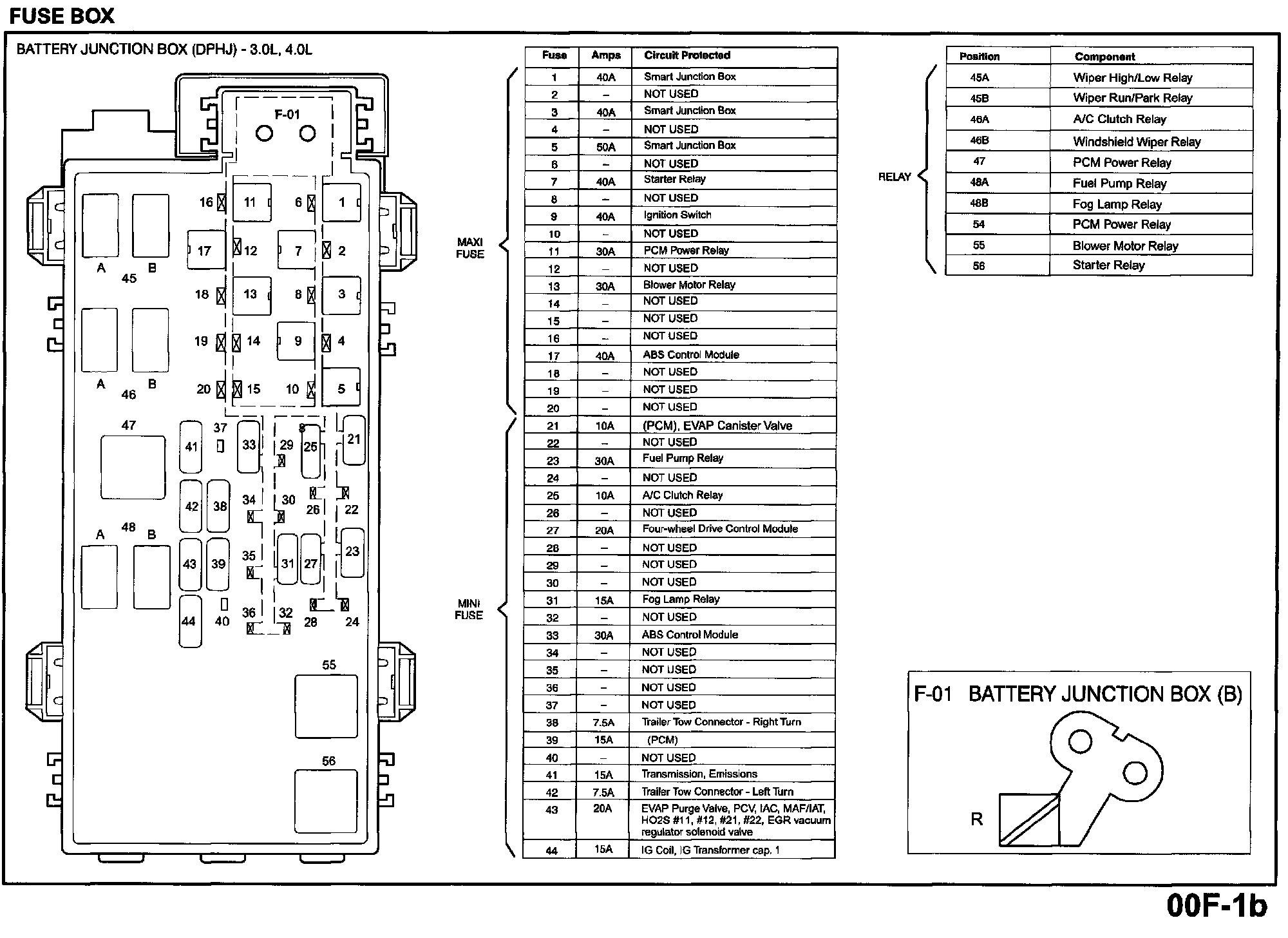

Battery Junction Box (DPHJ):
