Manifold Pressure/Vacuum Sensor: Service and Repair

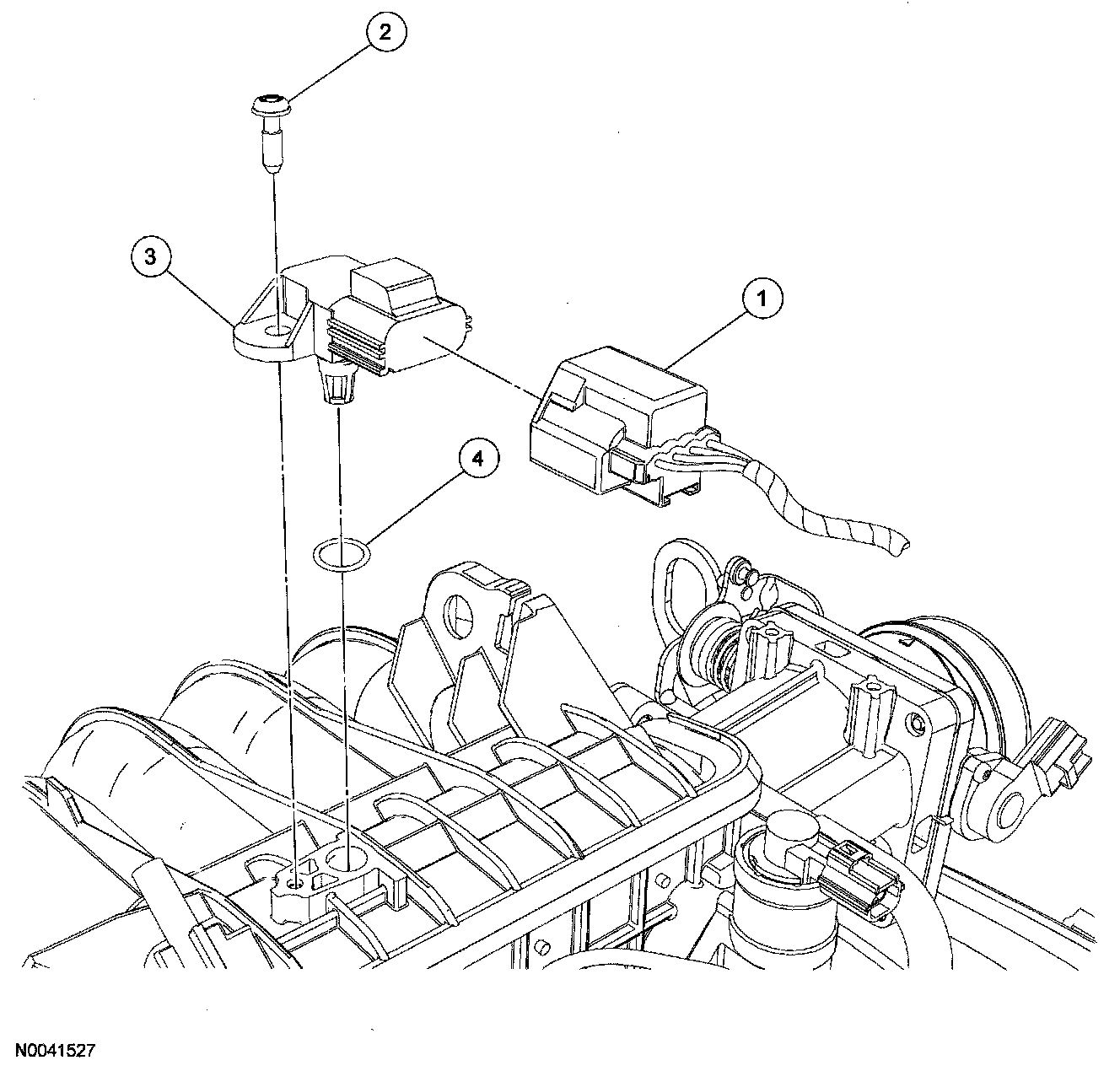

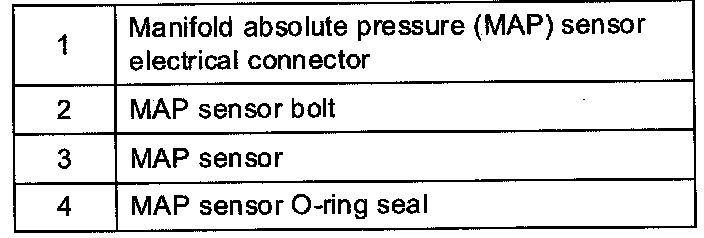

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL / INSTALLATION - 2.3L











1. Disconnect the negative battery cable. See BATTERY DISCONNECT.

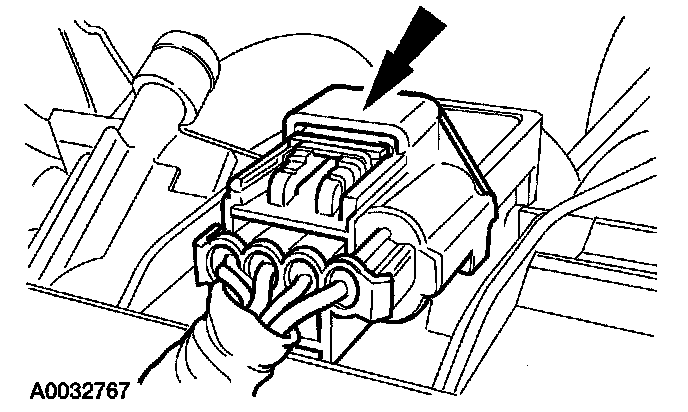

2. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

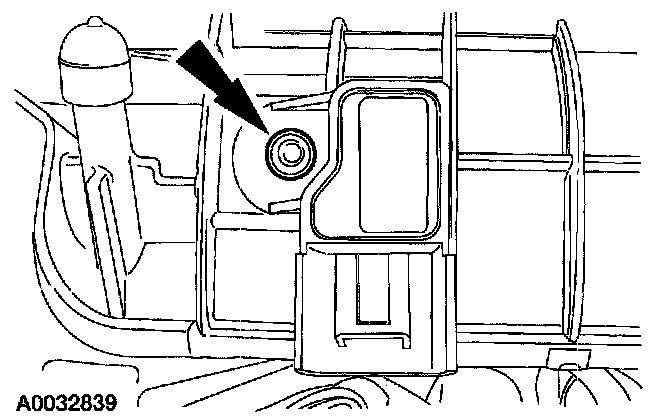

3. Remove the bolt and lift the MAP sensor out of the intake manifold.
4. To install, reverse the removal procedure.
