Connector End Views

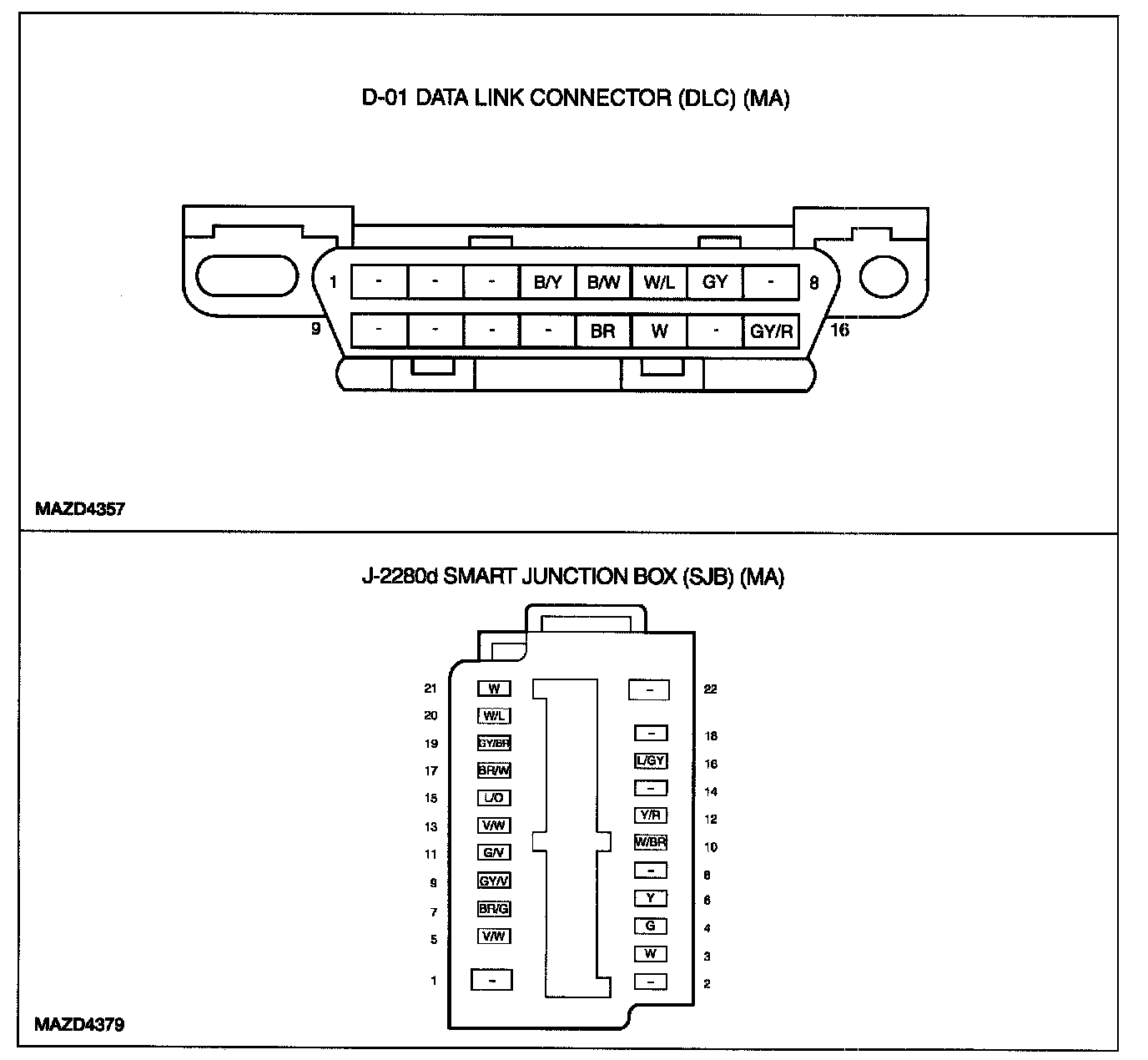

Connector End Views - Control Systems (Part 1):

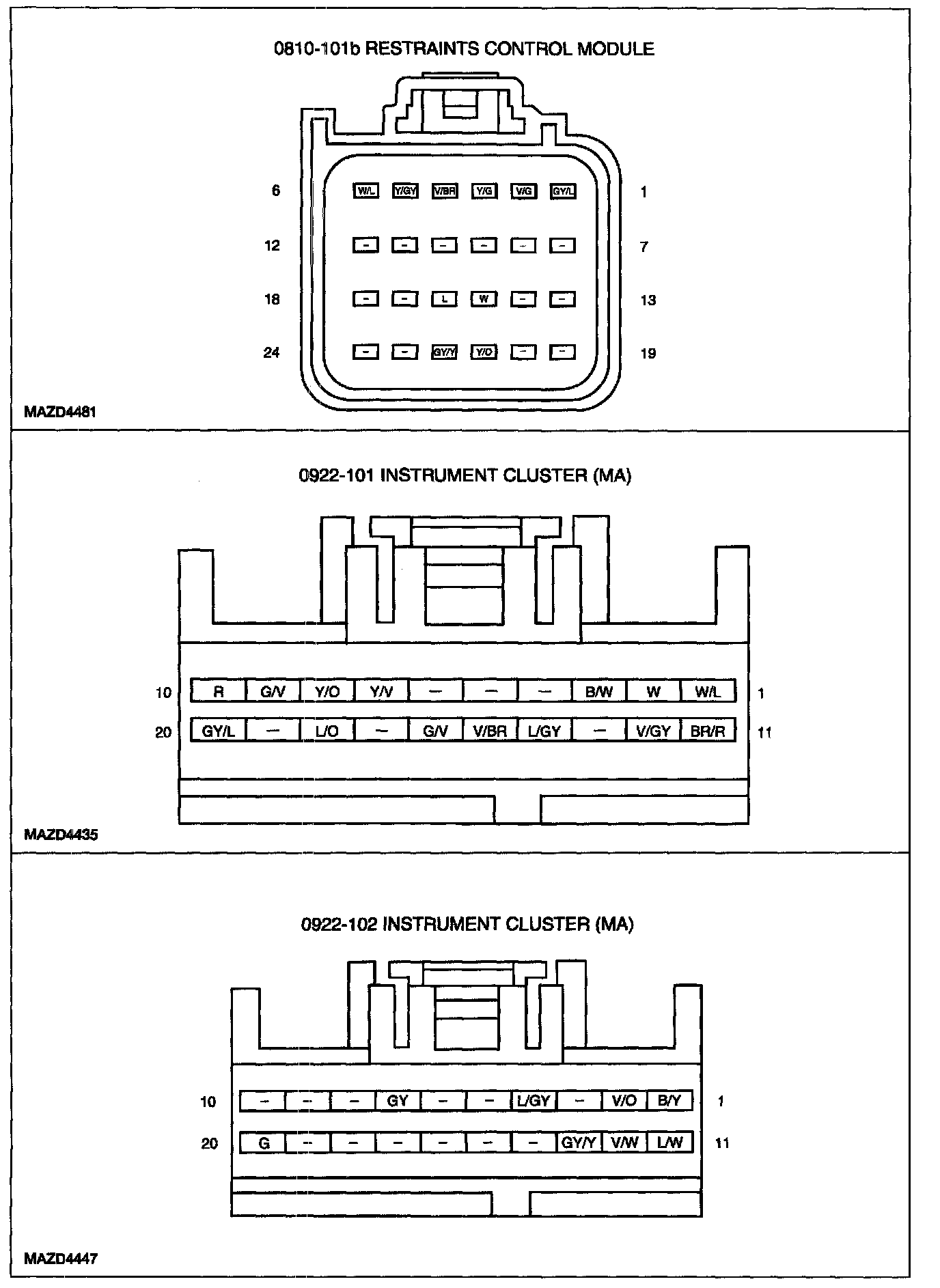

Connector End Views - Control Systems (Part 2):

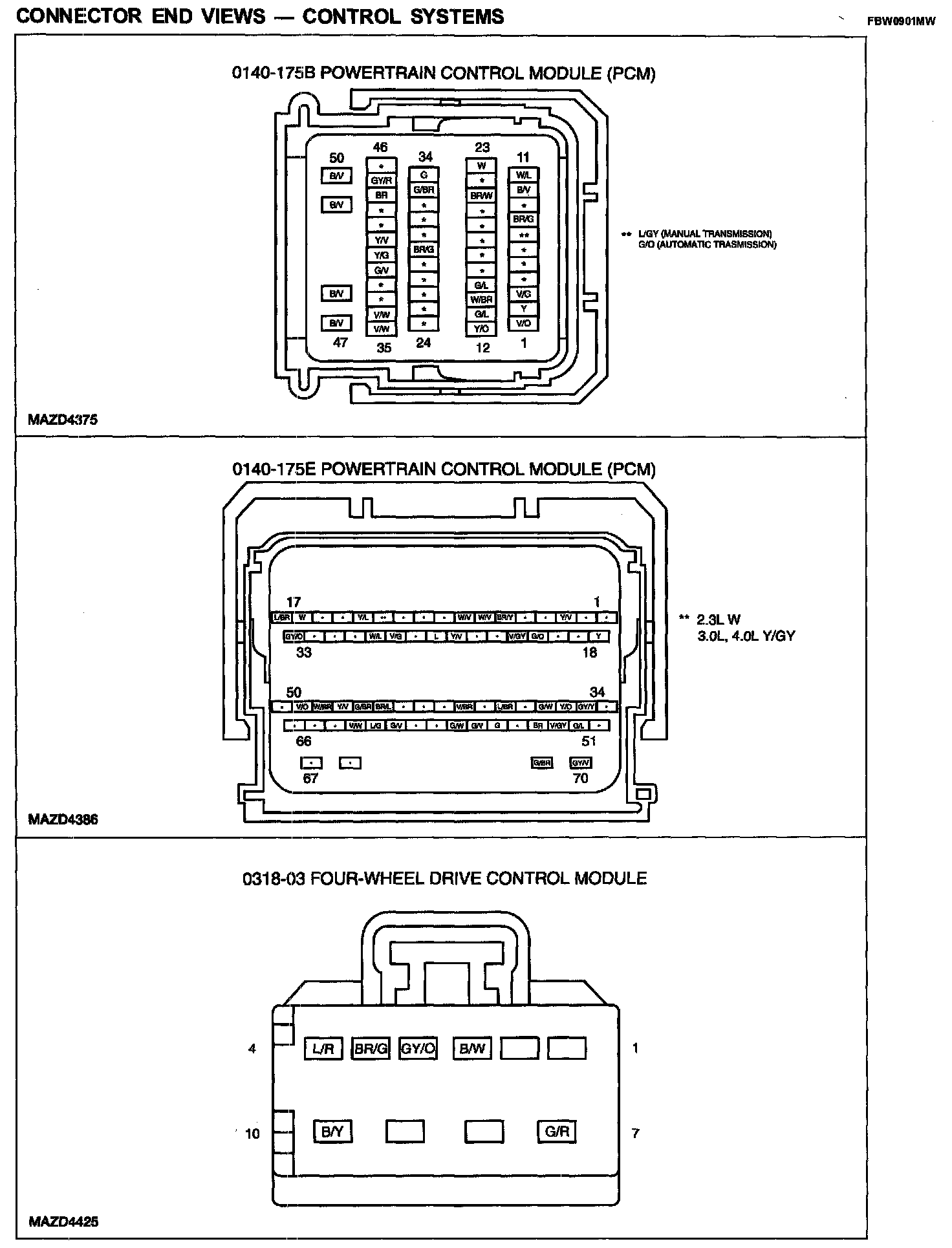

Connector End Views - Control Systems (Part 3):

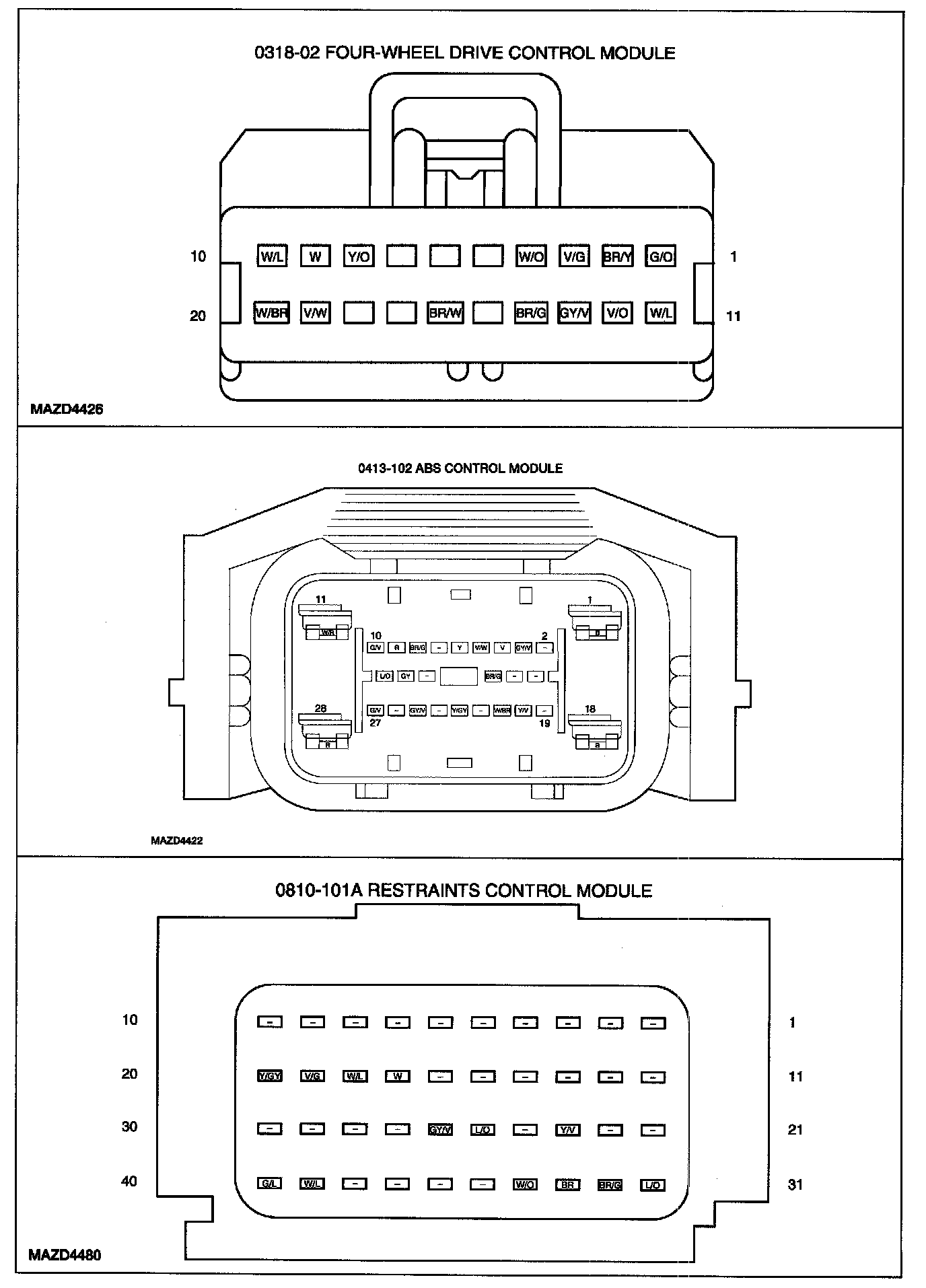

Connector End Views - Control Systems (Part 4):

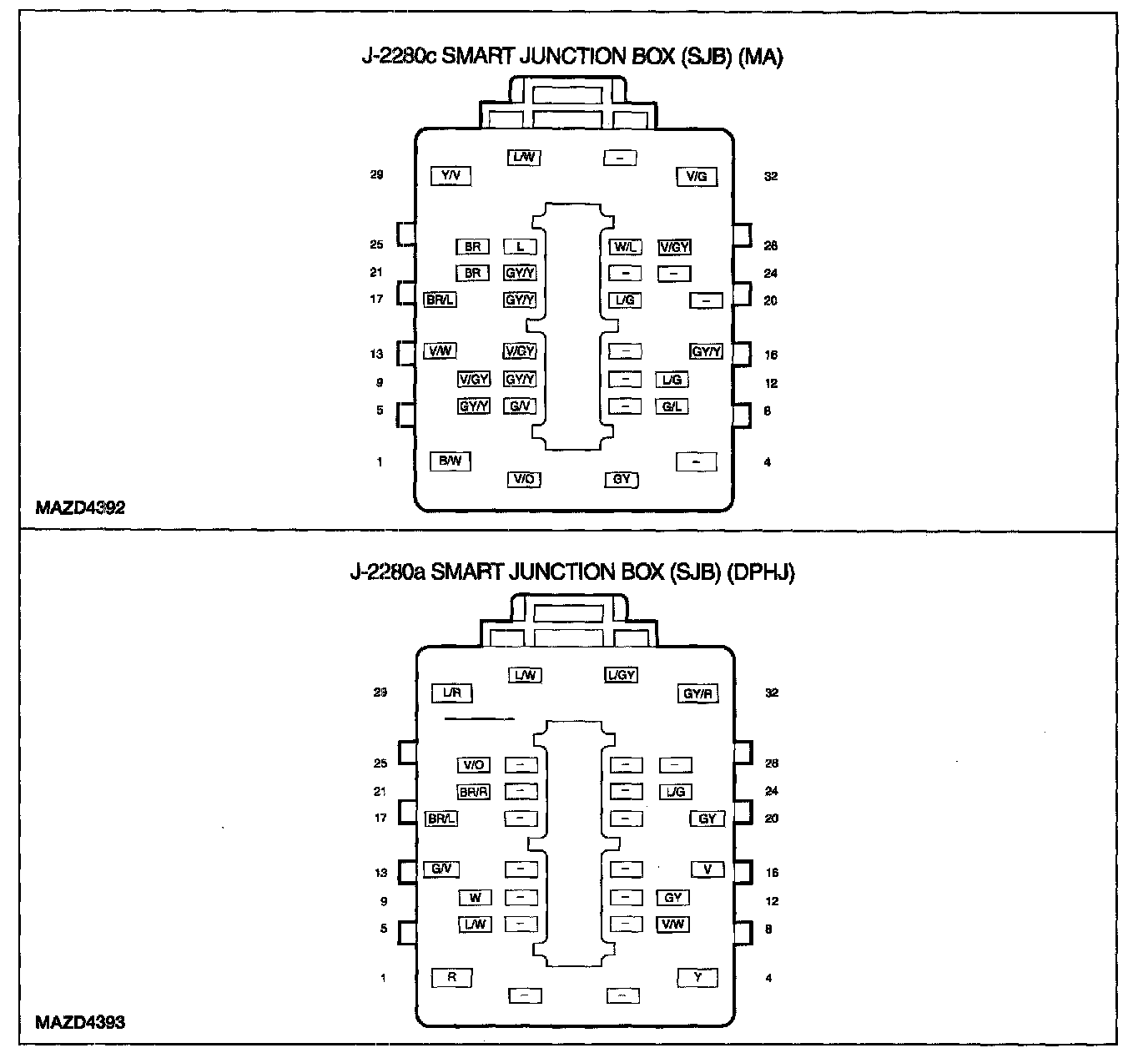

Connector End Views - Control Systems (Part 5):
