[G35M-R, A65M-R]

FLYWHEEL INSPECTION [G35M-R, A65M-R]

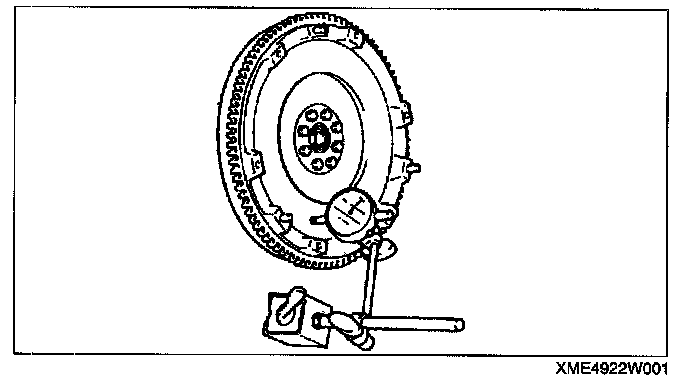

1. Install a dial gauge on the cylinder block.





2. Measure the flywheel runout using a dial gauge.
^ If the runout is excessive, replace the flywheel.

Flywheel runout runout limit [G35M-R] 0.1 mm (0.004 in)

Flywheel runout runout limit [A65M-R] 0.05 mm (0.002 in)
