[A65M-R]

TRANSAXLE OIL INSPECTION [A65M-R]
1. Park the vehicle on level ground.

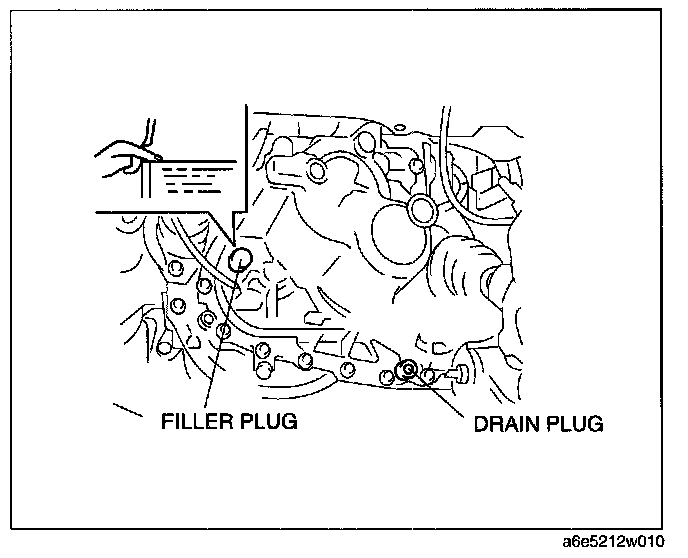

2. Remove the filler plug and gasket.
3. Verify that the oil is near the brim of the plug port.
^ If the oil level is low, add the specified amount and type of oil through the filler plug hole.

Manual transaxle oil [A65M-R]
Specified oil grade: API Service GL-4 or GL-5
Specified oil viscosity: SAE 75W-90

4. Install a new gasket and the filler plug.

Tightening torque 30.0 - 39.0 N-m (3.1 - 3.9 kgf-m, 22.1 - 28.8 in-lbf)
