Trunk / Liftgate Lock: Testing and Inspection

LIFTGATE LOCK ACTUATOR INSPECTION [5-DOOR, SPORT WAGON]

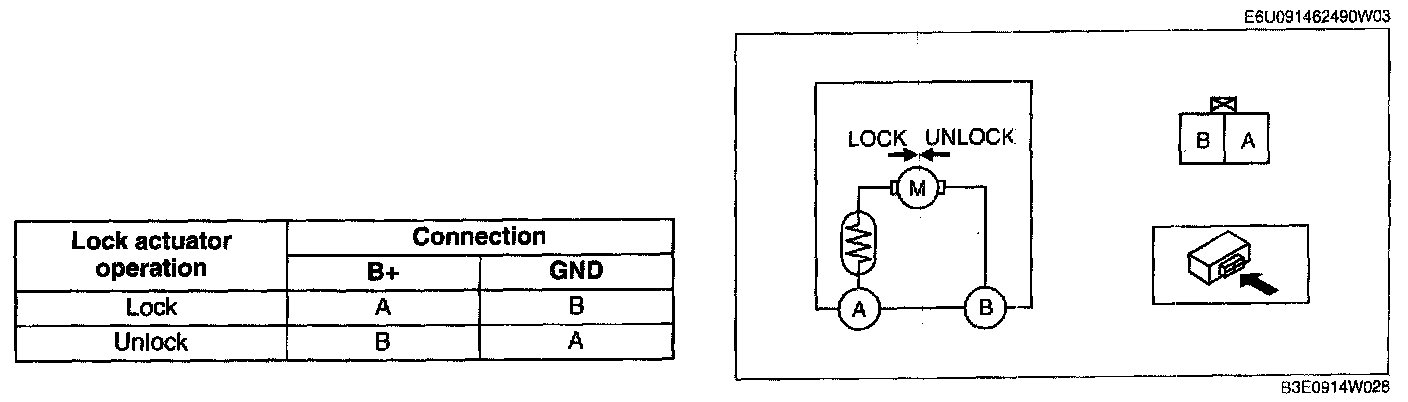

1. Apply battery positive voltage and connect ground to the corresponding liftgate lock actuator terminals, and inspect the liftgate lock actuator operation.
- If not as specified, replace the liftgate latch and lock actuator.
