Access Cover: Service and Repair

PLUG HOLE PLATE REMOVAL/INSTALLATION [L3]
1. Remove the plug hole plate.





Note:

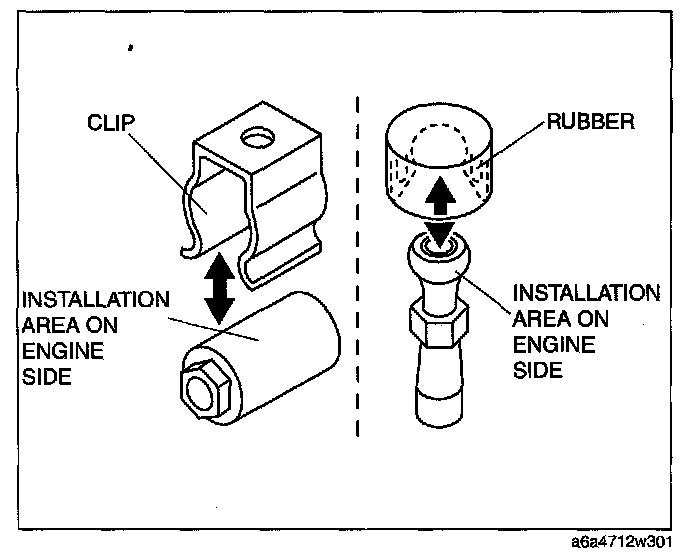

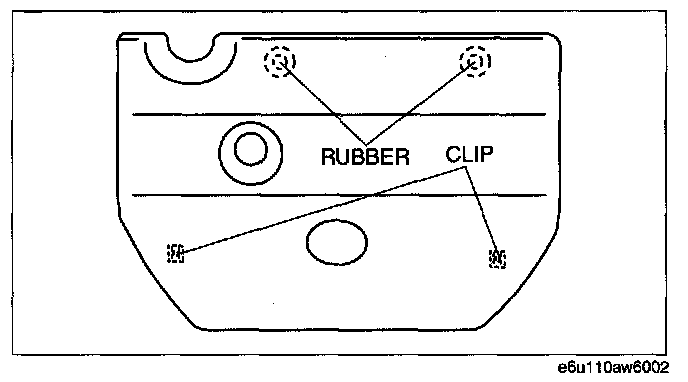

^ Lift off and remove the plug hole plate from the installation areas (rubber and clips) as shown in the figure.





2. Install the plug hole plate.
