Mazda
>>
2007
>>
5 L4-2.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Locations
>>
Component Locations
Component Locations

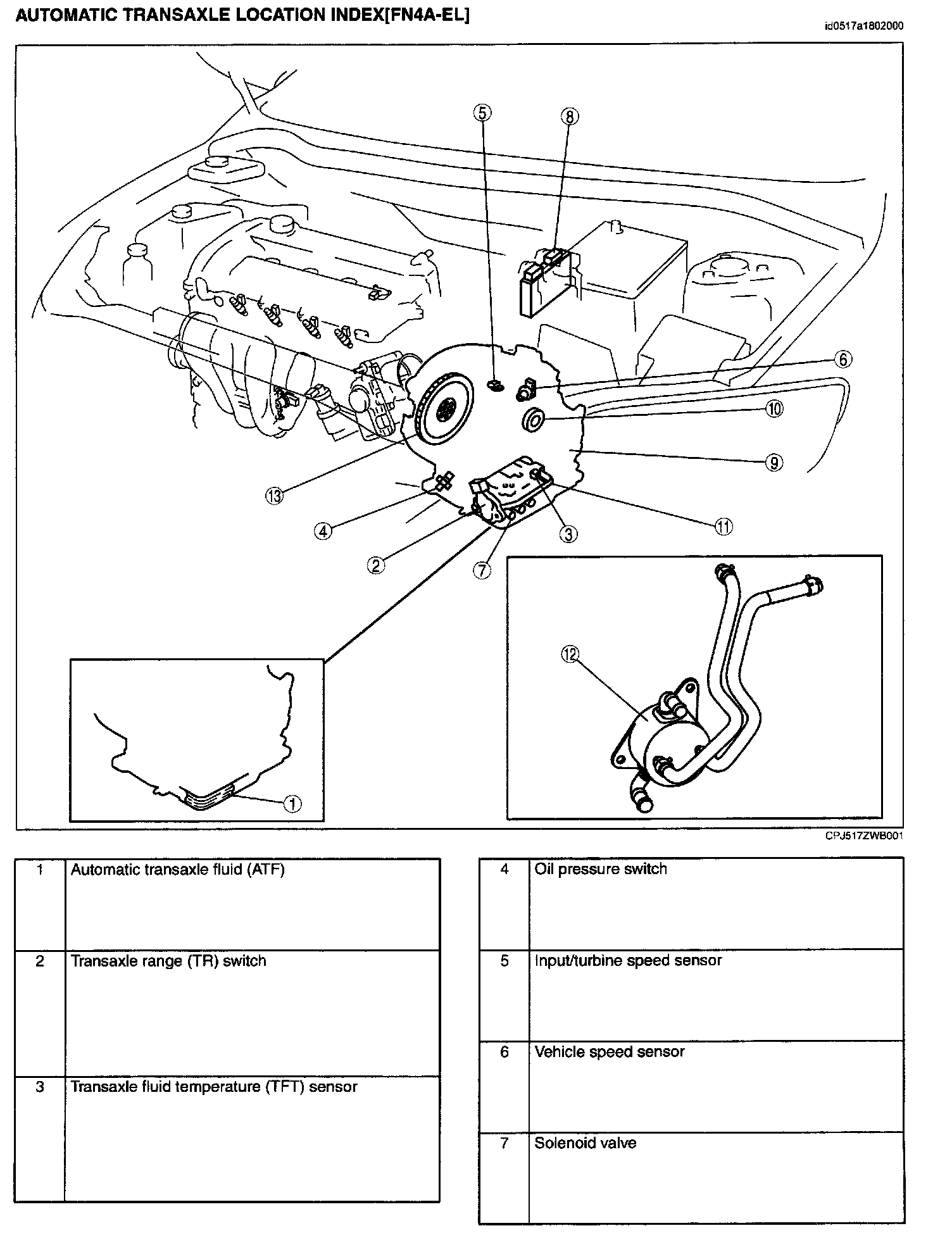

Automatic Transaxle Location Index (FN4A-EL) (Part 1):

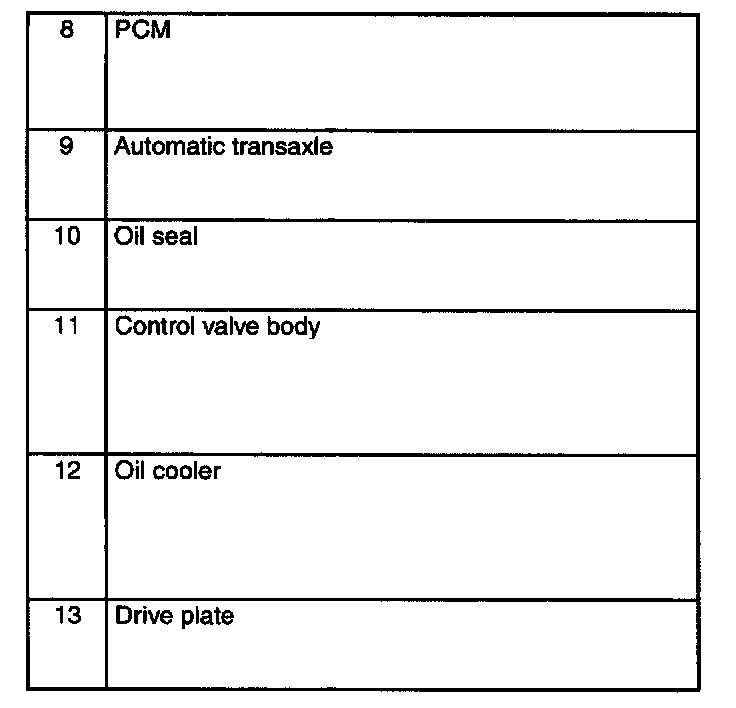

Automatic Transaxle Location Index (FN4A-EL) (Part 2):
