Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

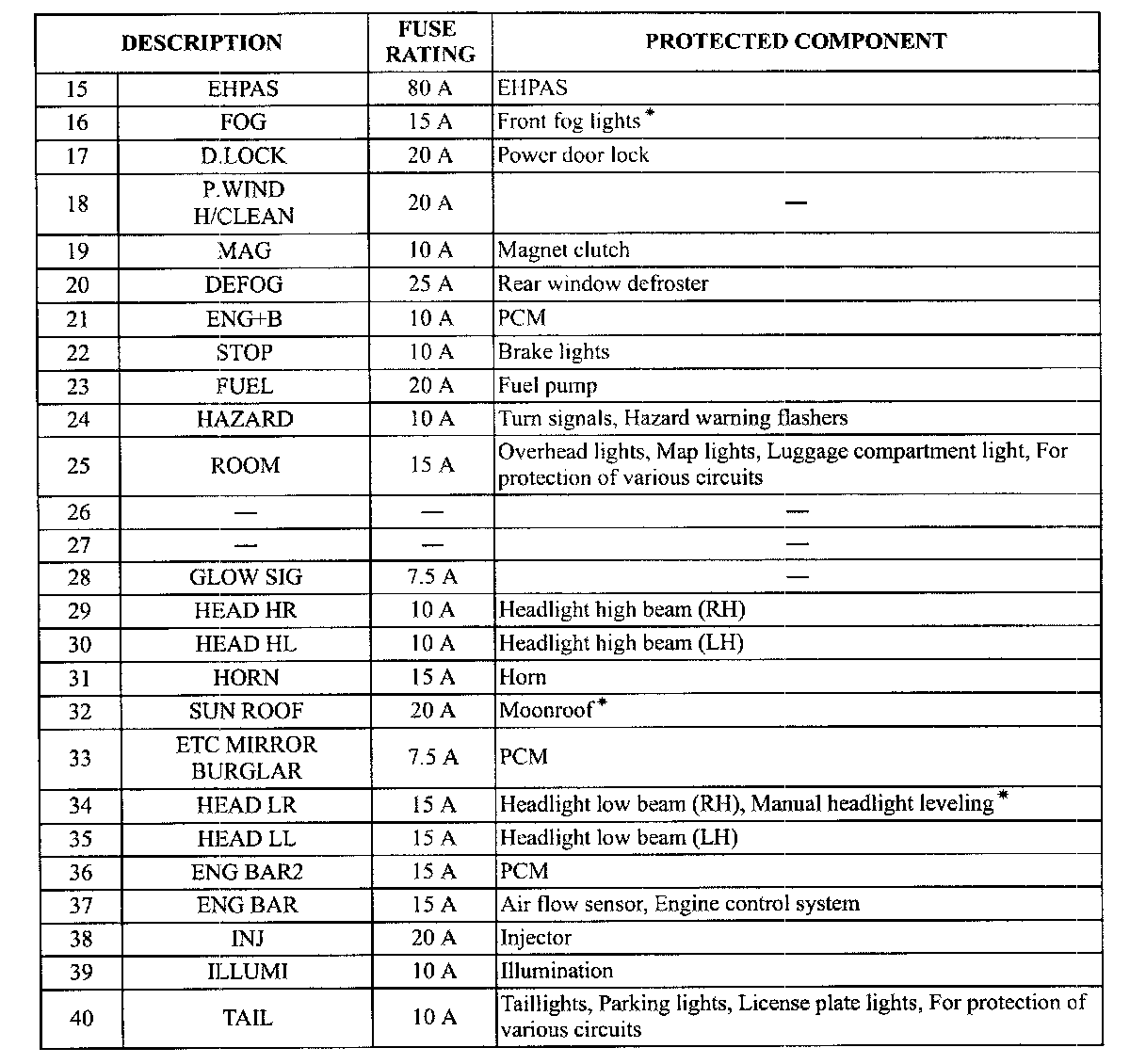

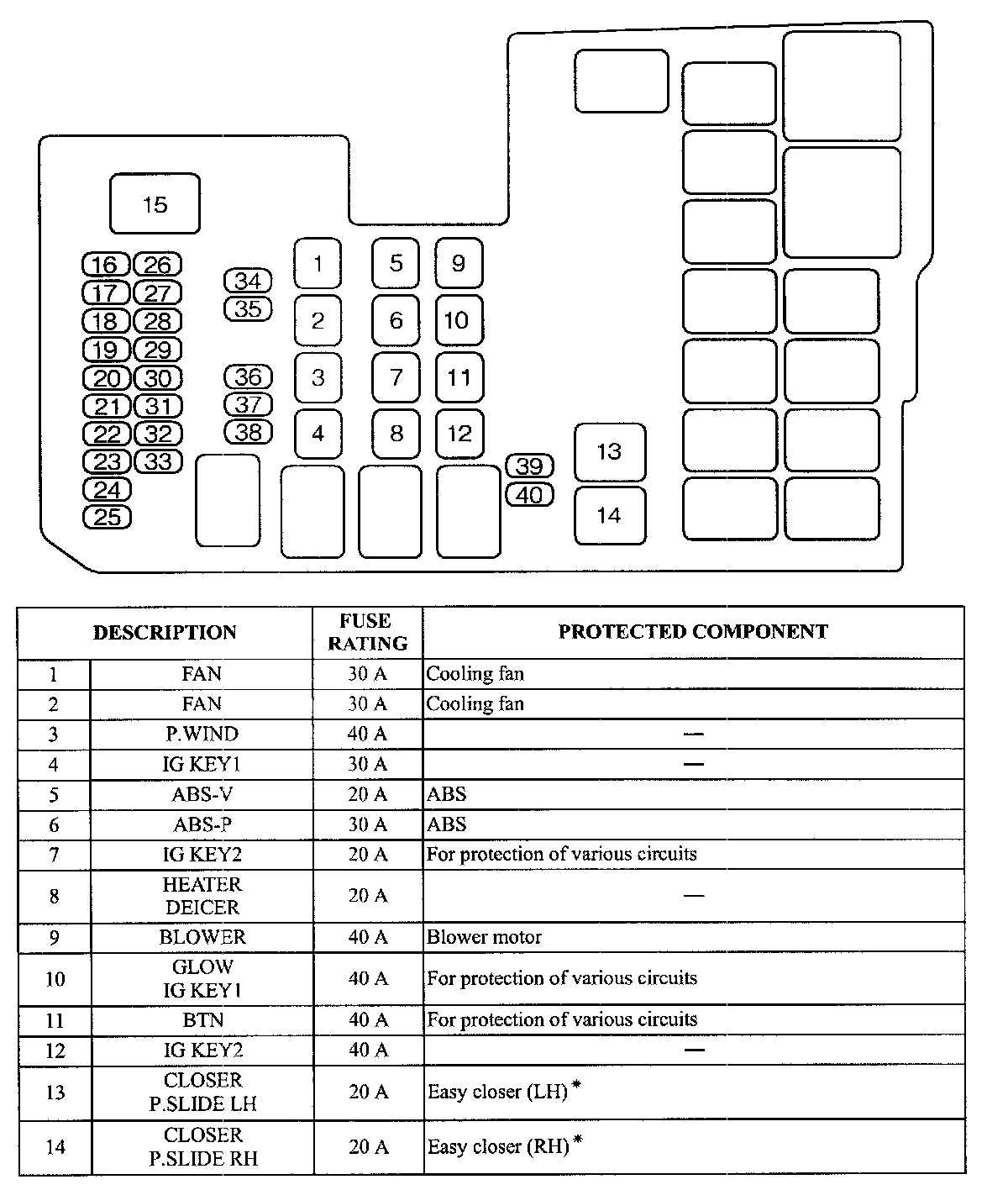

Engine Compartment (1 of 2):

Engine Compartment (2 of 2):

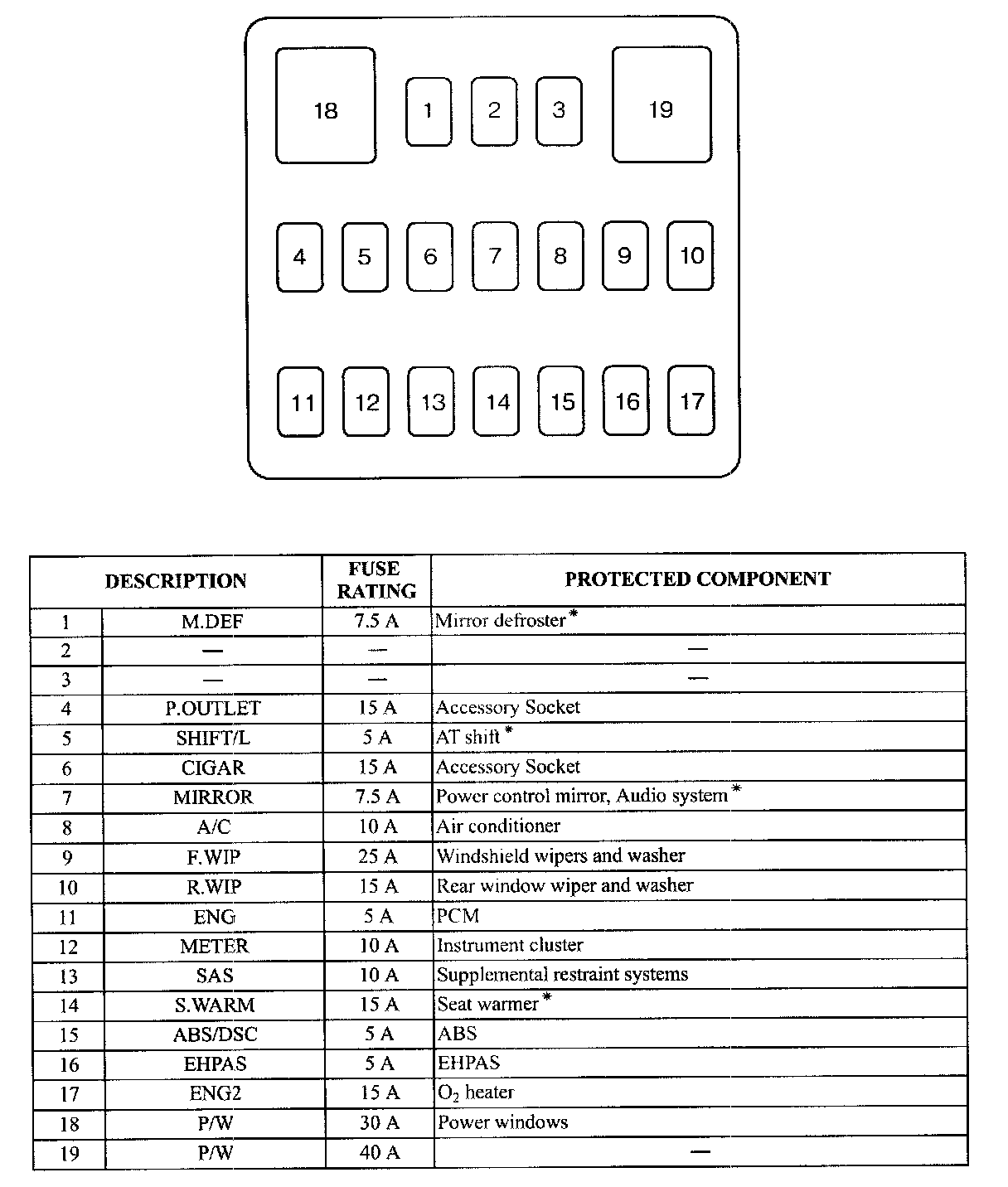

Driver's Side Panel:
