Starter Relay: Testing and Inspection

RELAY INSPECTION

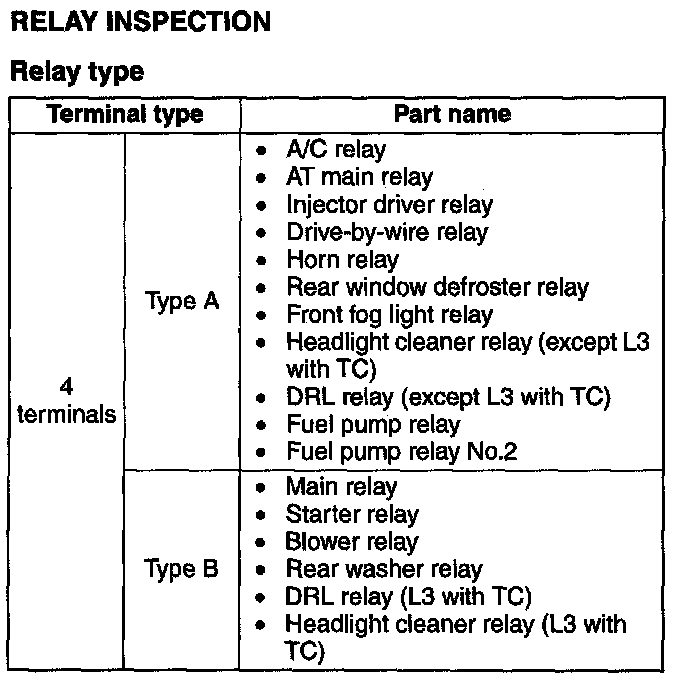

Relay type

Relay Inspection:

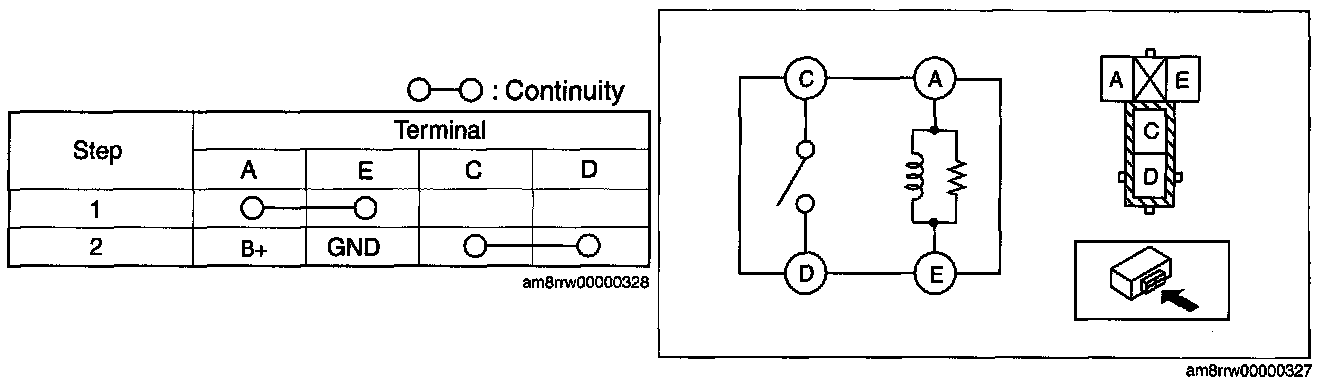

Type A

1. Verify the continuity between the relay terminals.
- If not as indicated in the table, replace the relay.

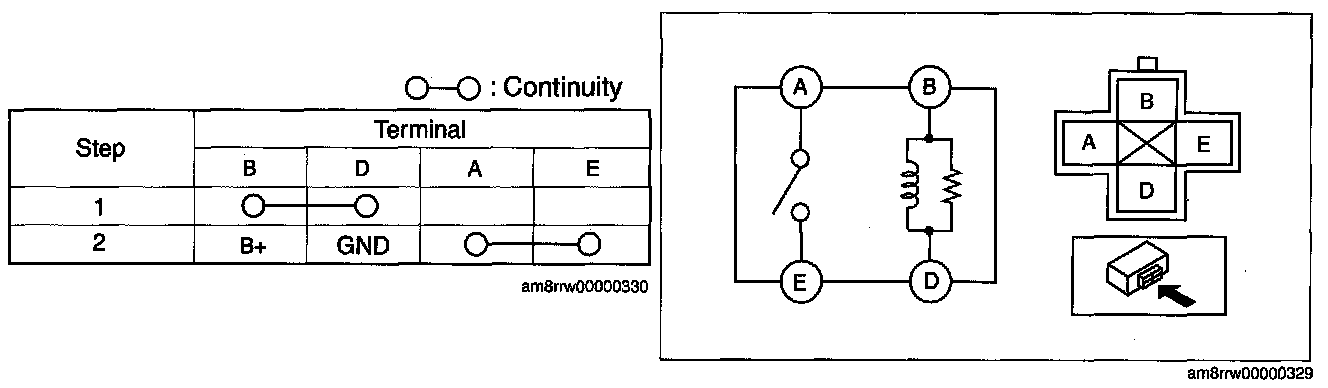

Type B

1. Verify the continuity between the relay terminals.
- If not as indicated in the table, replace the relay.
