Home >> Mazda >> 2007 >> 3 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

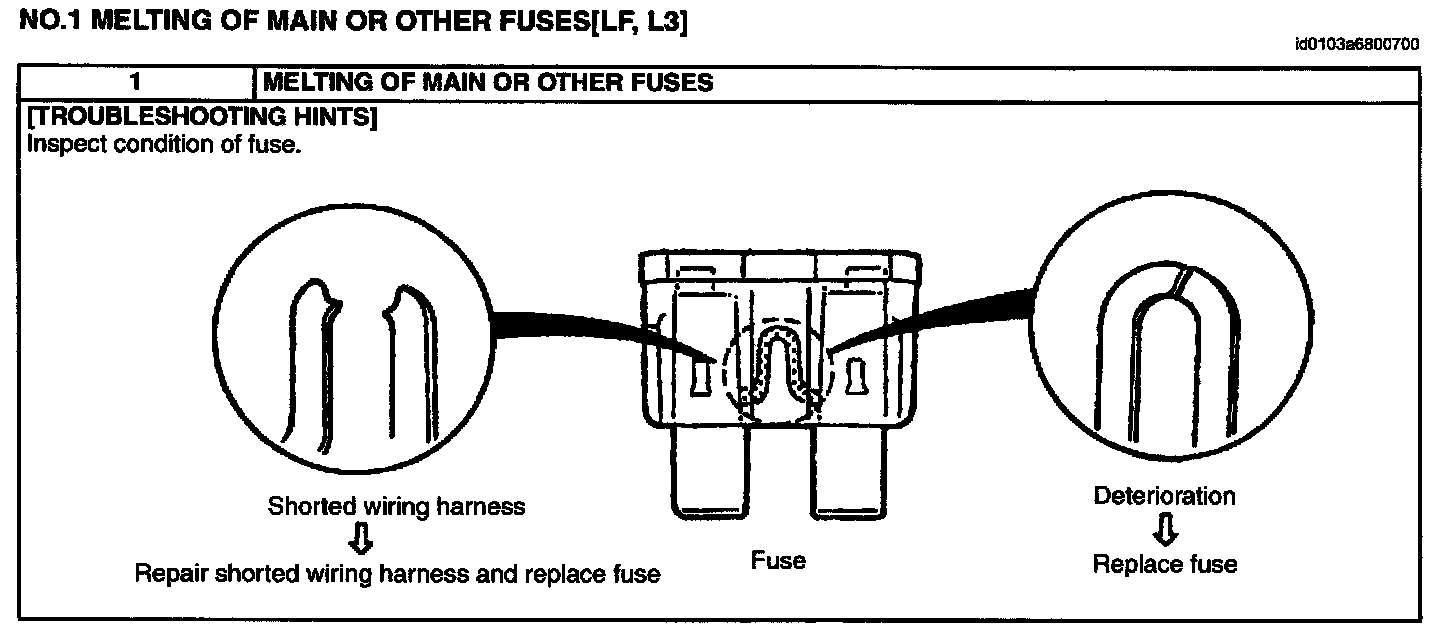

No.1 Melting Of Main Or Other Fuses[LF, L3]:

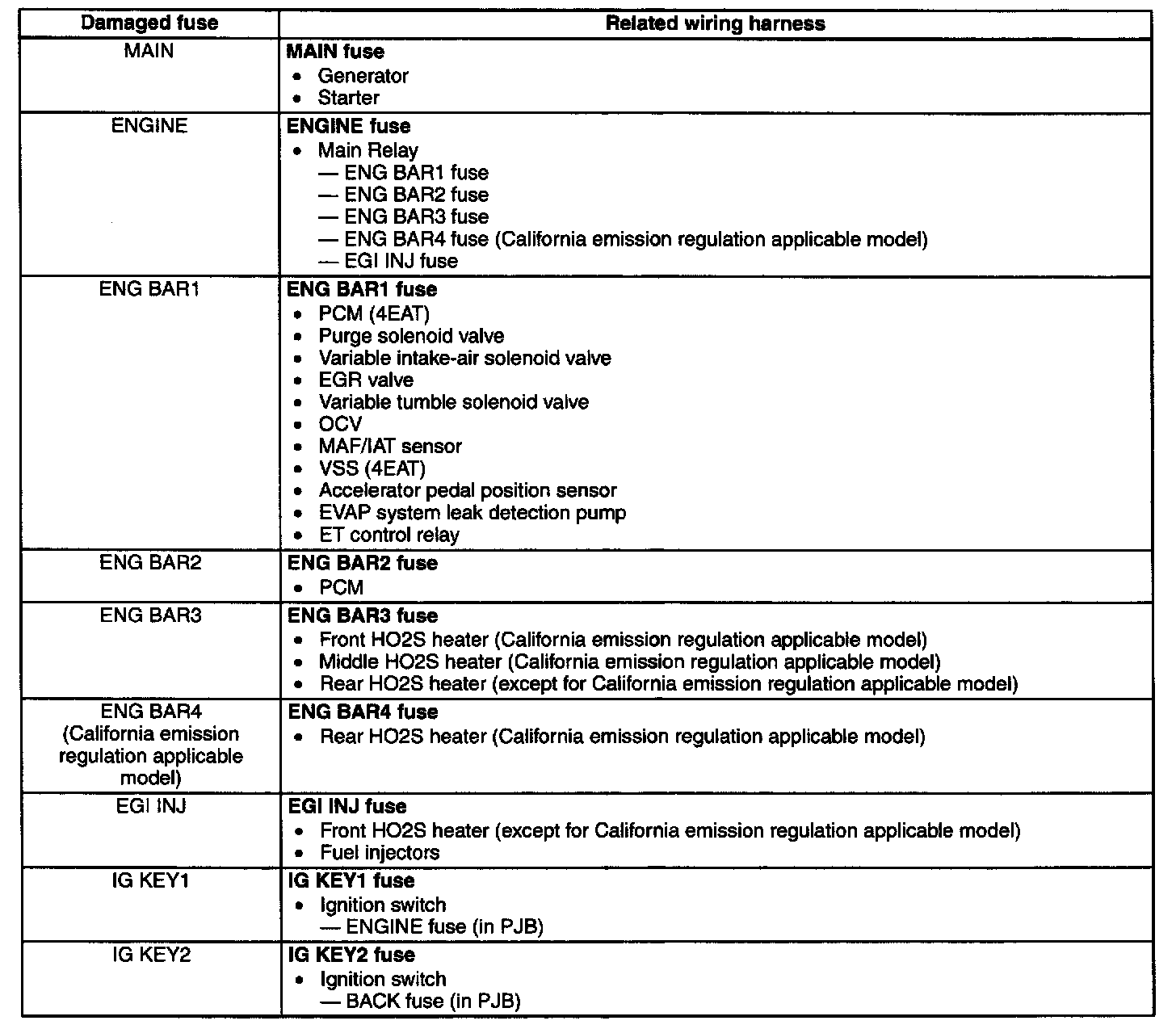

Part 1:



Part 2:
