Component Tests and General Diagnostics




RELAY INSPECTION

Type B

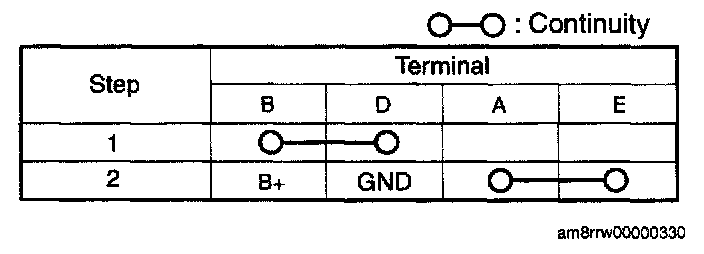

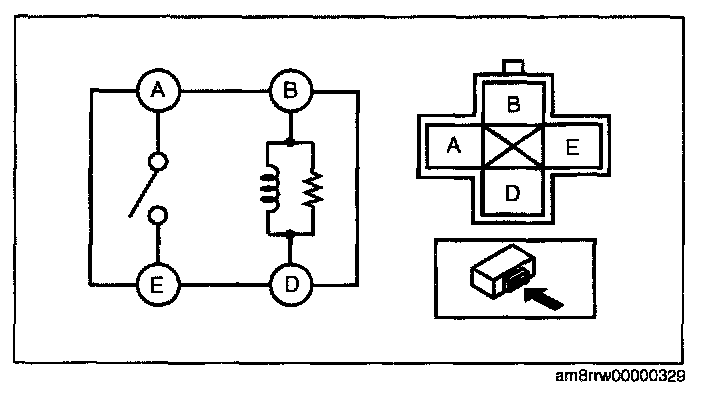

1. Verify the continuity between the relay terminals.
- If not as indicated in the table, replace the relay.
