Home >> Mazda >> 2006 >> MX-5 Miata L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> PID/Data Monitor Table

PID/Data Monitor Table

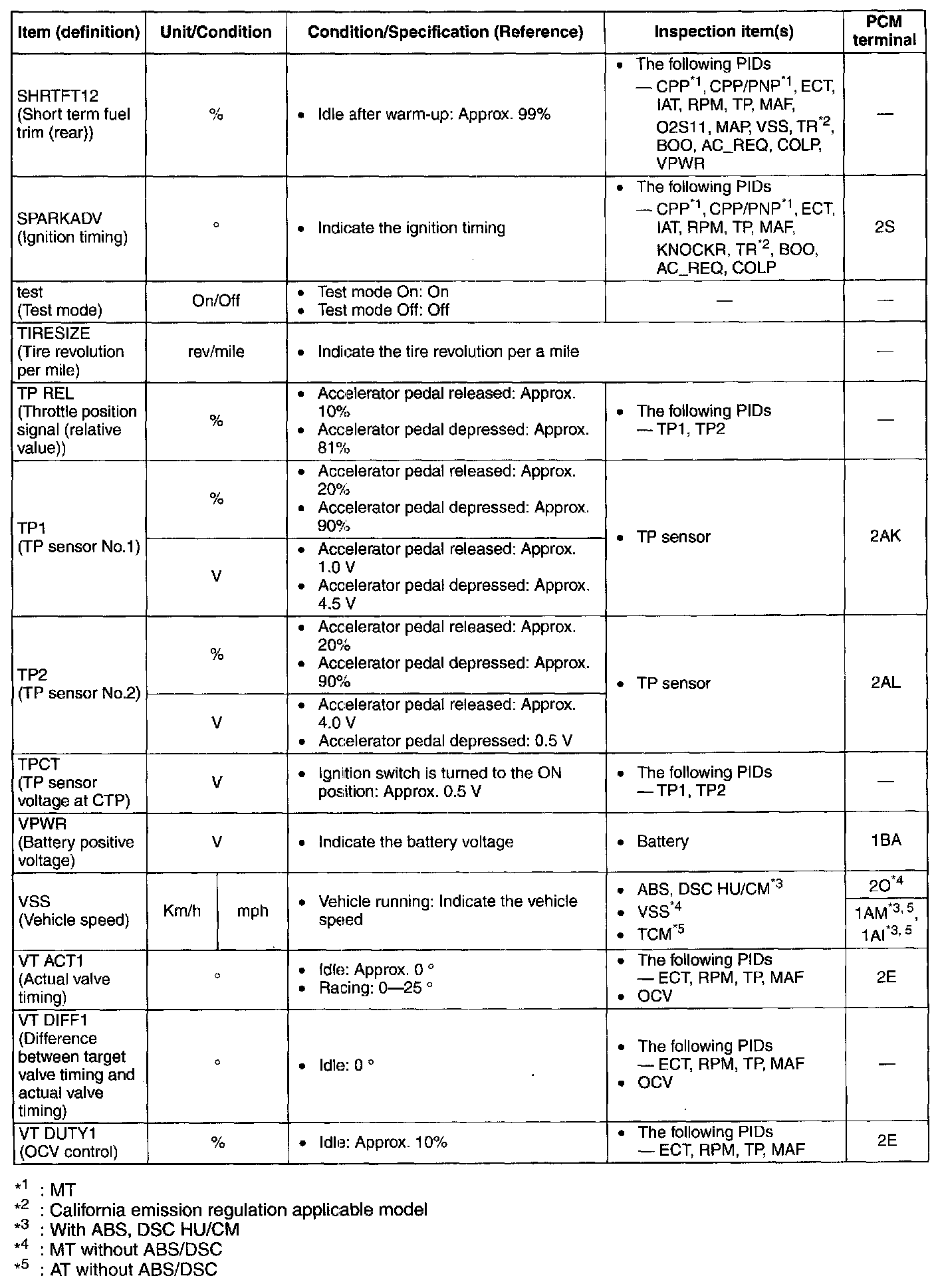

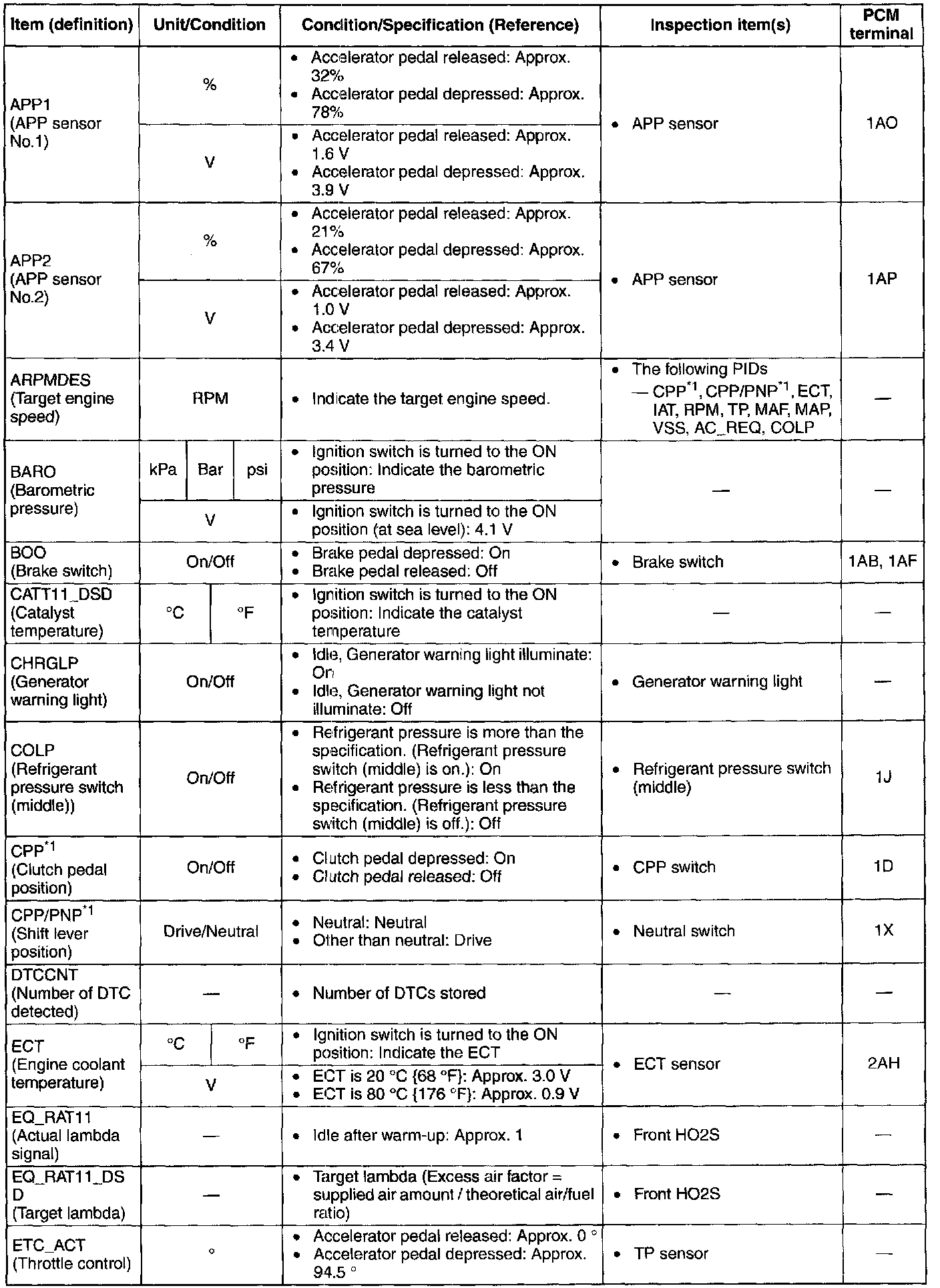

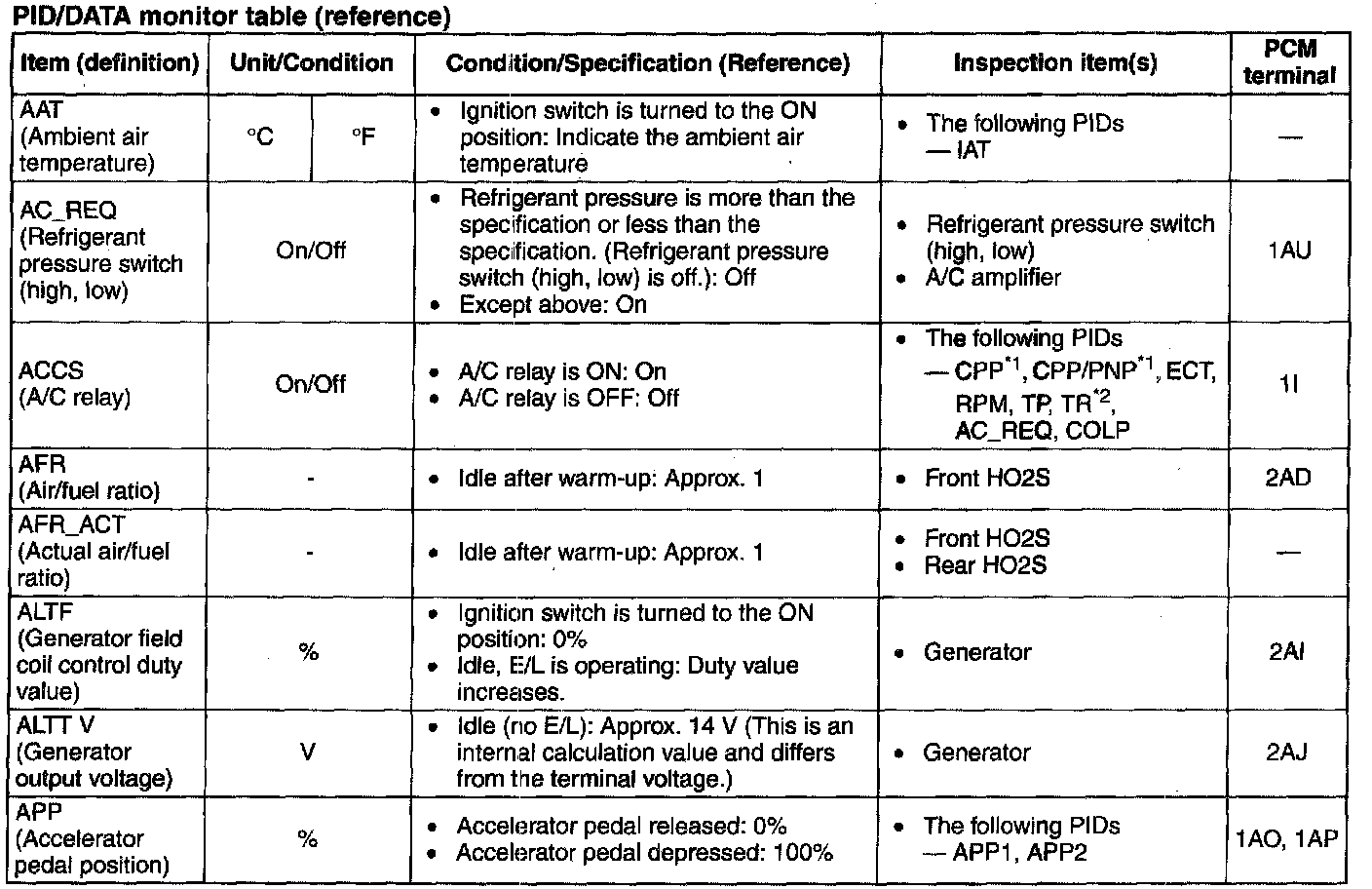

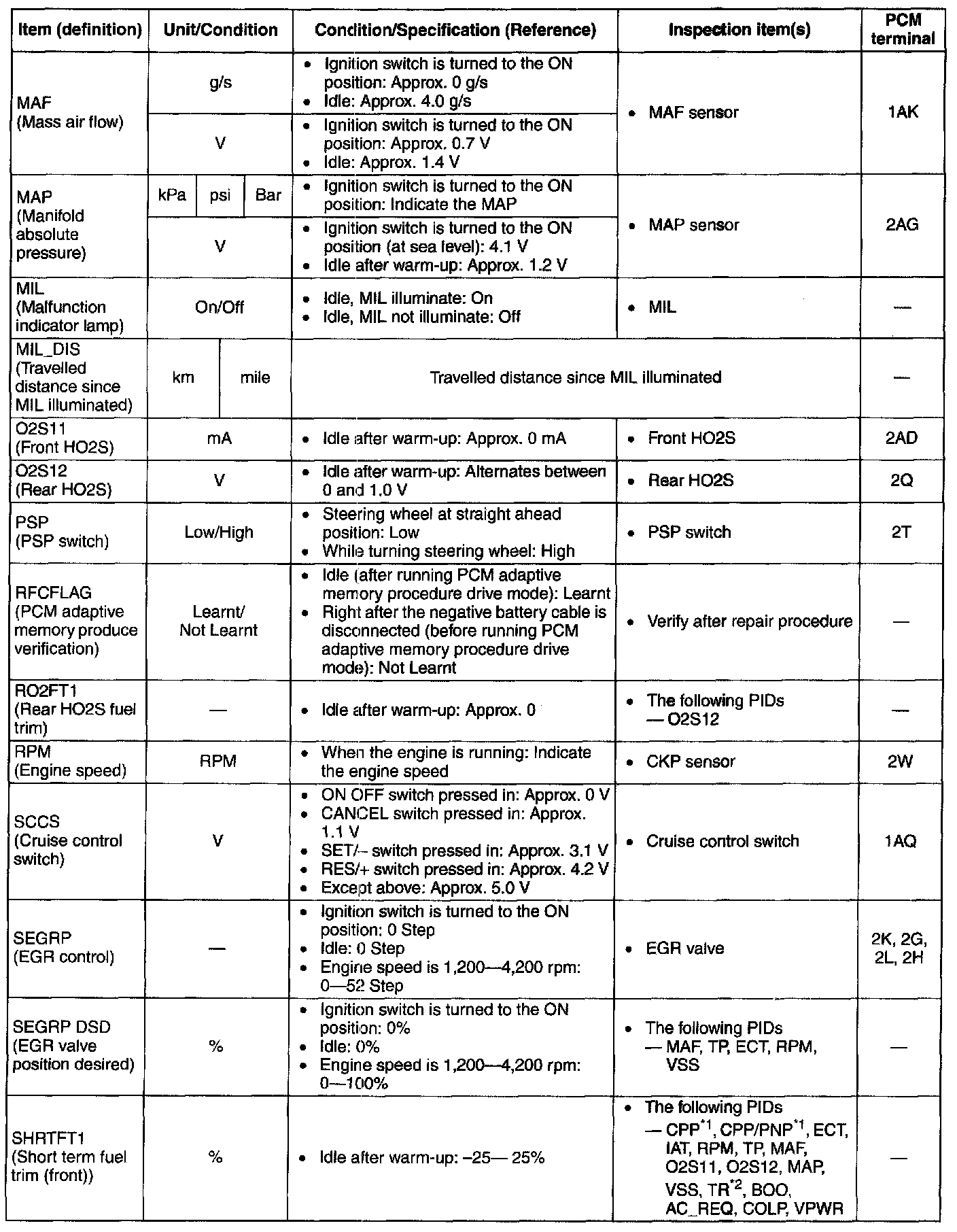

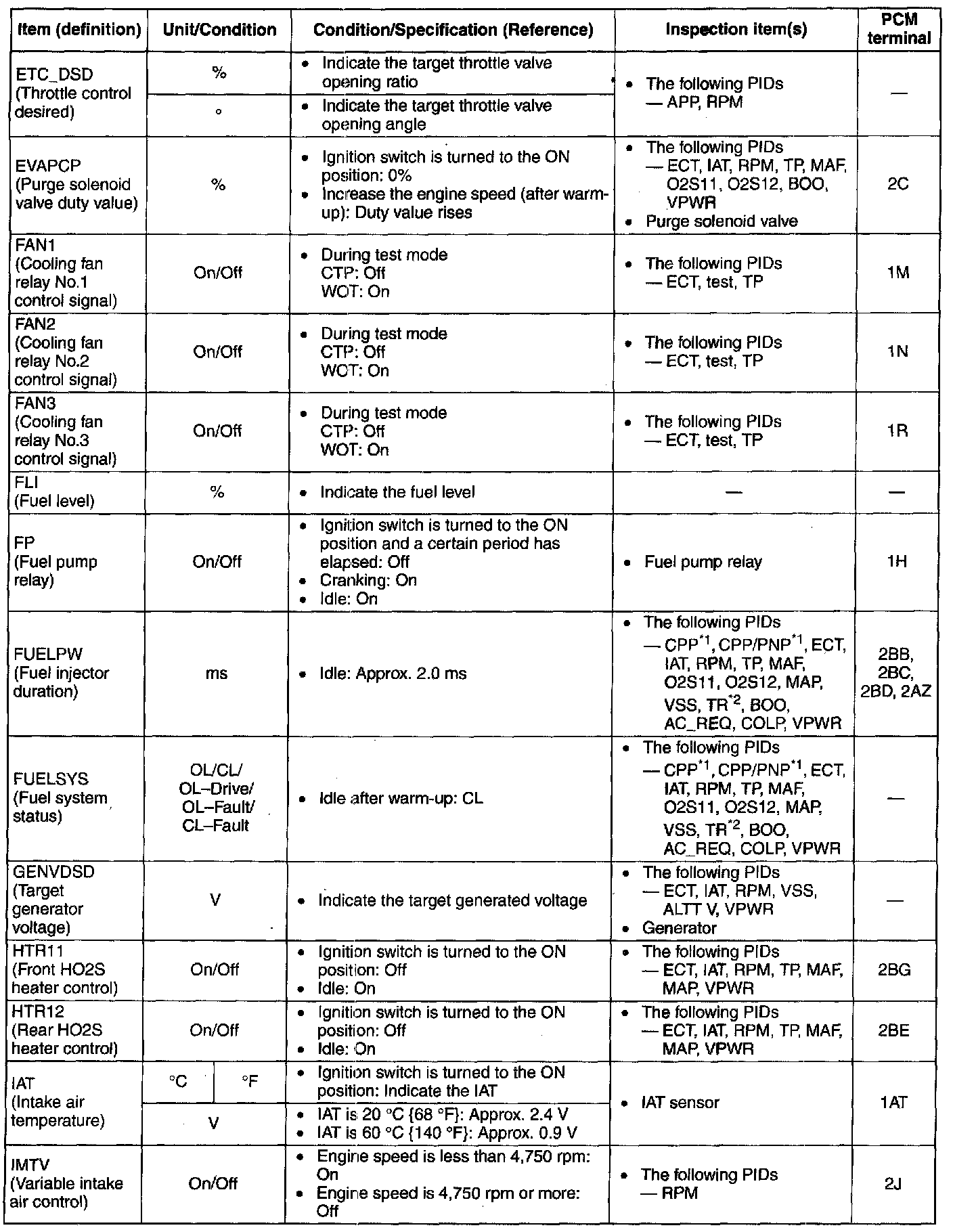

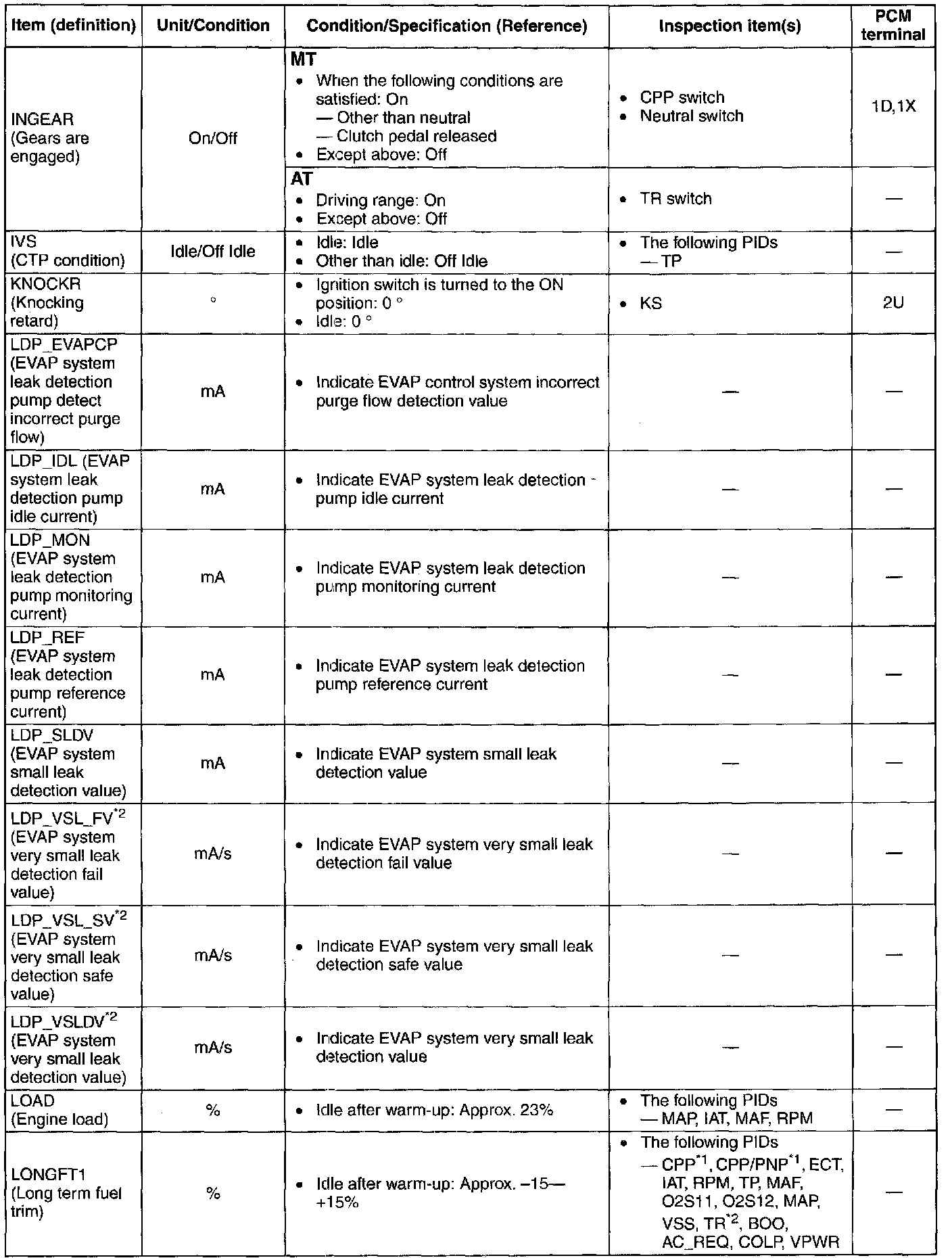

Pid/data Monitor Table(referance):



Pid/data Monitor Table(referance) - (Part 2):



Pid/data Monitor Table(referance)- (Part 3):



Pid/data Monitor Table(referance) - (Part 4):



Pid/data Monitor Table(referance) - (Part 5):



Pid/data Monitor Table(referance) - (Part 6):
