Air Flow Meter/Sensor: Service and Repair

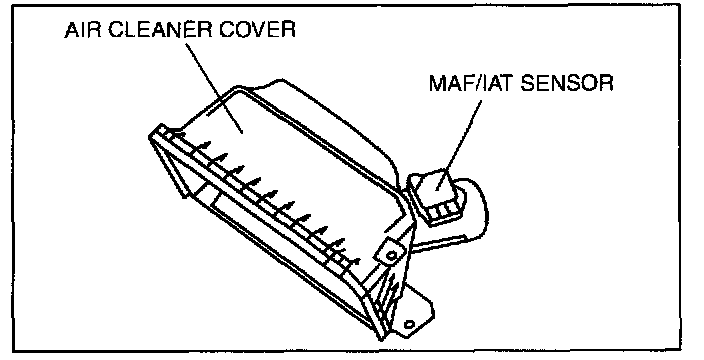

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION[LF]

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Disconnect MAF/IAT sensor connector.




4. Remove the MAF/IAT sensor.
5. Install in the reverse order of removal.

MAF/IAT sensor tightening torque
0.55-0.82 N.m {5.7-8.3 kgf.cm, 4.9-7.2 in.lbf}
