Home >> Mazda >> 2006 >> MX-5 Miata L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Service and Repair >> Disassembly/Assembly

Disassembly/Assembly

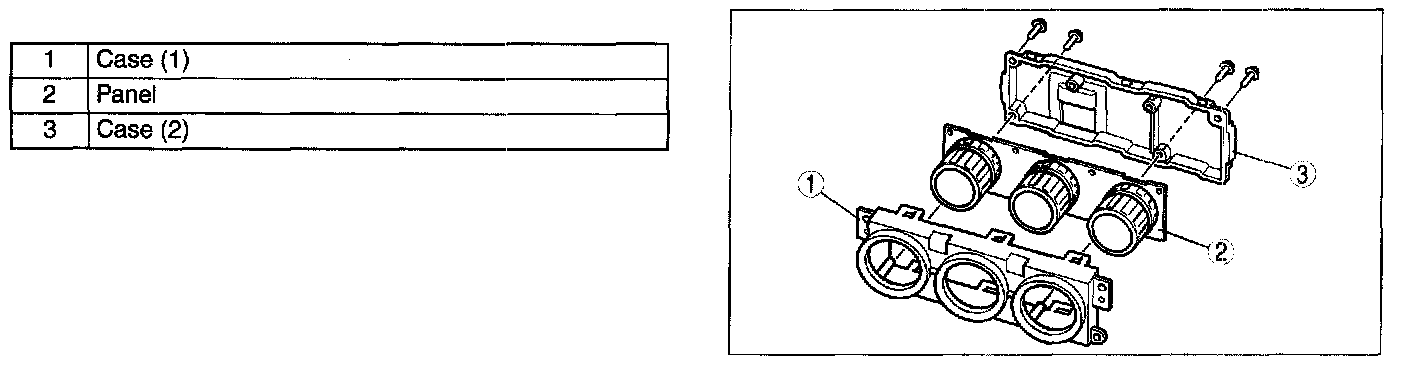

CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
