Home >> Mazda >> 2006 >> MPV V6-3.0L DOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Control Module >> Locations

Power Door Lock Control Module: Locations

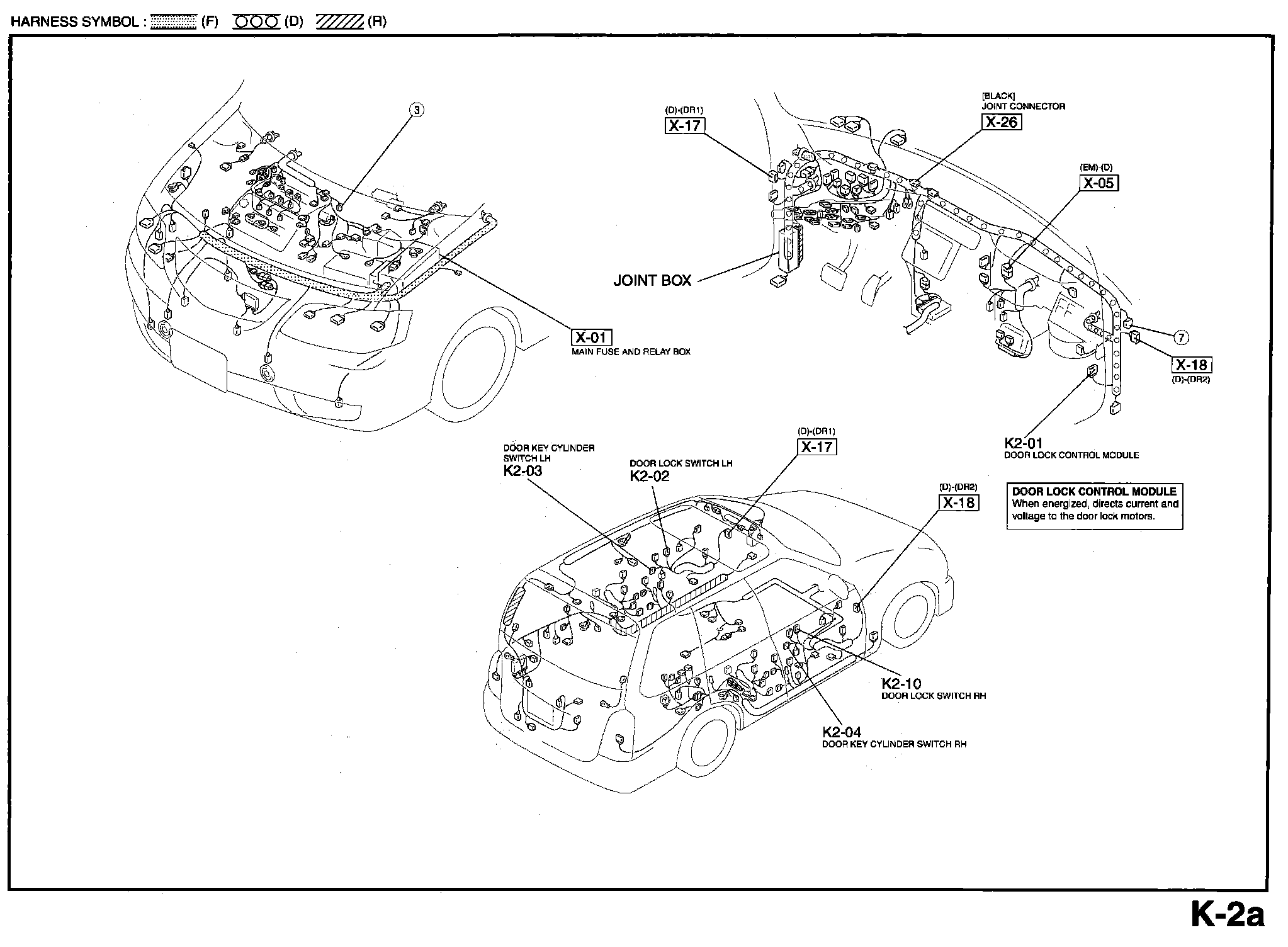

Routing View K-2a:

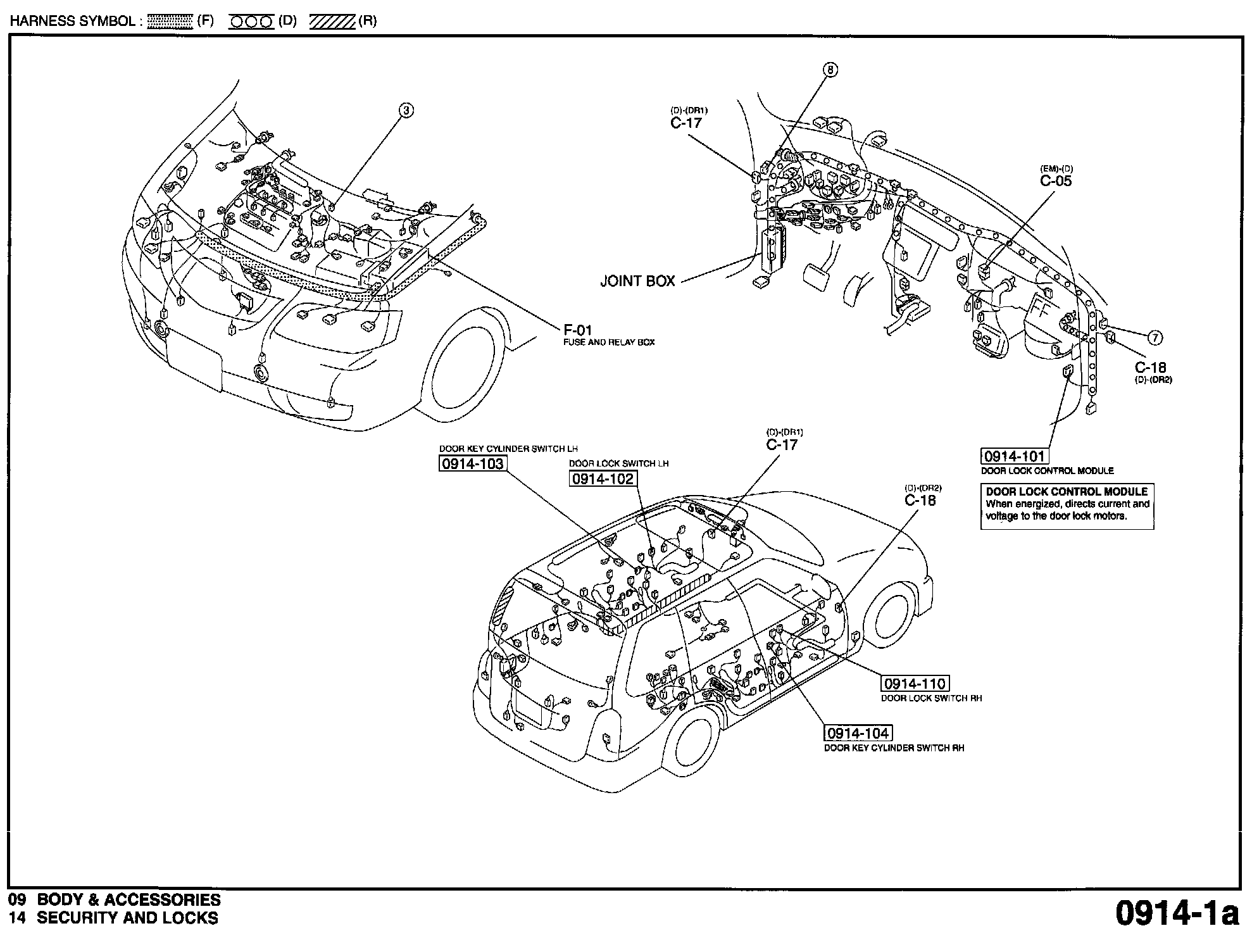

Routing View 0914-1a:

Routing View 0914-1a:
