PID/Data Monitor Item Table

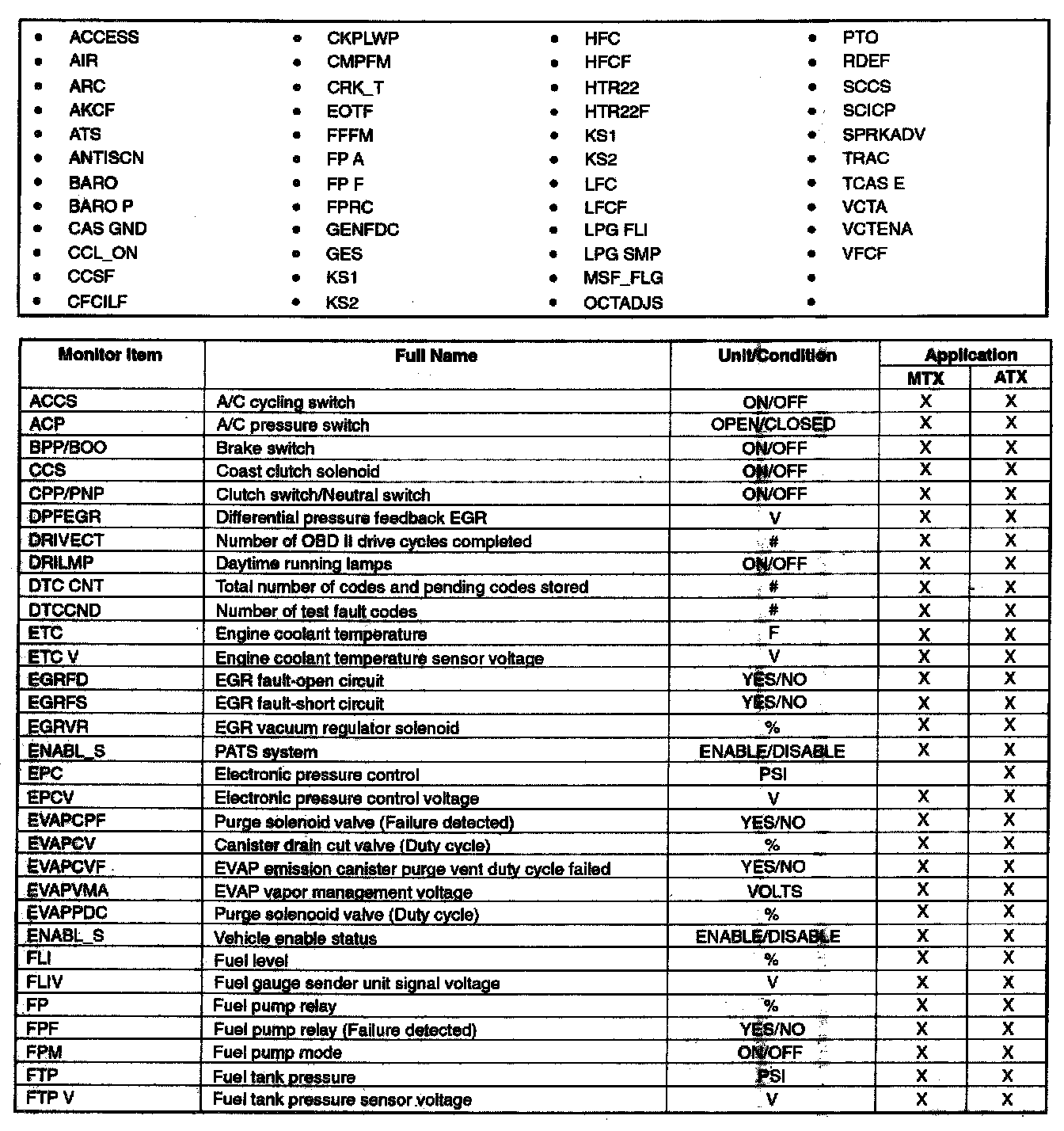

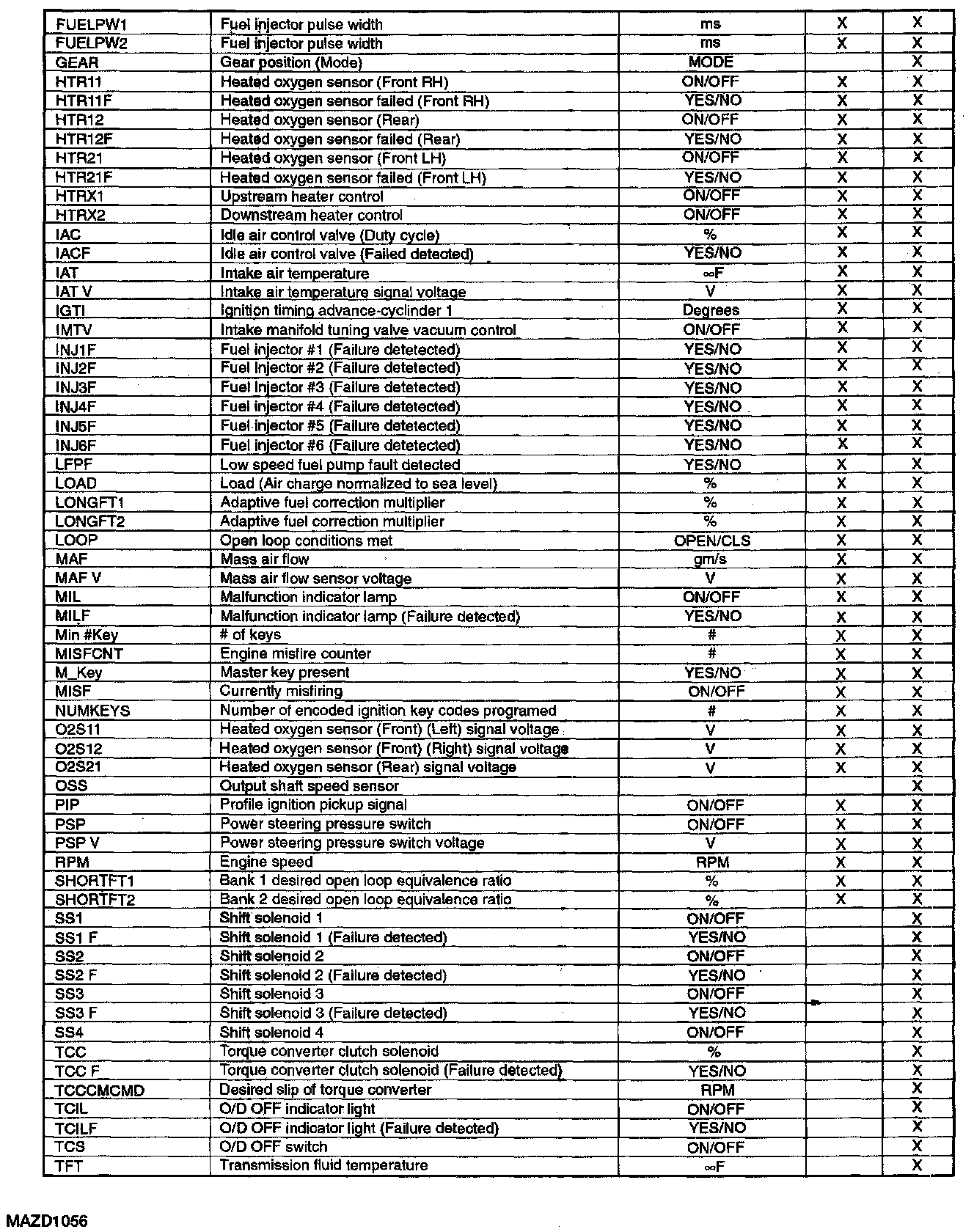

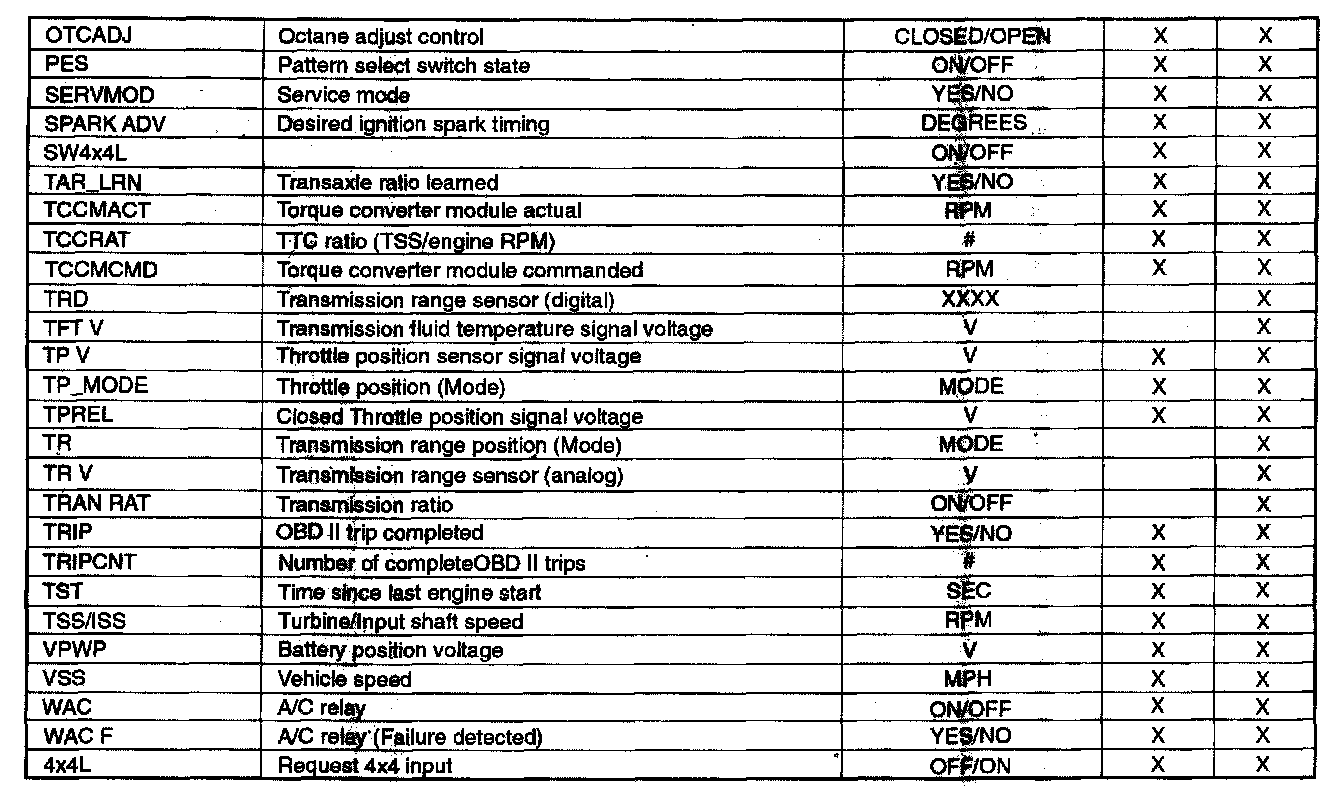

PID/DATA MONITOR ITEM TABLE

Part 1:




Part 2:




Part 3:






NOTE: The following PIDs may display on the WDS or equivalent tester, but they are not used for inspection, because the devices are not applied for in this model.
