Pinout Values and Diagnostic Parameters

Terminal Voltage Table(Reference) - Terminal(1A-1C):

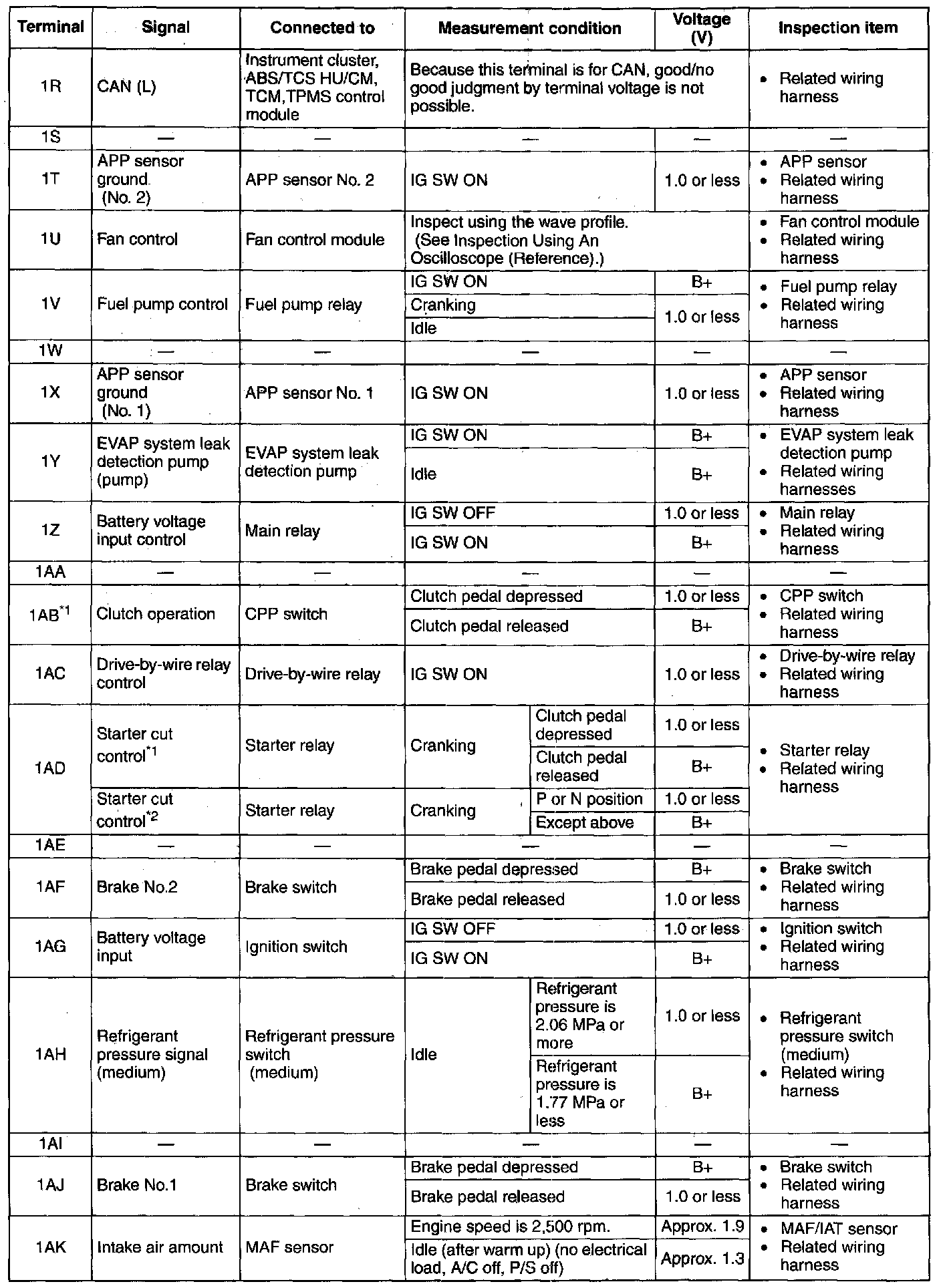

Terminal Voltage Table(Reference) - Terminal(1R-1AK):

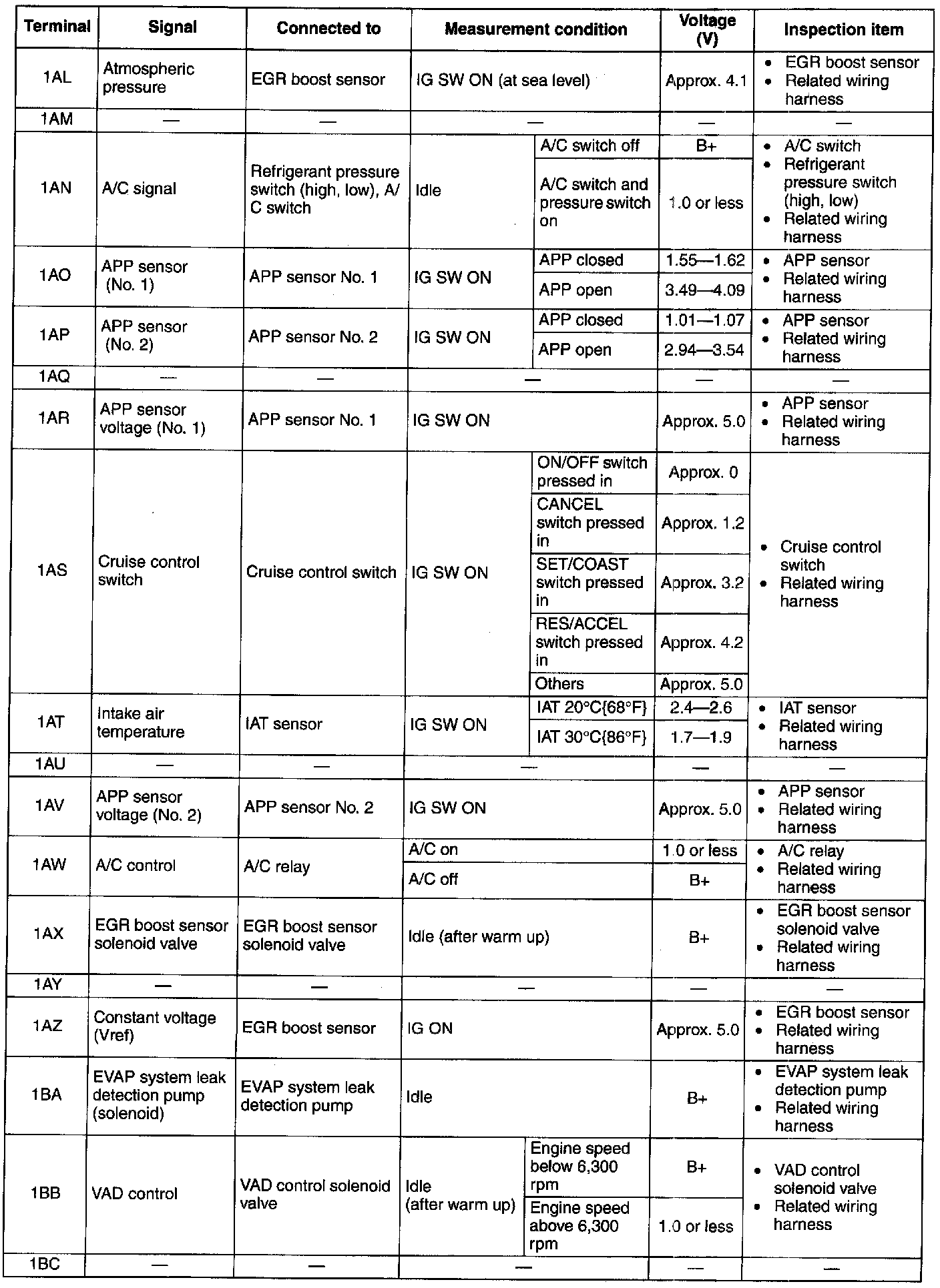

Terminal Voltage Table(Reference) - Terminal(1AL-1BC):

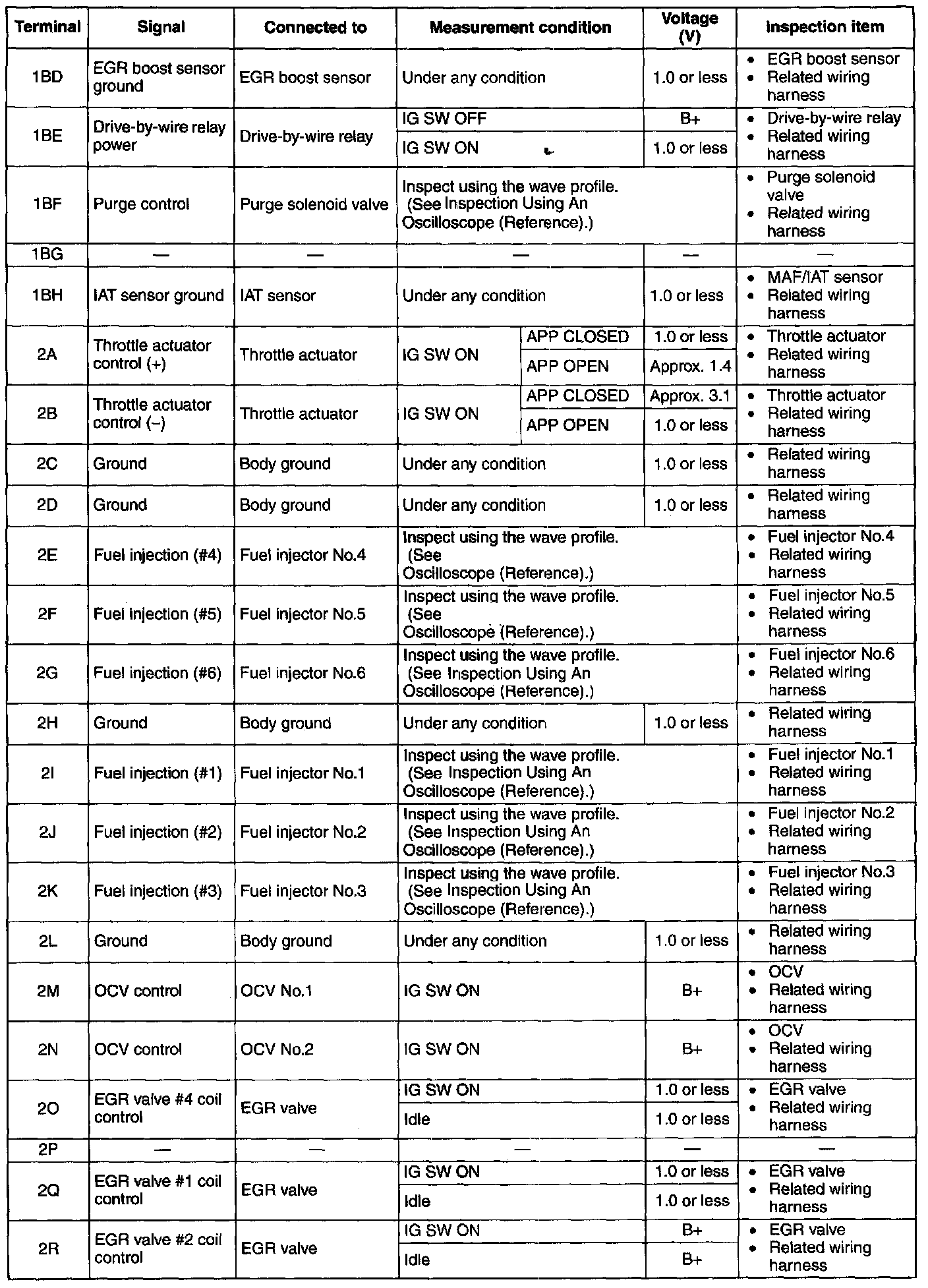

Terminal Voltage Table(Reference) - Terminal(1BD-2R):

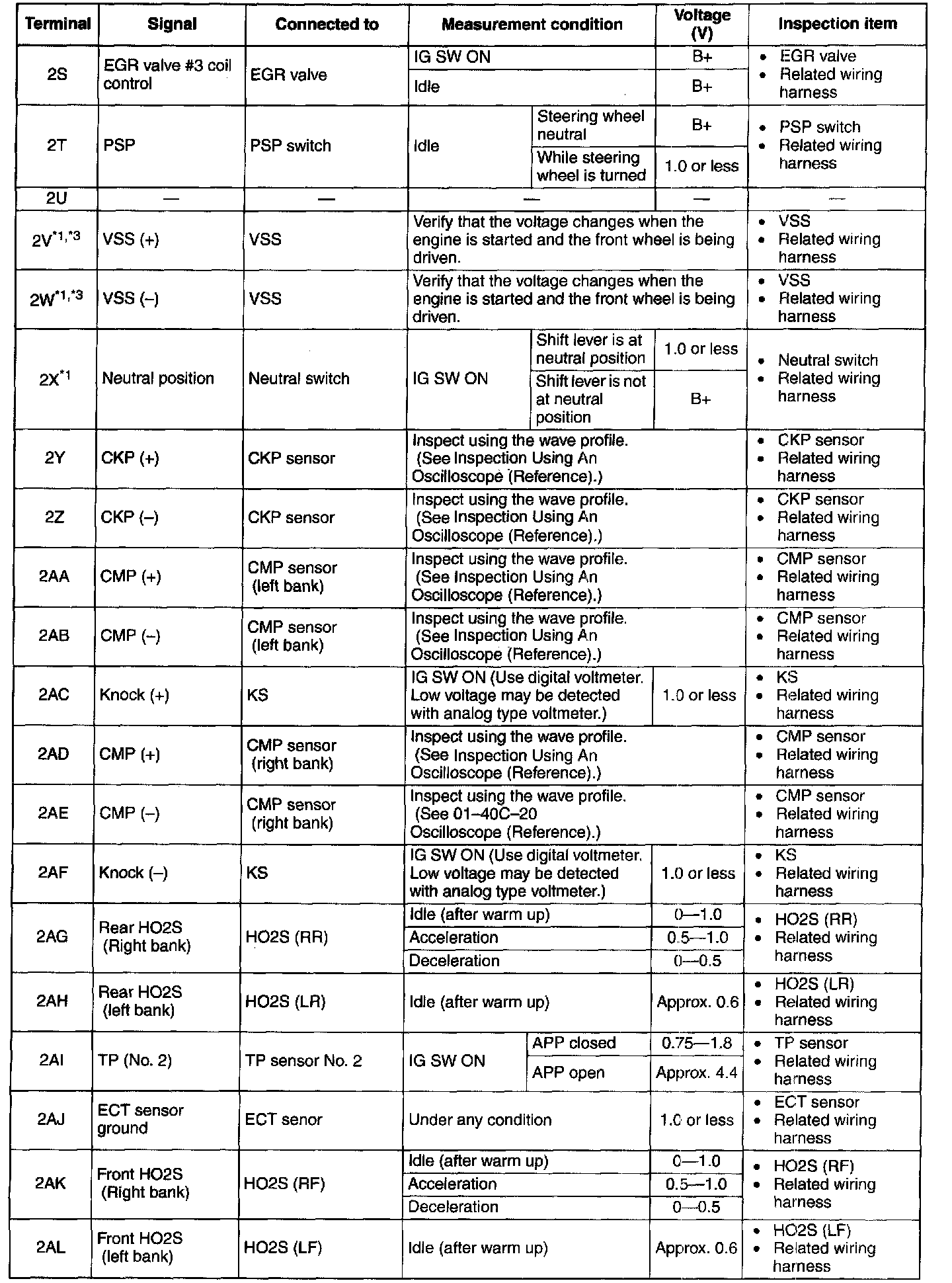

Terminal Voltage Table(Reference) - Terminal(2S-2Al):

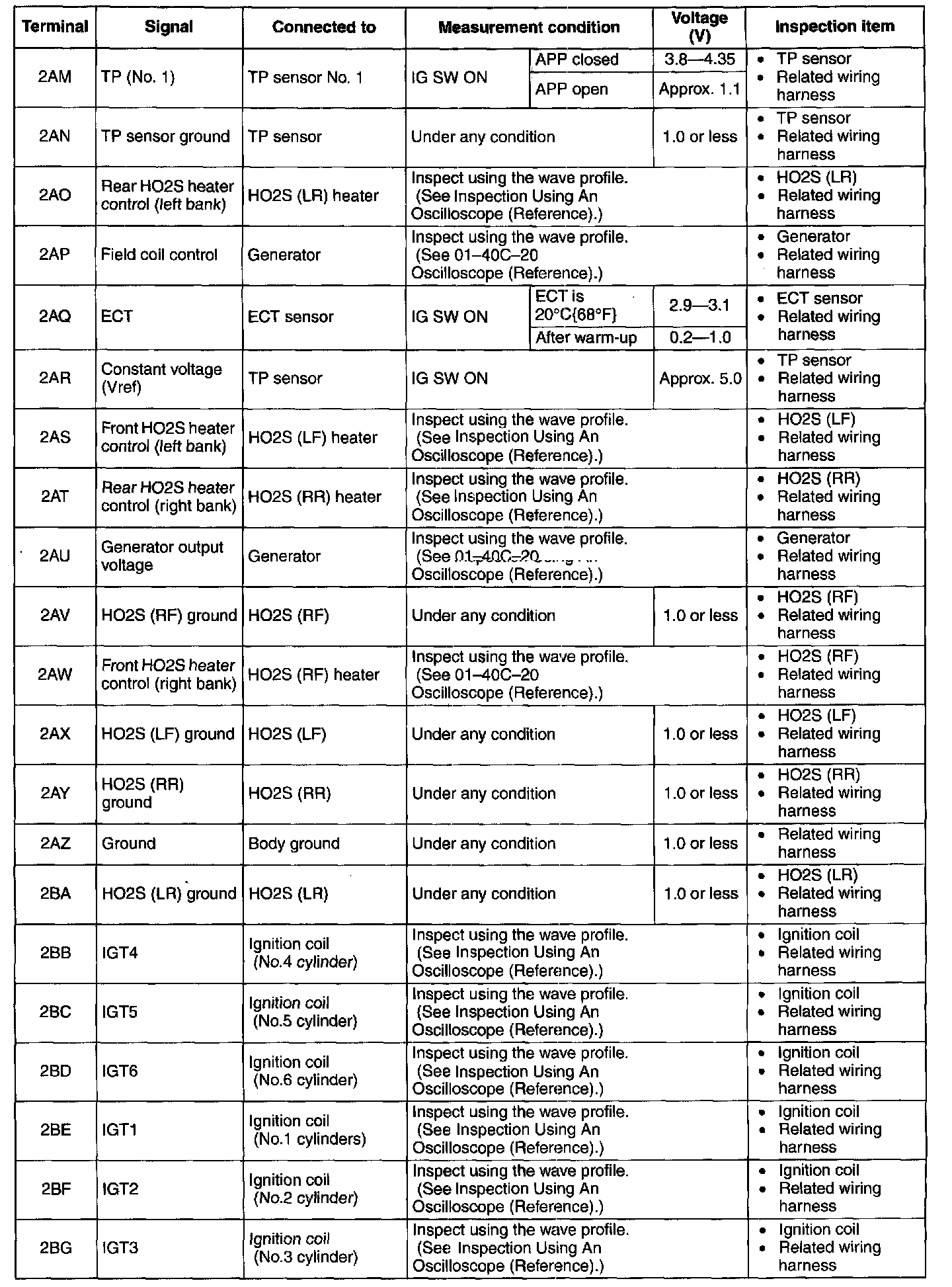

Terminal Voltage Table(Reference) - Terminal(2AM-2BG):

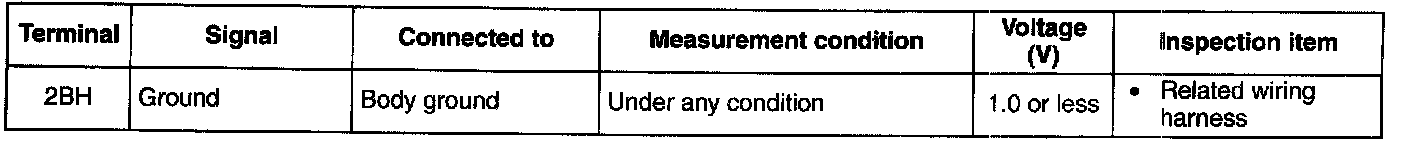

Terminal Voltage Table(Reference) - Terminal(2BH):
