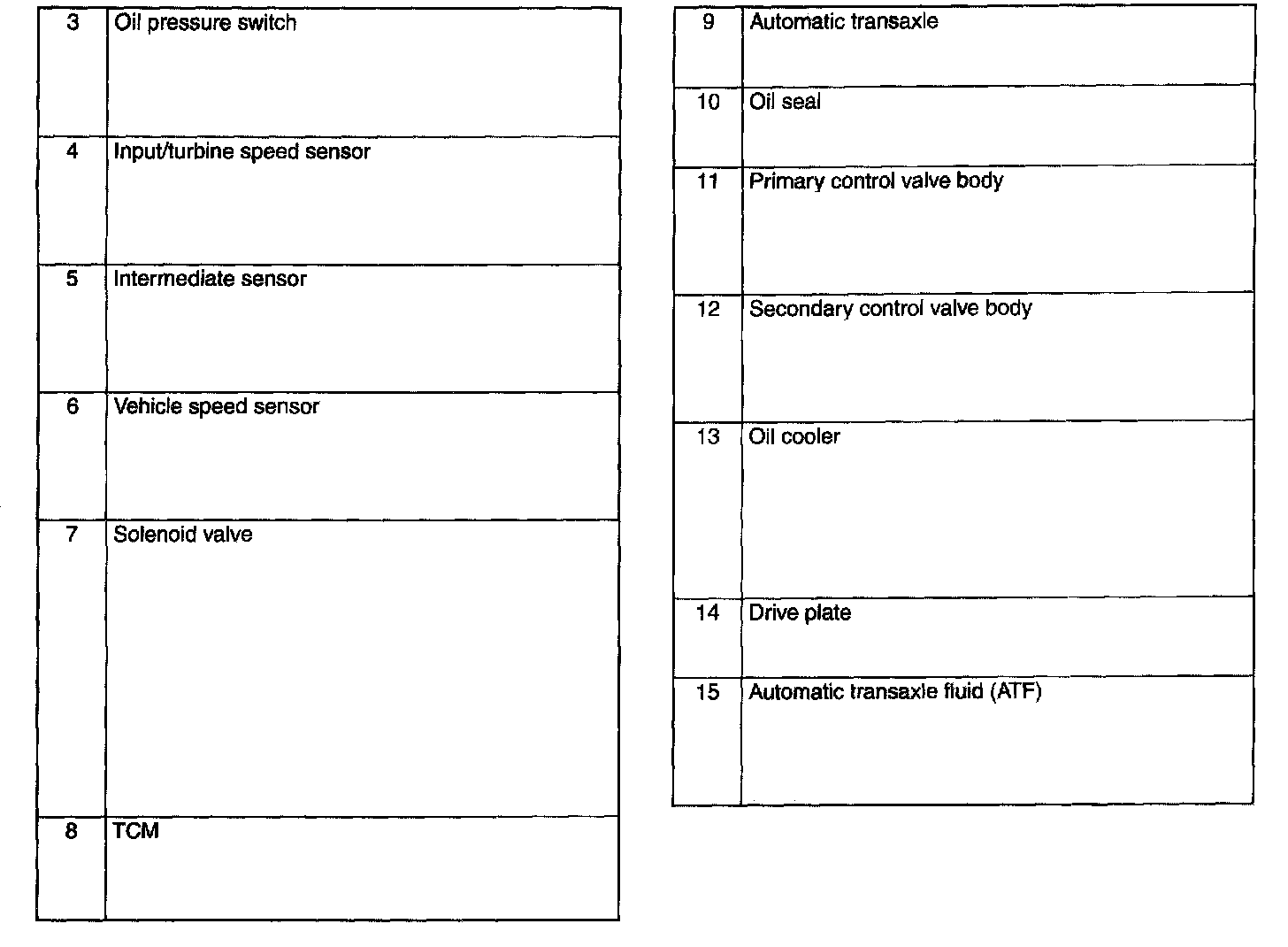

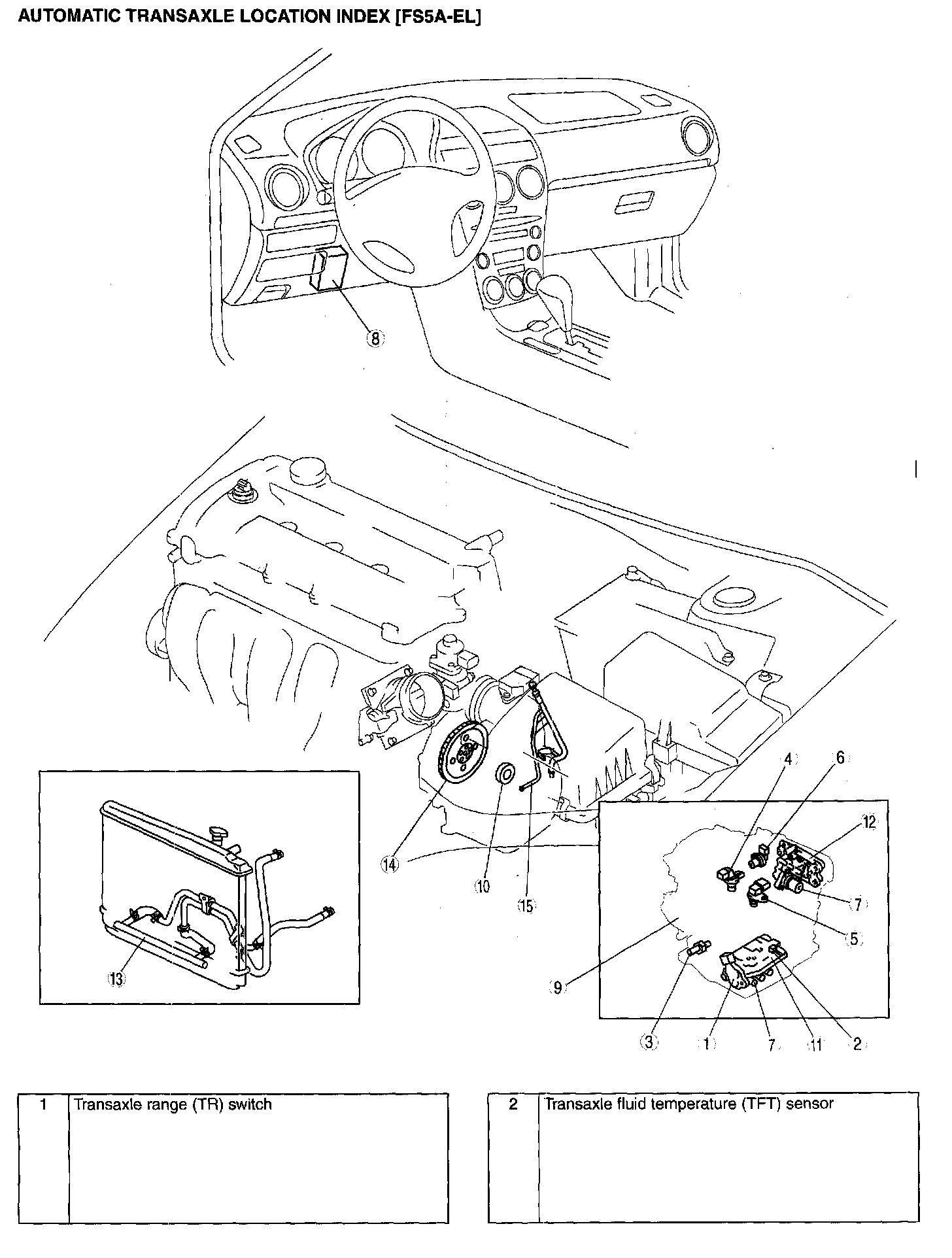

AUTOMATIC TRANSAXLE LOCATION INDEX [FS5A-EL]:
AUTOMATIC TRANSAXLE LOCATION INDEX [FS5A-EL]:

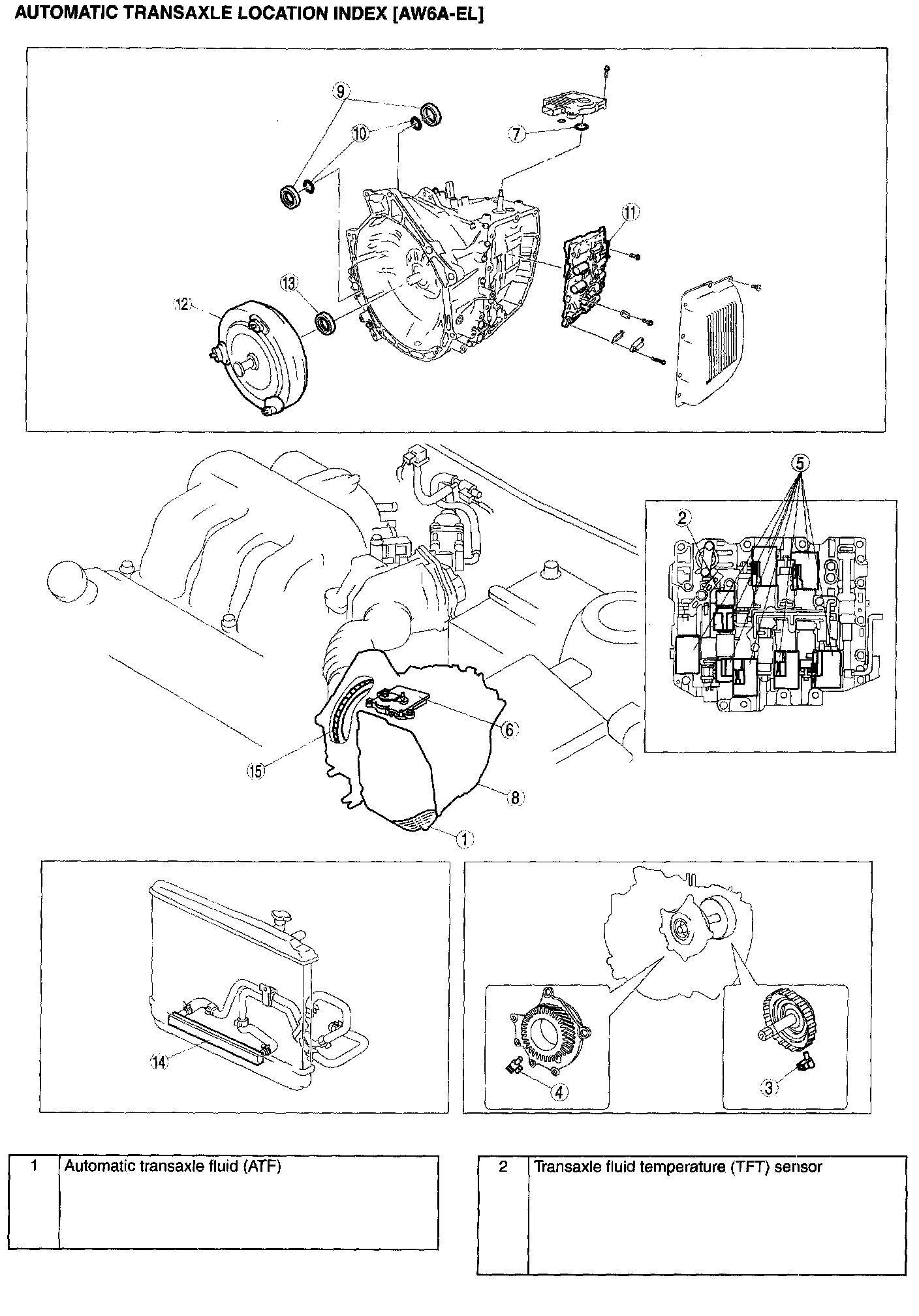

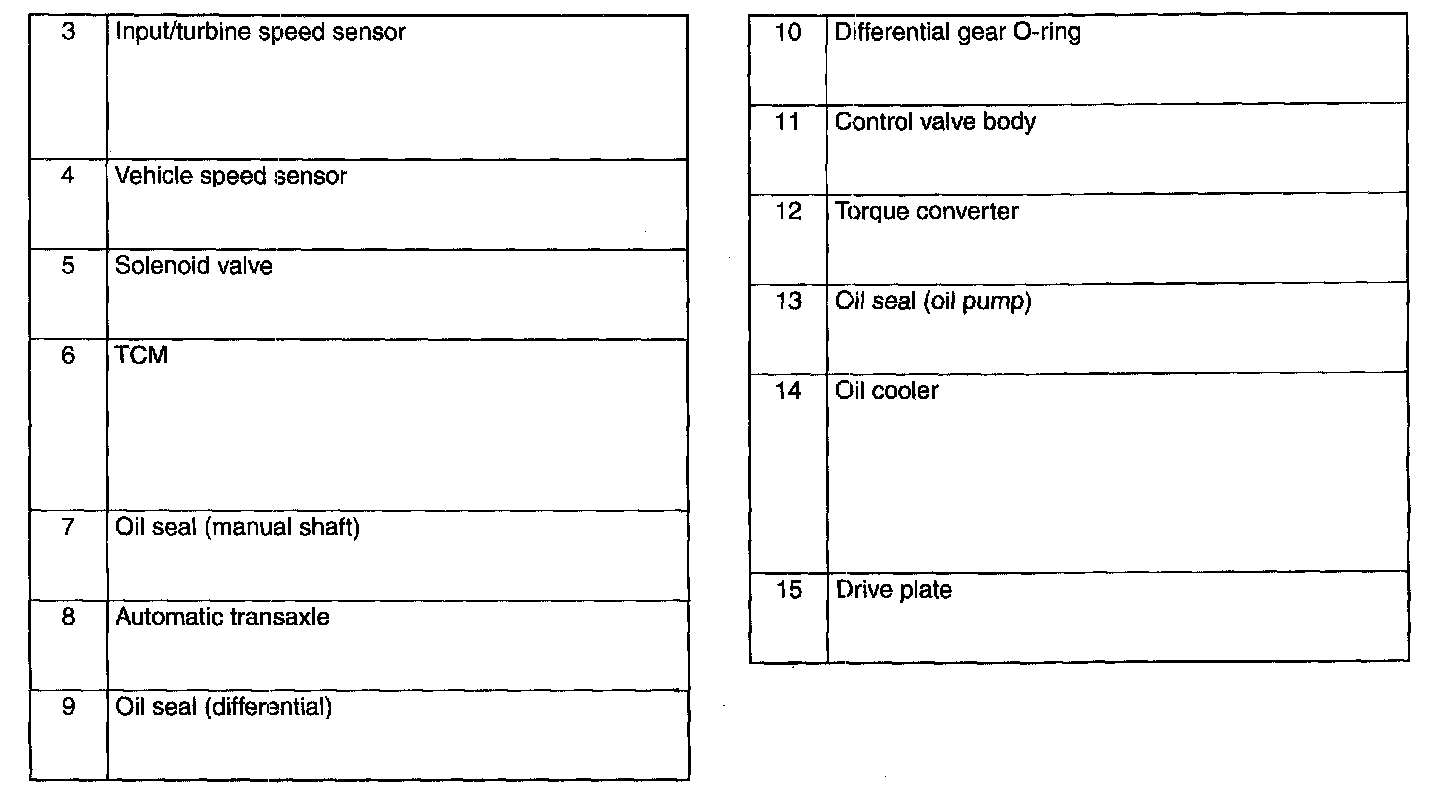

AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL]:
AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL]:
