Home >> Mazda >> 2006 >> 5 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

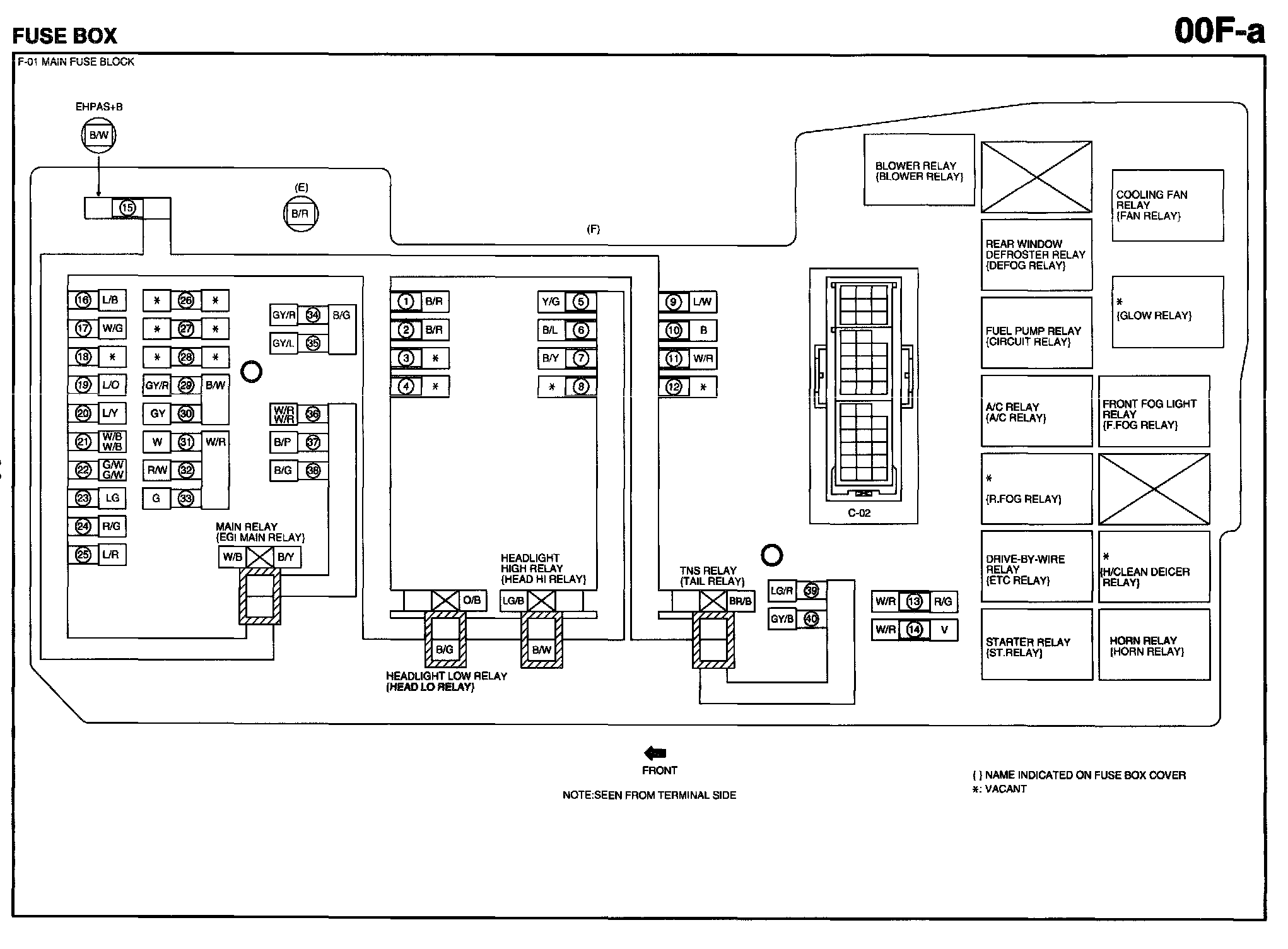

F-01 Main Fuse Block:

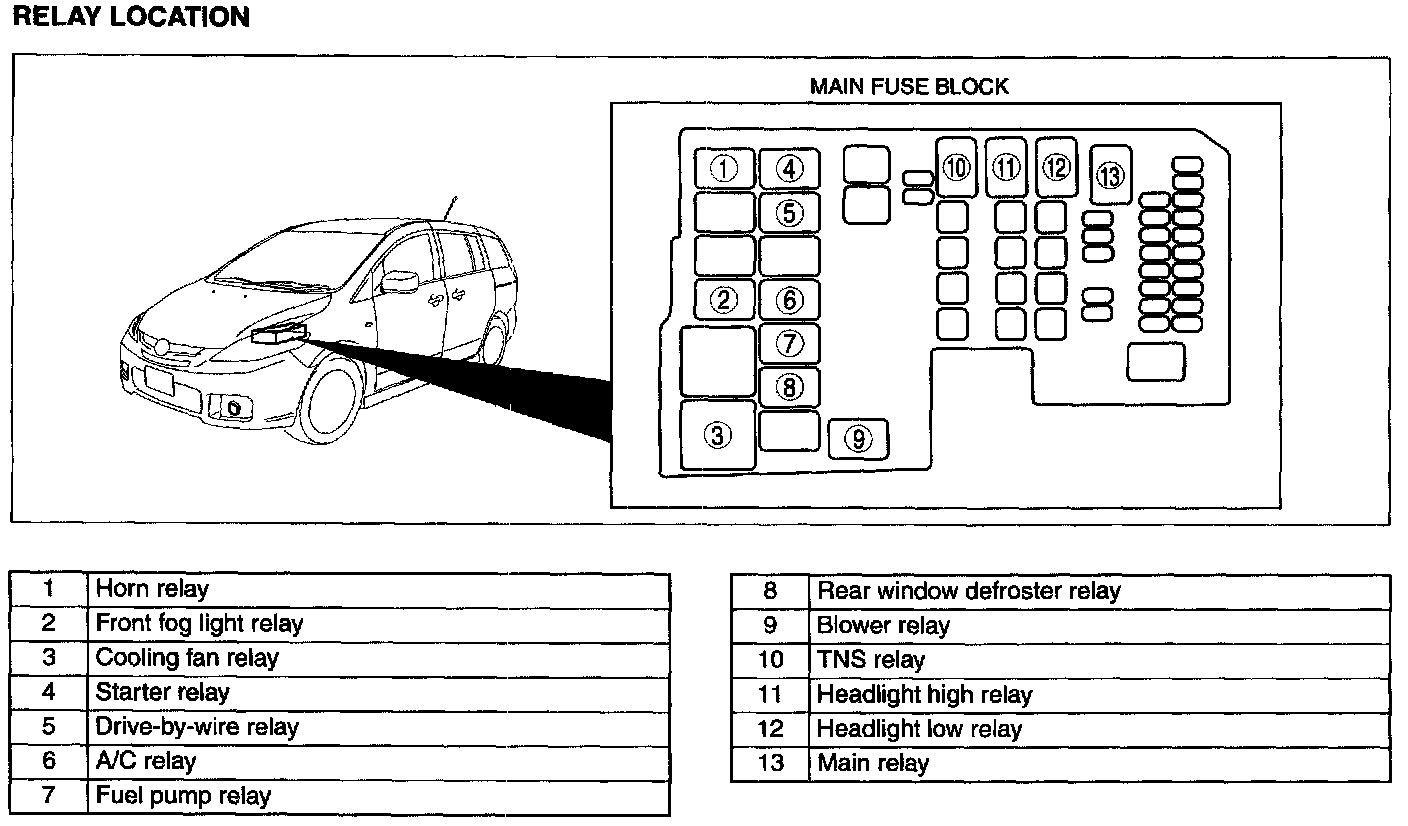

Relay Location:
