Home >> Mazda >> 2006 >> 3 L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

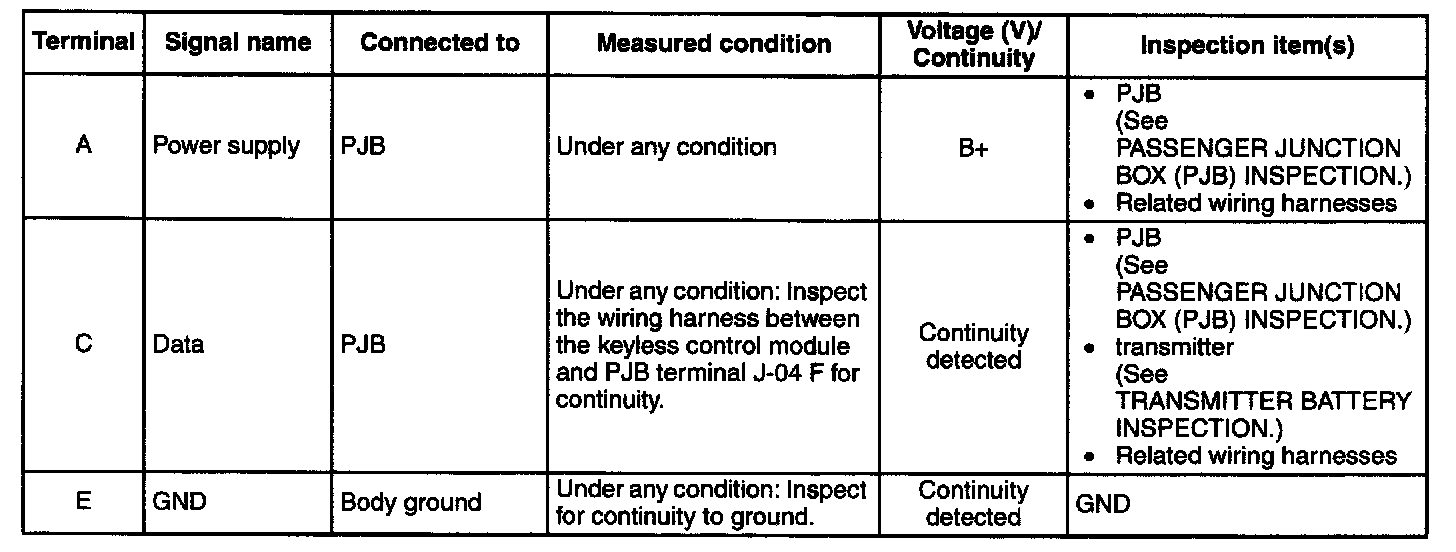

Terminal Voltage Table (Reference) Part 1:

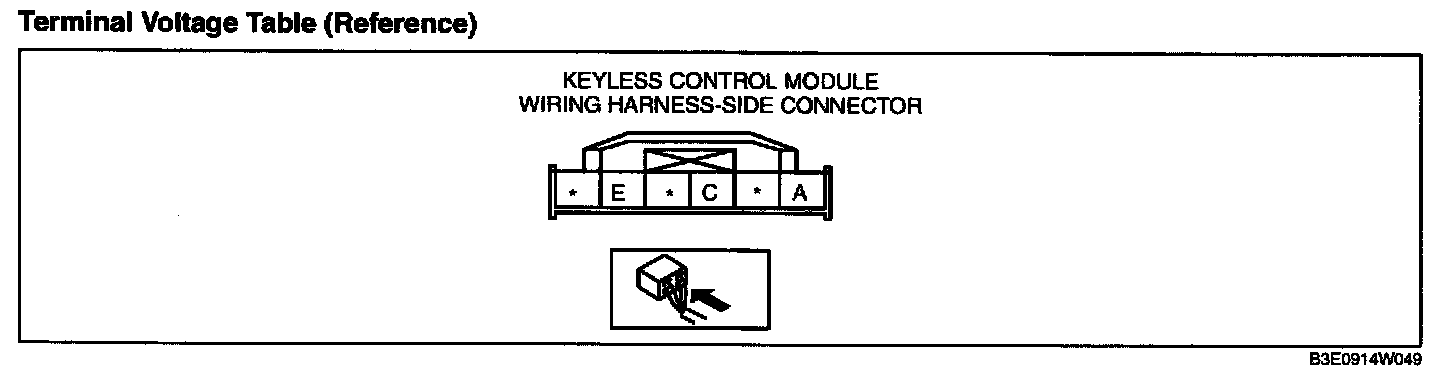

Terminal Voltage Table (Reference) Part 2:
