Control Module: Service and Repair

FOUR - WHEEL DRIVE (4WD) CONTROL MODULE

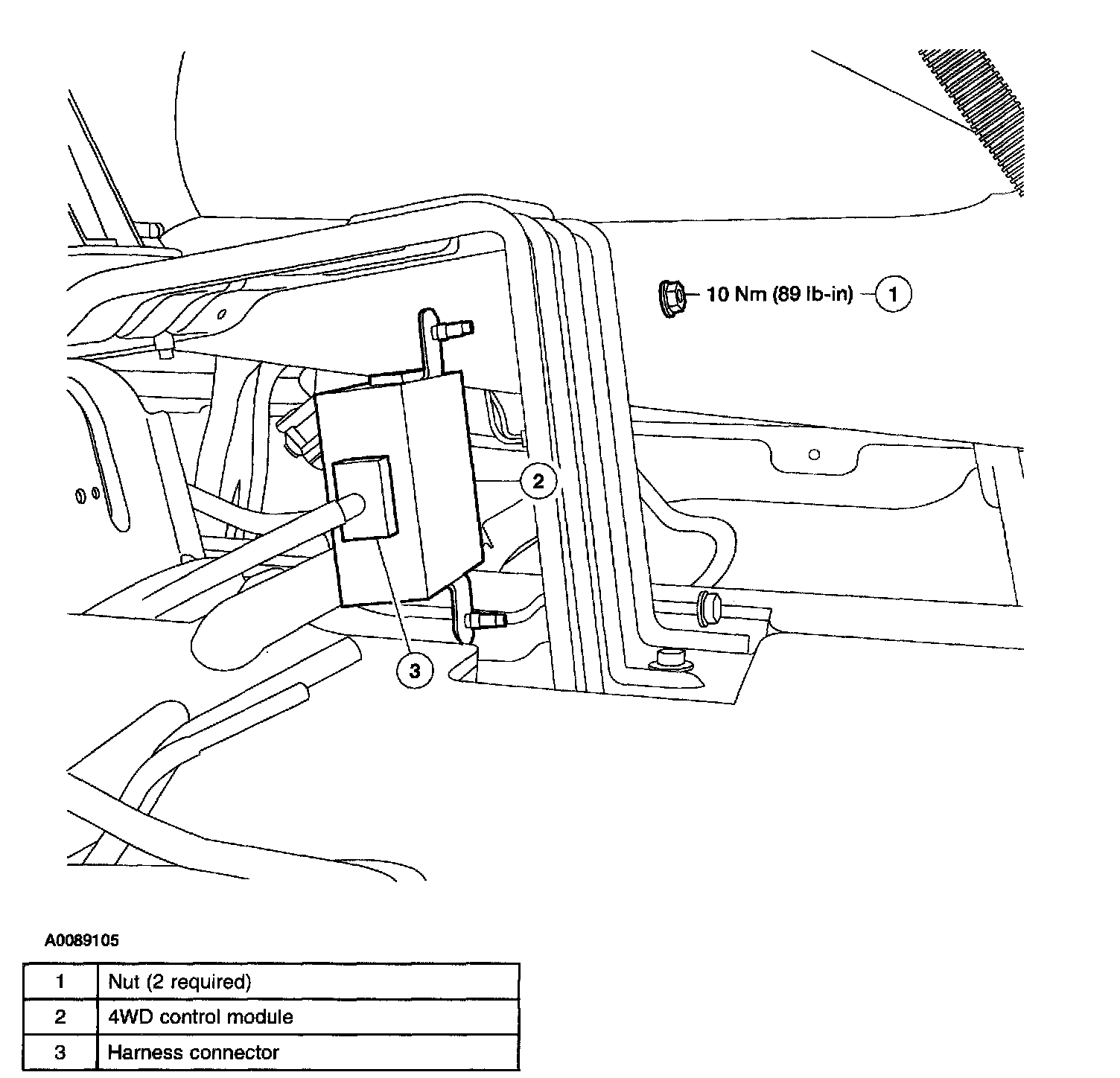

Removal and Installation
1. Remove the floor console.
2. Disconnect the four-wheel drive (4WD) control module electrical connector.
3. Remove the 2 nuts and the four-wheel drive (4WD) control module.
