PID/Data Monitor Item Table

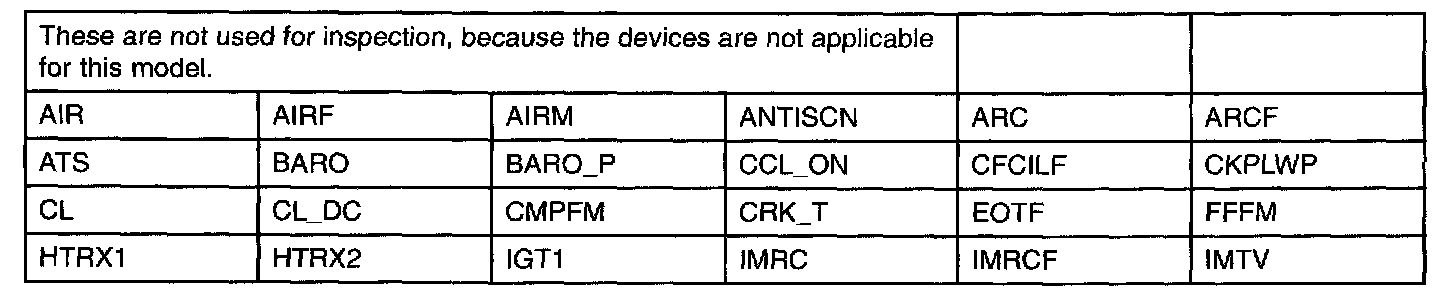

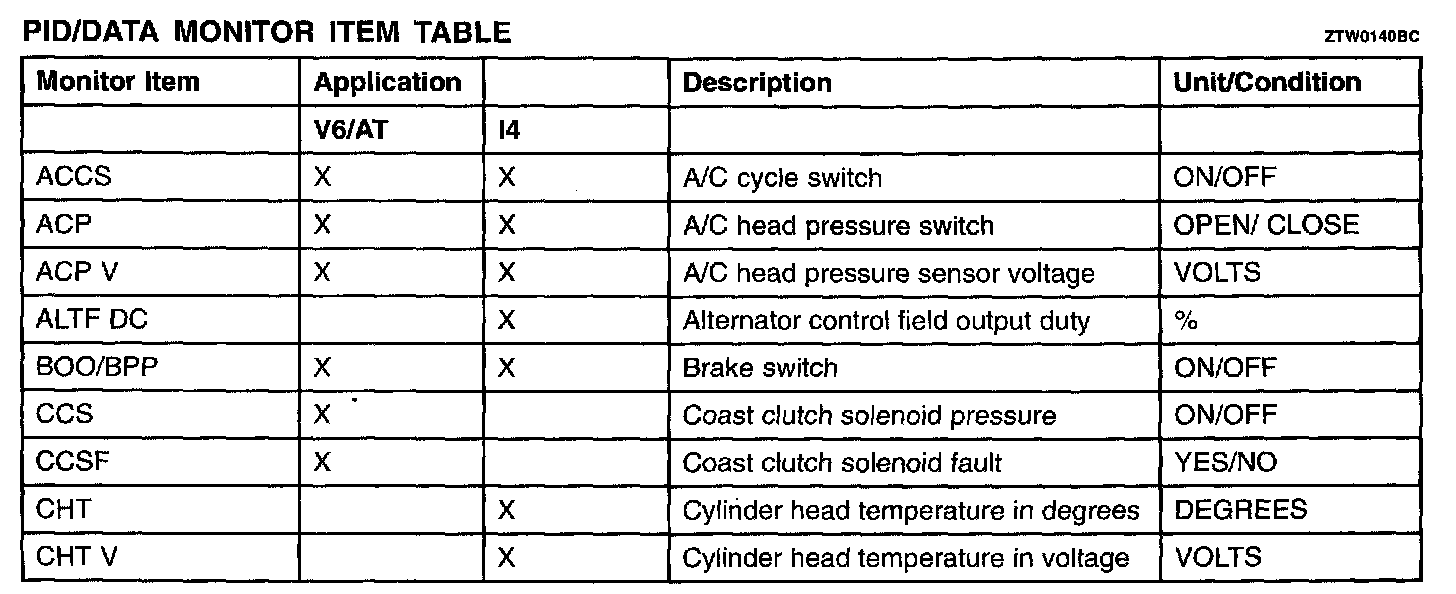

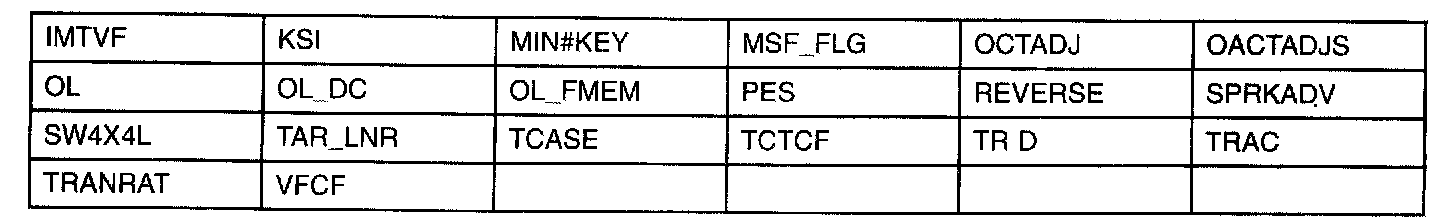

PID/Data Monitor Item Table Part 1:

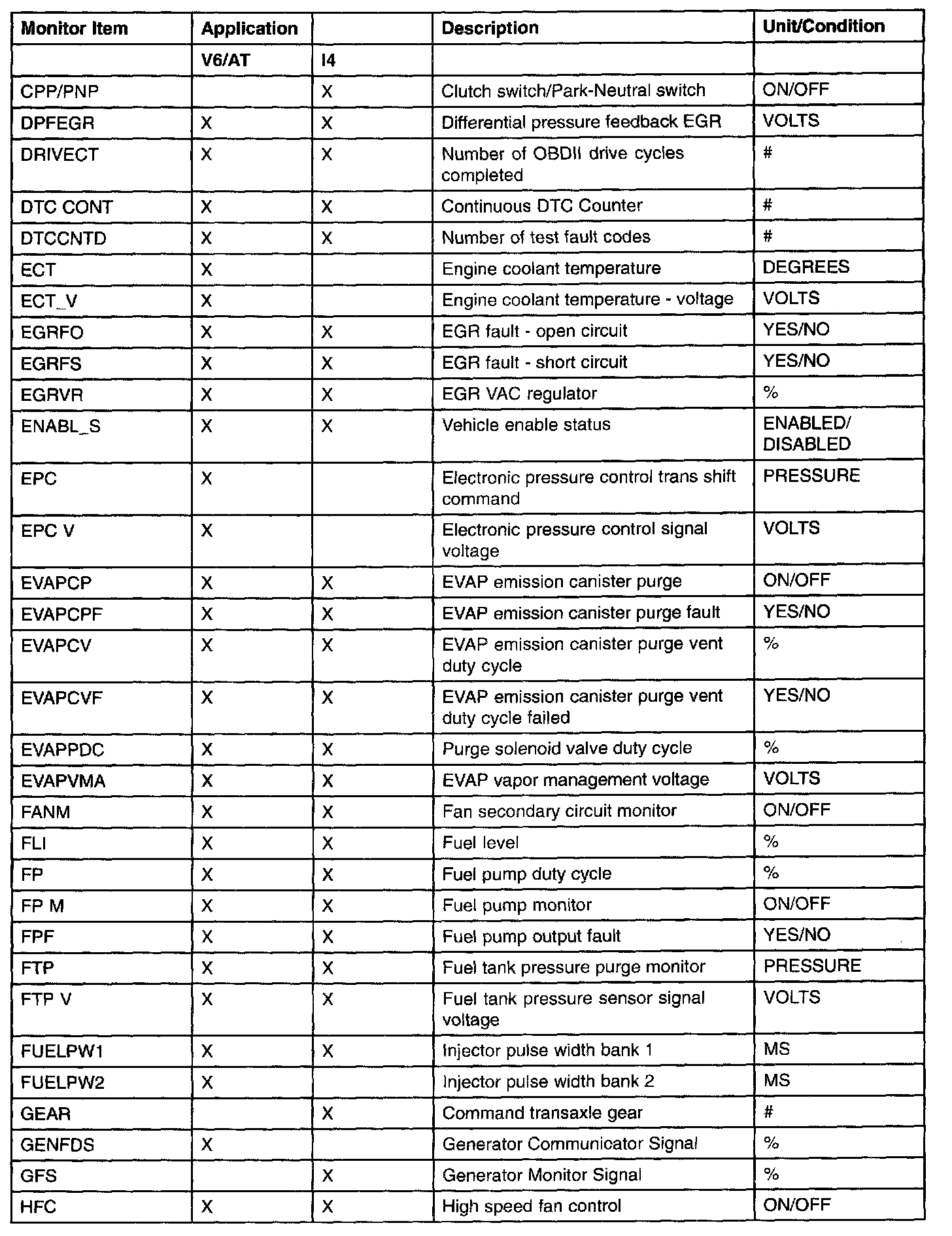

PID/Data Monitor Item Table Part 2:

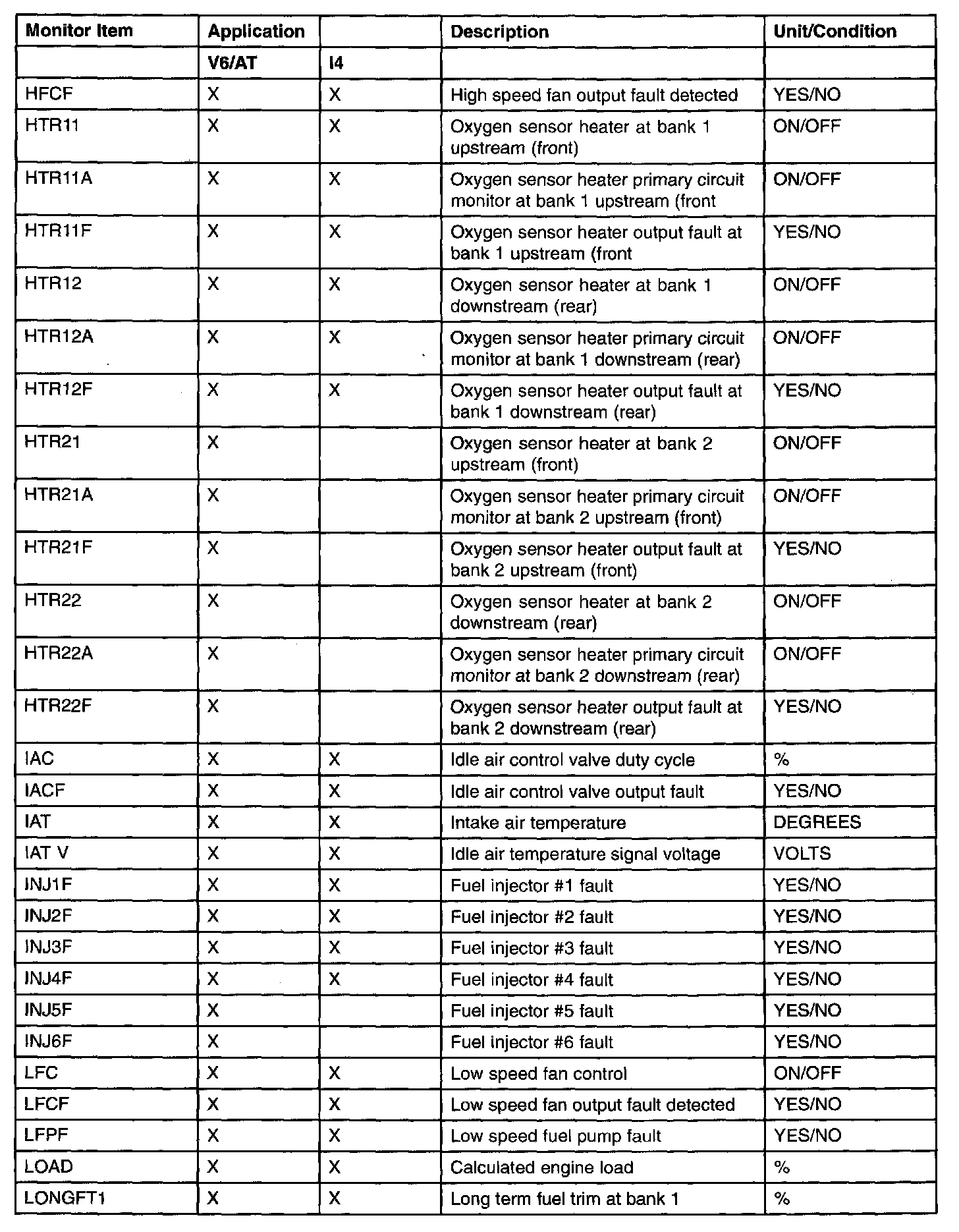

PID/Data Monitor Item Table Part 3:

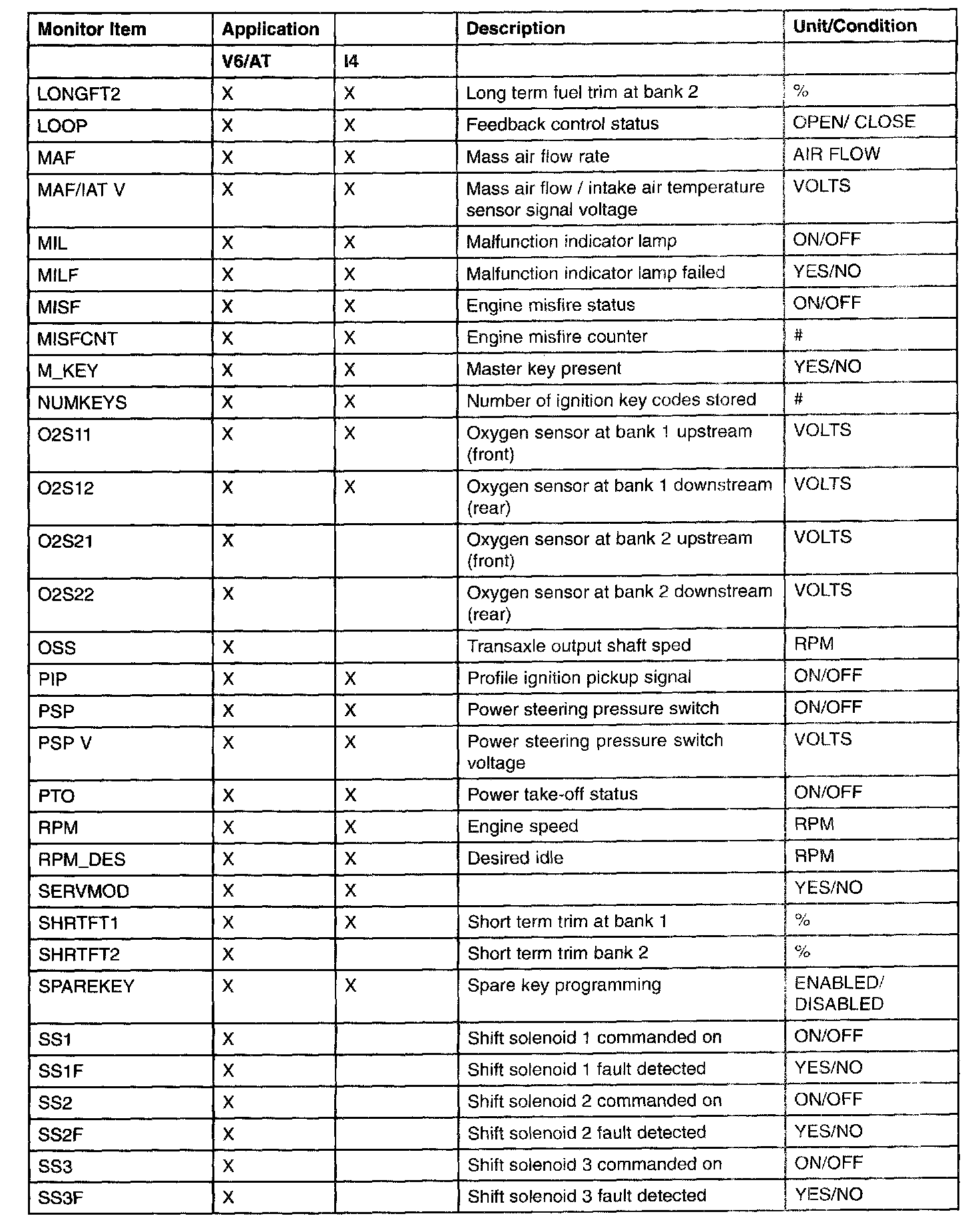

PID/Data Monitor Item Table Part 4:

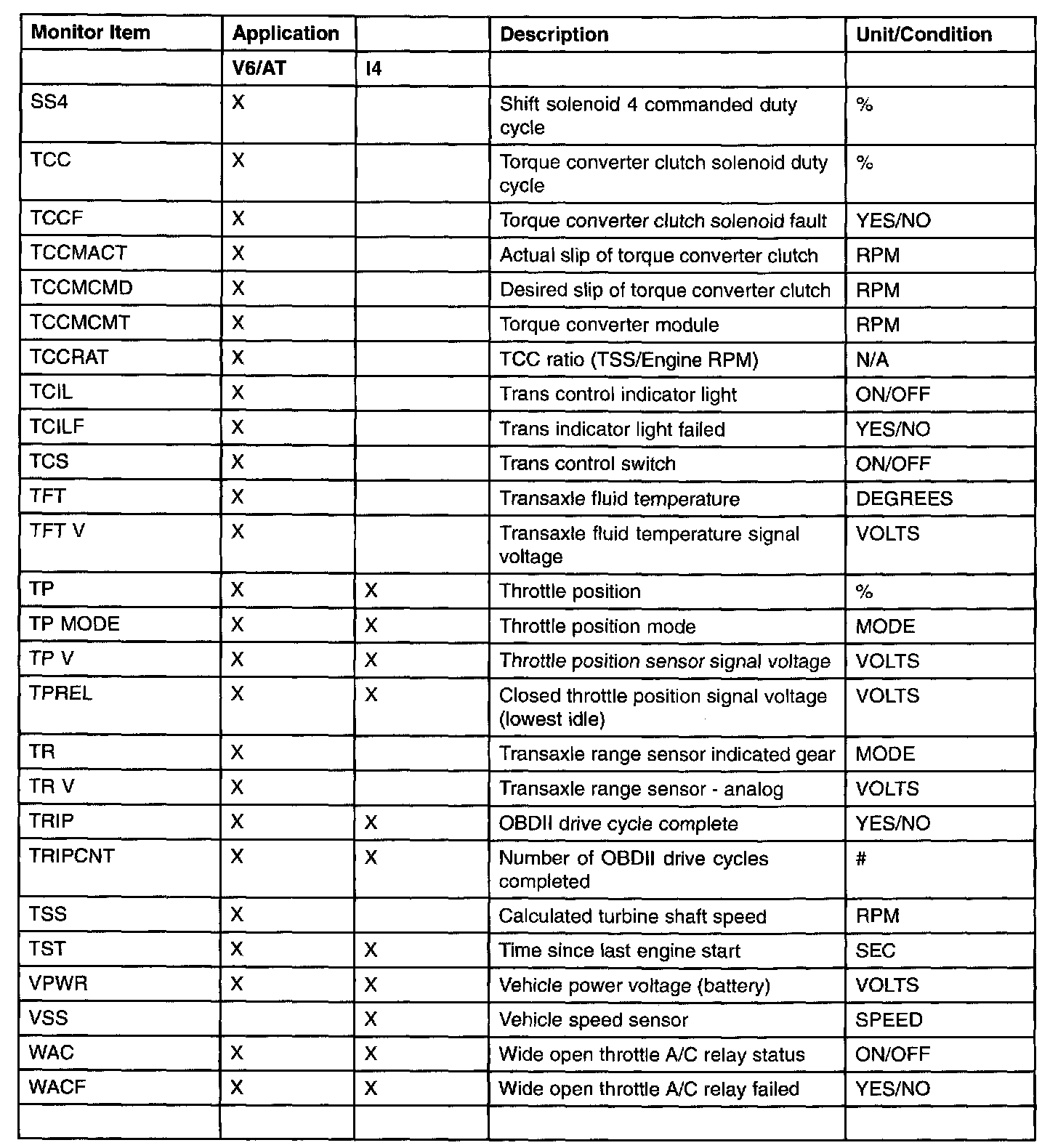

PID/Data Monitor Item Table Part 5:
