Vacuum Controller, HVAC
Vacuum Controller, HVAC

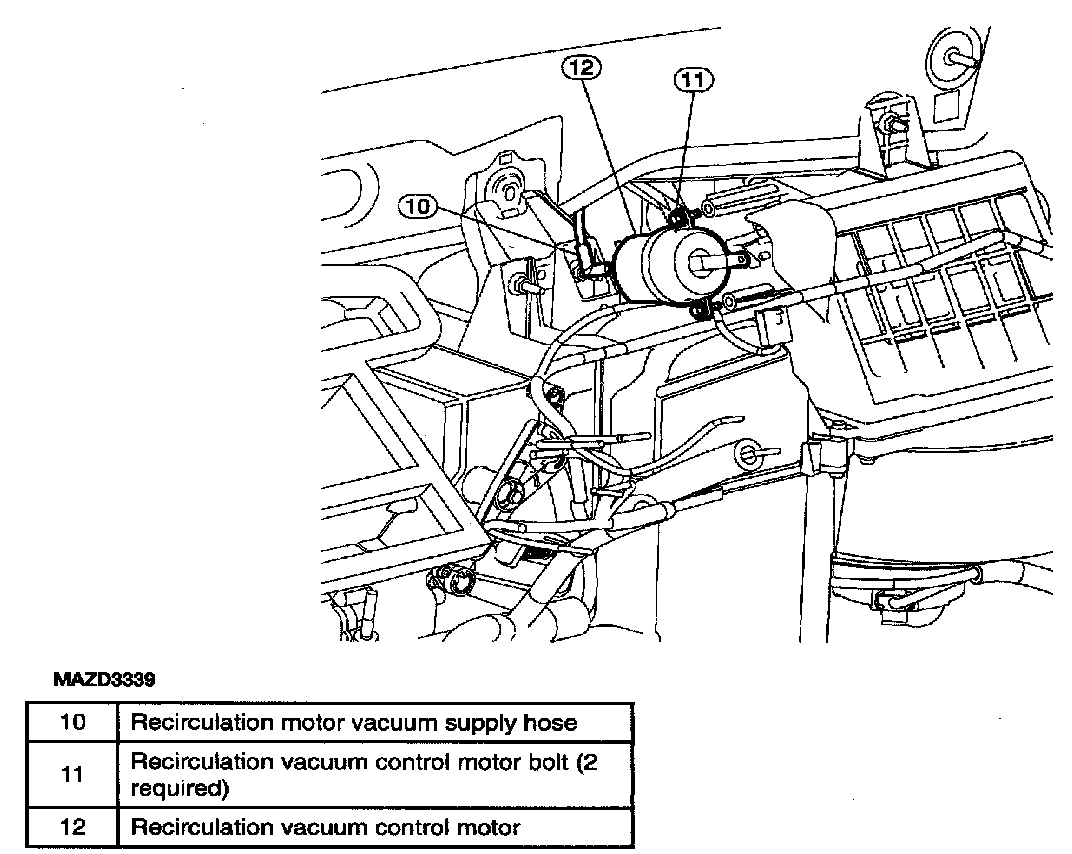

Vacuum Control Motor Part 1:

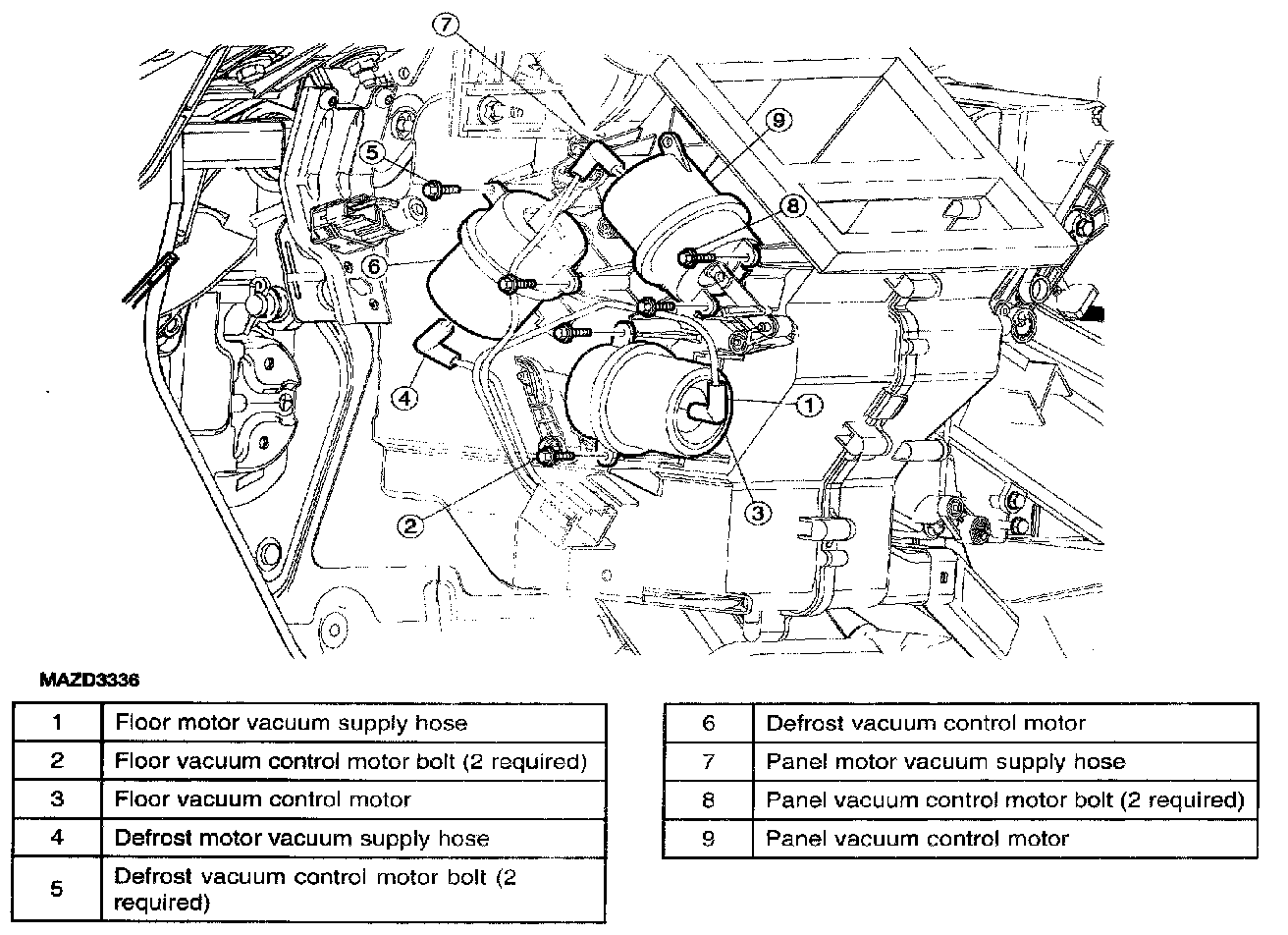

Vacuum Control Motor Part 2:
