Home >> Mazda >> 2005 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heater Hose

Heater Hose

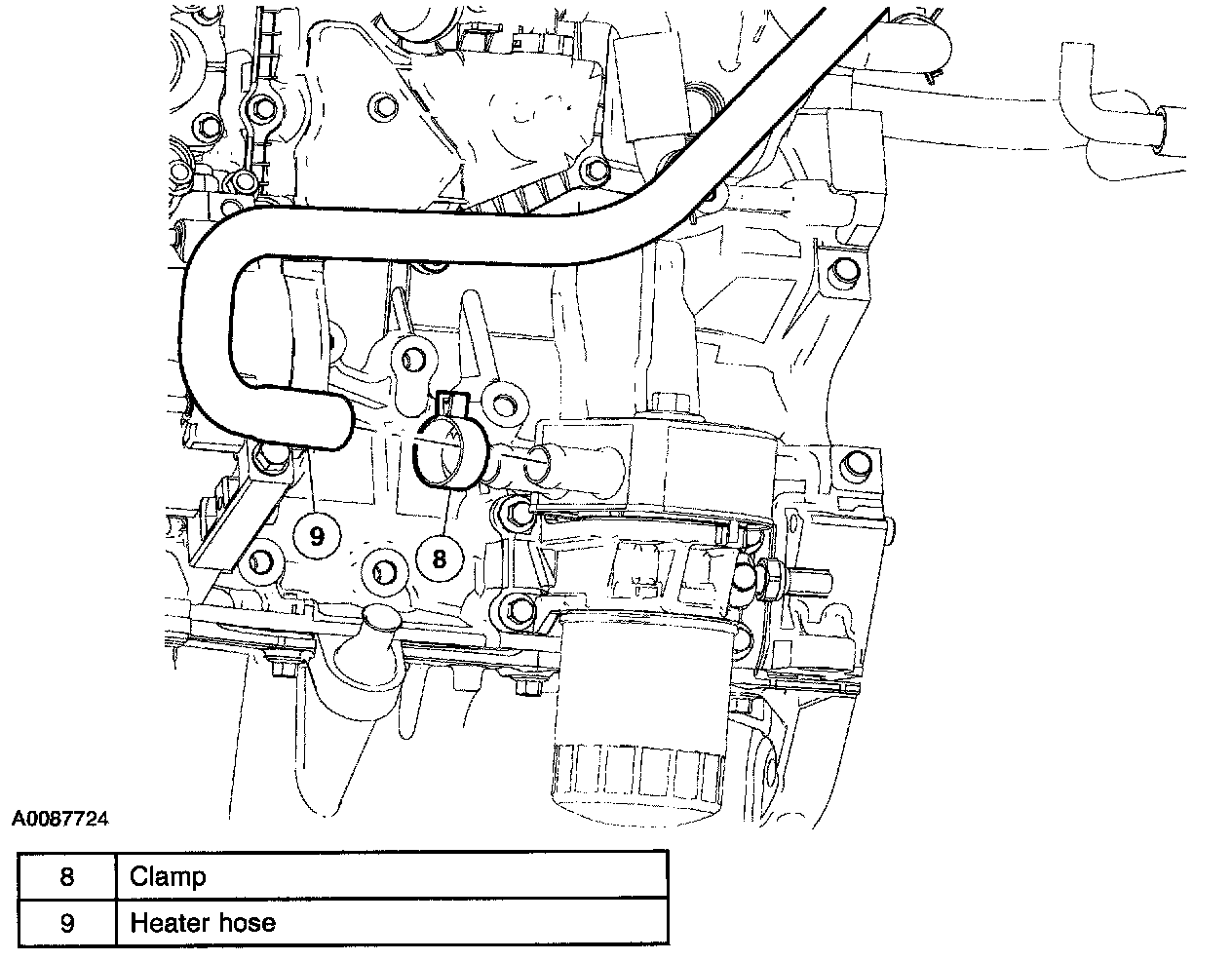

Heater Hose Part 1:

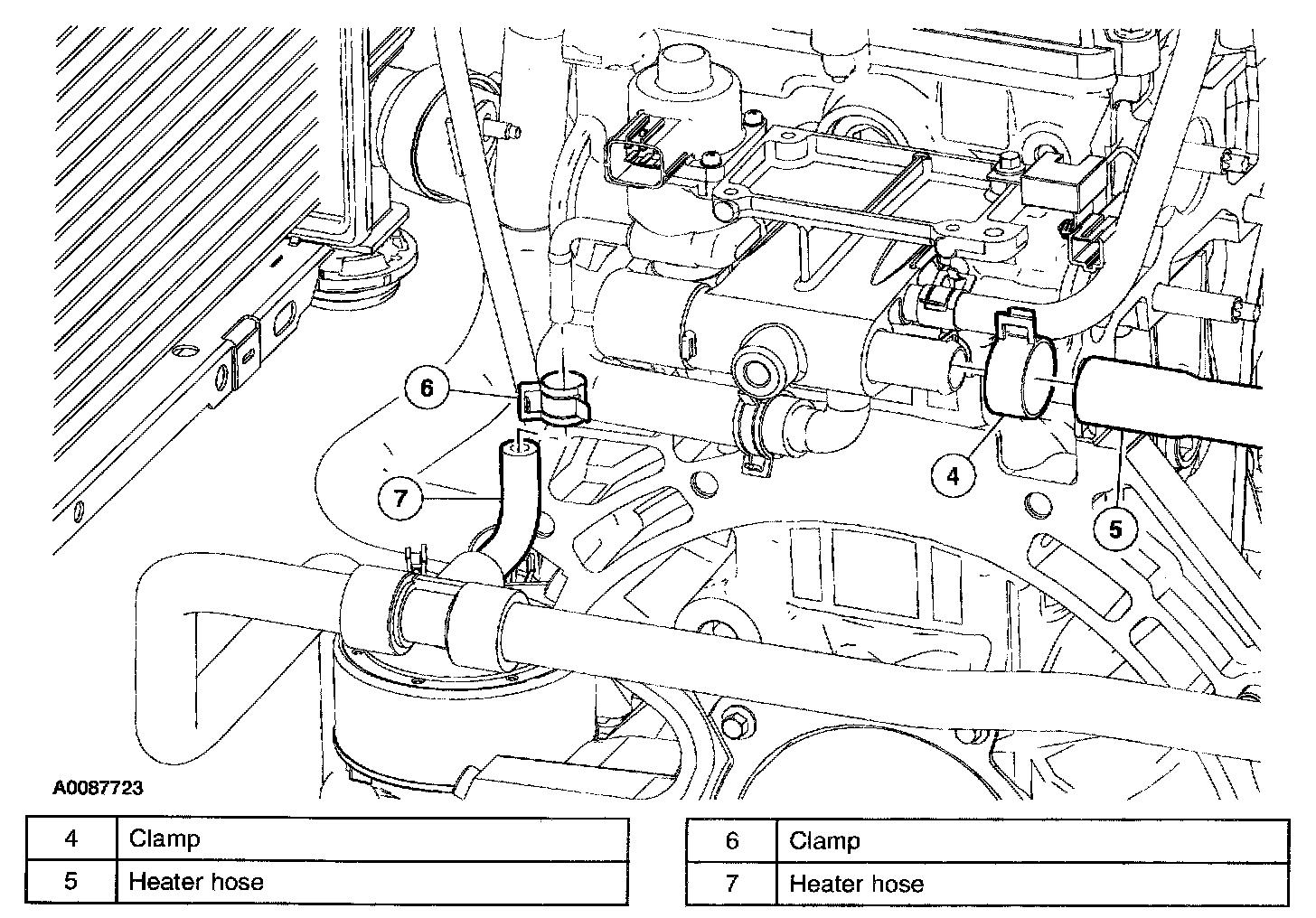

Heater Hose Part 2:

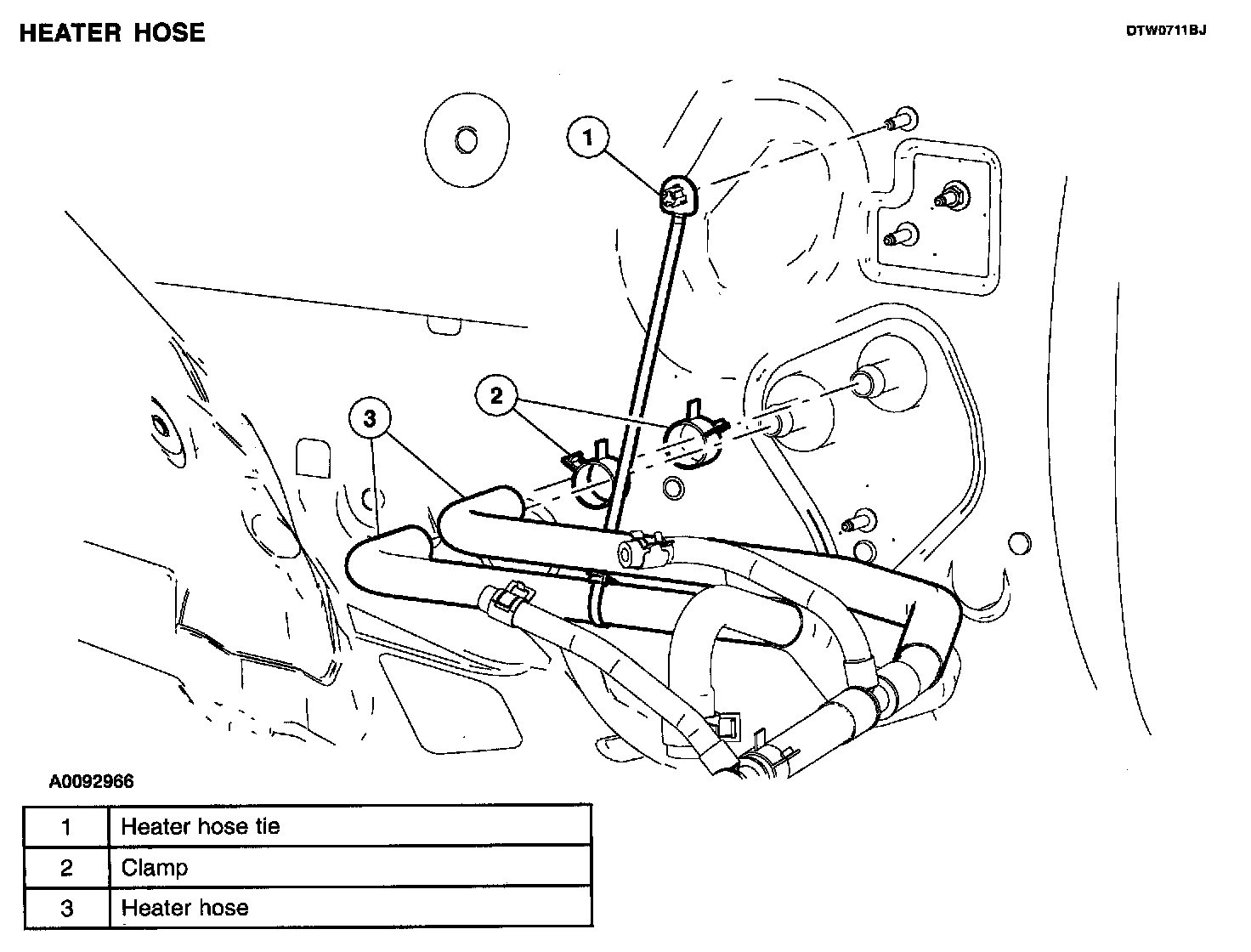

Heater Hose Part 3:
