Home >> Mazda >> 2005 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Compressor HVAC

Compressor HVAC

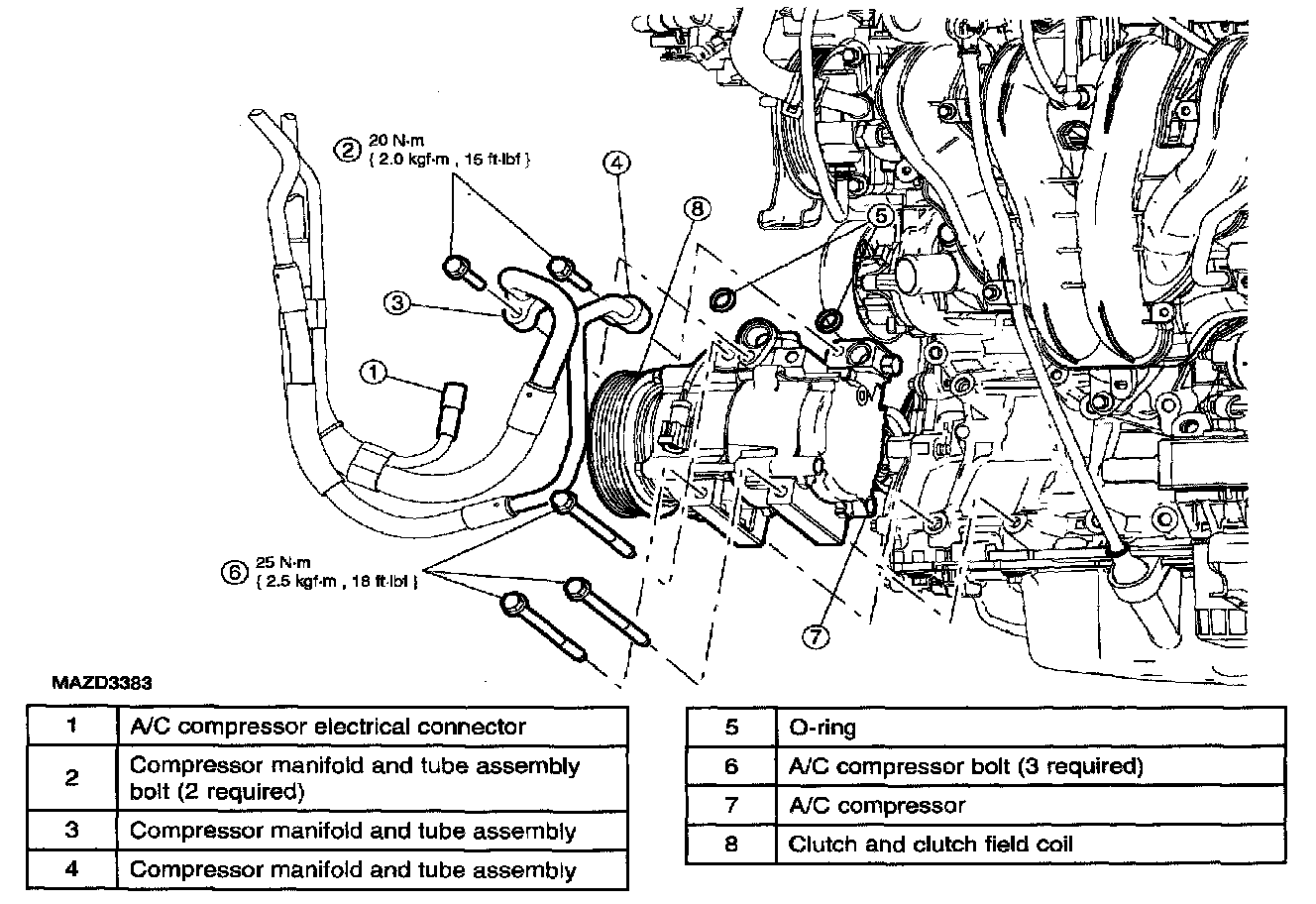

Air Conditioning (A/C) Compressor:
