Home >> Mazda >> 2005 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 1

Pinpoint Test 1

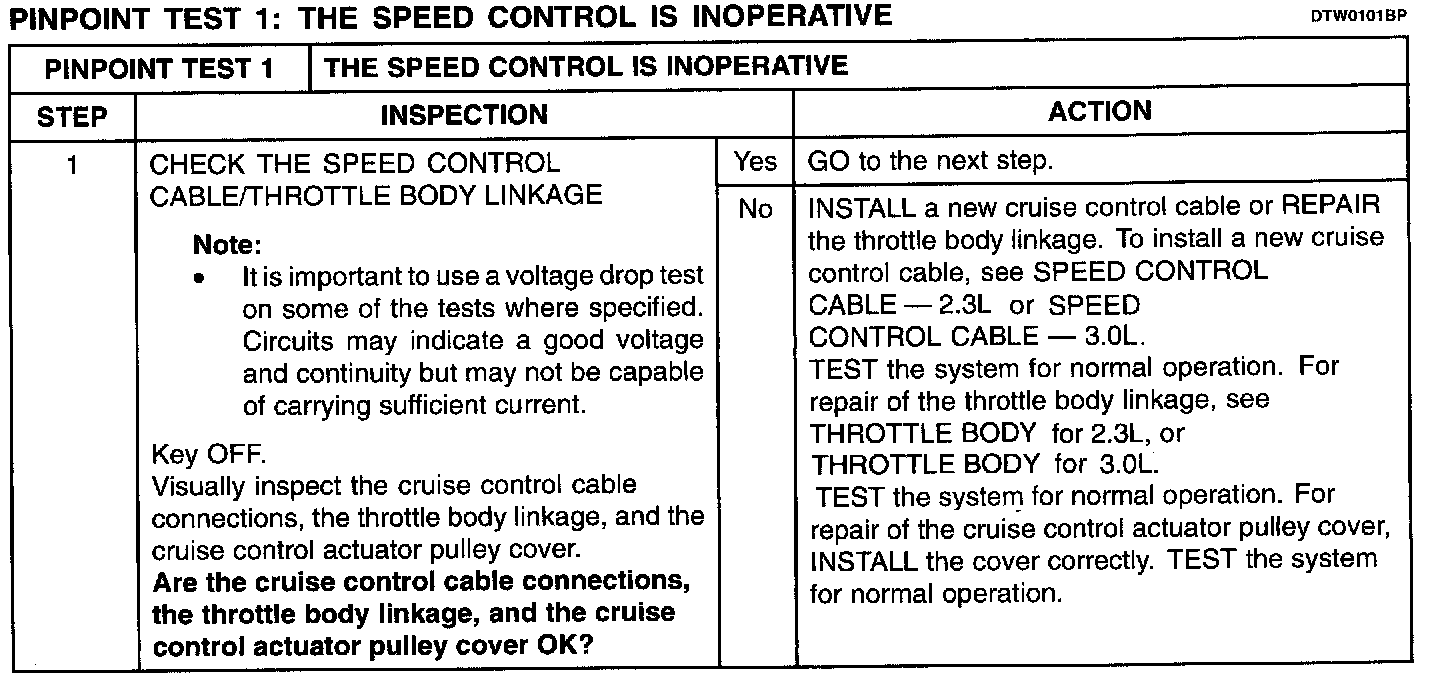

Step 1:

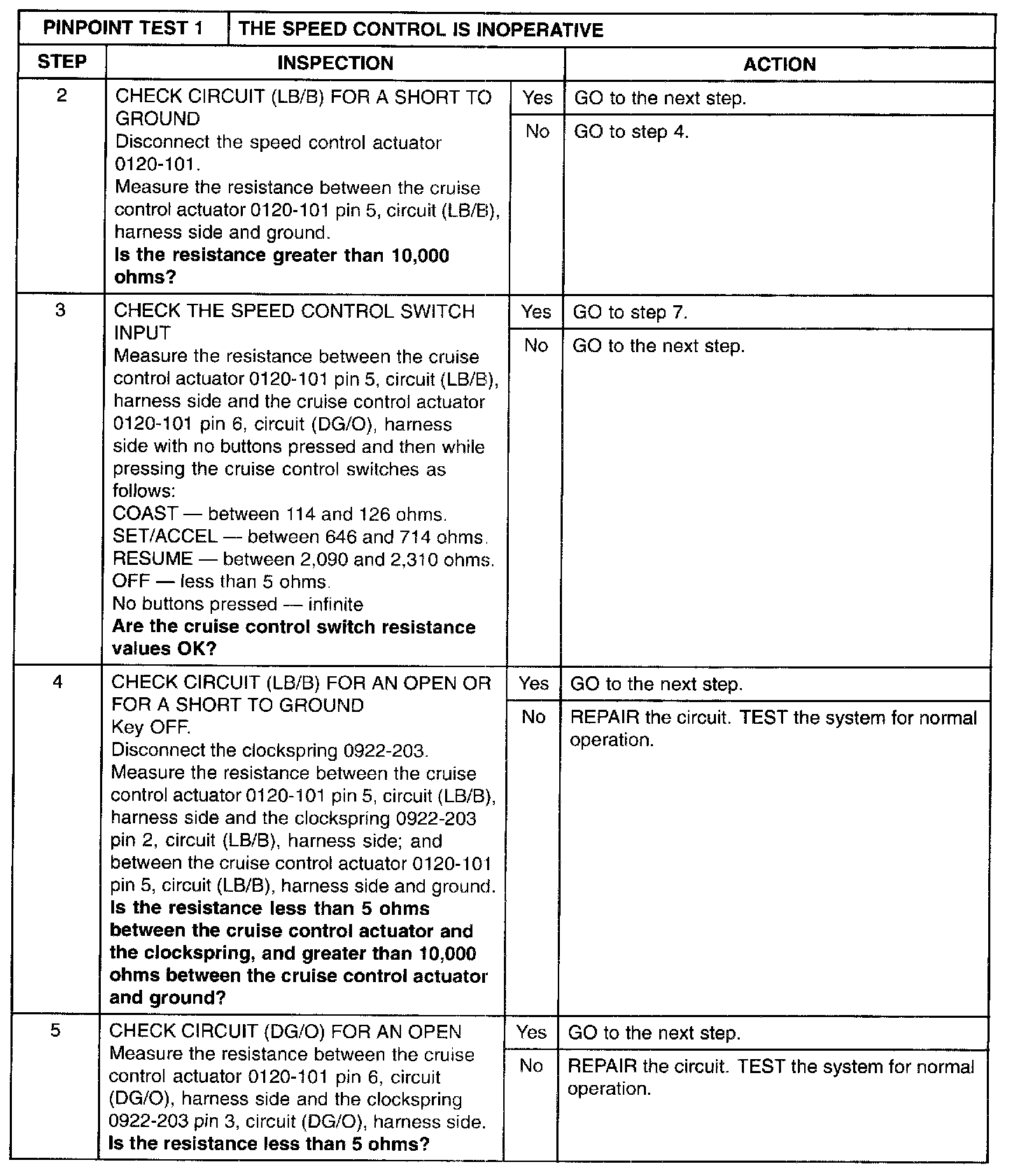

Step 2 - 5:

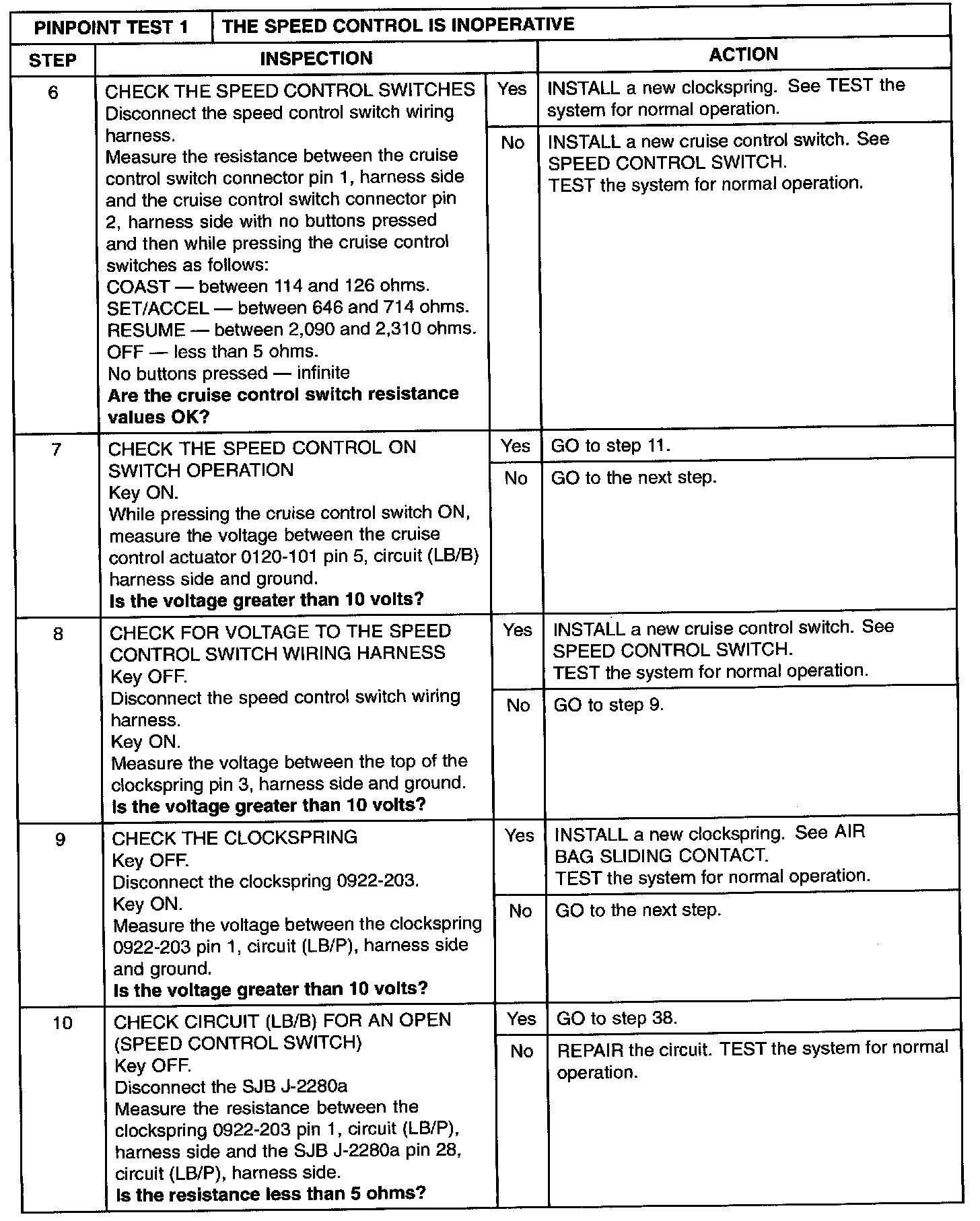

Step 6 - 10:

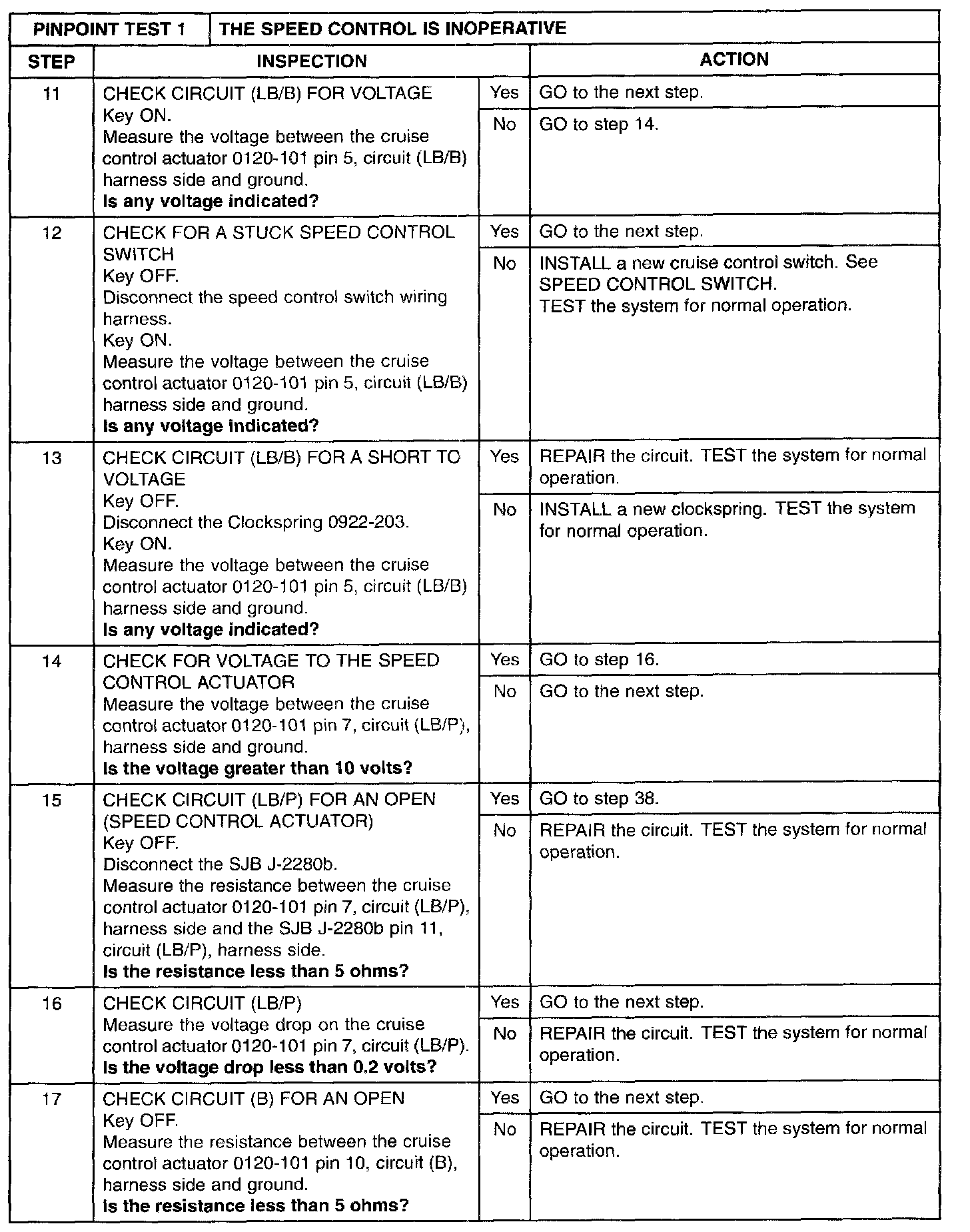

Step 11 - 17:

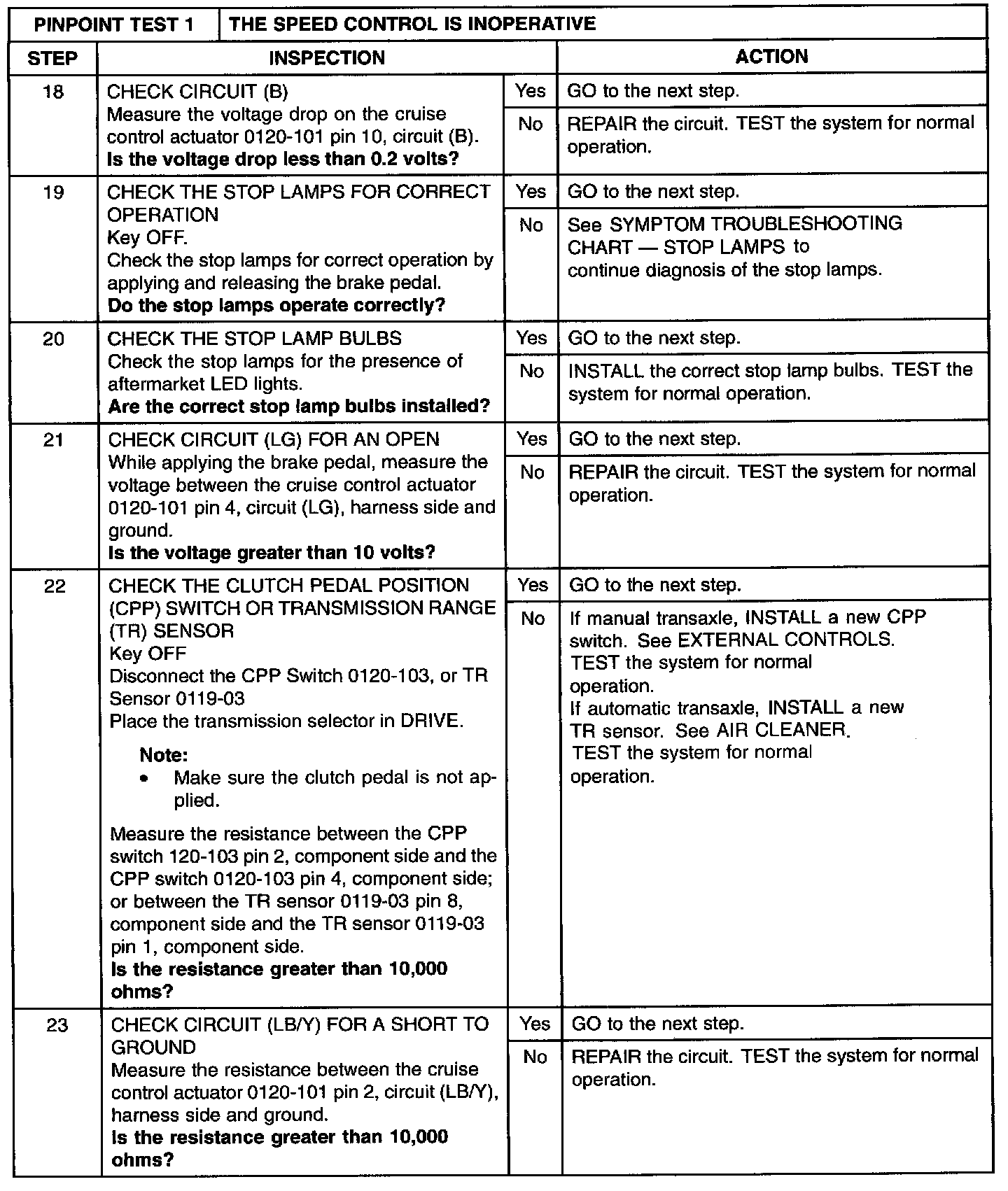

Step 18 - 23:

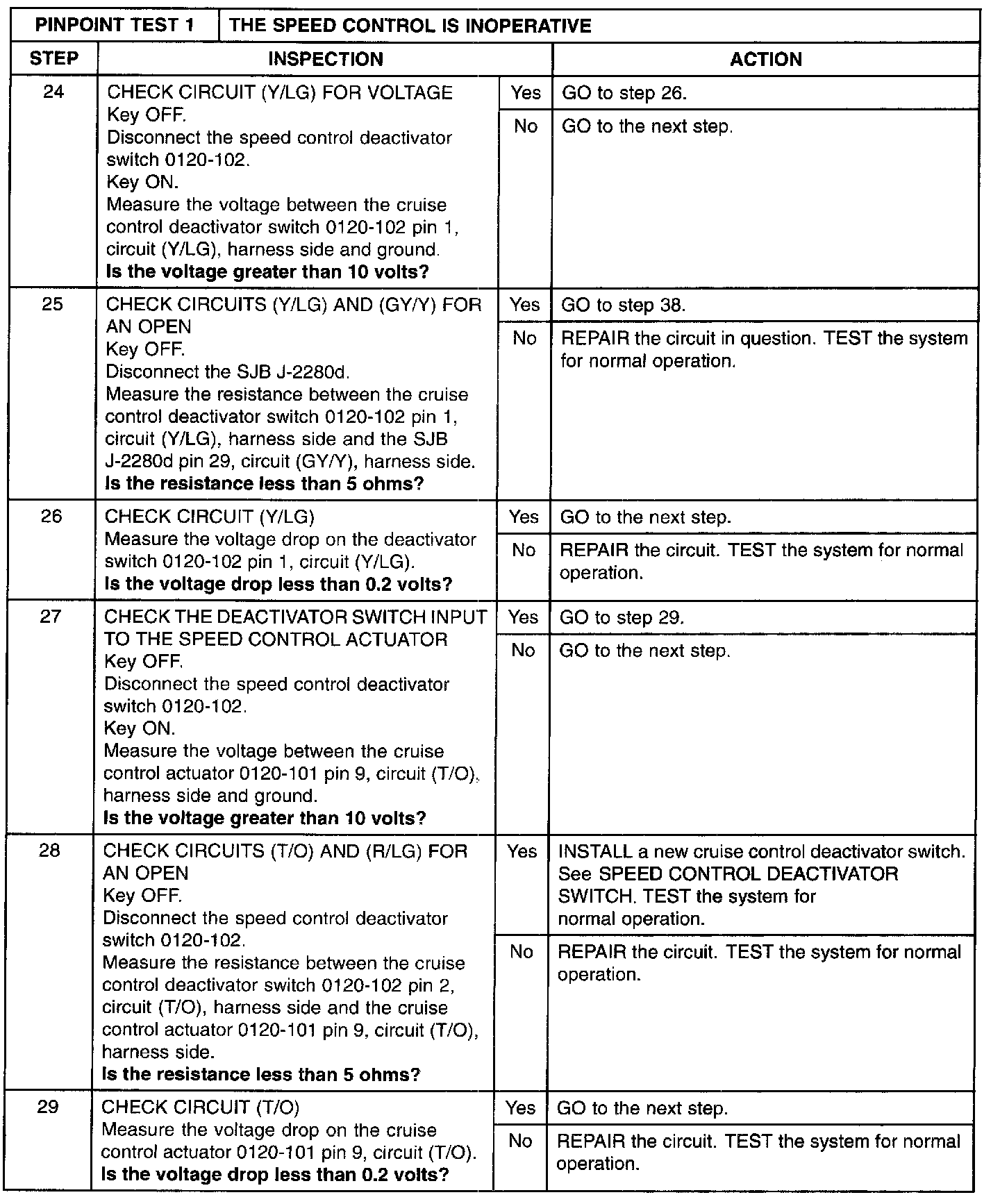

Step 24 - 29:

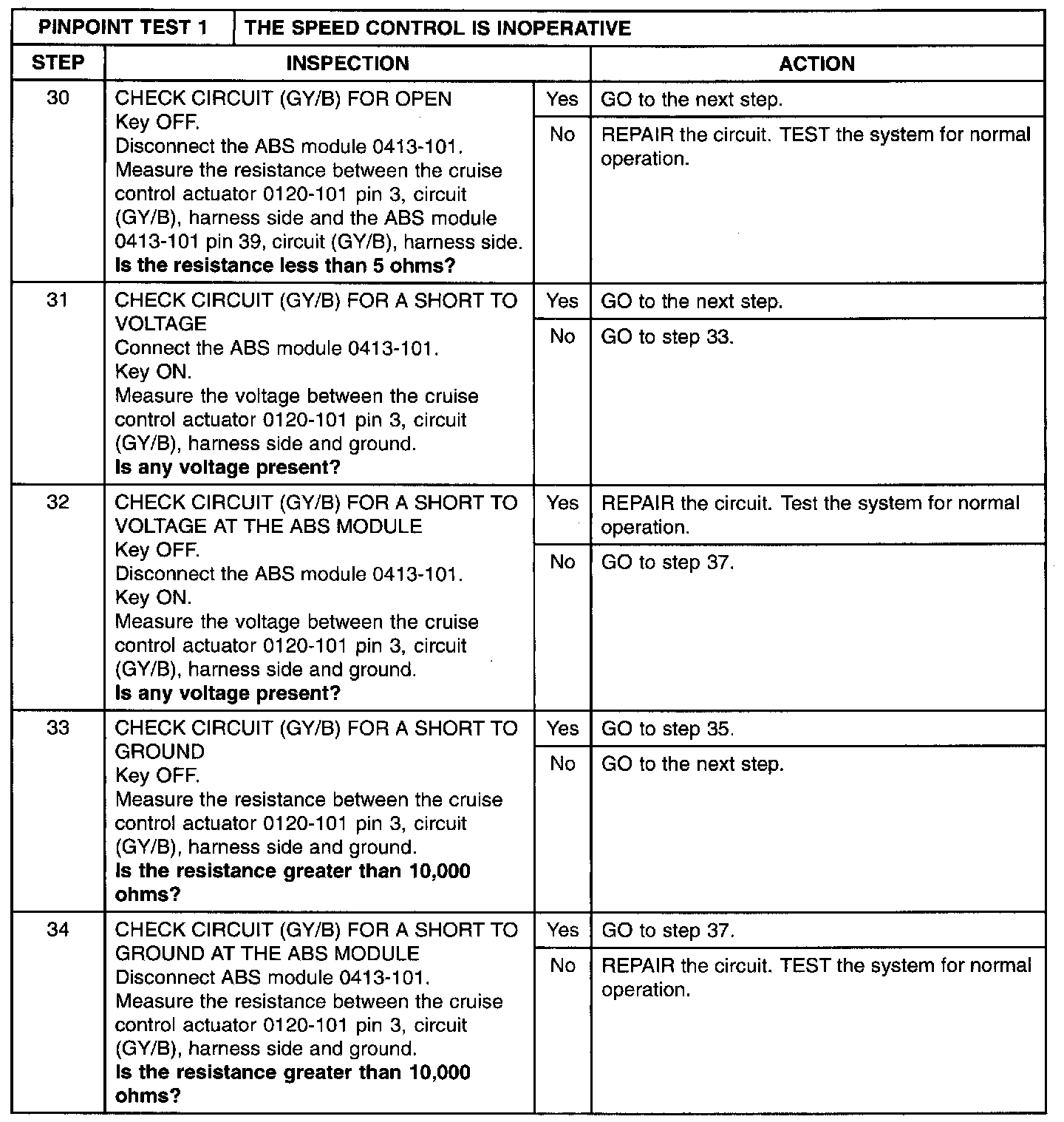

Step 30 - 34:

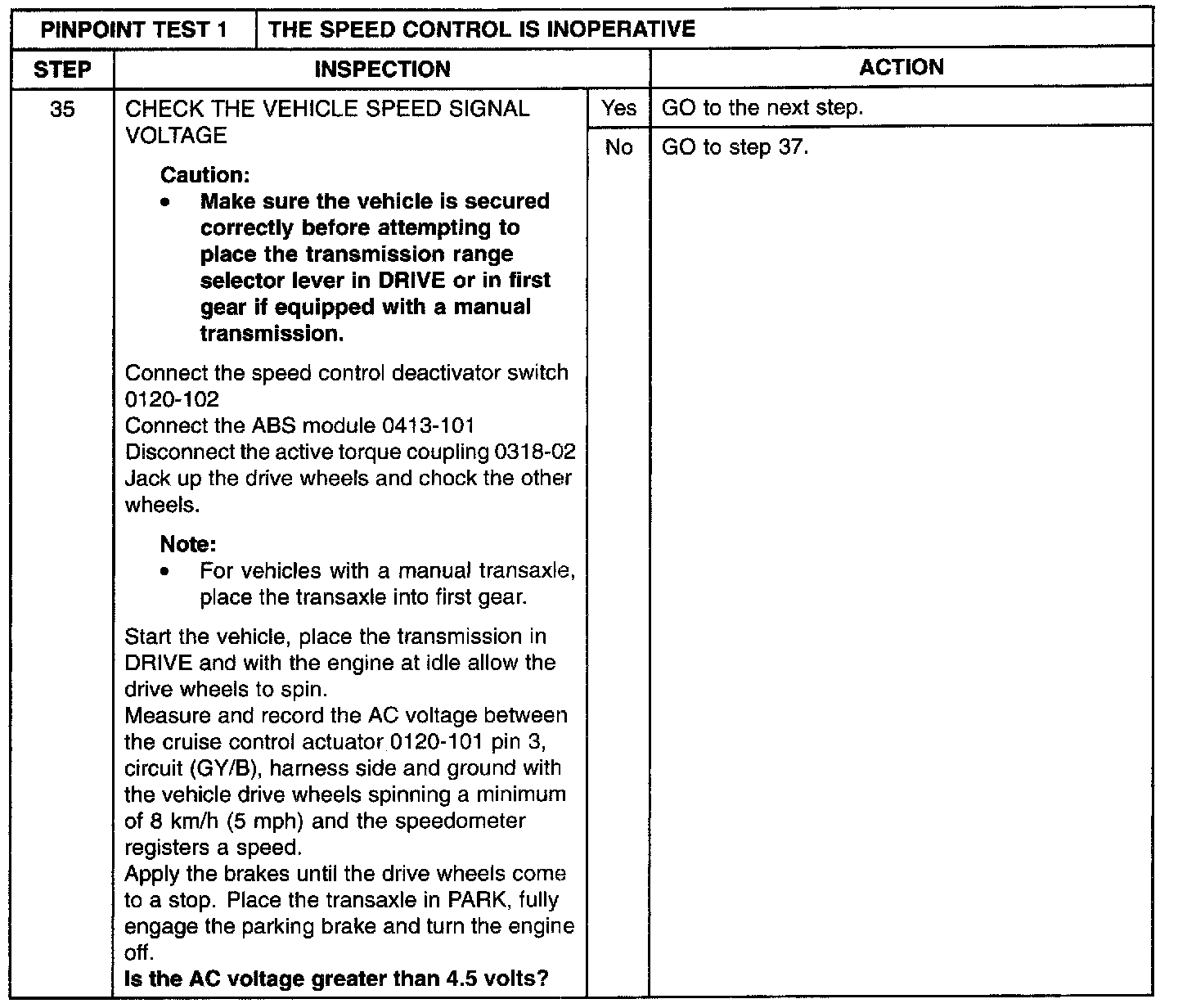

Step 35:

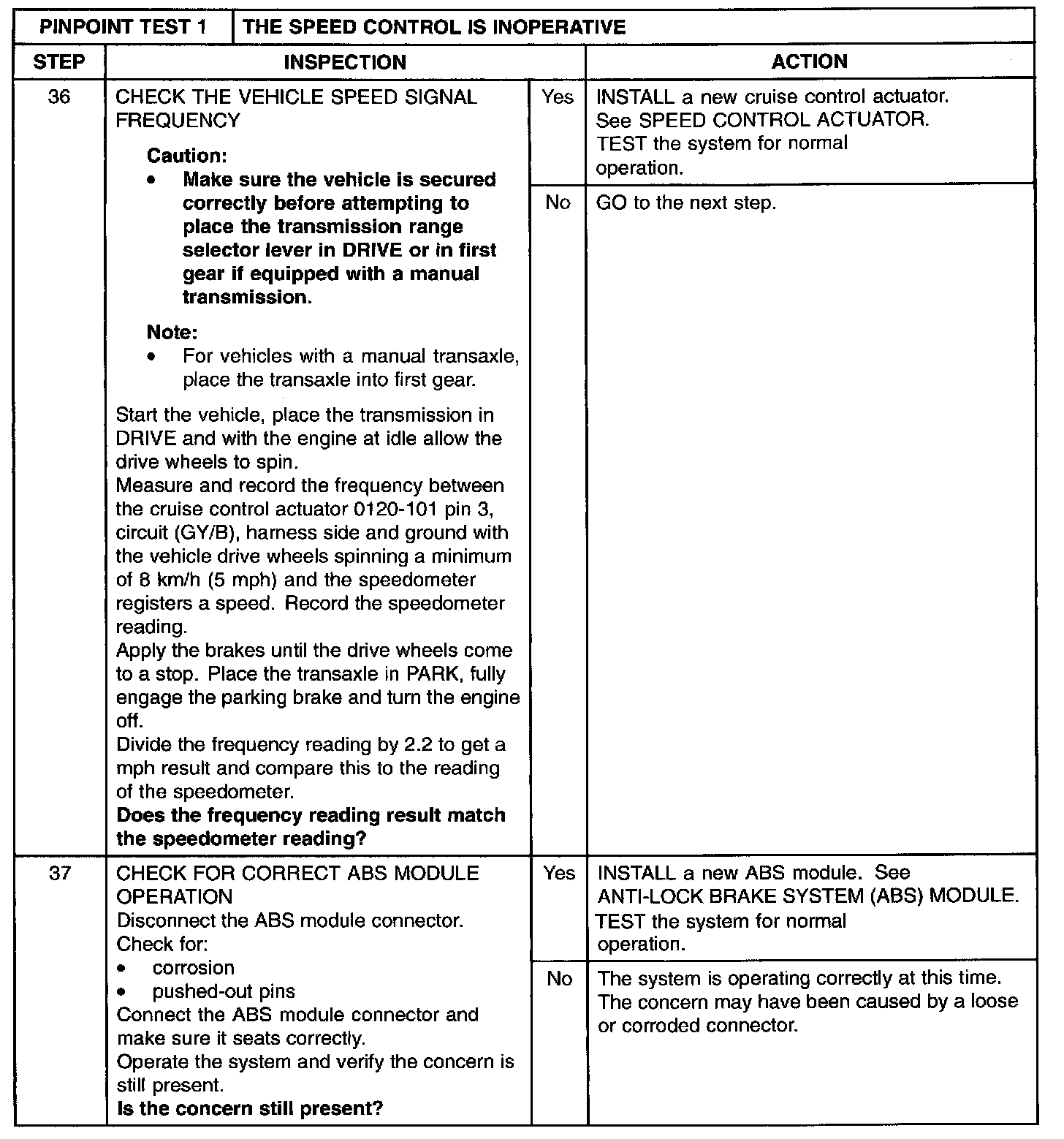

Step 36 - 37:

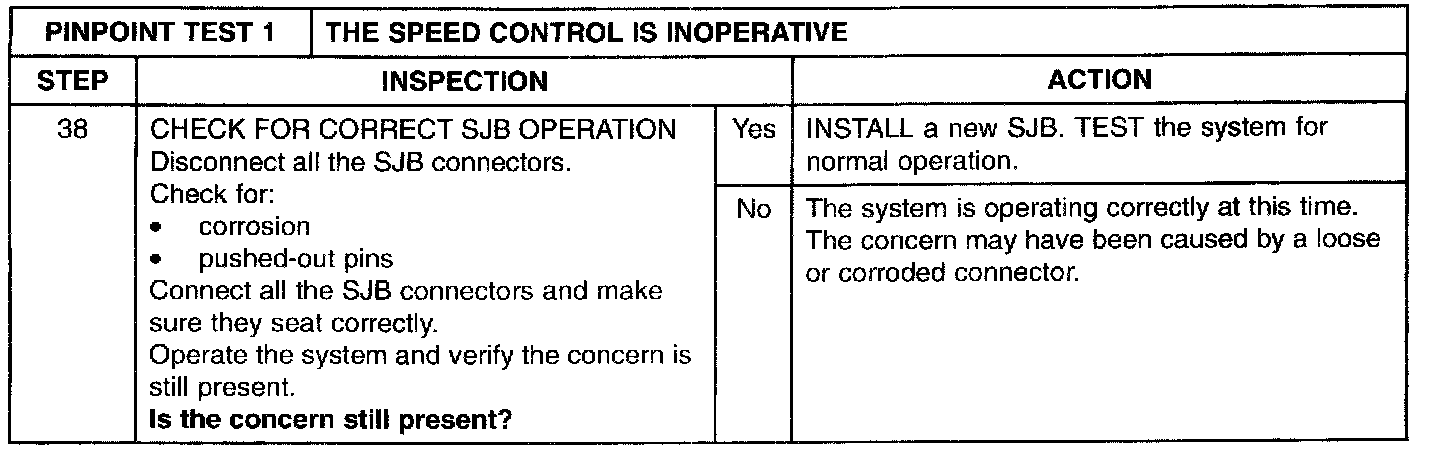

Step 38:
