Main Relay (Computer/Fuel System)
>>
Locations
>>
Component Locations
Component Locations

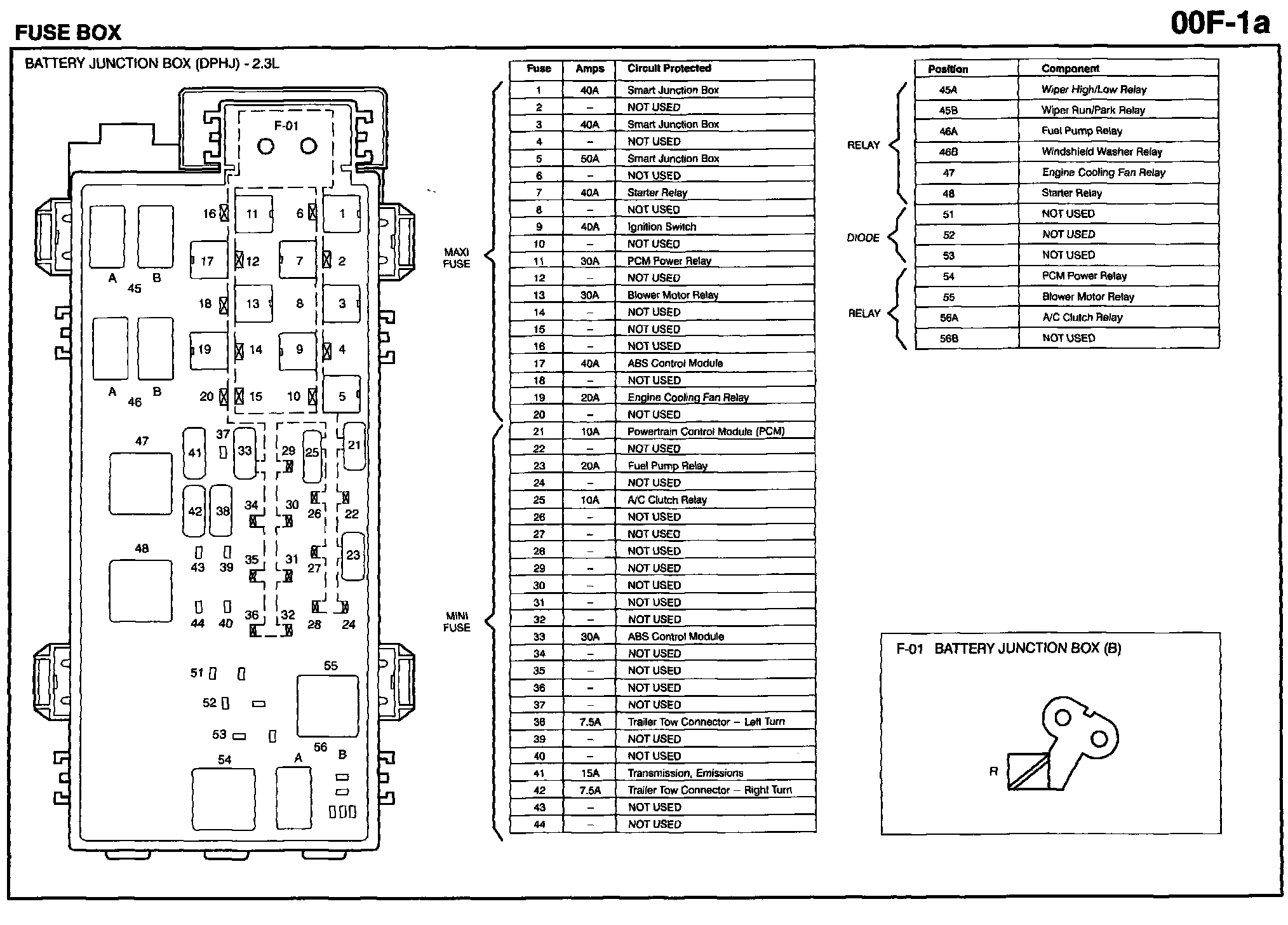

Battery Junction Box (DPHJ):

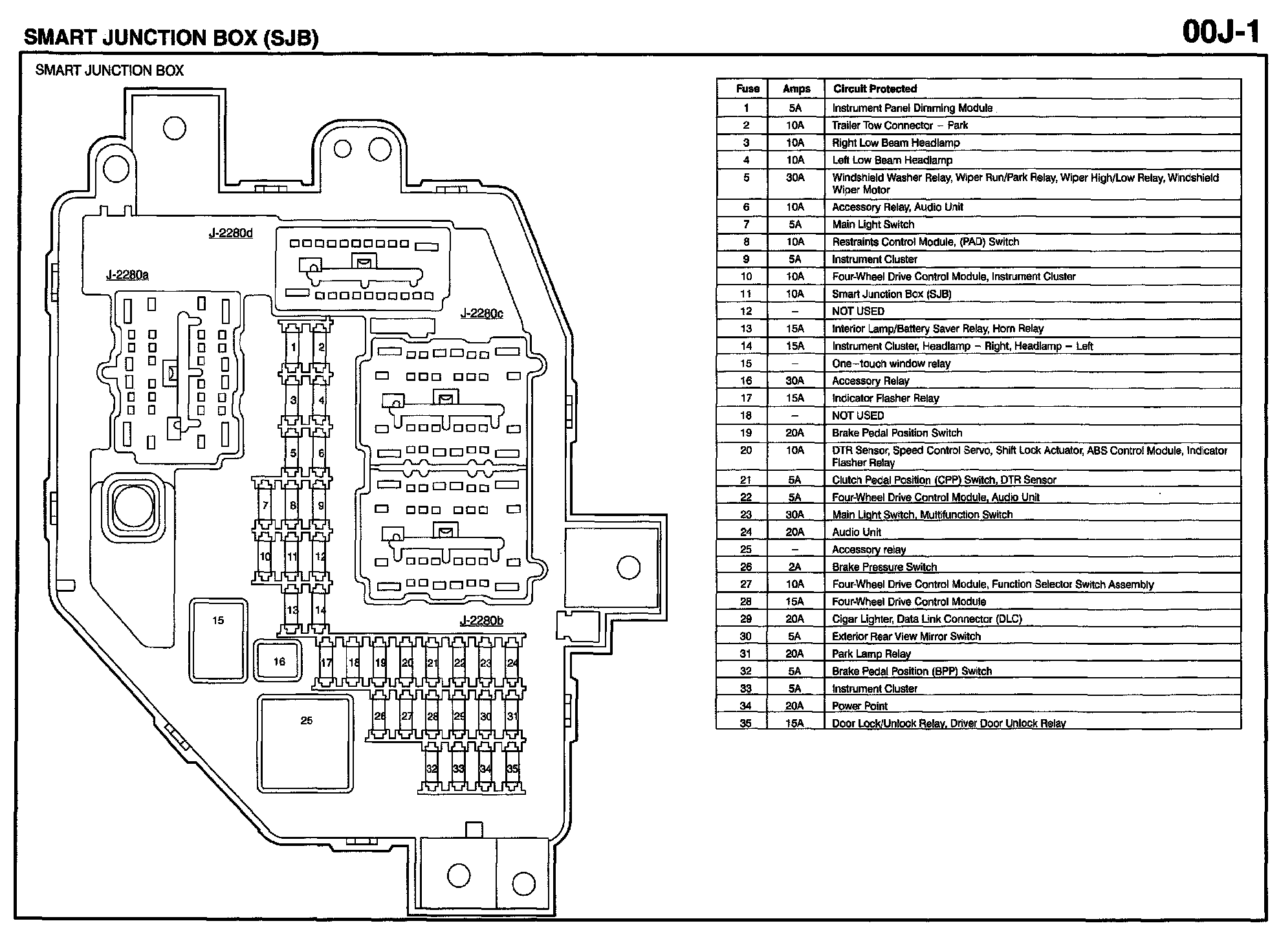

Smart Junction Box (SJB):
