TIMING CHAIN

Part 1:

Part 2:

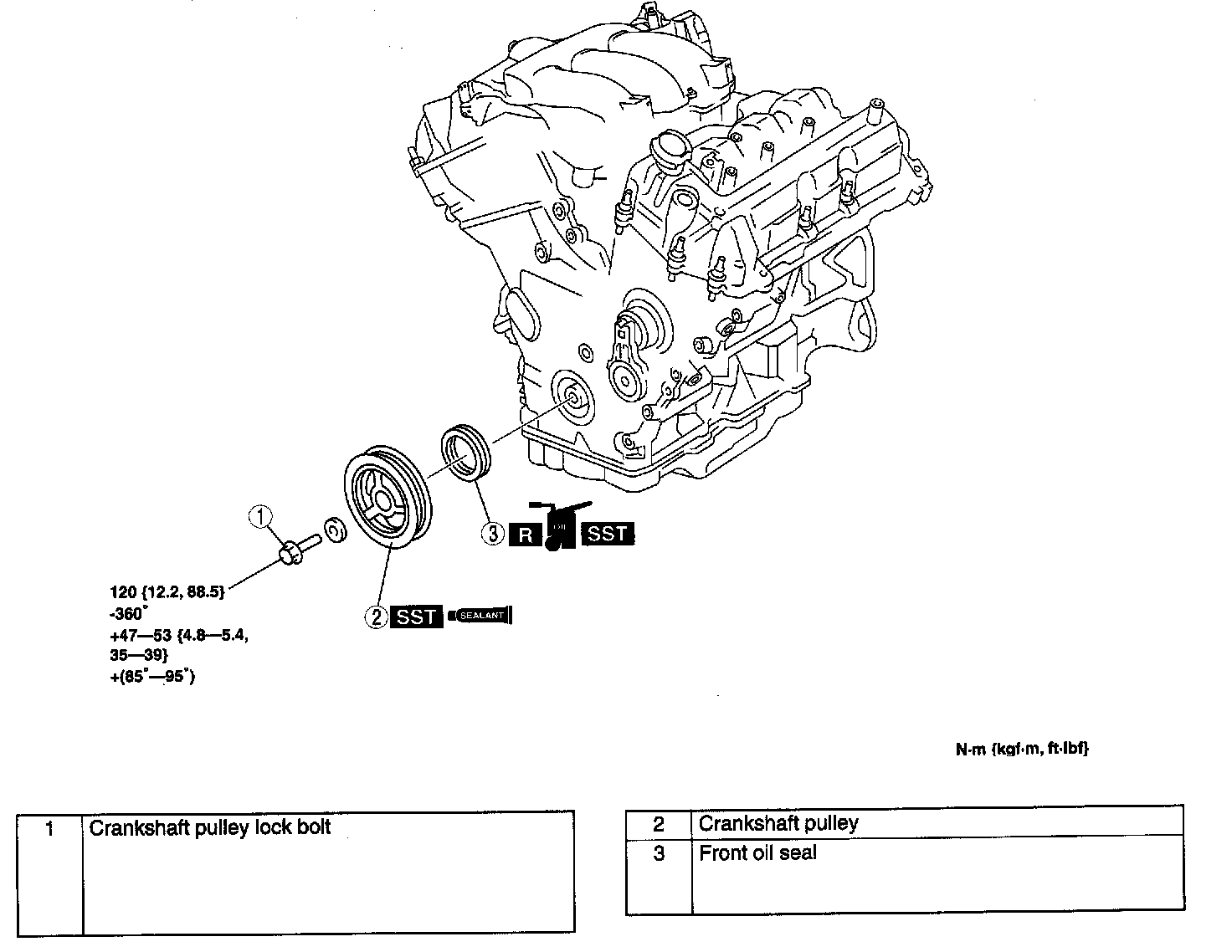

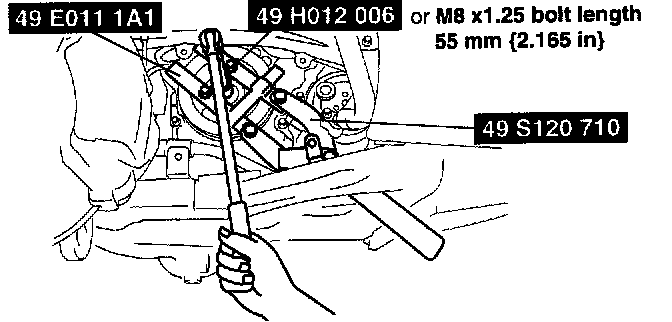

CRANKSHAFT PULLEY







1. Tighten 120 Nm (12.2 kgf-cm, 88.5 ft. lbs.)
2. Loosen 360° (once full turn) in reverse order
3. Tighten to 47 - 53 Nm (4.8 - 5.4 kgf-cm, 35 - 39 ft. lbs.)
4. Tighten 85° - 95°

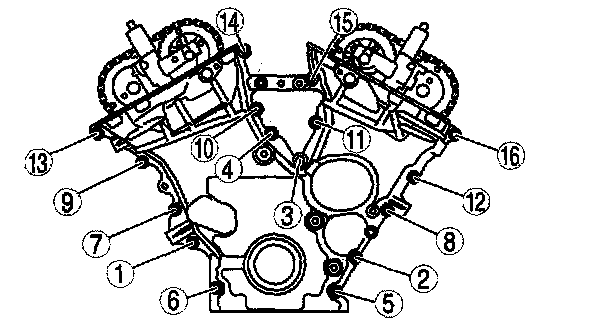

TIMING COVER




Torque: 20-30 Nm (15-22 ft lbs)

TIMING CHAIN TENSIONER
Torque: 20-30 Nm (15-22 ft lbs)
