Engine Control Module: Testing and Inspection

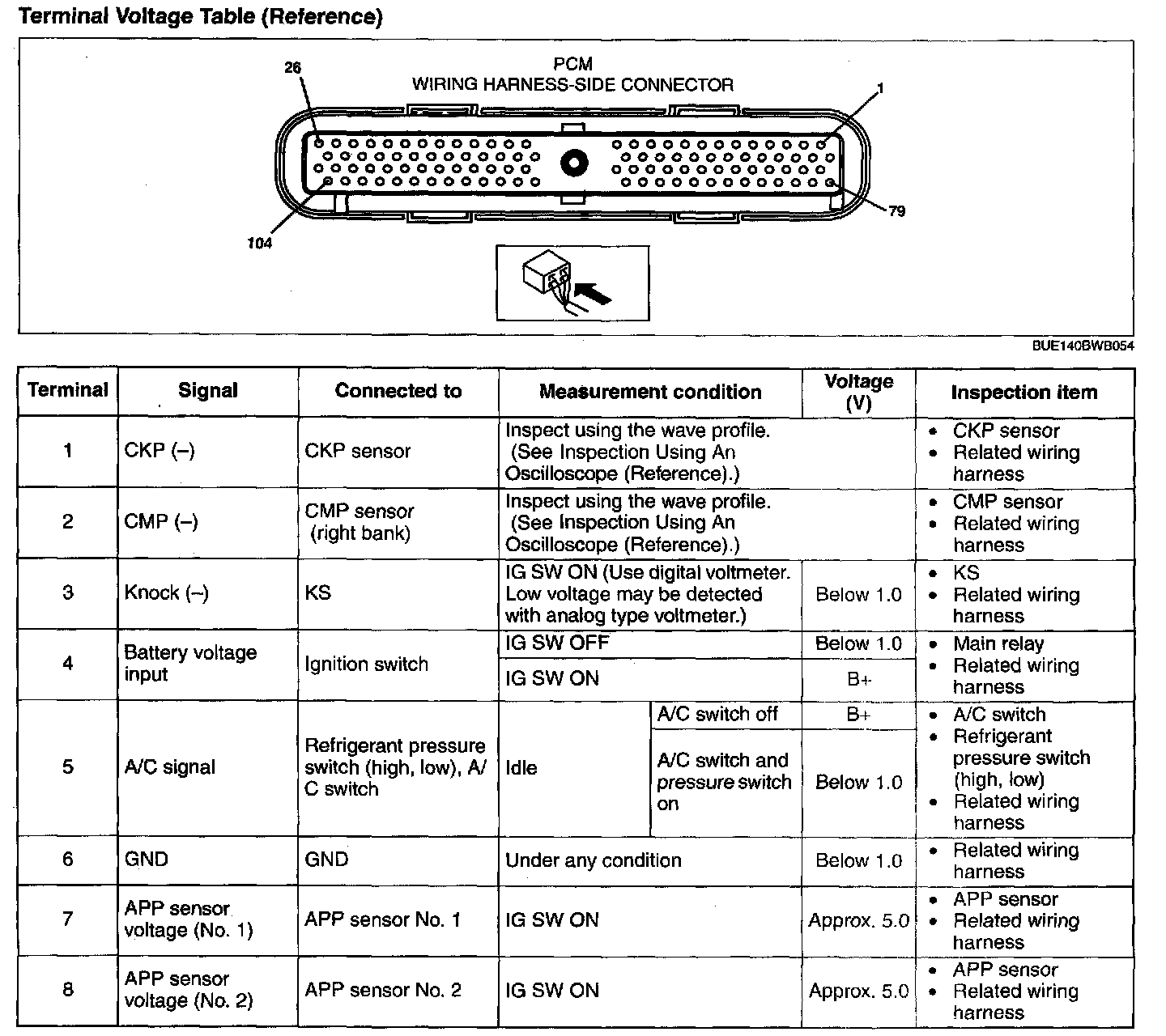

Terminal Voltage Table (Reference) - Terminals (1 - 8):

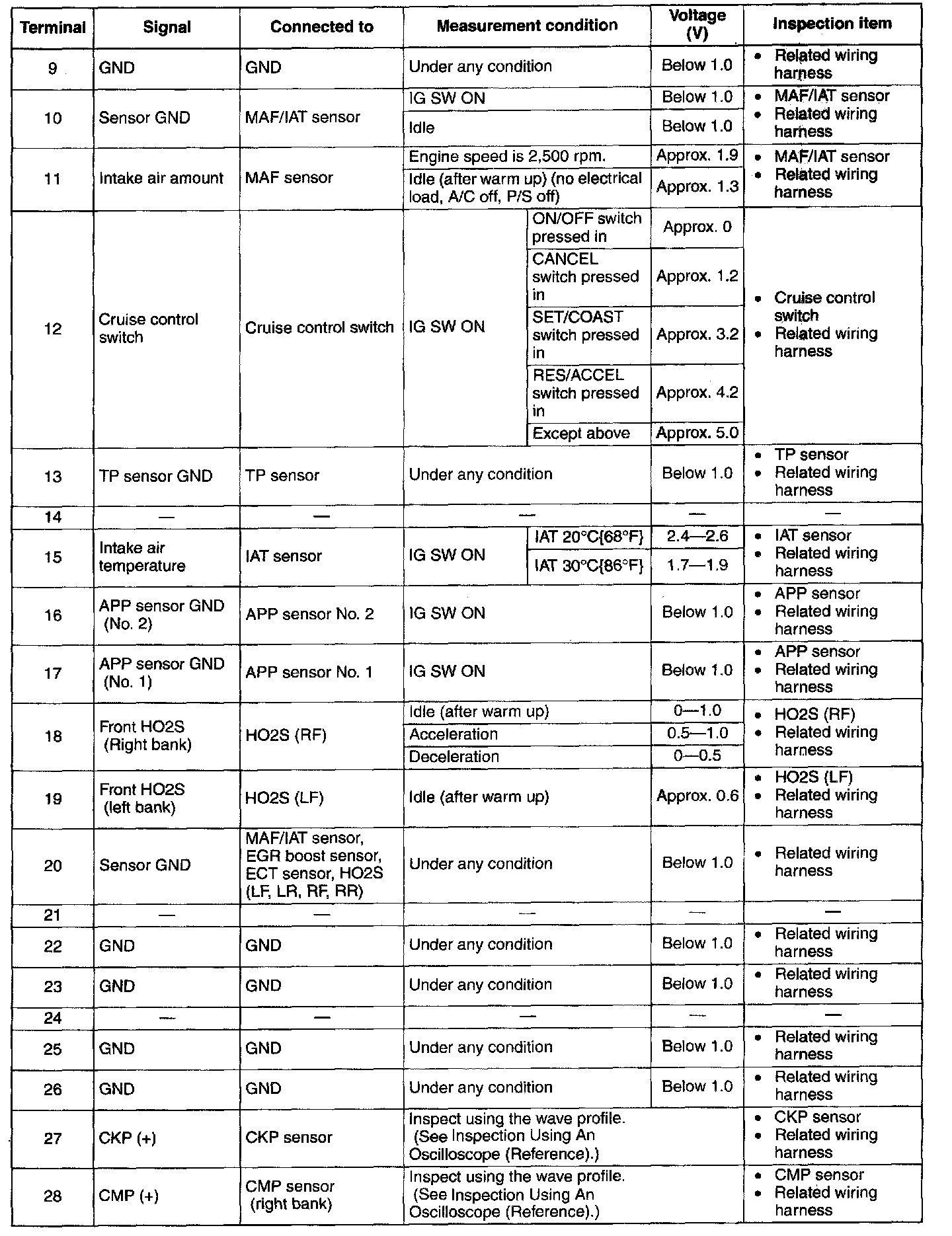

Terminal Voltage Table (Reference) - Terminals (9 - 28):

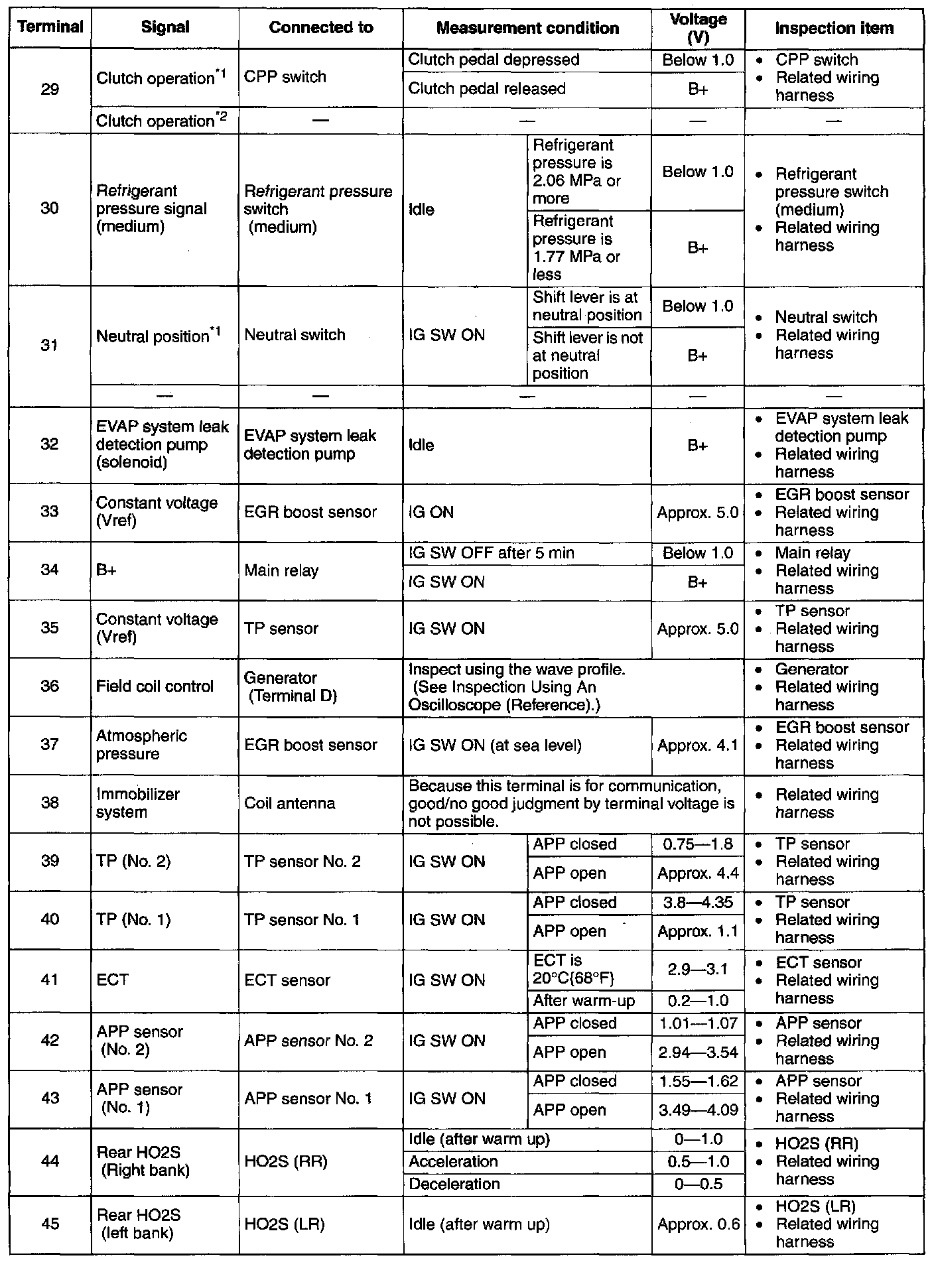

Terminal Voltage Table (Reference) - Terminals (29 - 45):

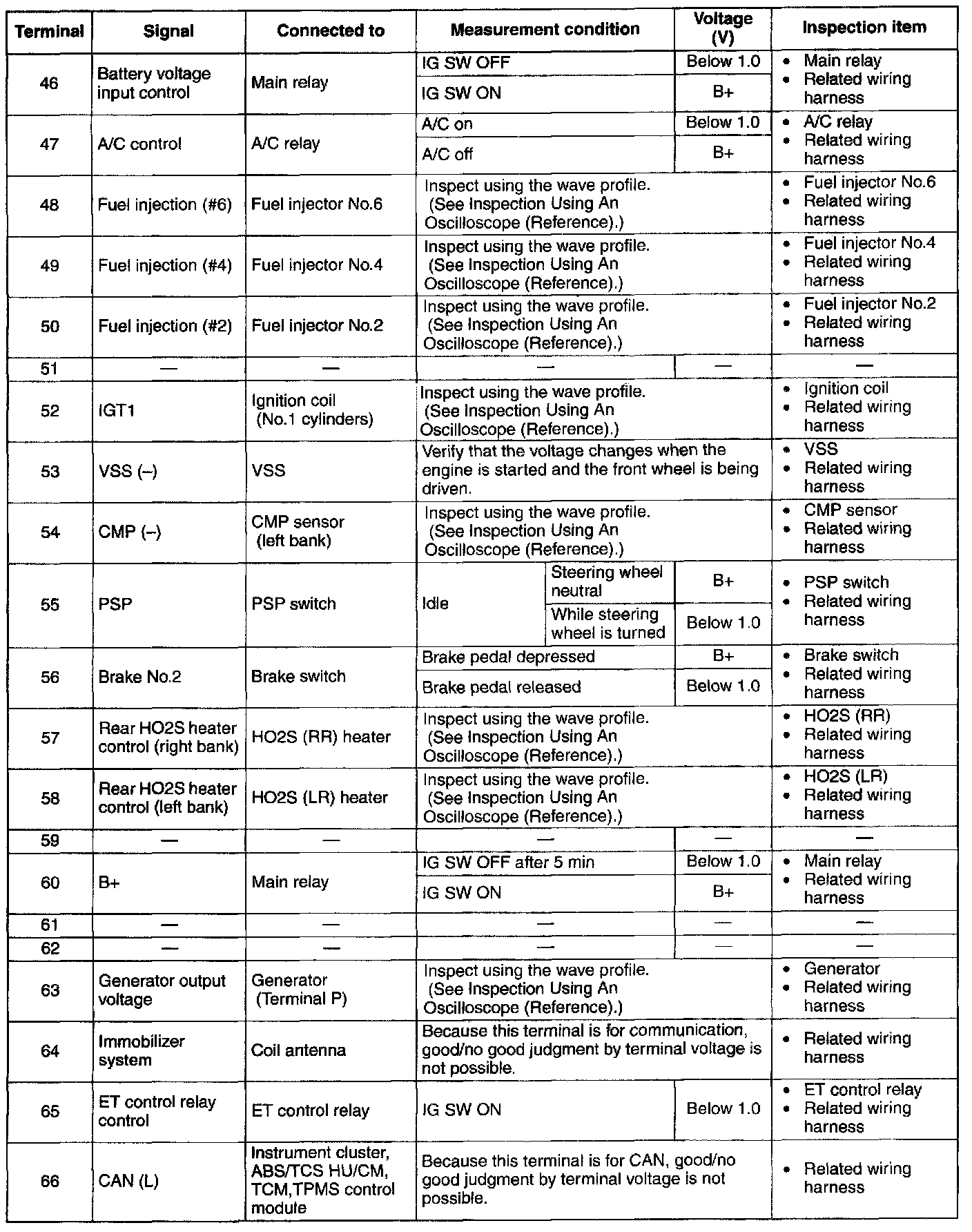

Terminal Voltage Table (Reference) - Terminals (46 - 66):

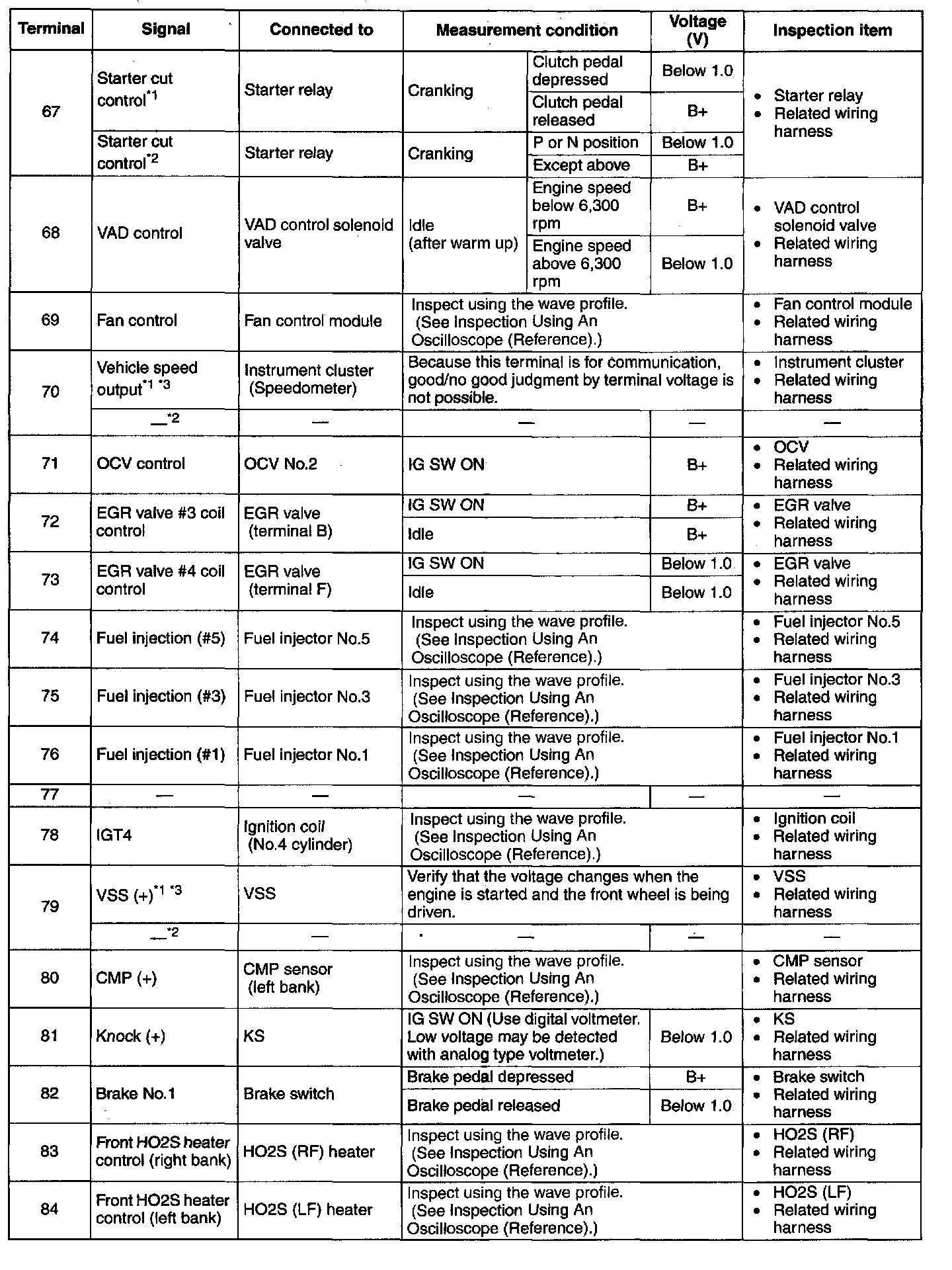

Terminal Voltage Table (Reference) - Terminals (67 - 84):

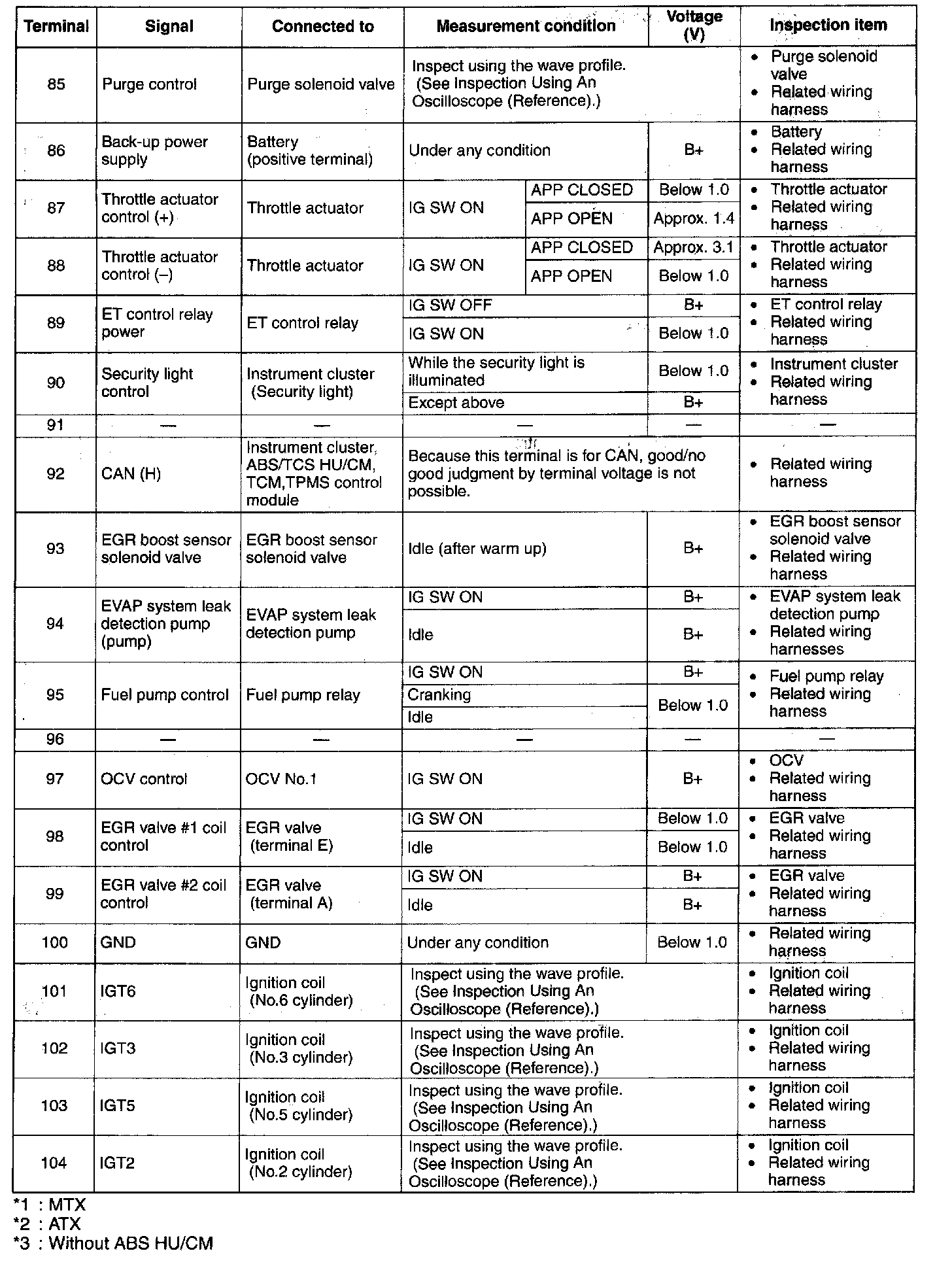

Terminal Voltage Table (Reference) - Terminals (85 - 104):
