Home >> Mazda >> 2005 >> 3 L4-2.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations >> Component Locations

Component Locations

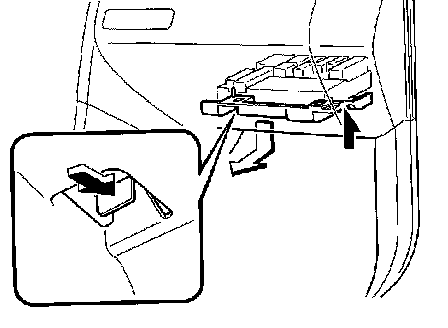

Under Glove Box:

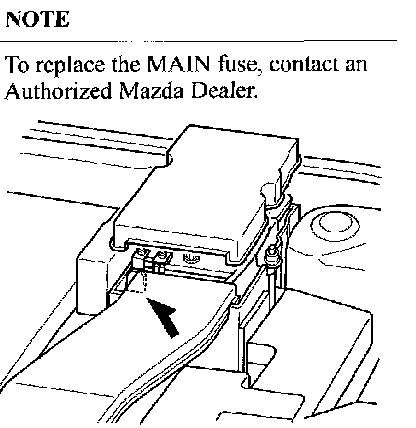

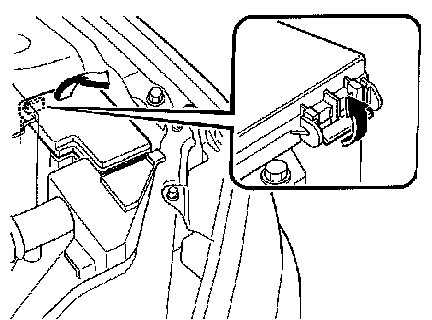

Fuse Box Locations

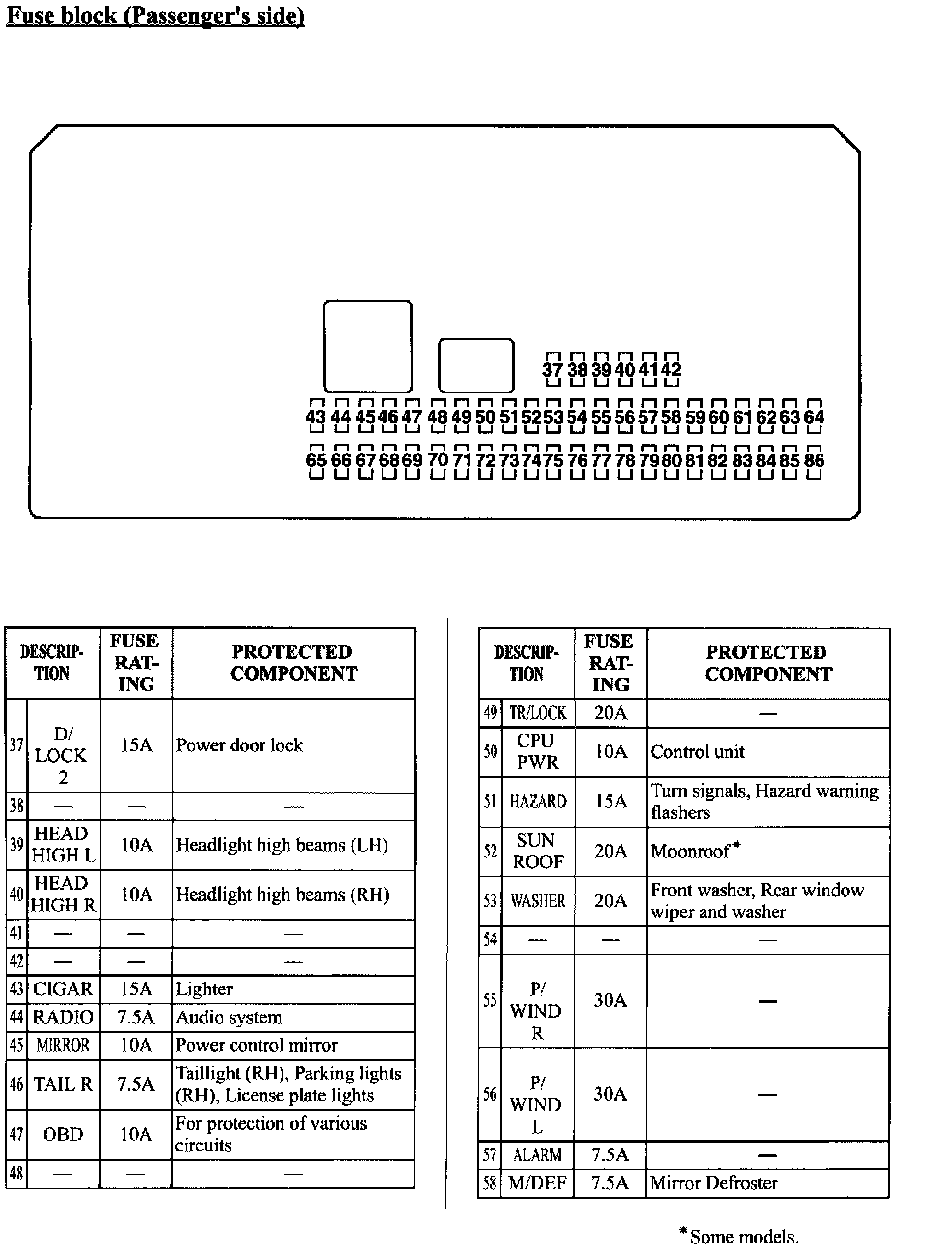

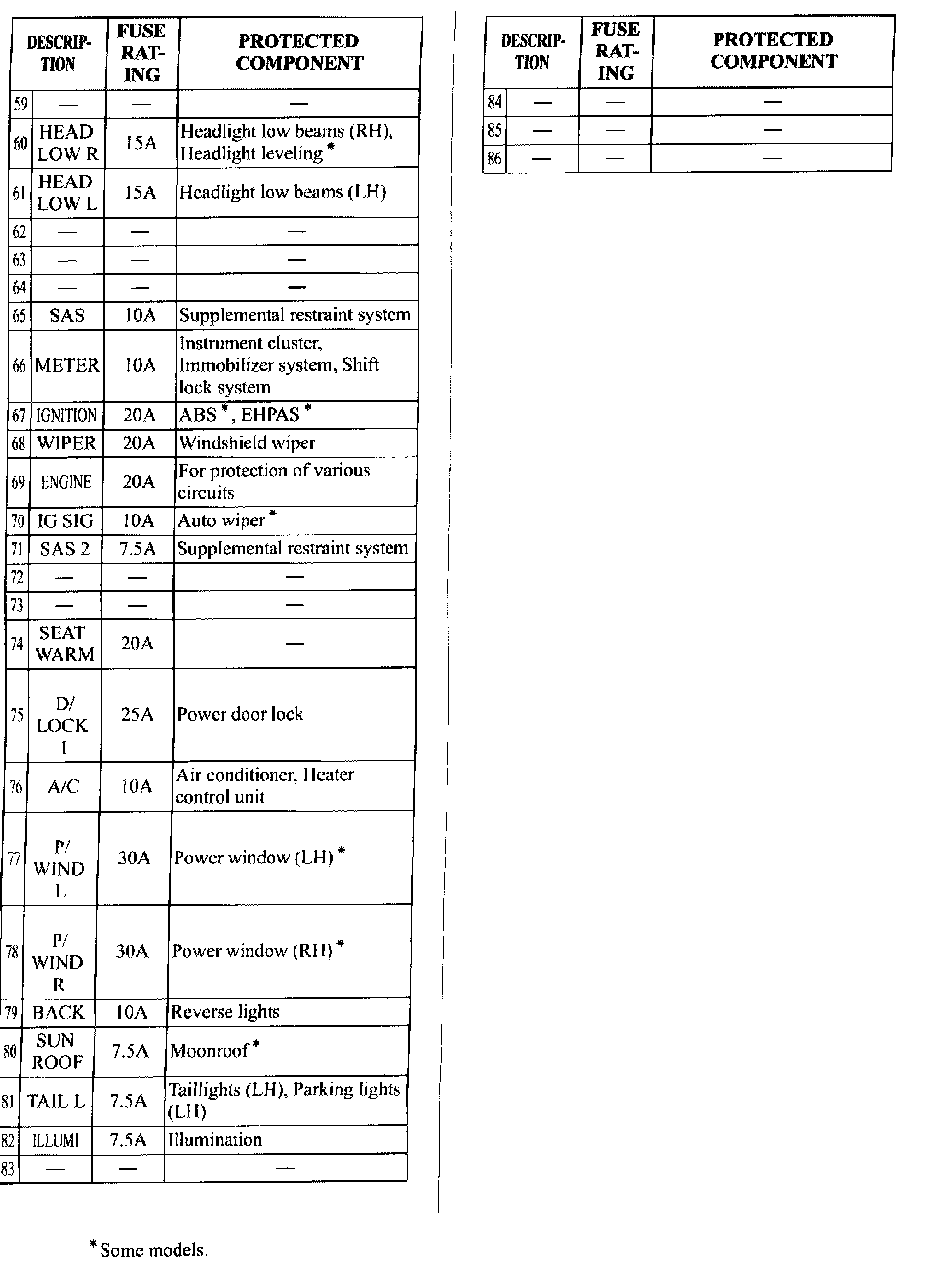

Fuse ID Passenger Compartment Box

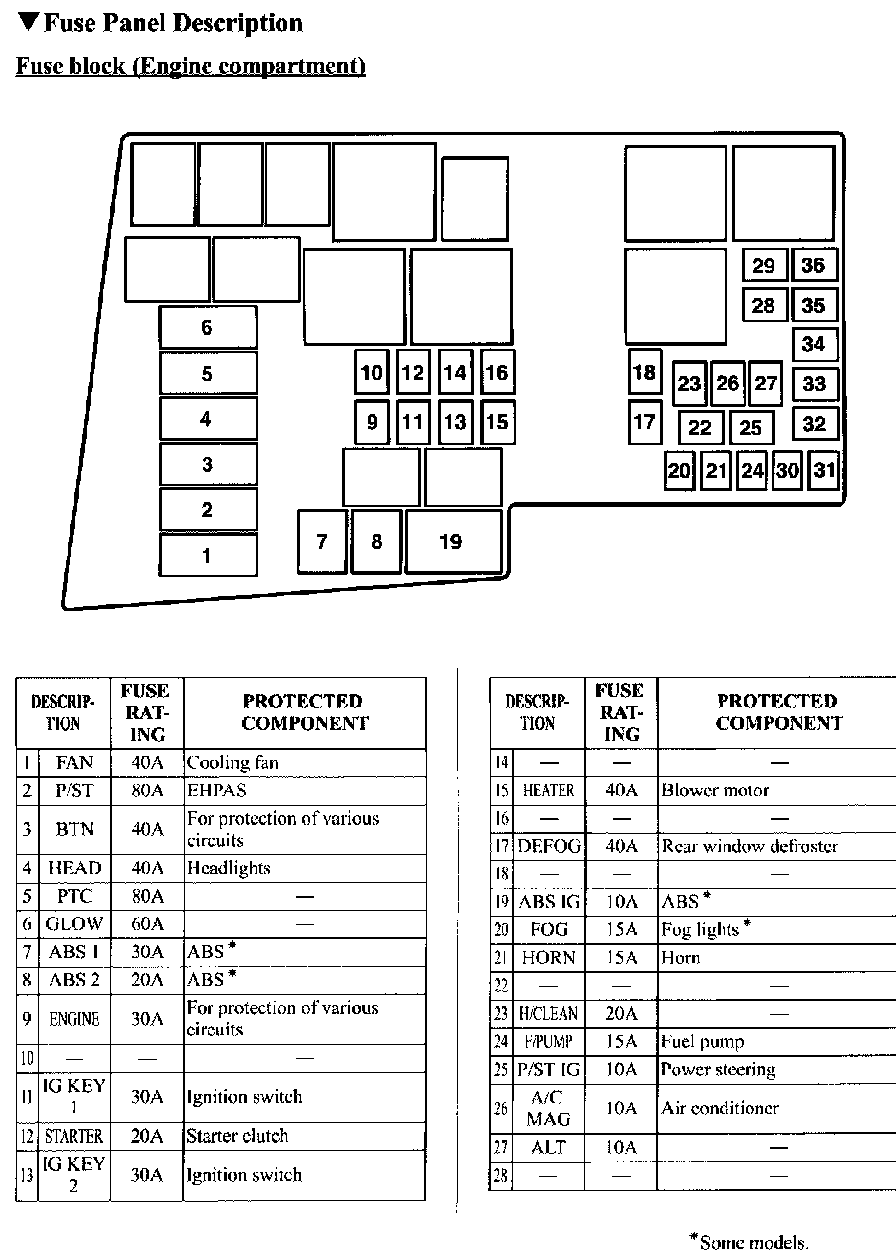

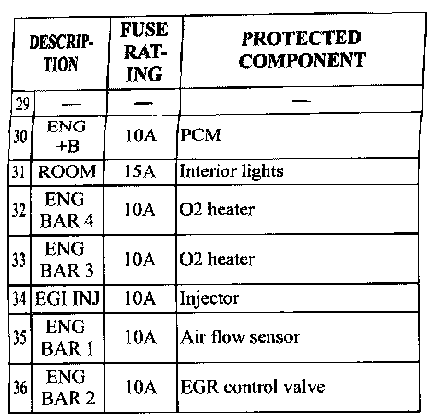

Fuse ID Engine Compartment
