Home >> Mazda >> 2004 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection

Starting System: Testing and Inspection

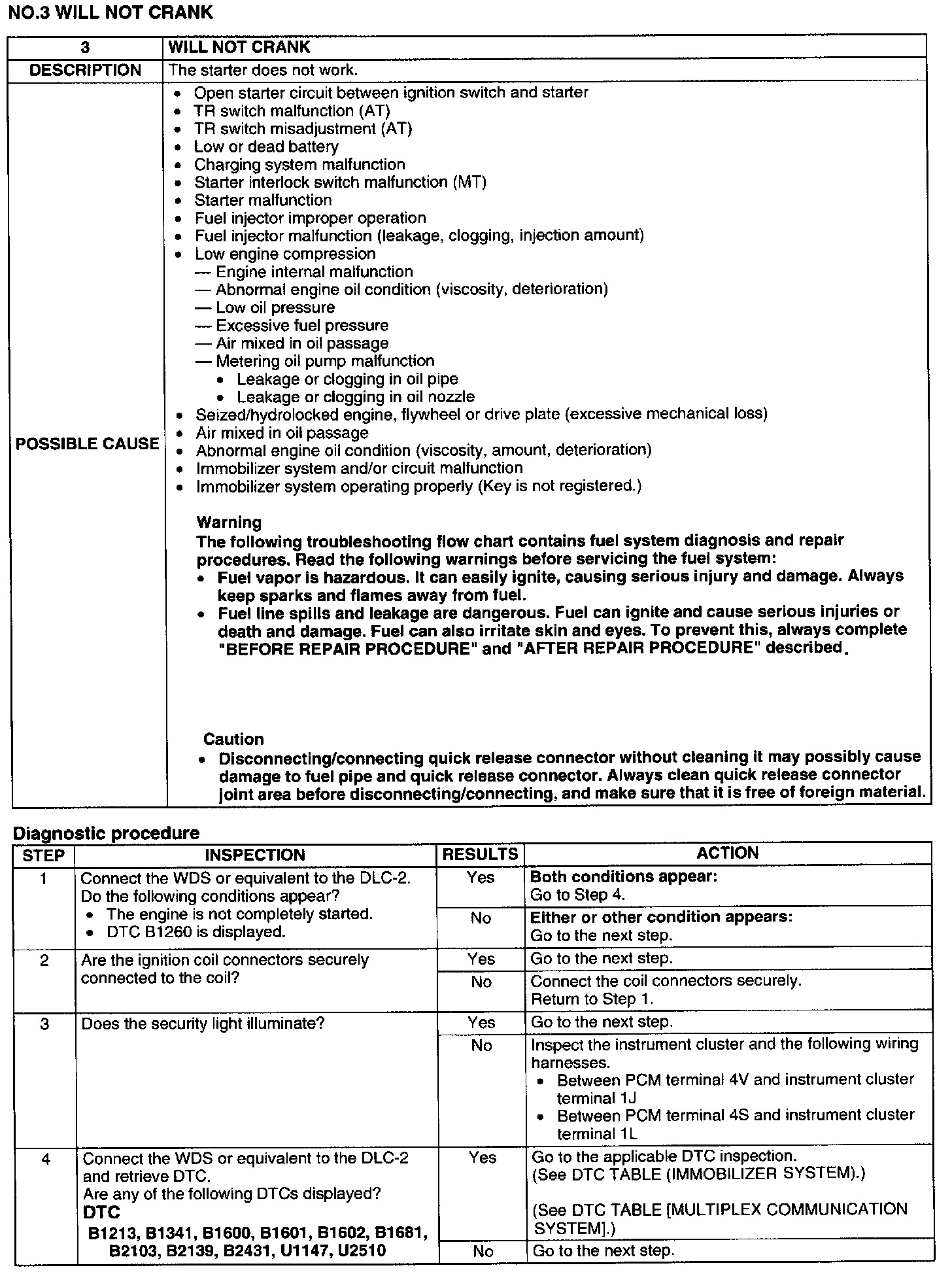

Step 1 - 4:

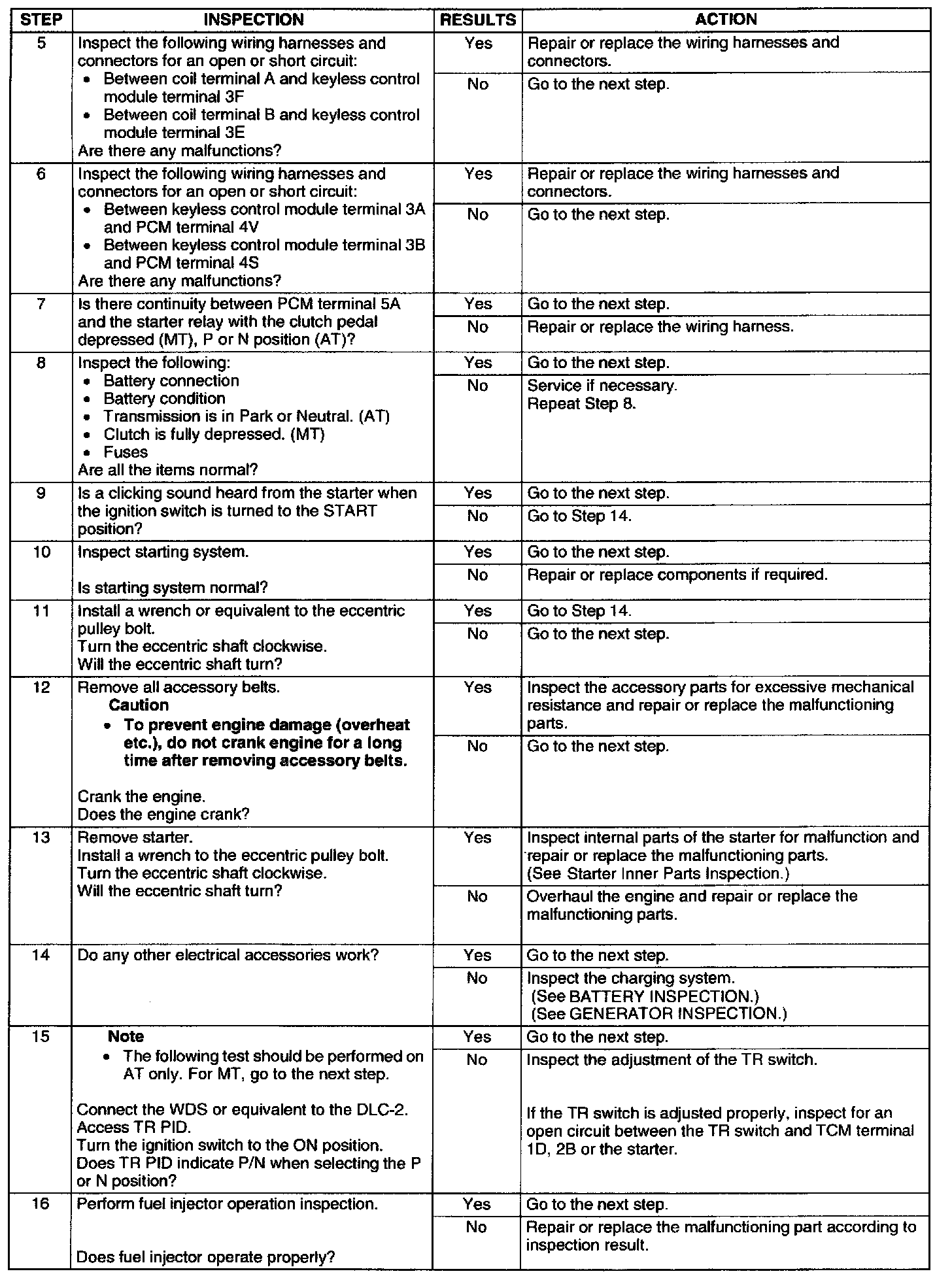

Step 5 - 16:

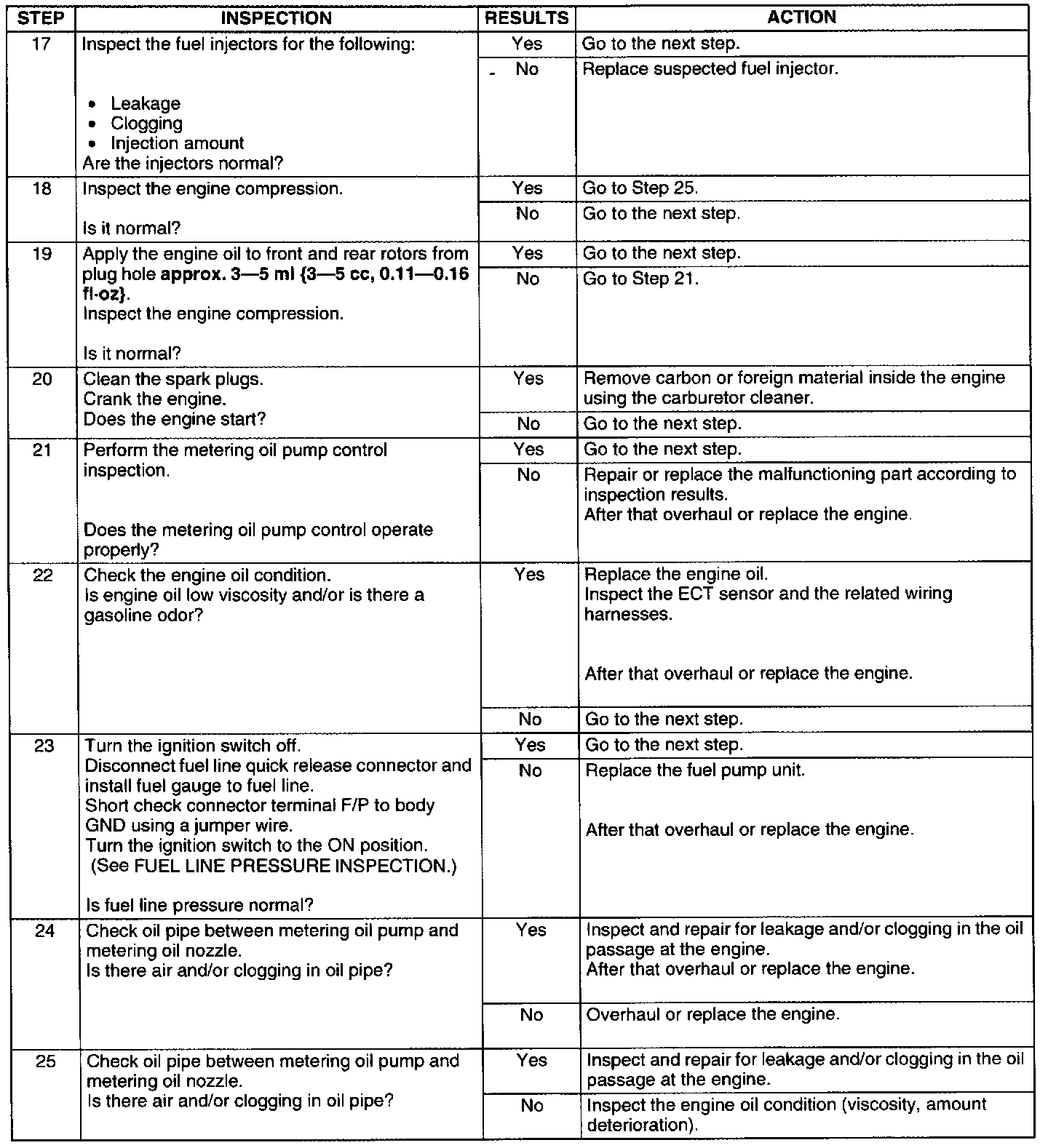

Step 17 - 25:

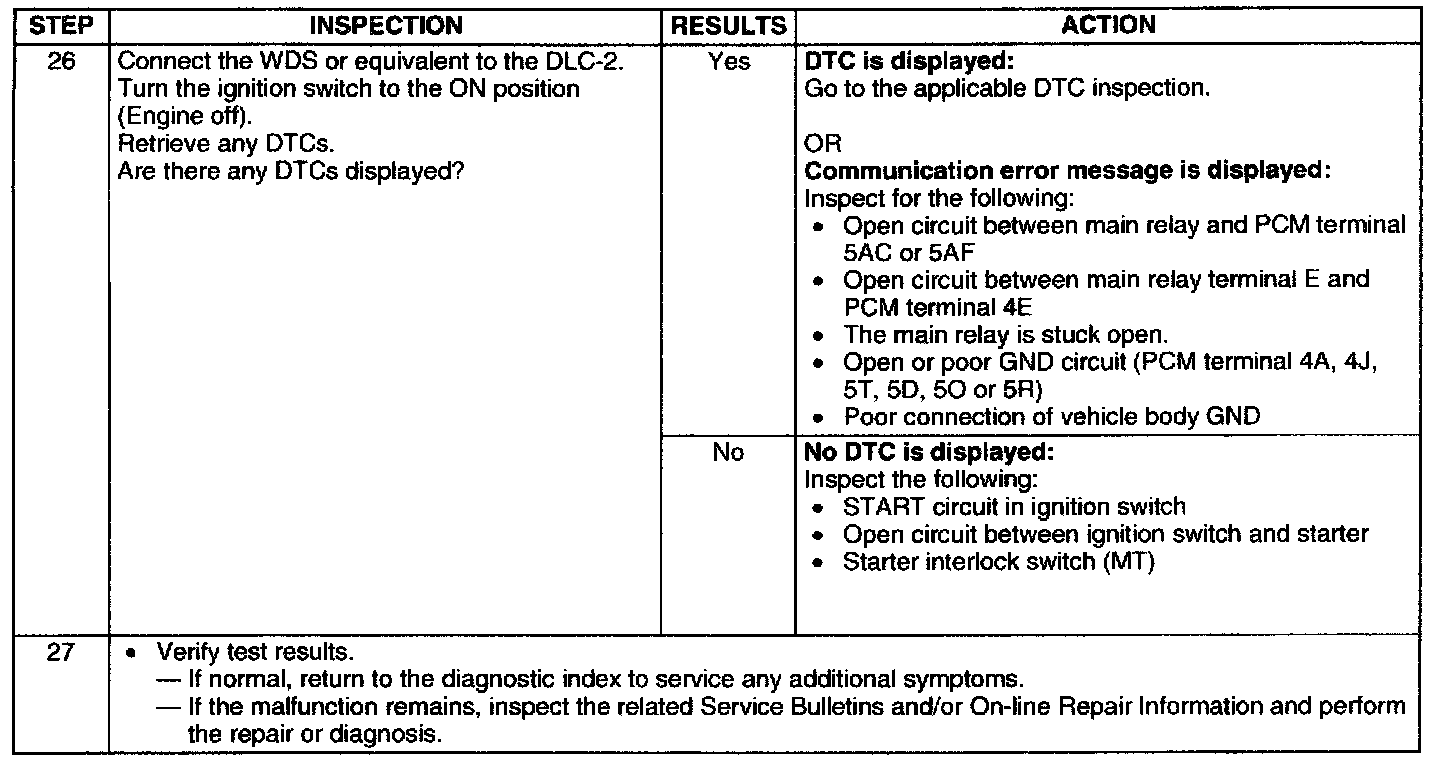

Step 26 - 27:
