Home >> Mazda >> 2004 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Service and Repair >> Disassembly/Assembly

Disassembly/Assembly

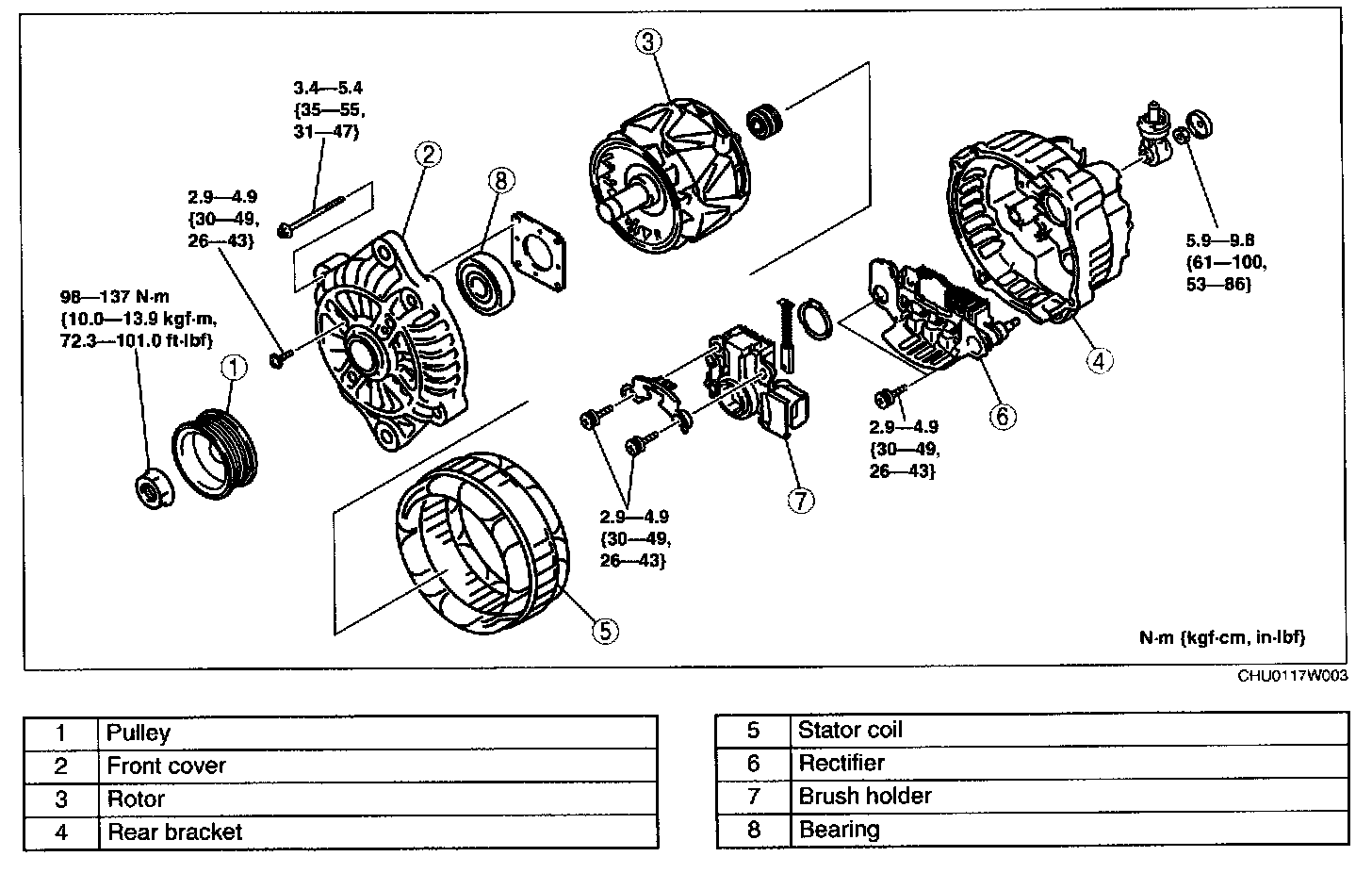

GENERATOR DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.




2. Assemble in the reverse order of disassembly.
