Flywheel
FlywheelRunout limit 0.7 mm (0.028 inch)

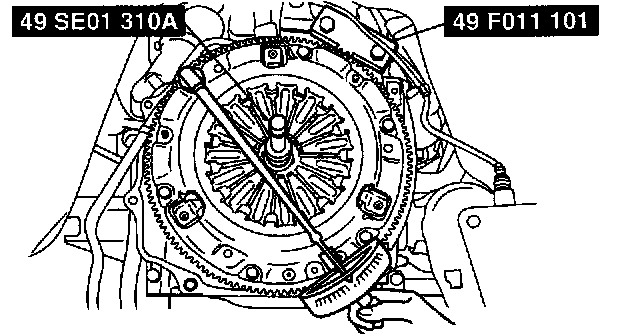

Align the clutch cover with the flywheel knock pin and install.
Tighten the bolts evenly and gradually.
Tightening torque 17.6 - 26.5 Nm (1.80 - 2.70 kgf-cm, 13.0 - 19.5 ft. lbs.)
Runout limit 0.7 mm (0.028 inch)
Align the clutch cover with the flywheel knock pin and install.
Tighten the bolts evenly and gradually.
Tightening torque 17.6 - 26.5 Nm (1.80 - 2.70 kgf-cm, 13.0 - 19.5 ft. lbs.)
