PID/DATA MONITOR Table (Reference)

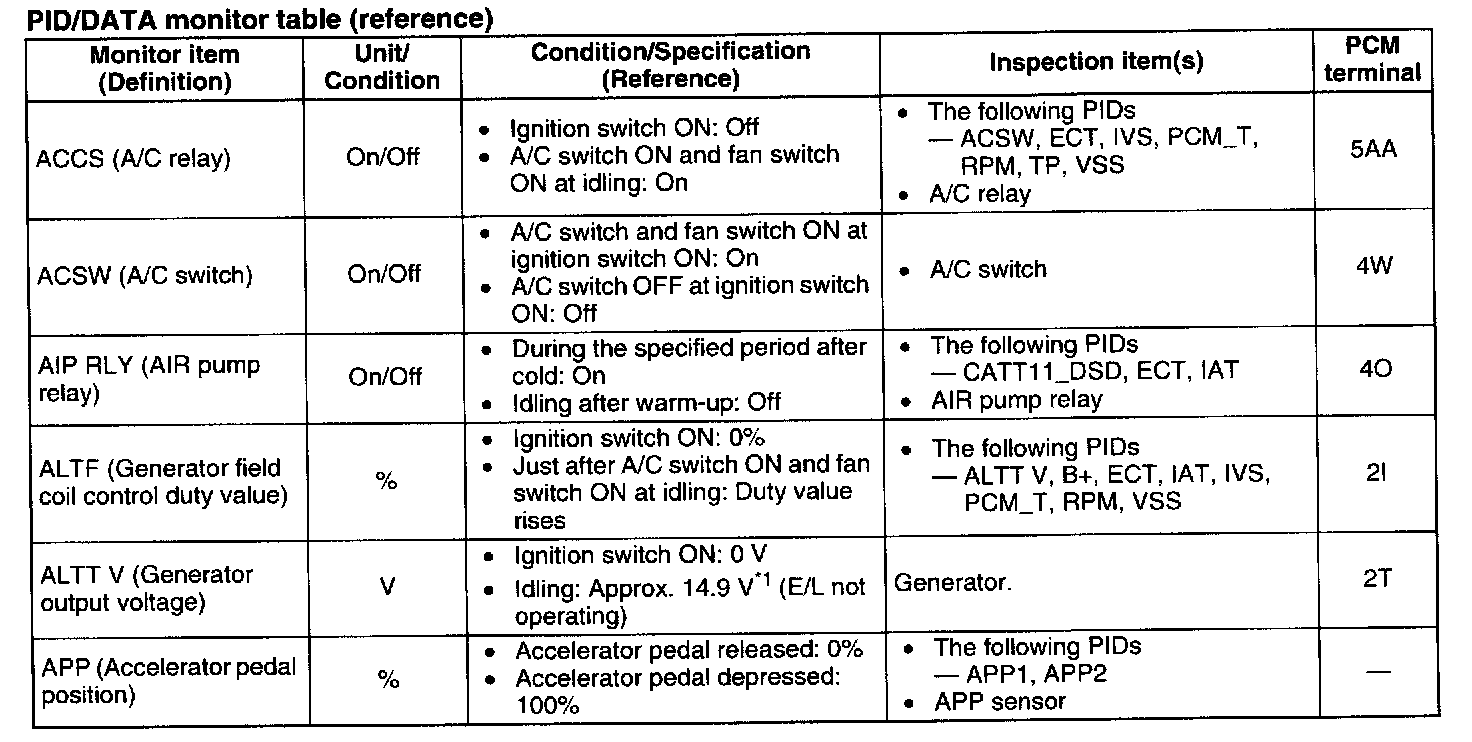

PID/DATA Monitor Table (Reference) Part 1:

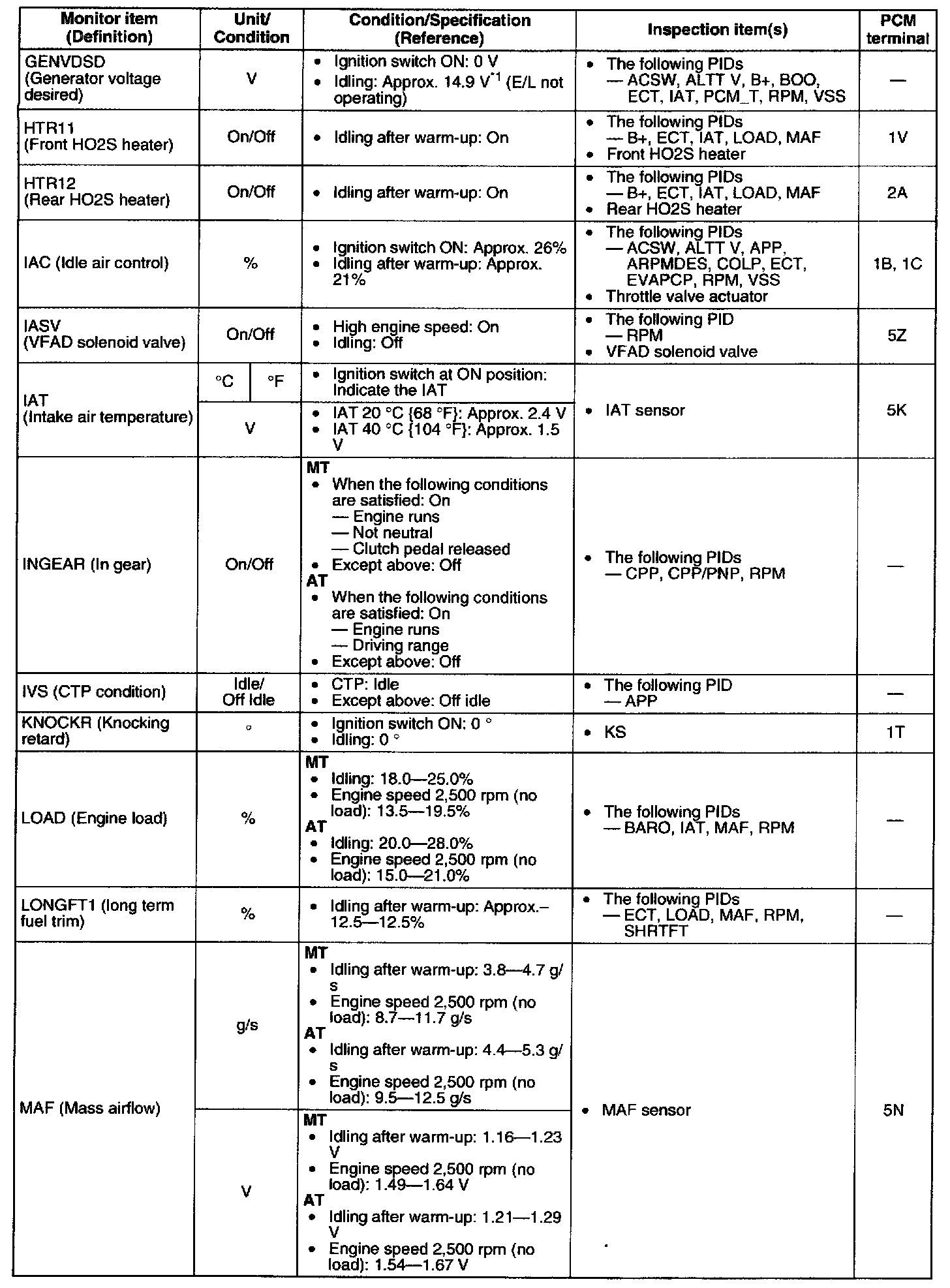

PID/DATA Monitor Table (Reference) Part 2:

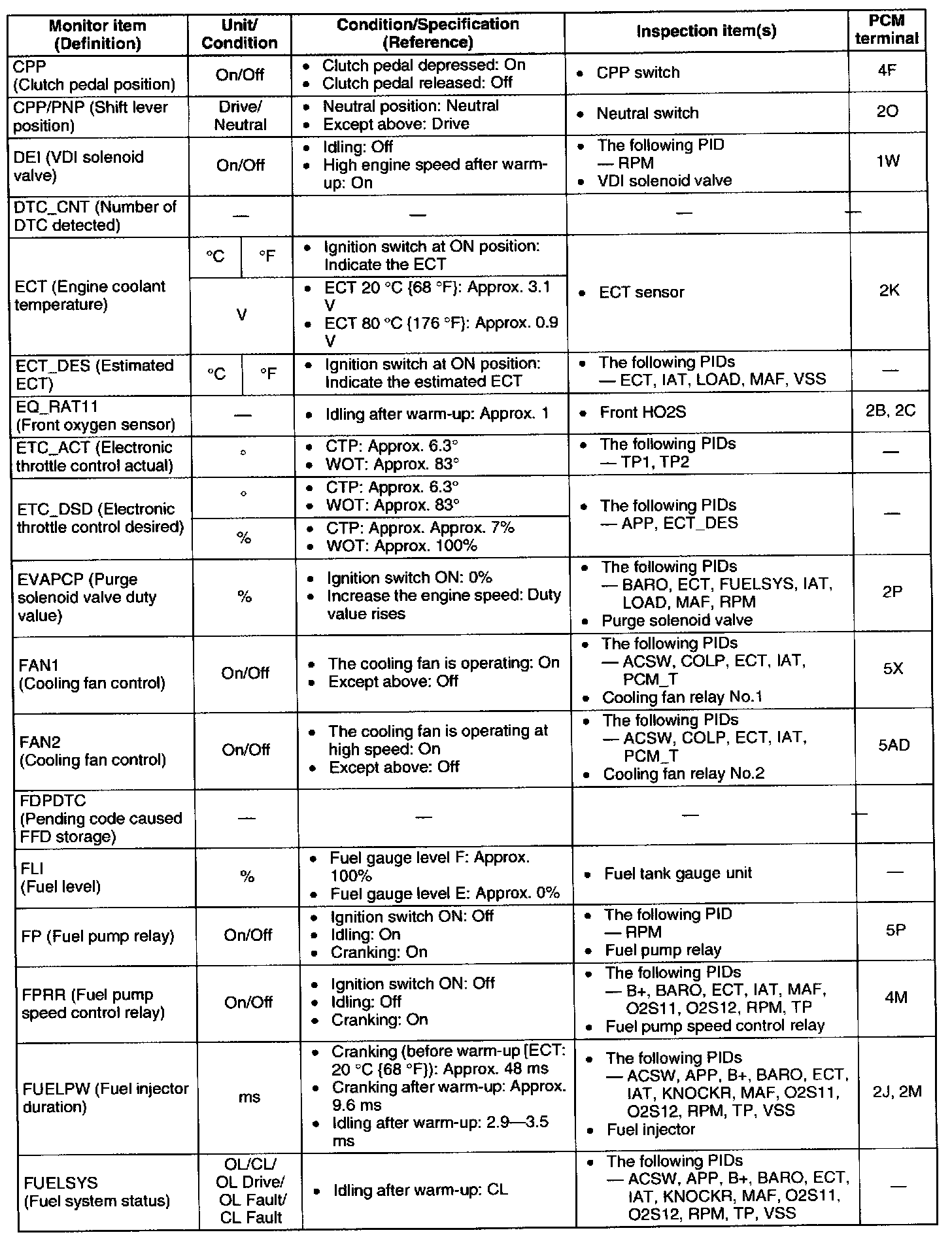

PID/DATA Monitor Table (Reference) Part 3:

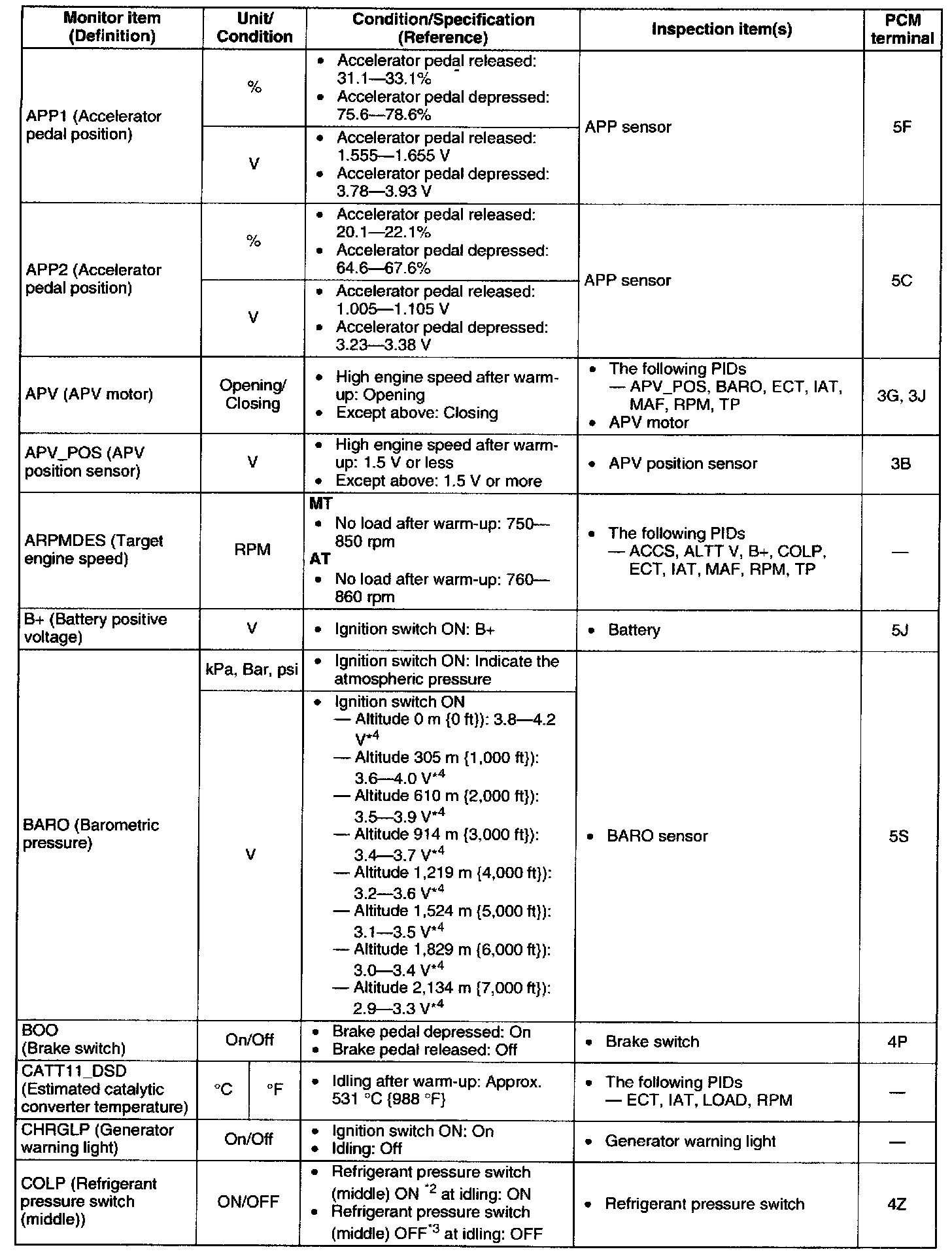

PID/DATA Monitor Table (Reference) Part 4:

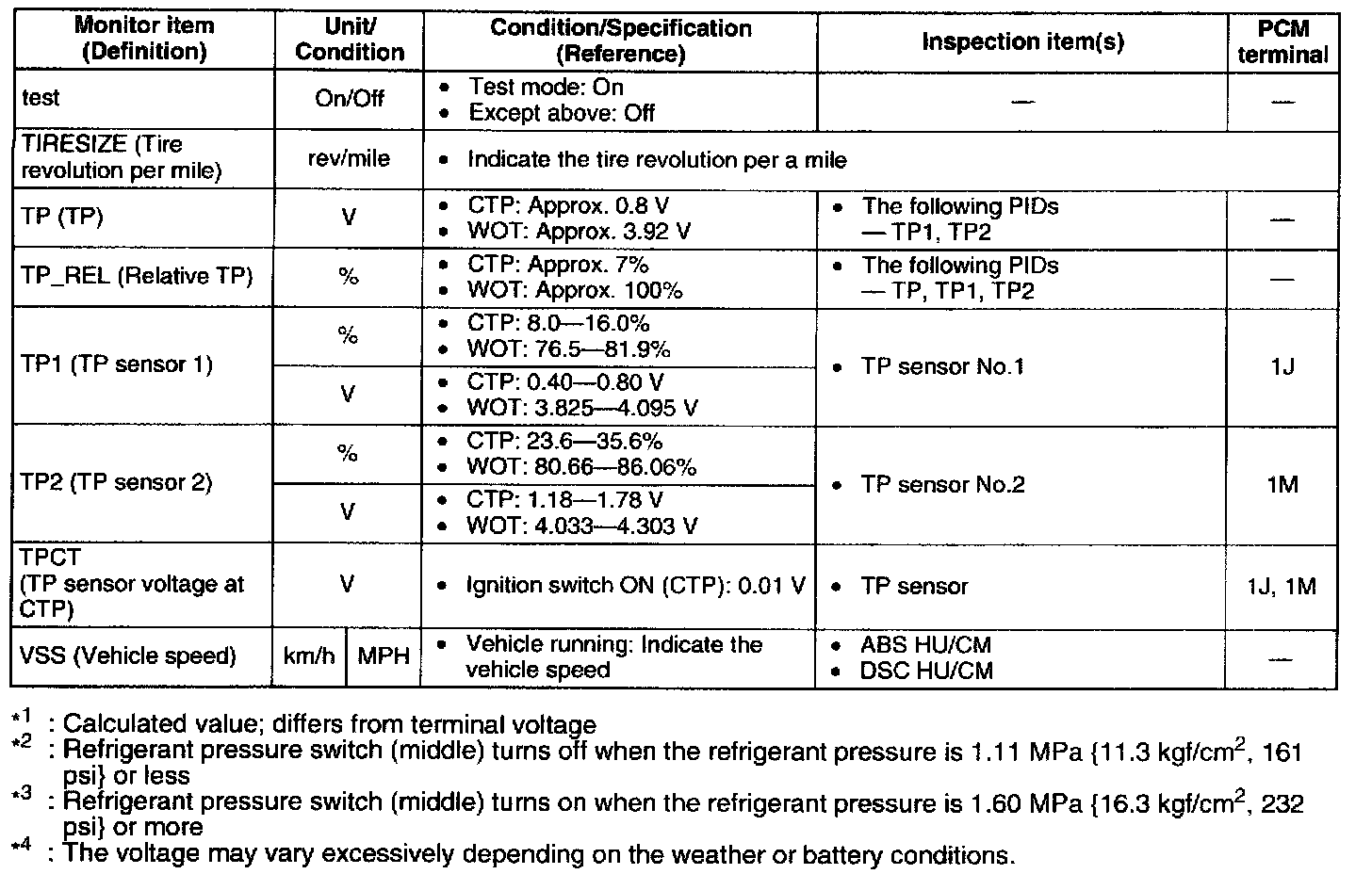

PID/DATA Monitor Table (Reference) Part 5:

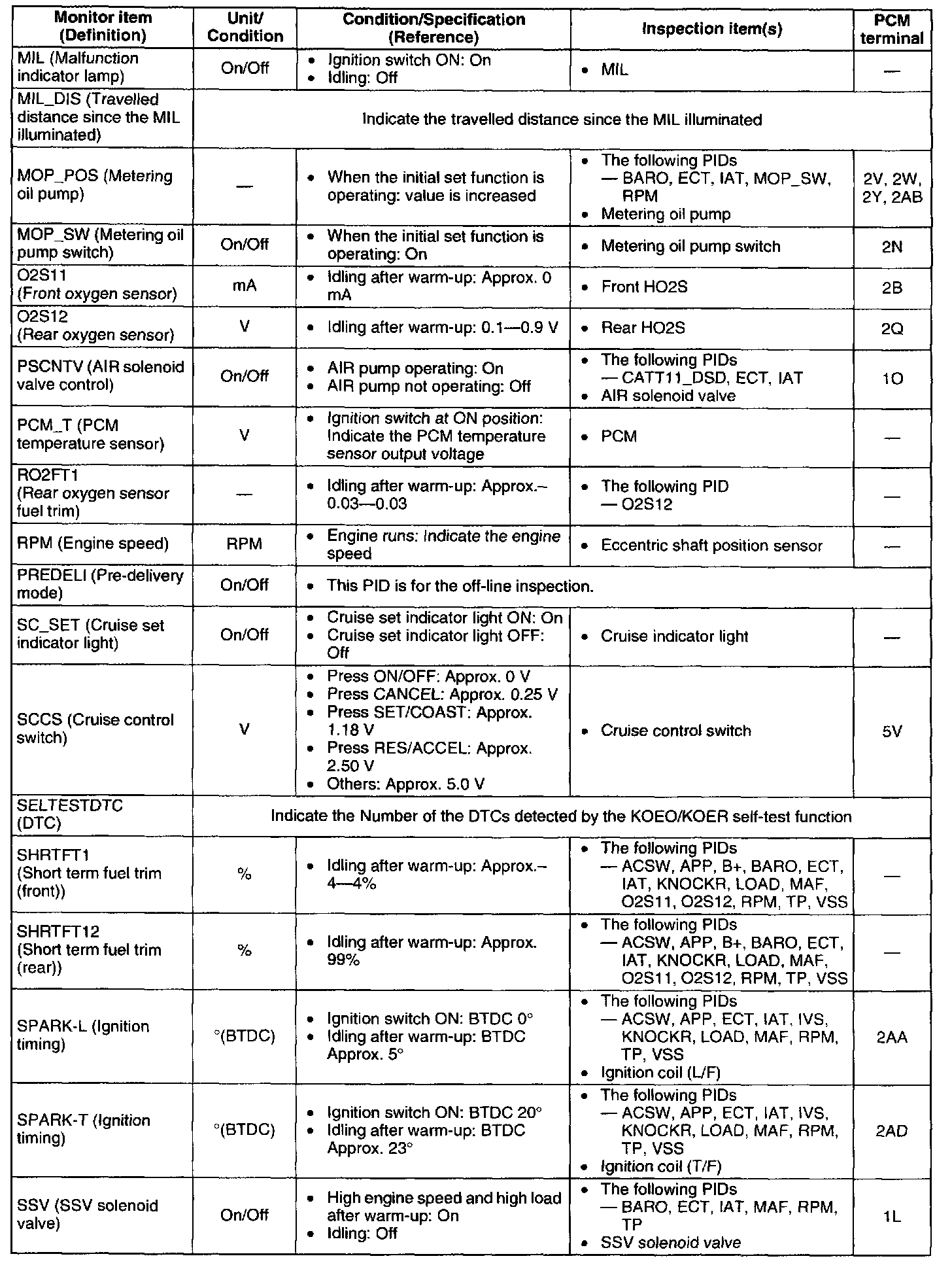

PID/DATA Monitor Table (Reference) Part 6:
