Barometric Pressure Sensor: Service and Repair

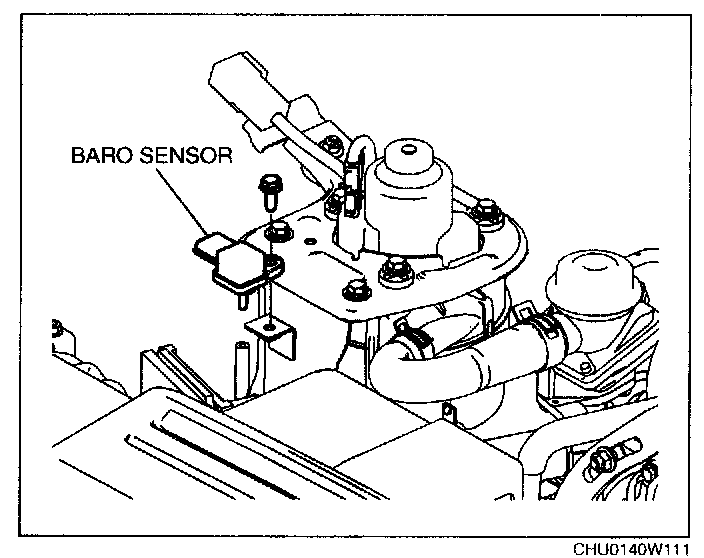

BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION1. Disconnect the BARO sensor connector.
2. Remove the BARO sensor installation bolt and remove the BARO sensor.
3. Install in the reverse order of removal.
BARO sensor tightening torque: 7.8 - 10.8 N.m {80 - 110 kgf.cm, 69 - 95 in.lbf}
