Home >> Mazda >> 2004 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Control Module >> Locations >> Component Locations

Component Locations

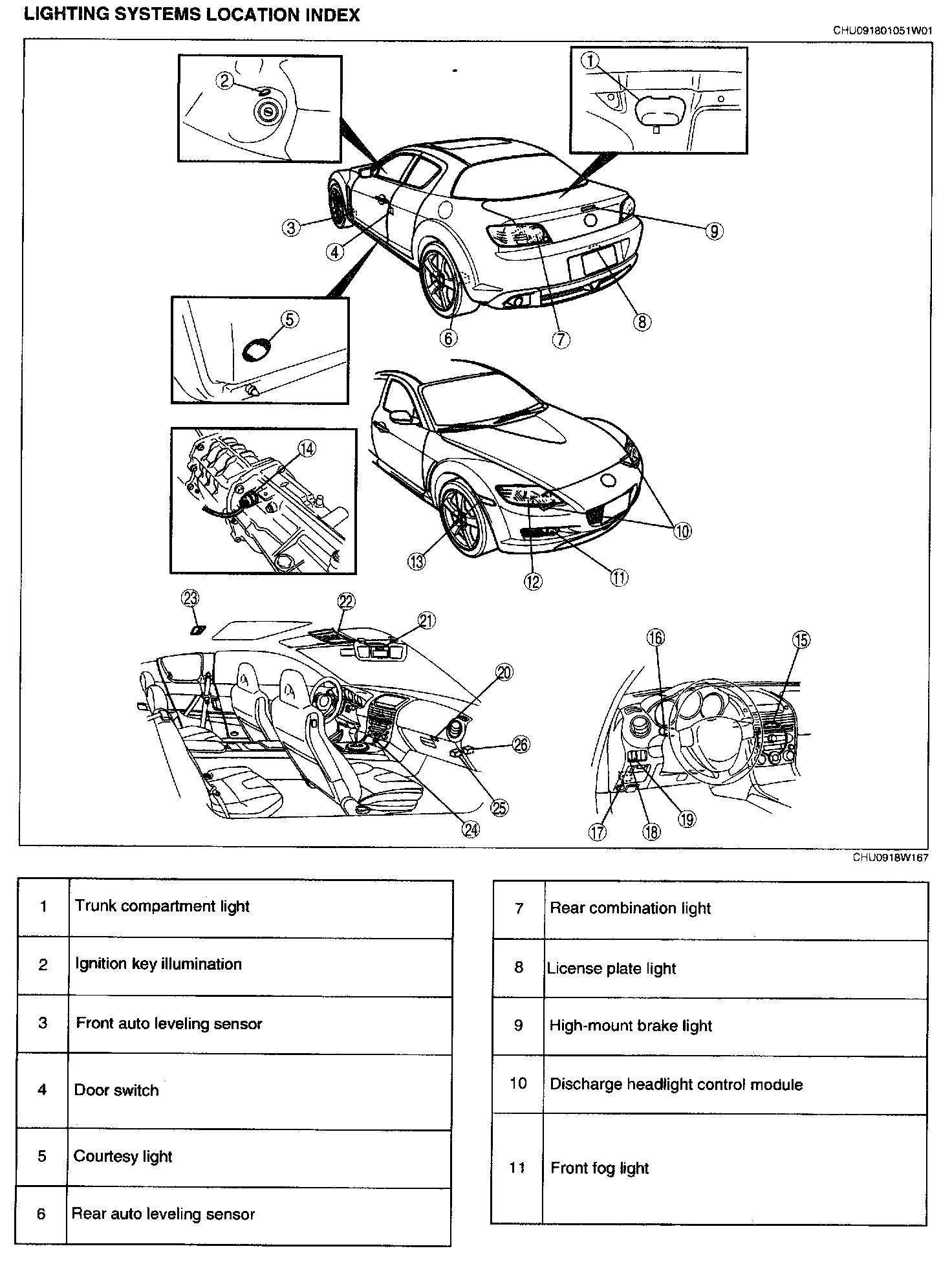

Lighting System Location Index Part 1:

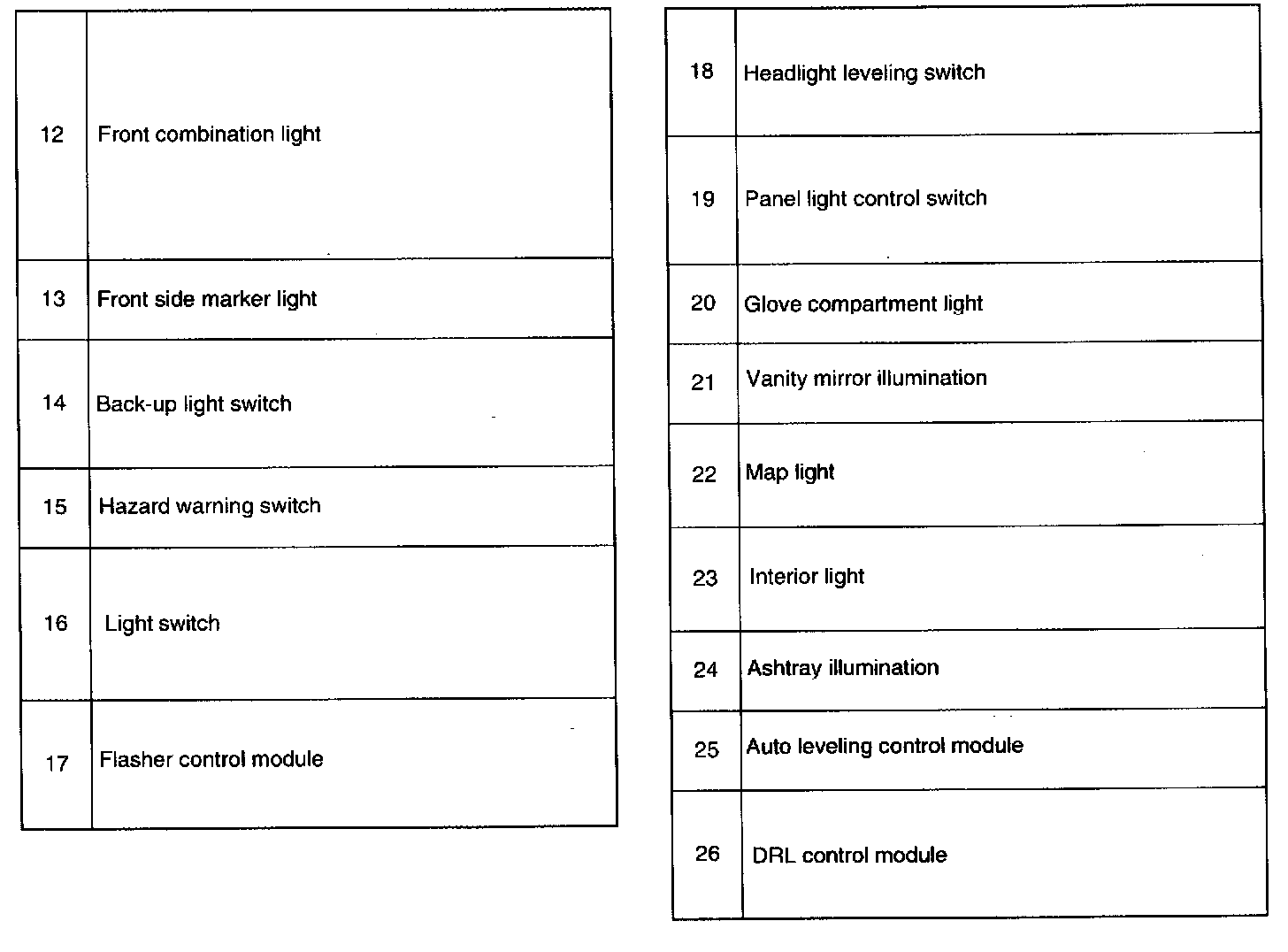

Lighting System Location Index Part 2:
