Home >> Mazda >> 2004 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> ABS HU/CM Inspection

ABS HU/CM Inspection

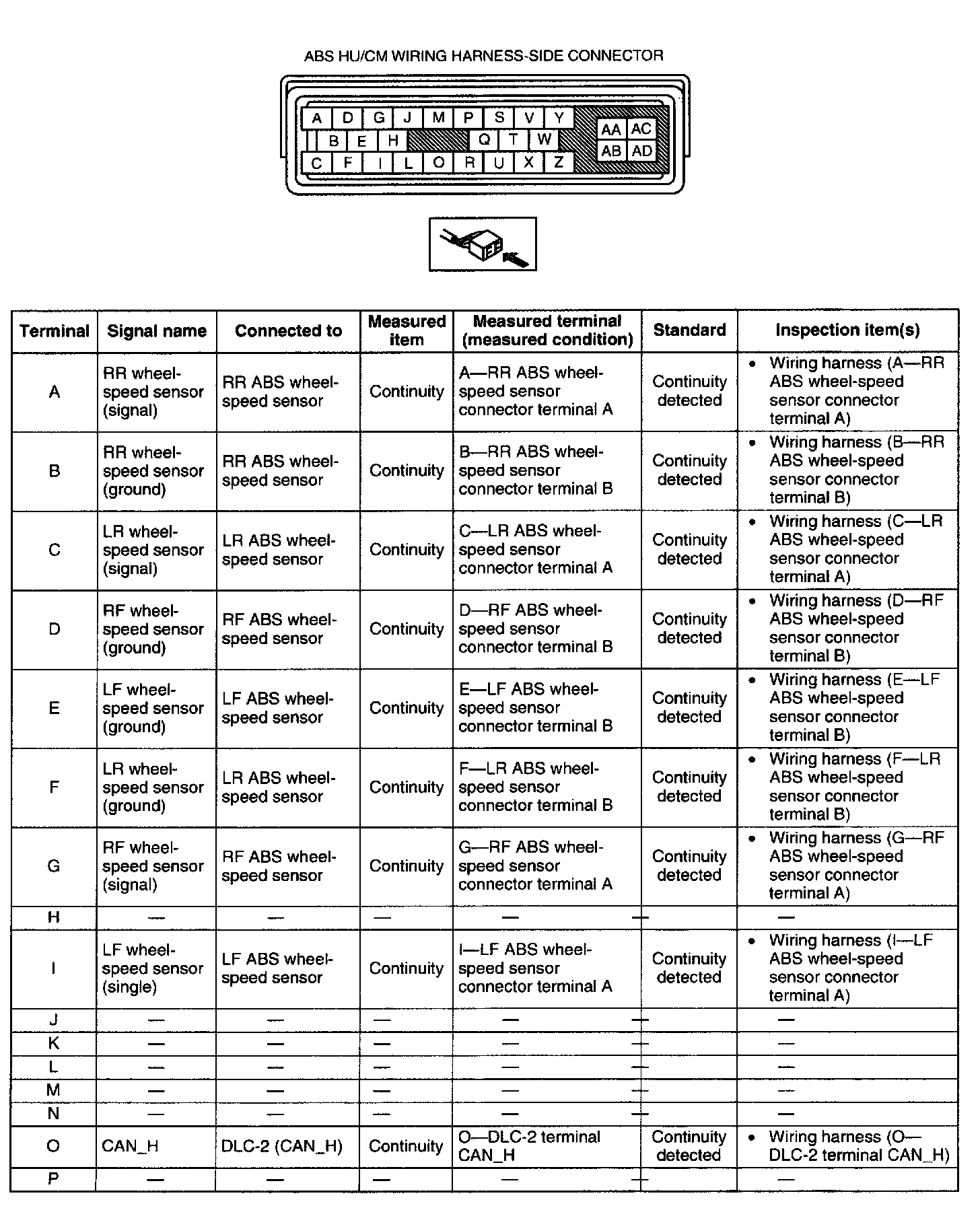

Part 1:

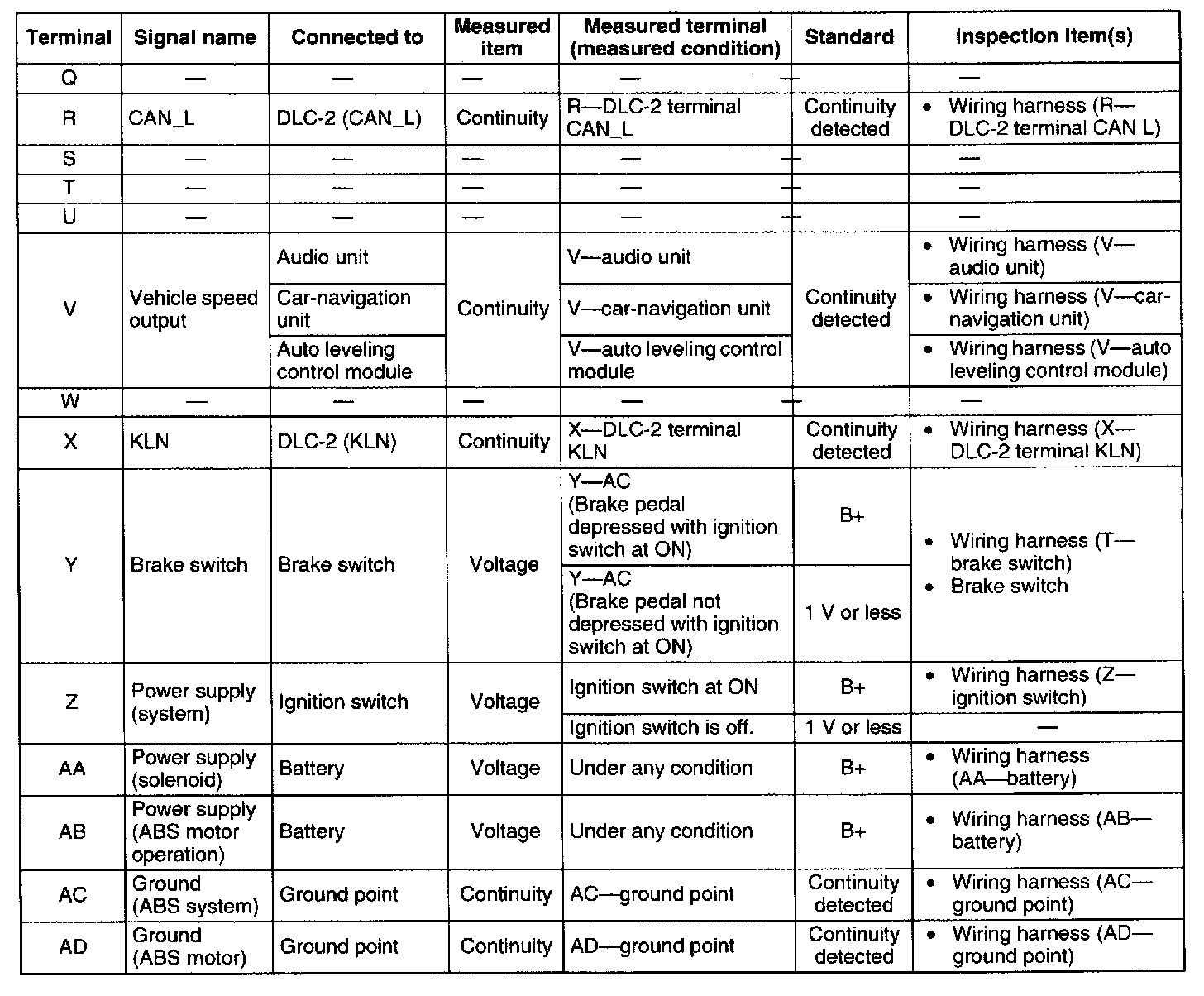

Part 2:





Standard (Reference Value)
