Power Door Lock Control Module: Service and Repair

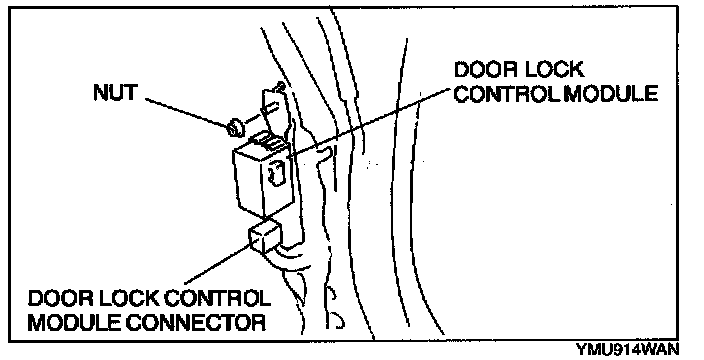

DOOR LOCK CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the passenger-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)




3. Disconnect the door lock control module connector.
4. Remove the nut.
5. Remove the door lock control module.
6. Install in the reverse order of removal.
