Knock Sensor: Service and Repair

KNOCK SENSOR (KS) REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Raise and support the vehicle.




3. Disconnect the knock sensor (KS) electrical connector.

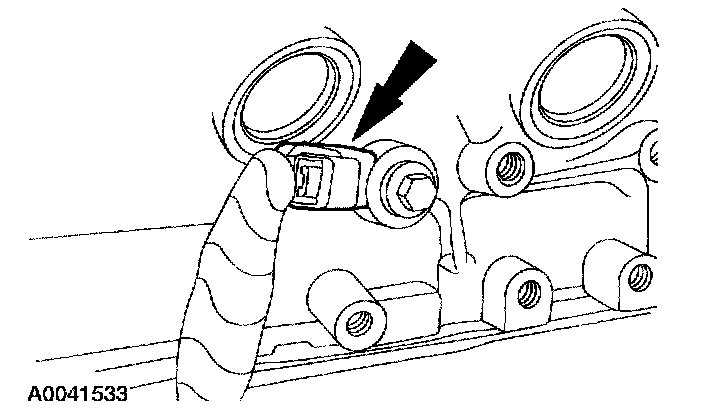

4. Remove the bolt and the KS.

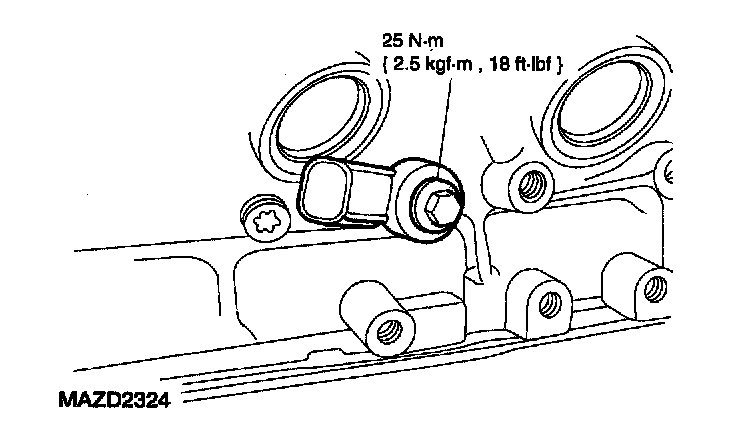

5. To install, reverse the removal procedure.
