Terminals

INSPECTION

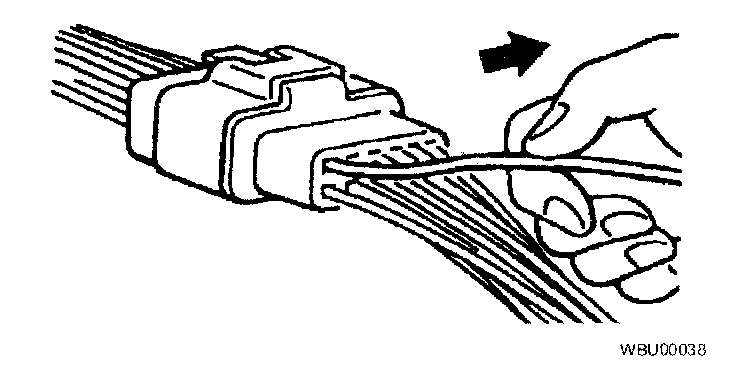

- Pull lightly on individual wires to check that they are secured in the terminal




REPLACEMENT

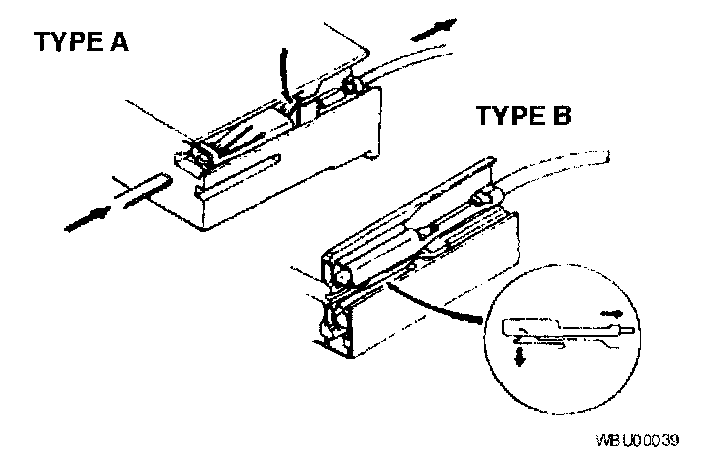

- Use the appropriate tools to remove a terminal as shown While installing a terminal, be sure to insert it until it locks securely
- Insert a thin piece of metal from the terminal side of the connector and with the terminal locking tab pressed down pull the terminal out from the connector.
