Home >> Mazda >> 2004 >> B2300 L4-2.3L VIN D >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

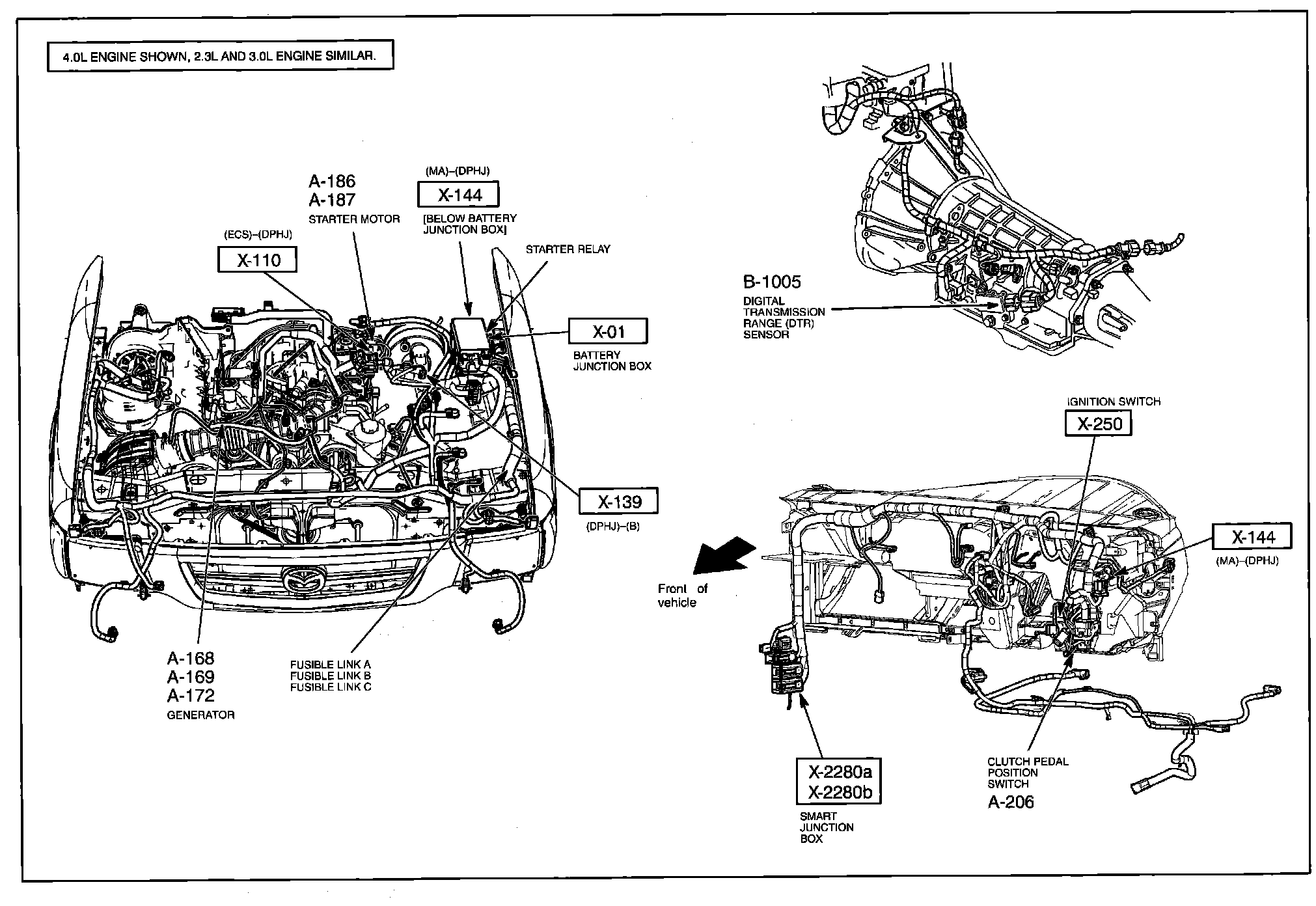

Routing View A-1:

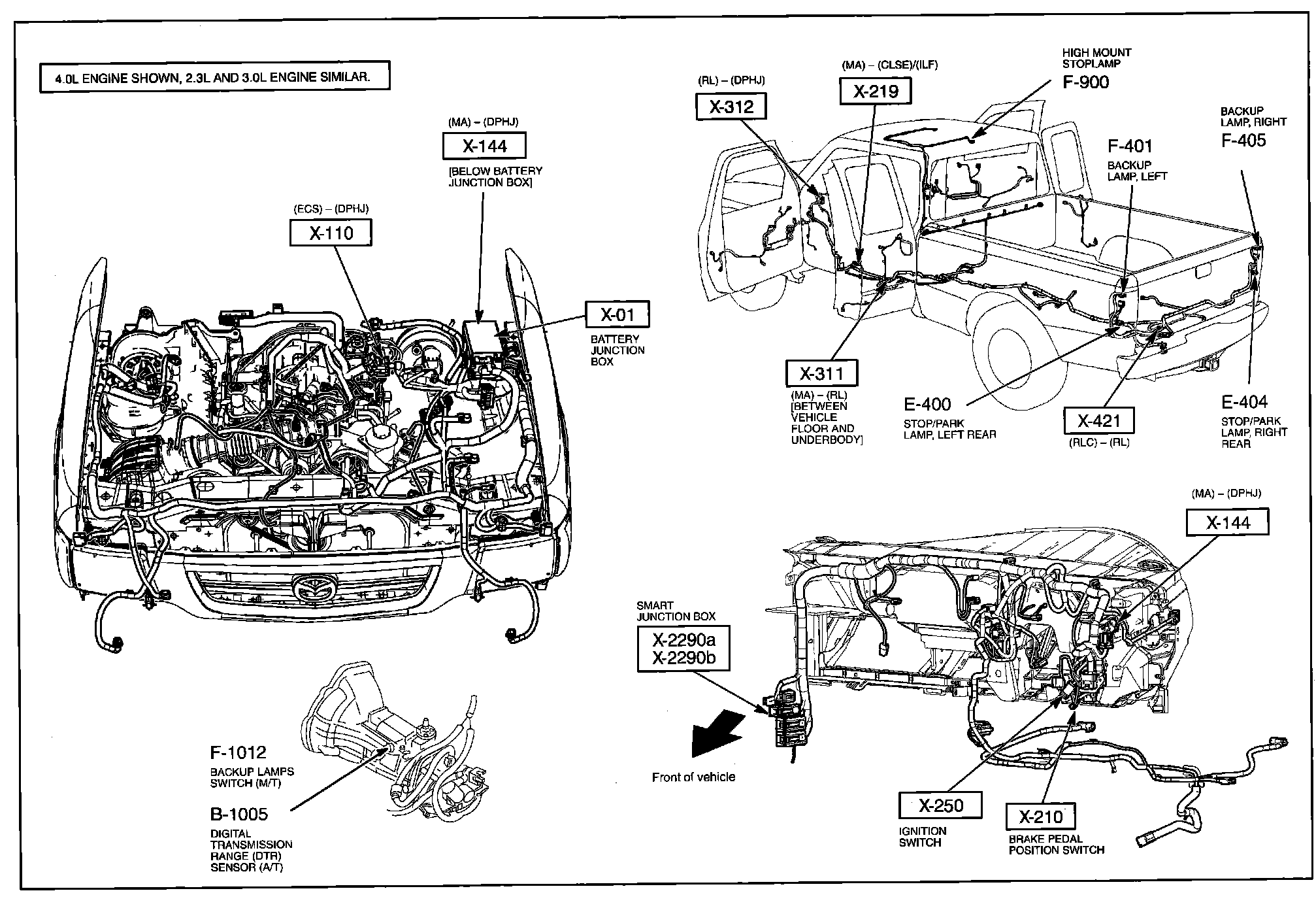

Routing View F-2:
