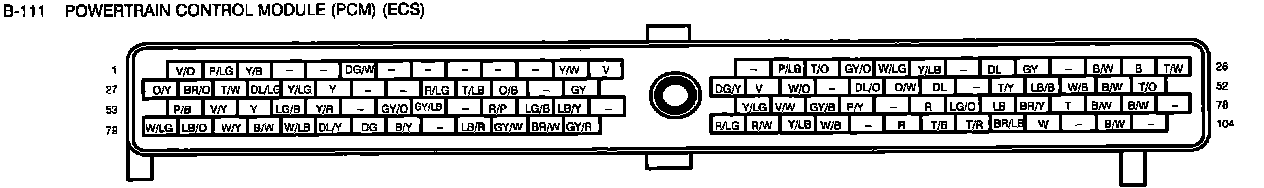

Engine Control Module

2.3L (M/T) Terminal Voltage (Reference)

NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.

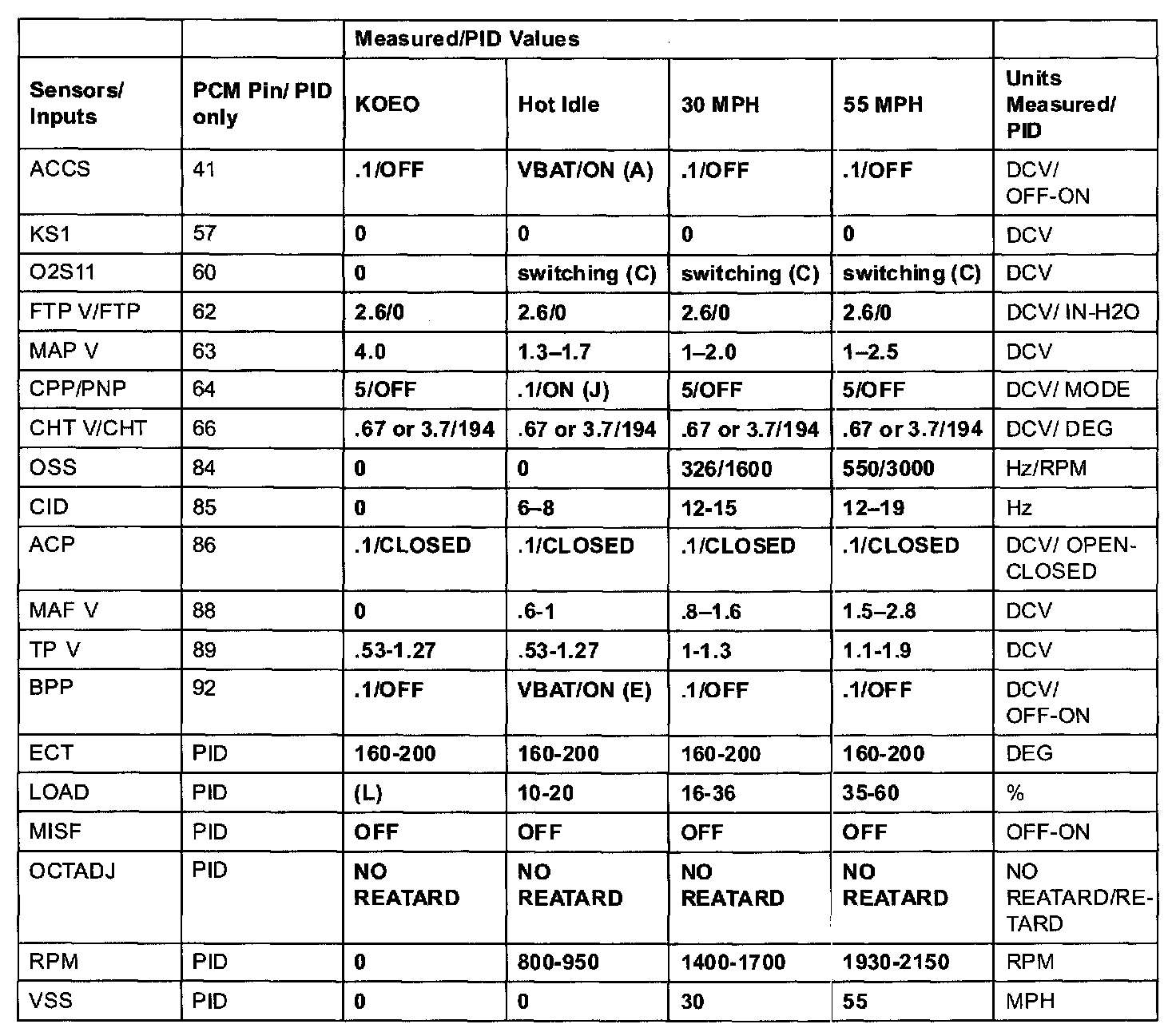

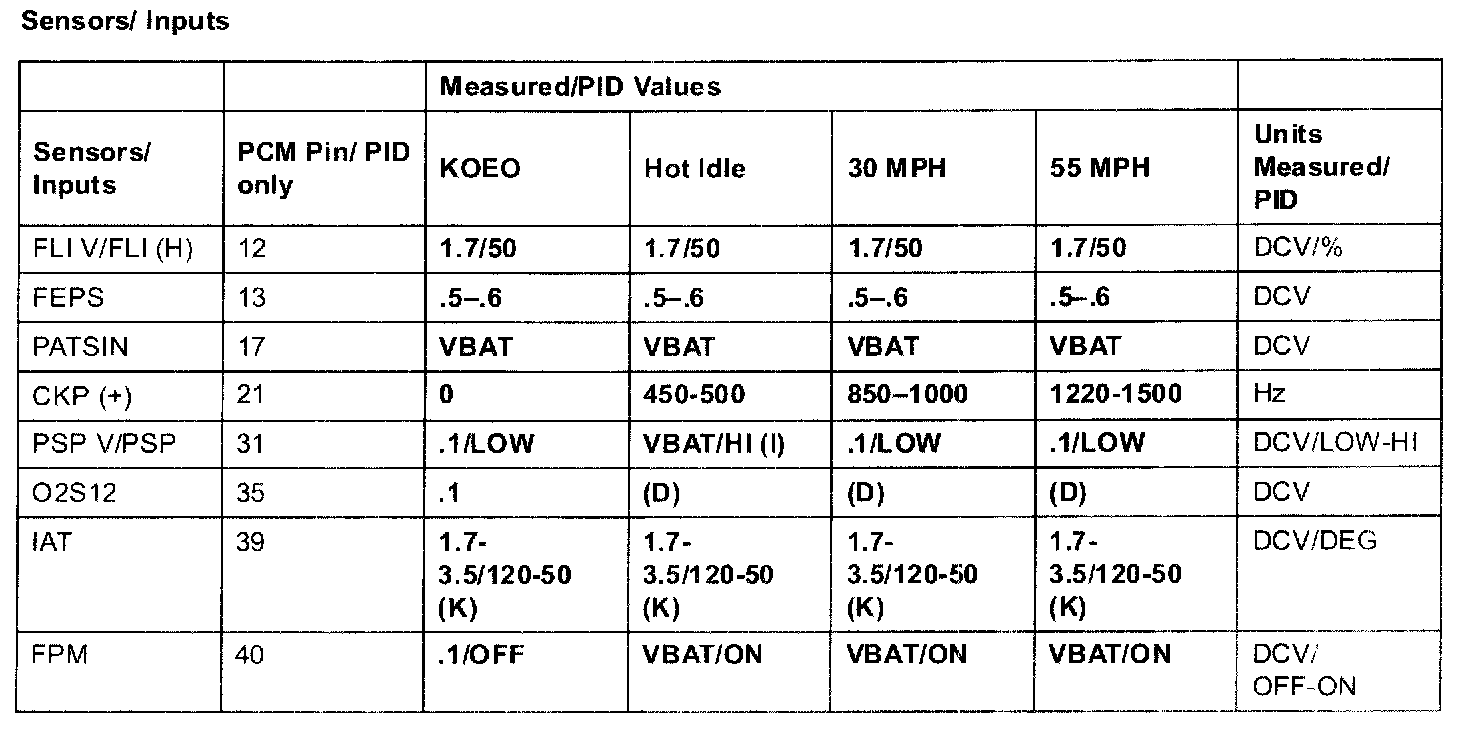

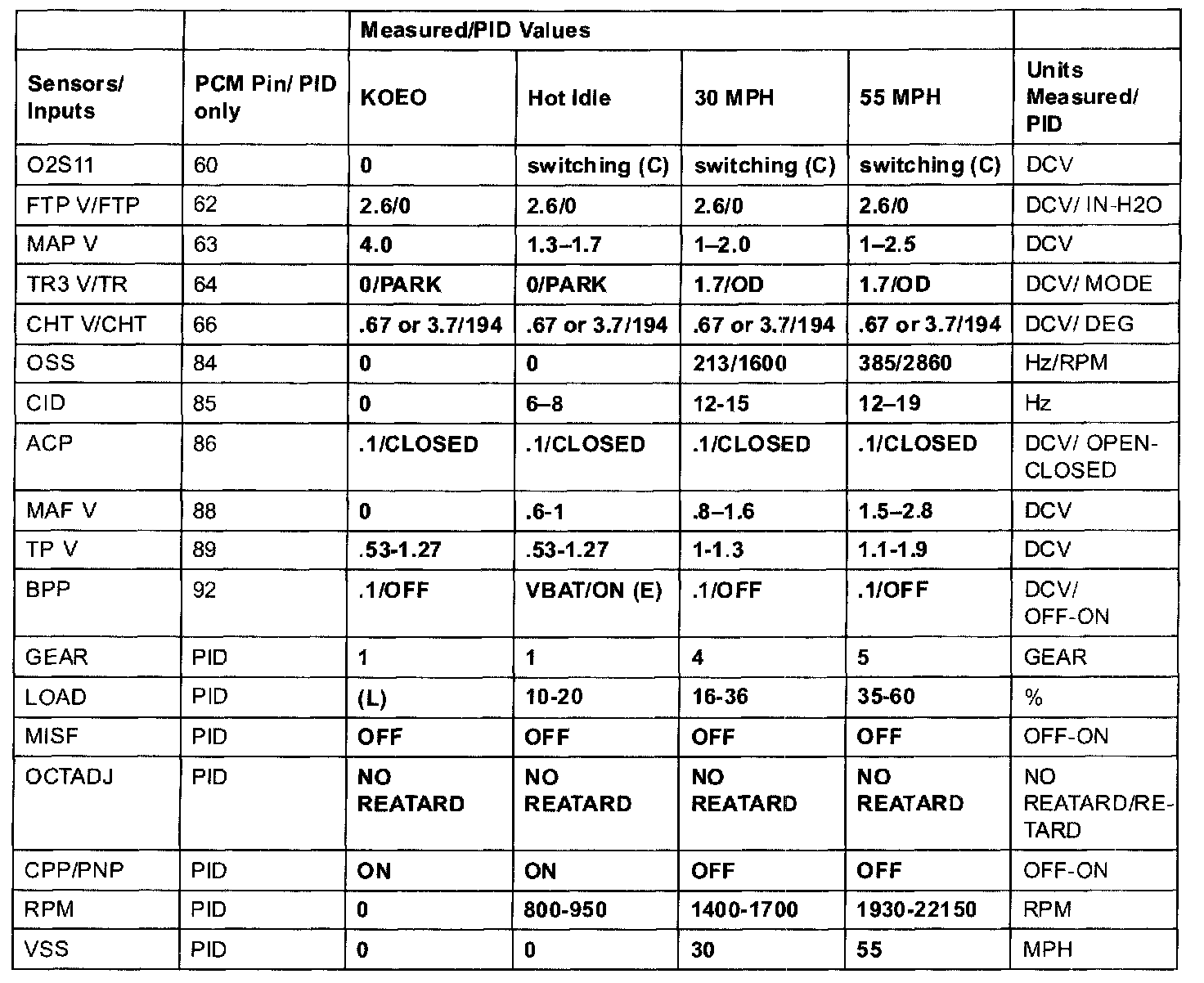

Sensor/Inputs

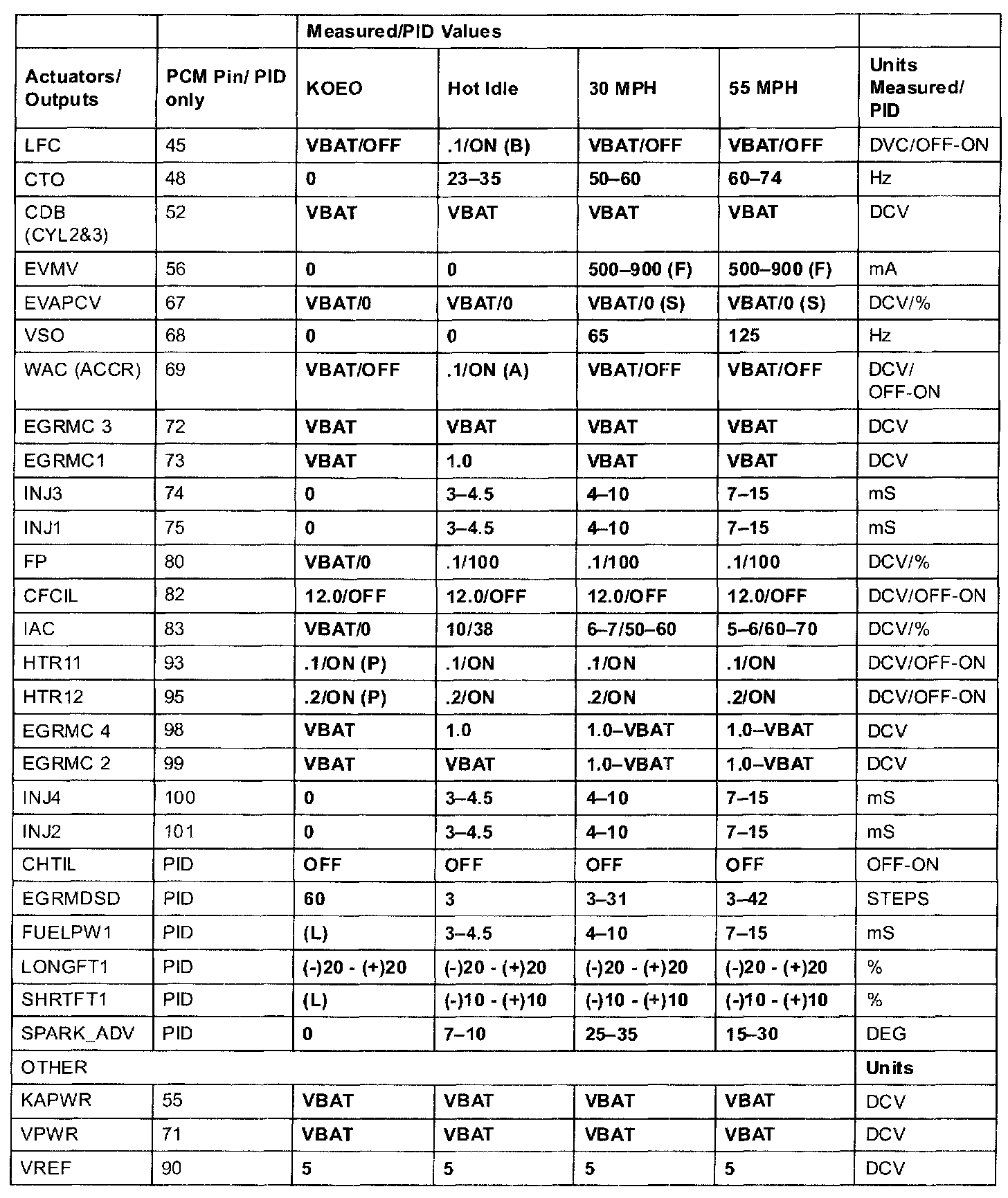

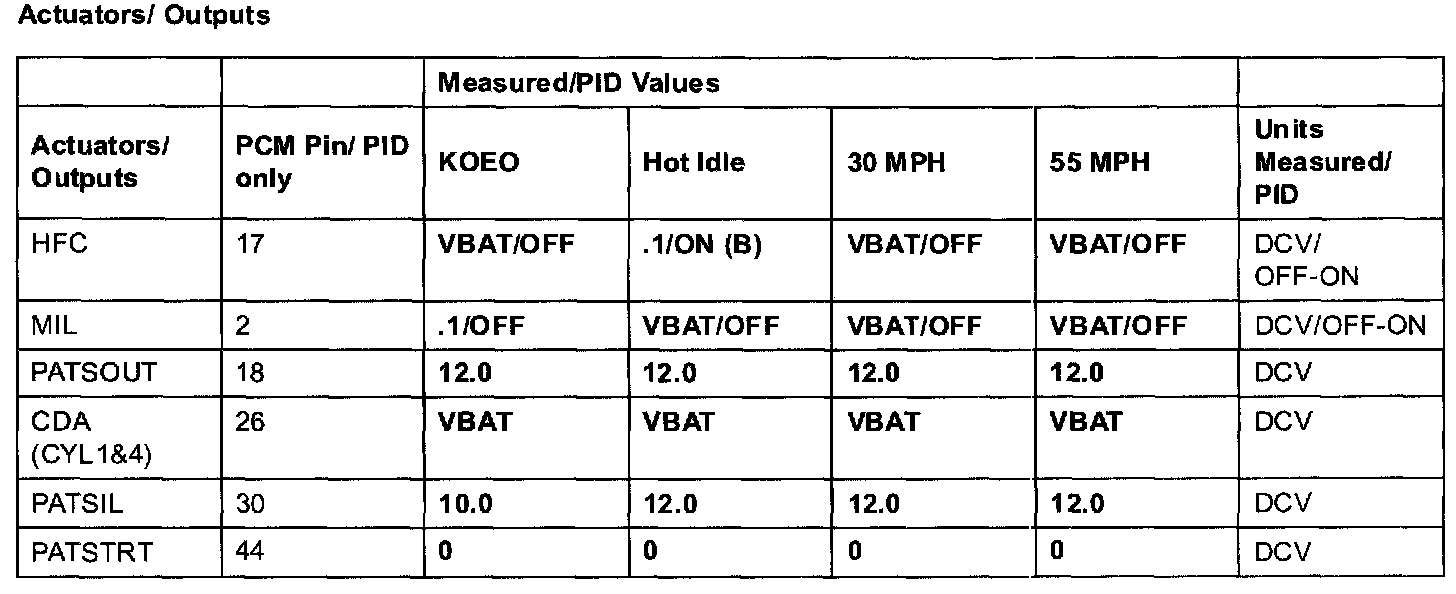

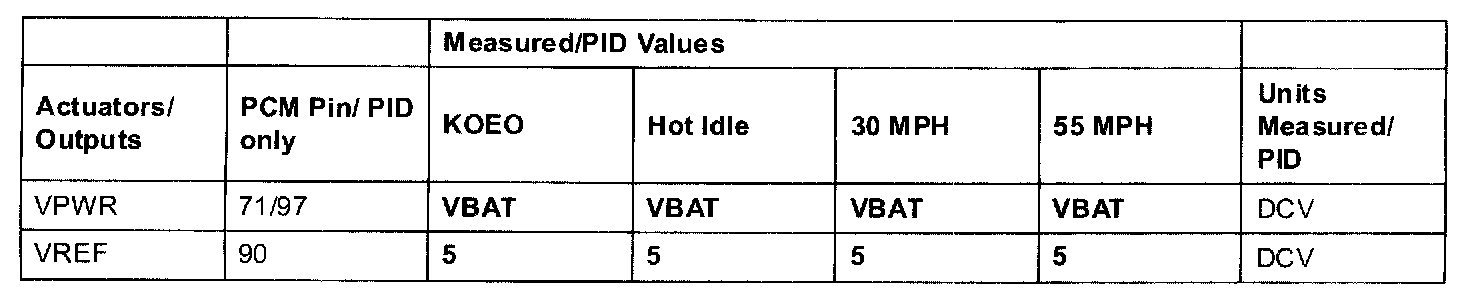

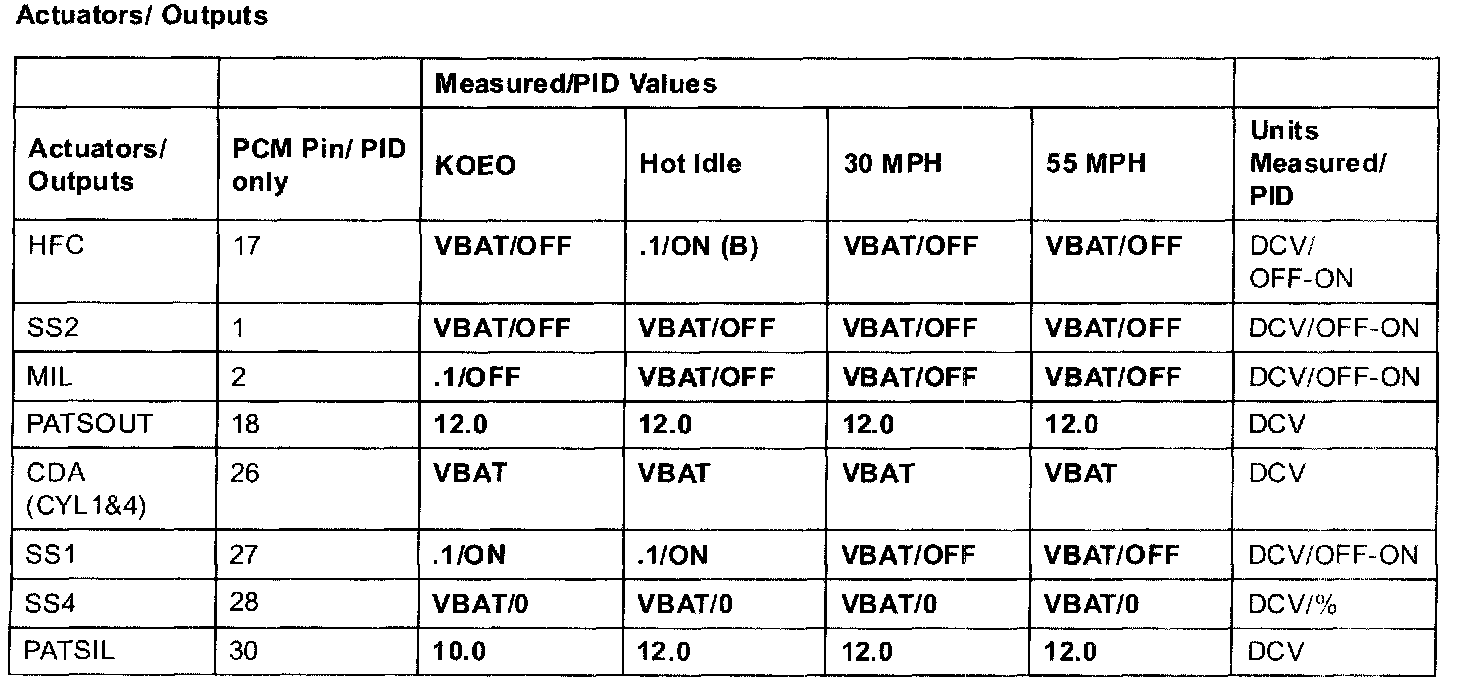

Actuators/Outputs

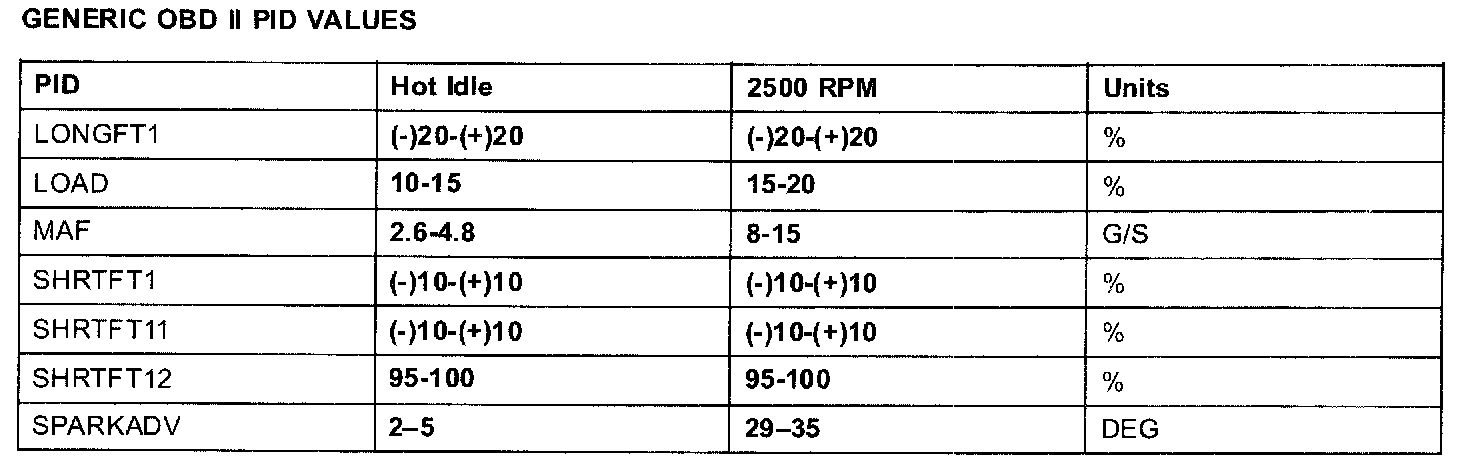

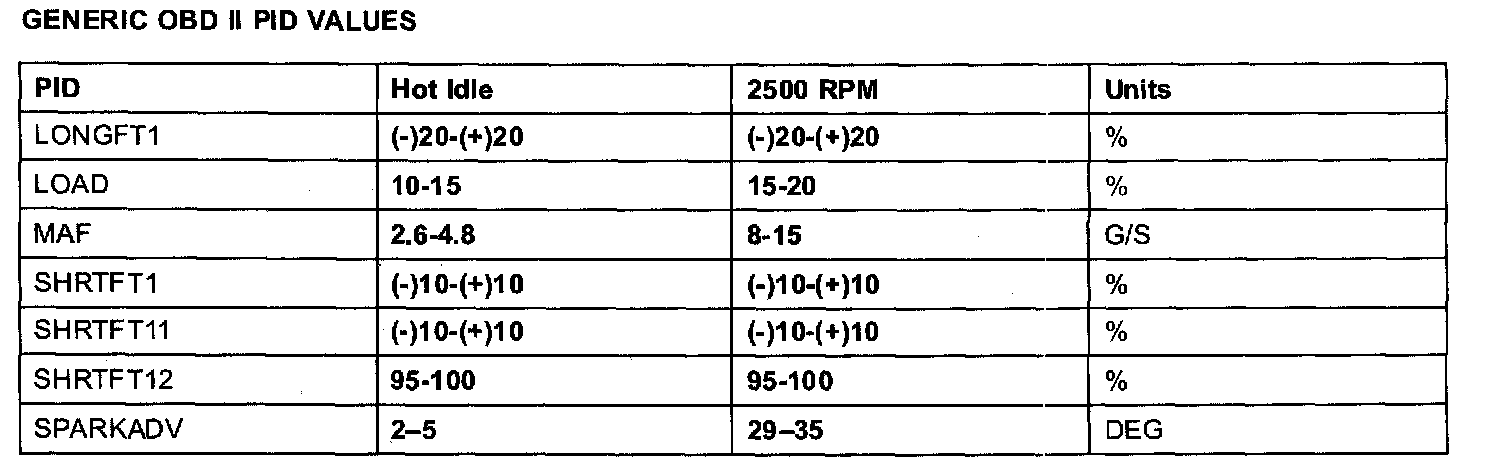

GENERIC OBD II PID VALUES

2.3L (A/T) Terminal Voltage (Reference)

NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.

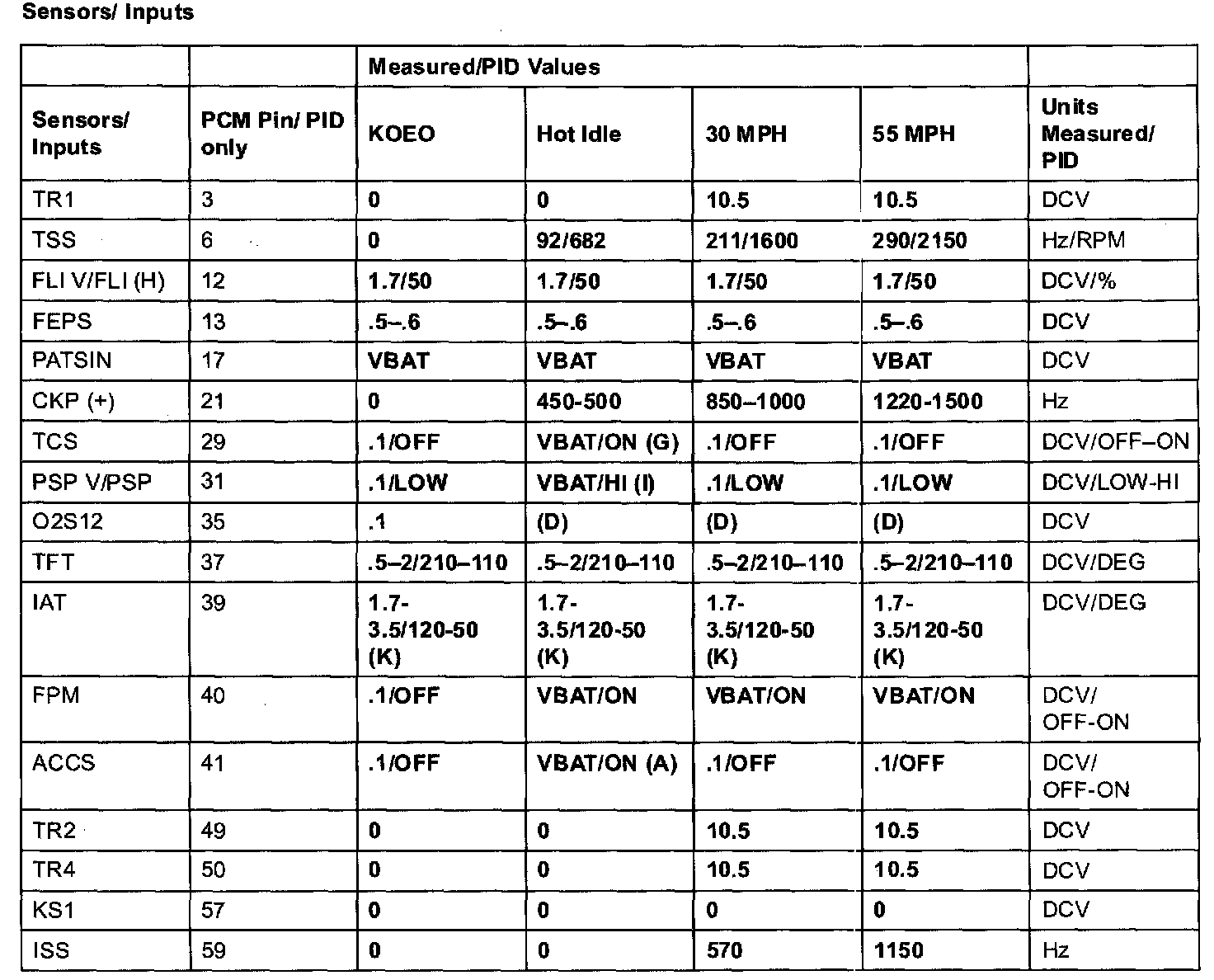

Sensor/Inputs

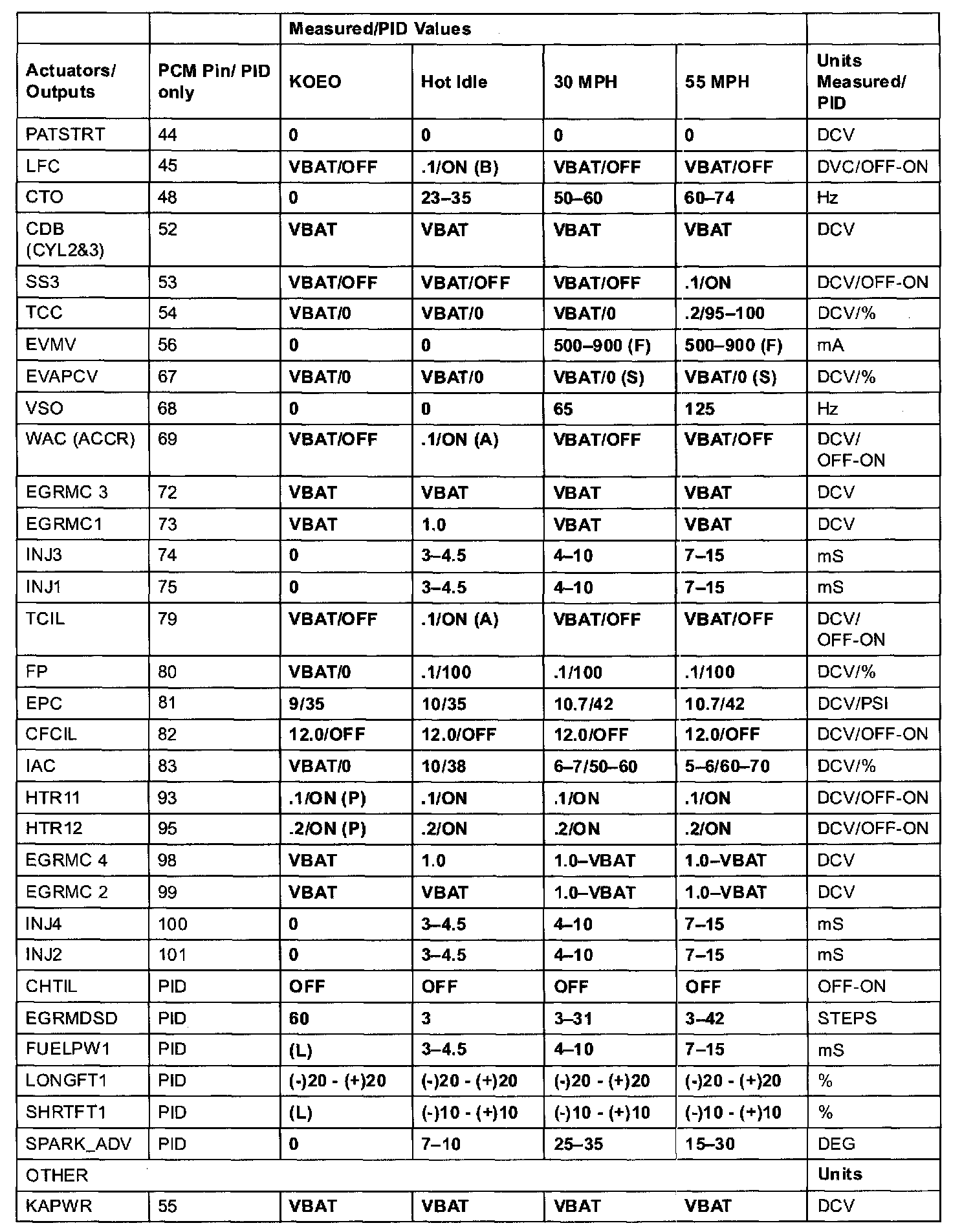

Actuators/Outputs




GENERIC OBD II PID VALUES
